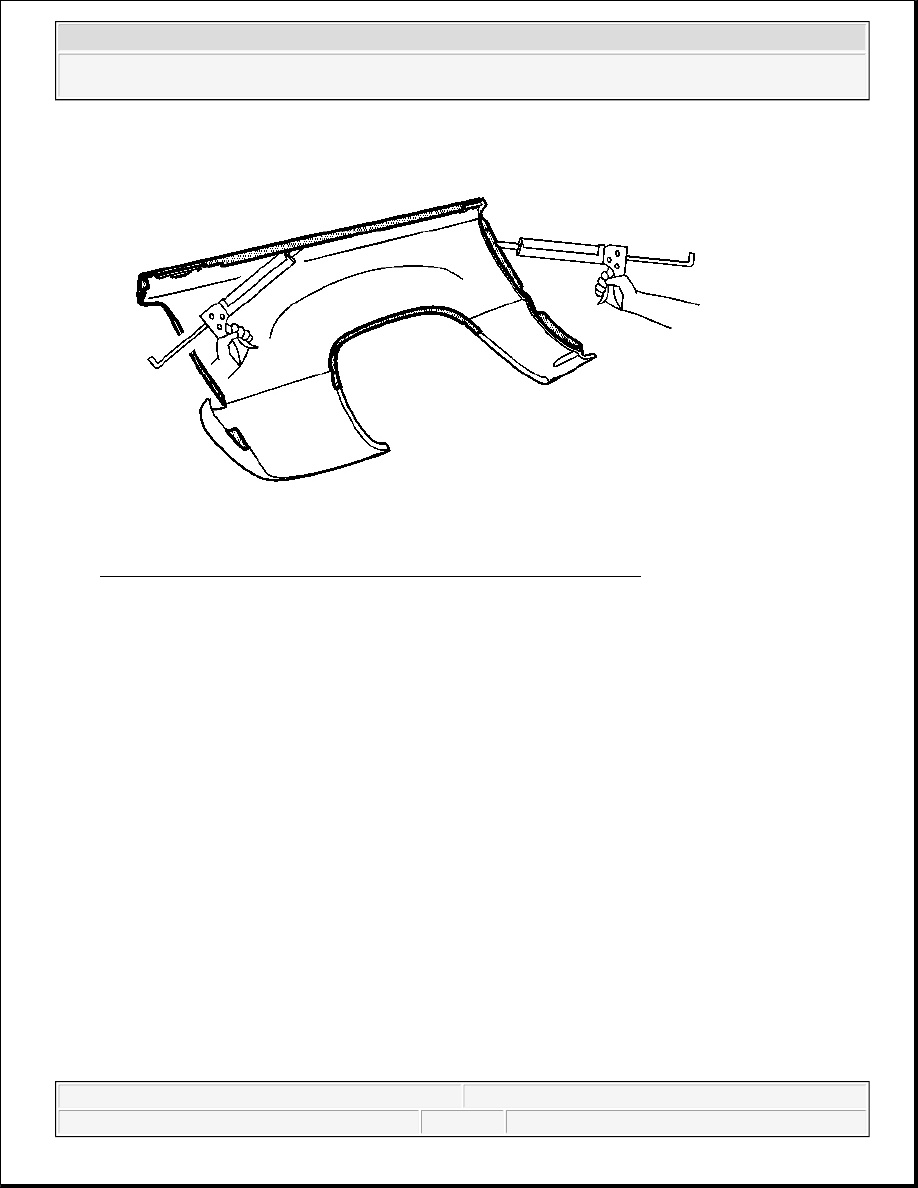

Fig. 127: Applying Metal Panel Bonding Adhesive To Mating Surfaces
Courtesy of GENERAL MOTORS CORP.

6. Apply a 9-13 mm (3/8-1/2 in) bead of metal panel bonding adhesive to the mating surface of the service

side panel.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 138

© 2005 Mitchell Repair Information Company, LLC.

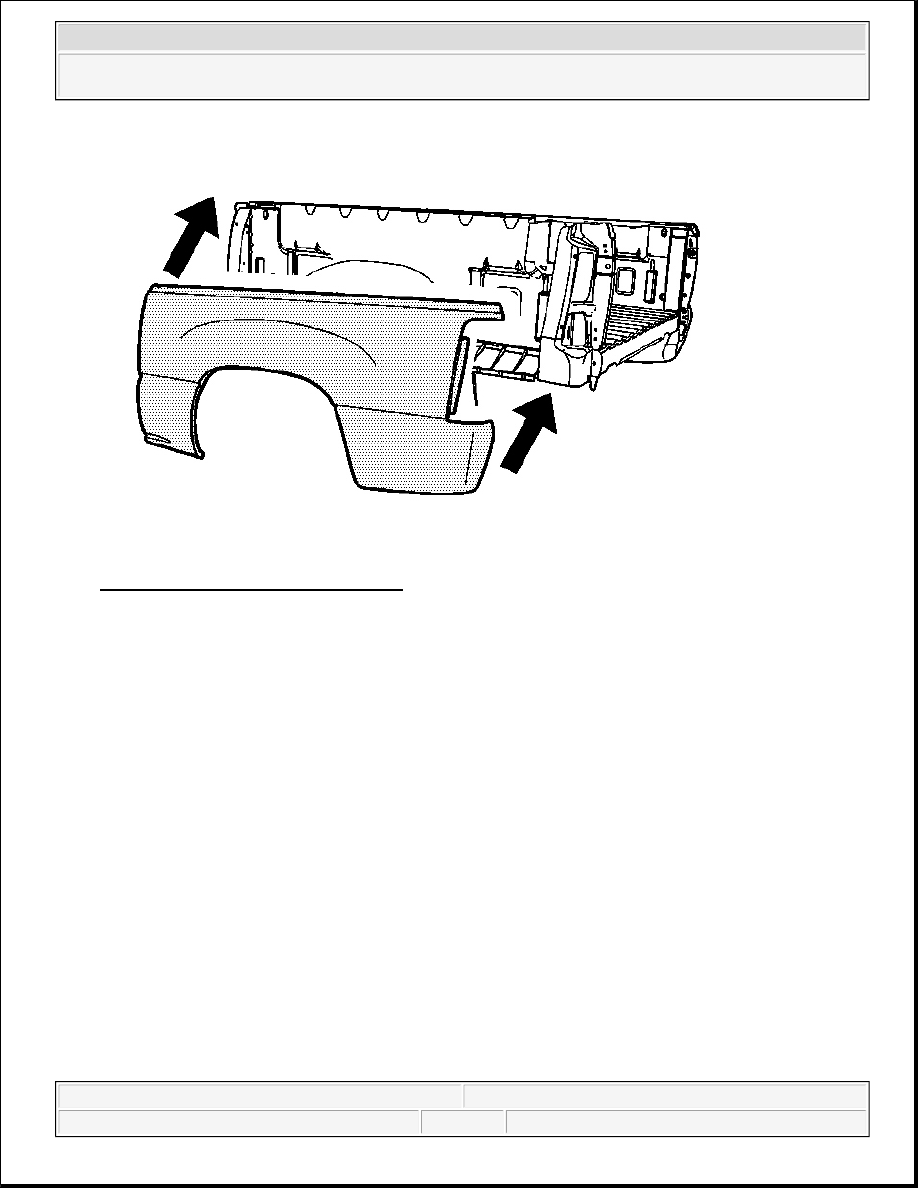

Fig. 128: Identifying Service Side Panel
Courtesy of GENERAL MOTORS CORP.

7. Position the service side panel to the bed assembly.

IMPORTANT: Do NOT pull the panels apart after you have joined the panels together.

Slide the panels against each other to realign the panels.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 139

© 2005 Mitchell Repair Information Company, LLC.

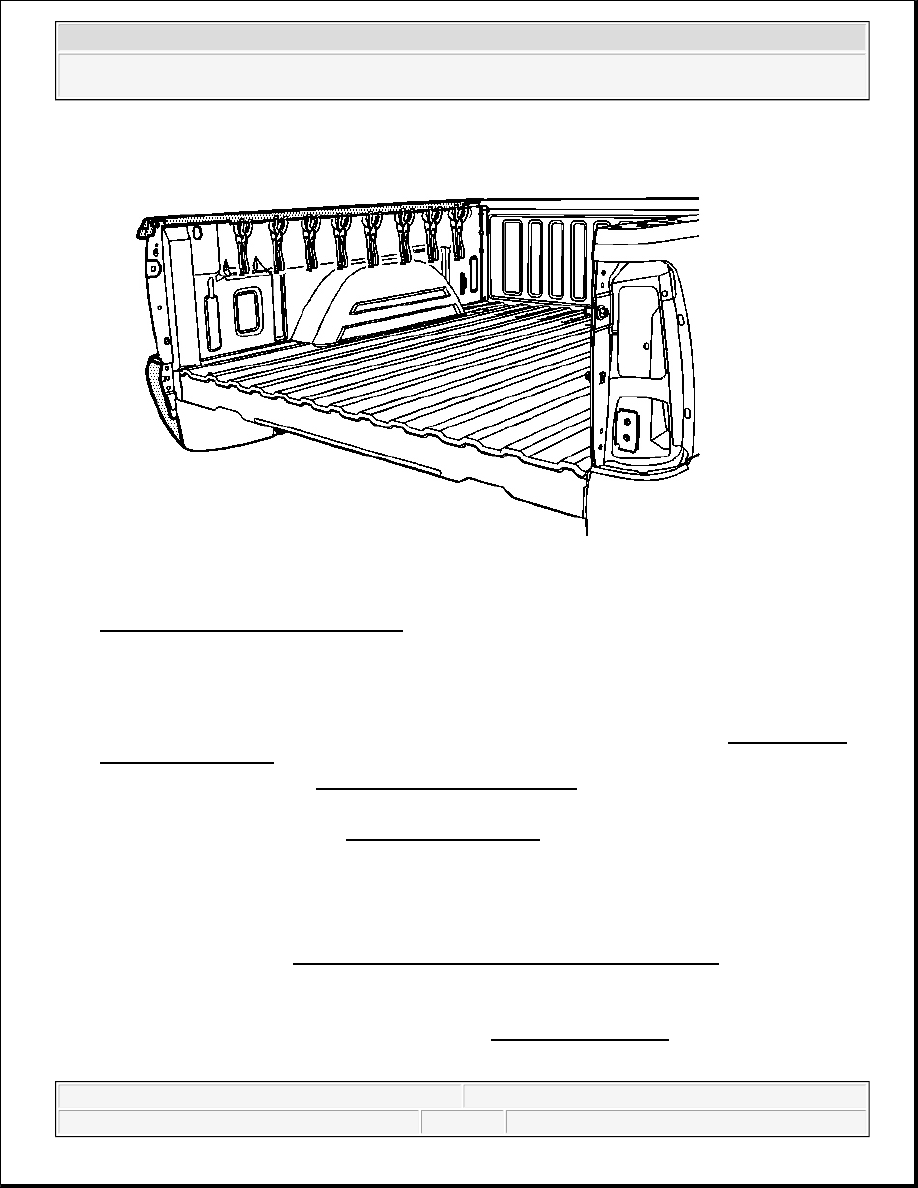

Fig. 129: Identifying Service Side Panel
Courtesy of GENERAL MOTORS CORP.

8. Clamp the service side panel into position.

9. Using lacquer thinner remove the excess adhesive from the bed side panel area.

10. Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to Anti-Corrosion

Treatment and Repair .

11. Paint the repair area. Refer to Basecoat/Clearcoat Paint Systems .

12. Install all related panels and components.

13. Install the box assembly. Refer to Pickup Box Replacement .

PICKUP BOX OUTER SIDE PANEL REPLACEMENT (WELD-ON)

Removal Procedure

CAUTION: Refer to Approved Equipment for Collision Repair Caution .

IMPORTANT: Before you begin the repair, refer to Metal Panel Bonding for proper adhesive

preparations and general information.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 140

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the box assembly. Refer to Pickup Box Replacement .

2. Remove all related panels and components.

3. Repair as much of the damage as possible, according to factory specifications.

4. Note the location and remove the sealers and anti-corrosion materials from the repair area, as necessary.

Refer to Anti-Corrosion Treatment and Repair .

5. Note the number and location of all spot welds to be drilled out for installation of the service part.

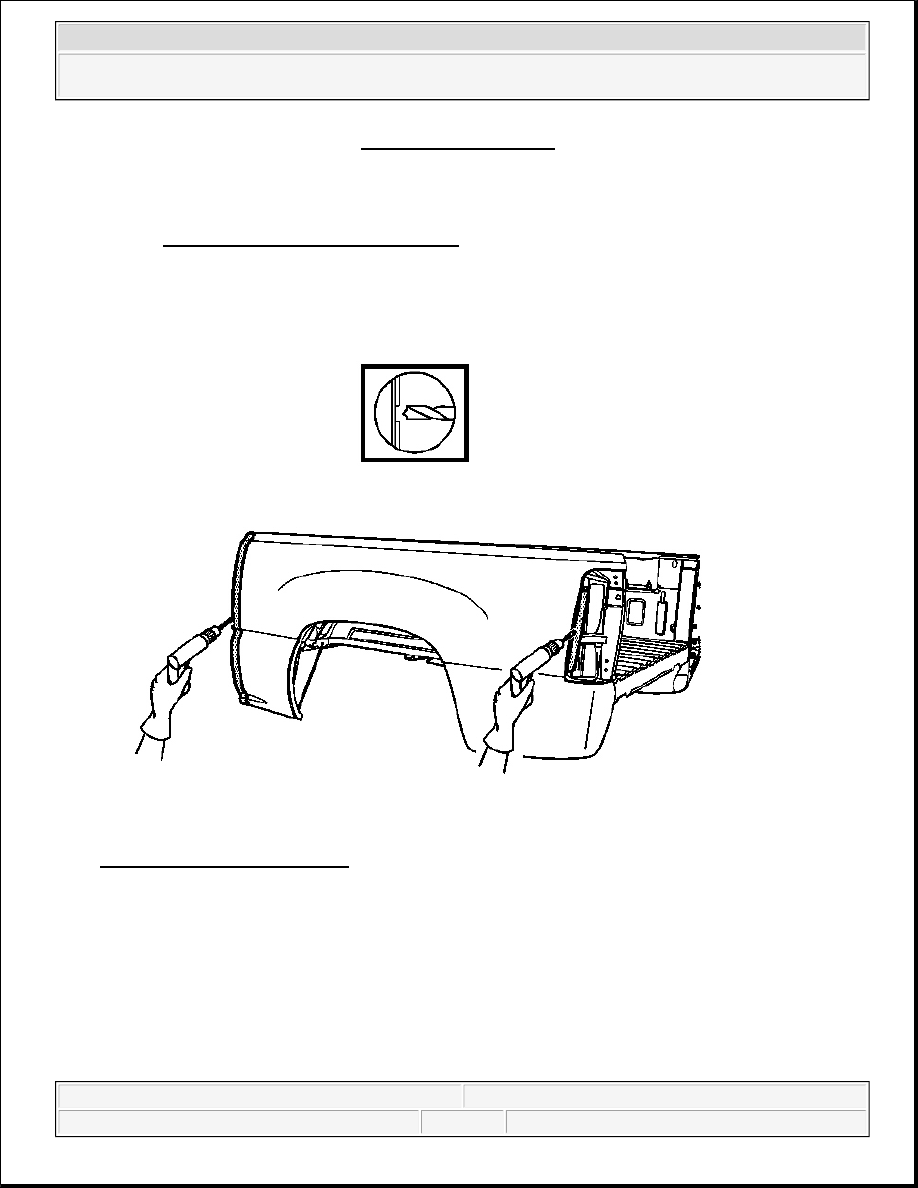

Fig. 130: Identifying Spot Welds
Courtesy of GENERAL MOTORS CORP.

6. Locate and drill out the spot welds attaching the front panel wheelhouse and the tail lamp pocket area.

7. Locate and drill out the spot welds attaching the front panel, the wheelhouse and the tail lamp pocket

area.
