Installation Procedure

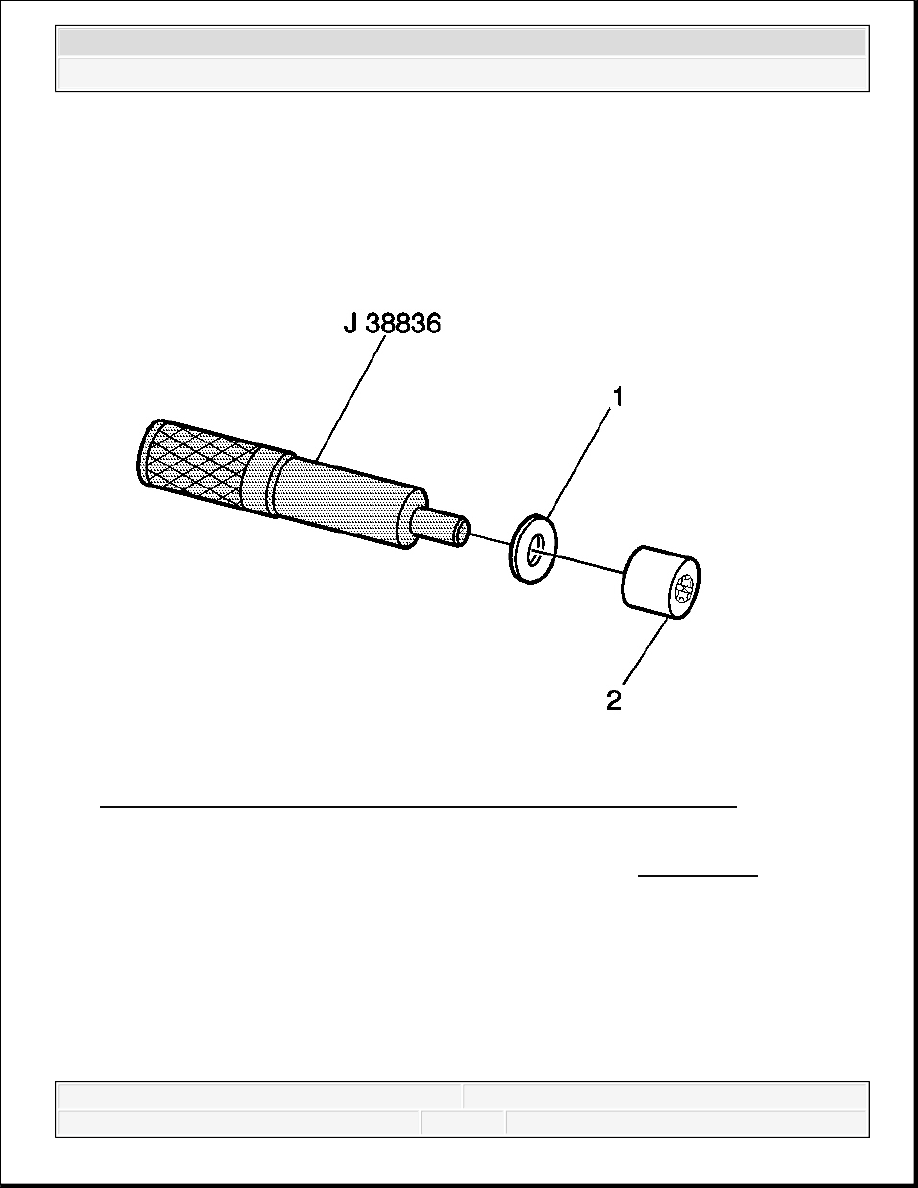

Fig. 21: View Of J 38836, Washer & Pilot Bearing (without RPO HP2)
Courtesy of GENERAL MOTORS CORP.
1. Install a 5/8 inch washer (1) onto the J 38836 or equivalent. See Special Tools.
2. Install a NEW clutch pilot bearing (2) onto the tool.
IMPORTANT: The flywheel spacer (if applicable) must be removed prior to pilot
bearing installation.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

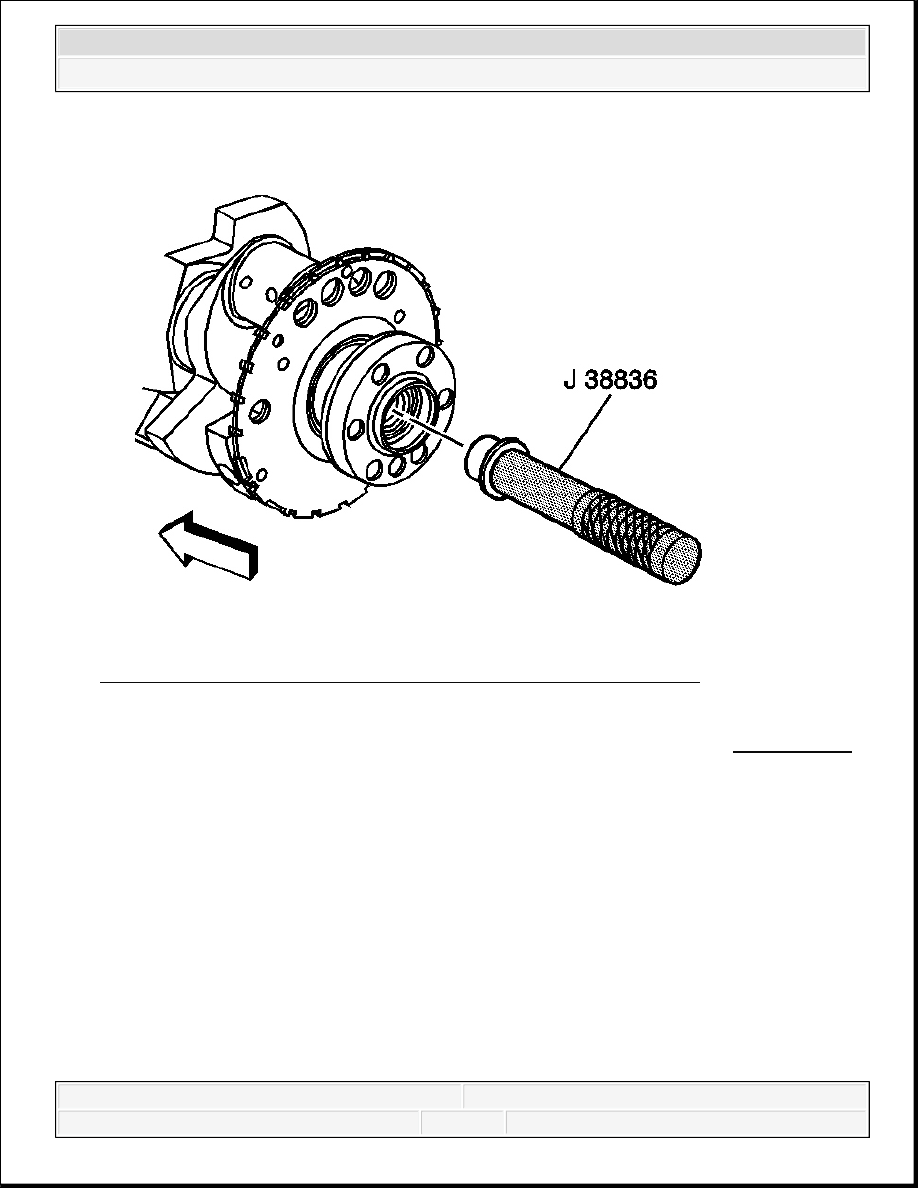

Fig. 22: Installing Pilot Bearing Using J 38836 (without RPO HP2)
Courtesy of GENERAL MOTORS CORP.
3. Install the NEW clutch pilot bearing into the crankshaft using J 38836 . See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

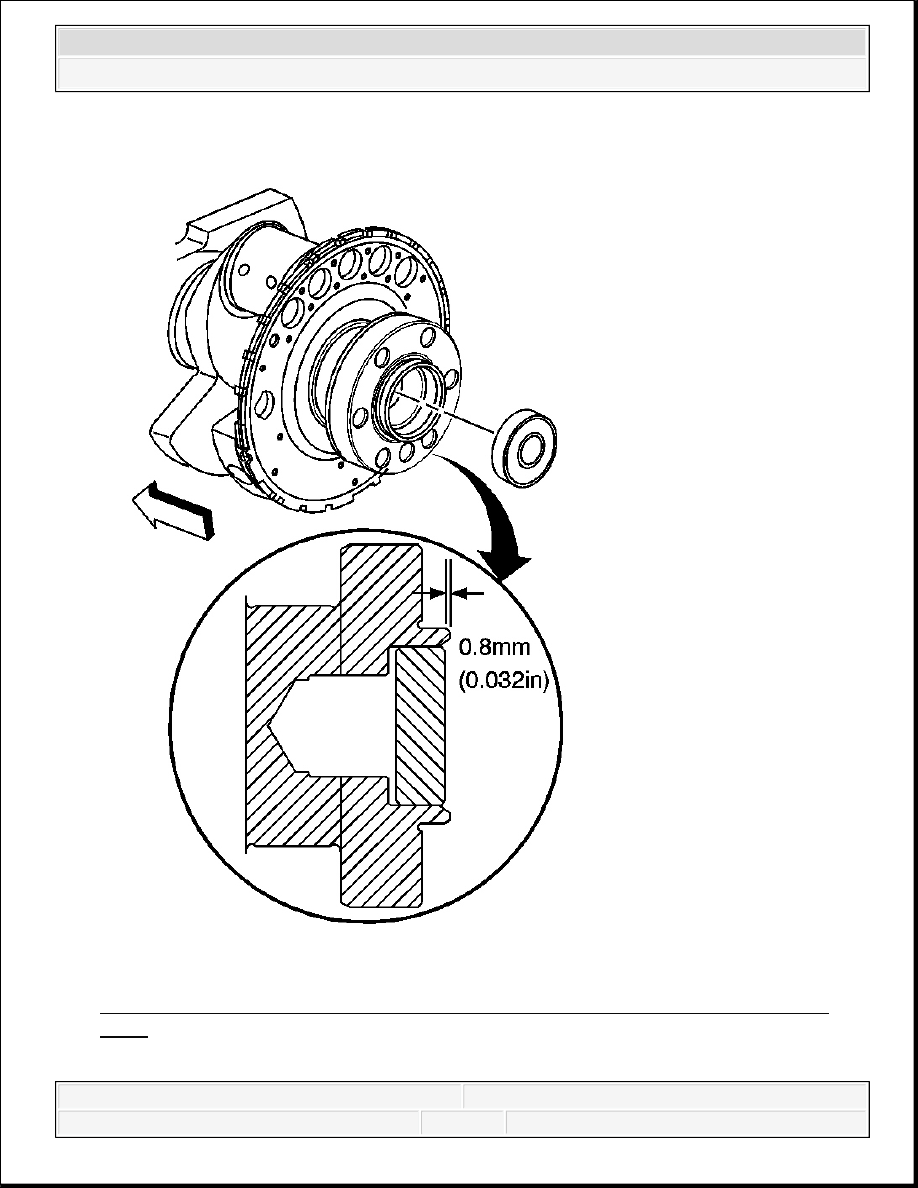

Fig. 23: View Of Clutch Pilot Bearing Proper Installation Position (without RPO
HP2)
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
4. Inspect the clutch pilot bearing for proper installation.
5. Install the clutch assembly. Refer to Clutch Assembly Replacement.
CLUTCH ASSEMBLY REPLACEMENT
Special Tools
J 5824-A Clutch Alignment Tool. See Special Tools.
Removal Procedure
1. Remove the transmission. Refer to Transmission Replacement .

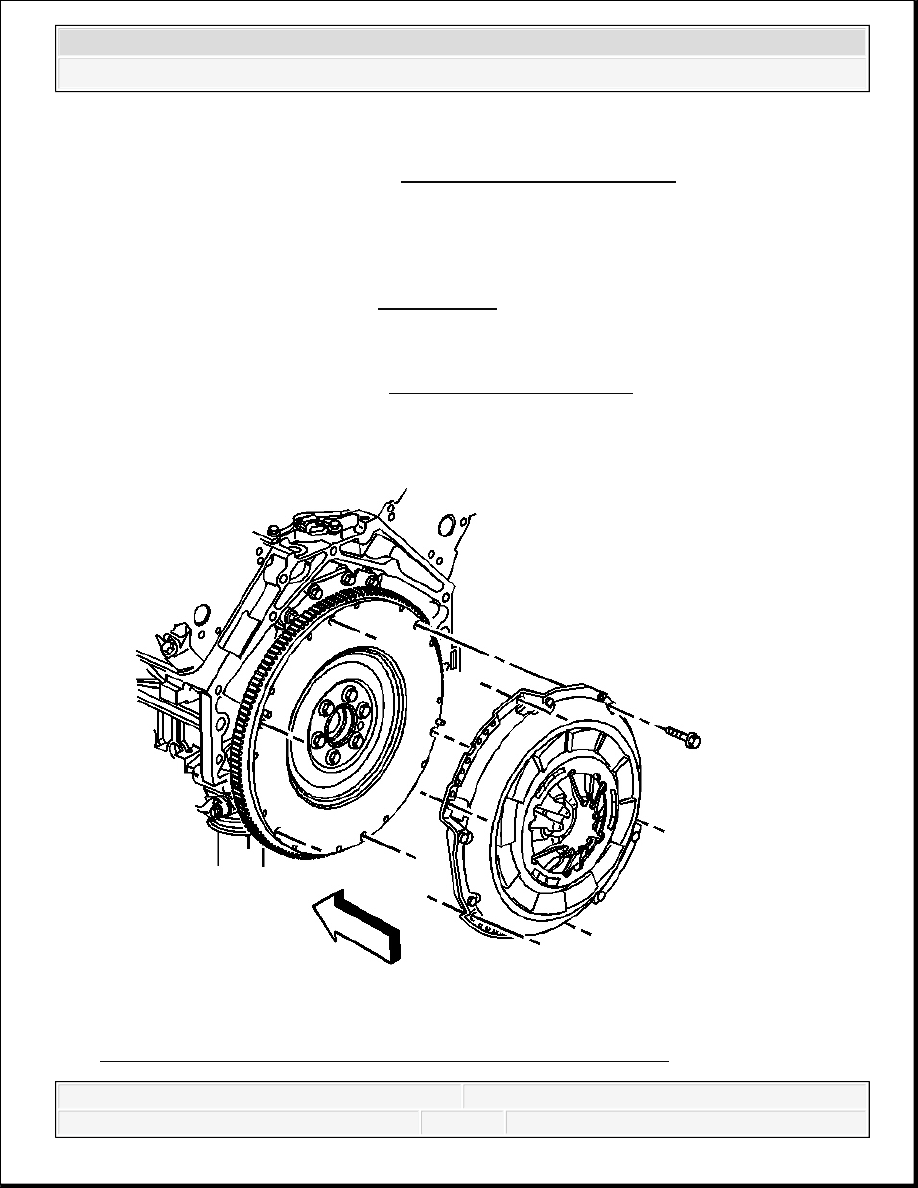

Fig. 24: Clutch Pressure Plate And Driven Plate (4.8L Or 6.0L)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
