Chevrolet Silverado / GMC Sierra. Manual - part 1266
Courtesy of GENERAL MOTORS CORP.
2. Remove the clutch pressure plate bolts.
3. Remove the clutch pressure plate and disc from the dowel pins.
Installation Procedure
Fig. 25: Clutch Pressure Plate And Driven Plate (4.8L Or 6.0L)
IMPORTANT: Dowel pins are used to align the flywheel and pressure plate.
When removing the pressure plate check to see if the dowel
pins are rusted into the pressure plate, if so remove, clean,
and reinstall the dowel pins into the correct location(s) on
the flywheel.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.
1. If equipped with a 4.8L or 6.0L engine, install the clutch pressure plate and driven plate to
the dowel pins.
2. Install J 5824-A in order to align the clutch. See Special Tools.
3. Install the clutch pressure plate bolts finger tight.

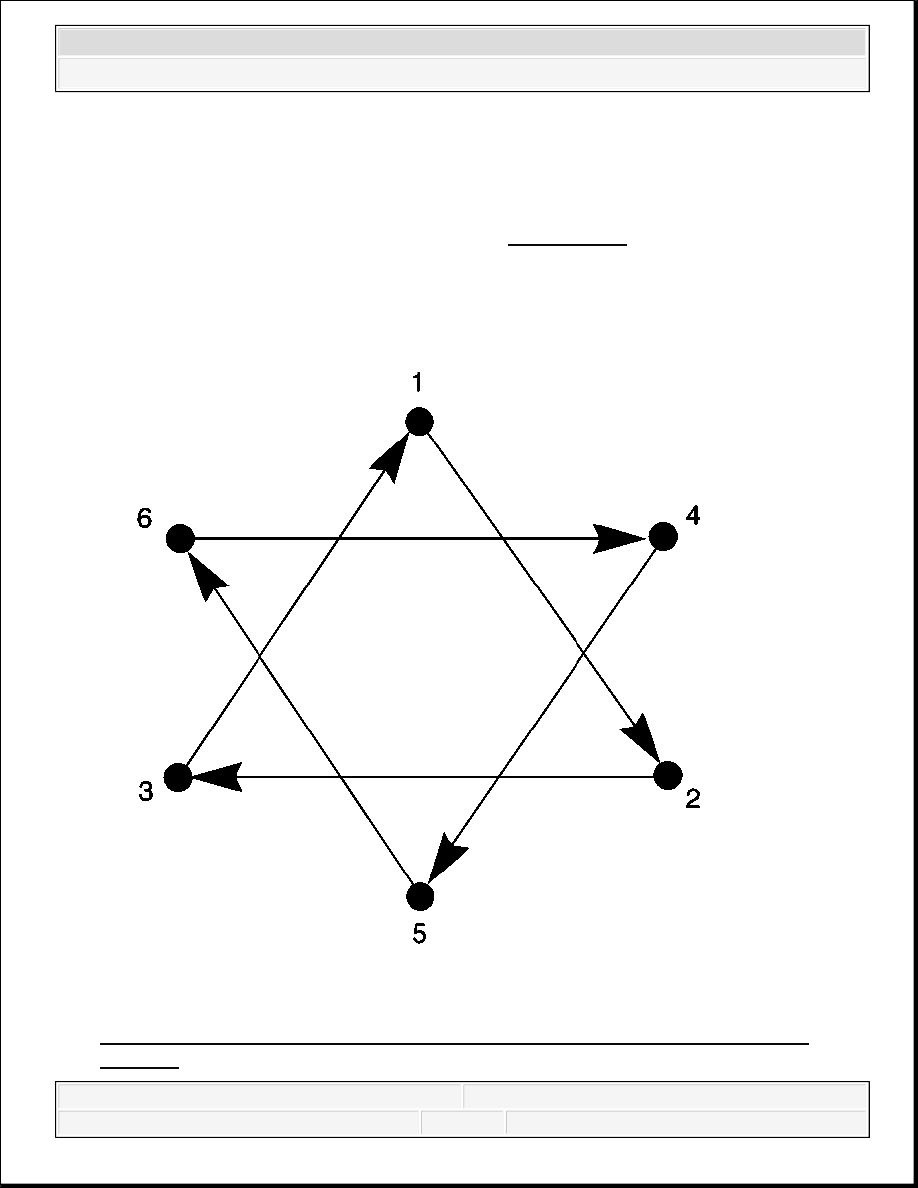

Fig. 26: Clutch Pressure Plate Bolts Tightening Sequence (4.8L, 5.3L, and 6.0L
Engines)
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.
4. If equipped with a 4.8L or 6.0L engine, tighten the clutch pressure plate bolts in the
sequence shown.
Tighten: Tighten the bolts to 70 N.m (52 lb ft).
5. Remove the J 5824-A . See Special Tools.
6. Install the transmission. Refer to Transmission Replacement .
RELEASE BEARING REPLACEMENT
Removal Procedure
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 27: Clutch Release Bearing
Courtesy of GENERAL MOTORS CORP.
1. Remove the transmission. Refer to Transmission Replacement .
2. Remove the clutch release bearing.
Rotate the bearing in either direction.
The compression spring load will push the release bearing off the end of the clutch
actuator bearing.
Installation Procedure
Fig. 28: Clutch Release Bearing
Courtesy of GENERAL MOTORS CORP.
1. Using a clean dry cloth, clean the exposed area of the actuator cylinder quill.
2. Install the NEW clutch release bearing to the clutch actuator cylinder.
Firmly push the clutch release bearing into place.
IMPORTANT: DO NOT use cleaners or chemicals to clean the quill and DO NOT
grease the quill.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
