Chevrolet Silverado / GMC Sierra. Manual - part 1262

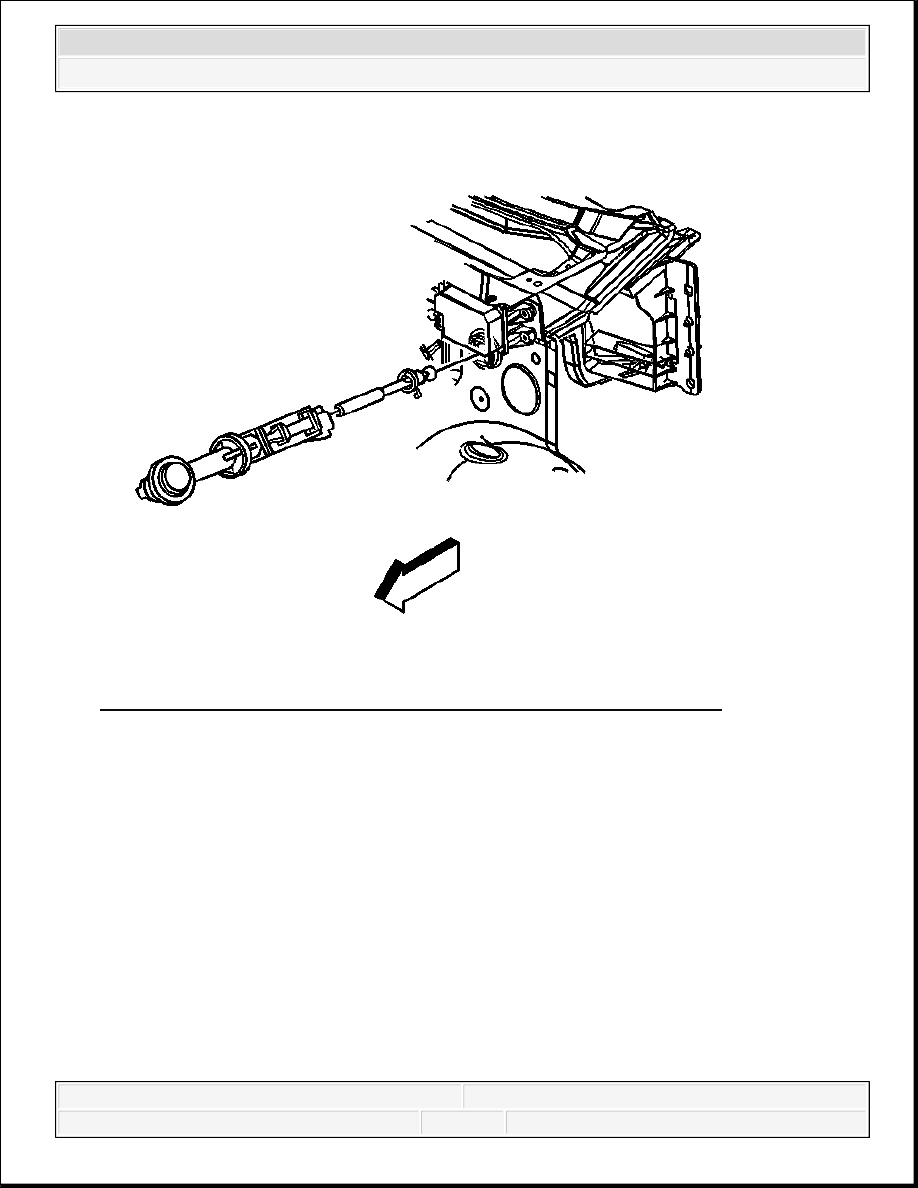

Fig. 11: Clutch Master Cylinder (NV 3500 or NV 4500 Transmission)
Courtesy of GENERAL MOTORS CORP.
1. Install the clutch master cylinder.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

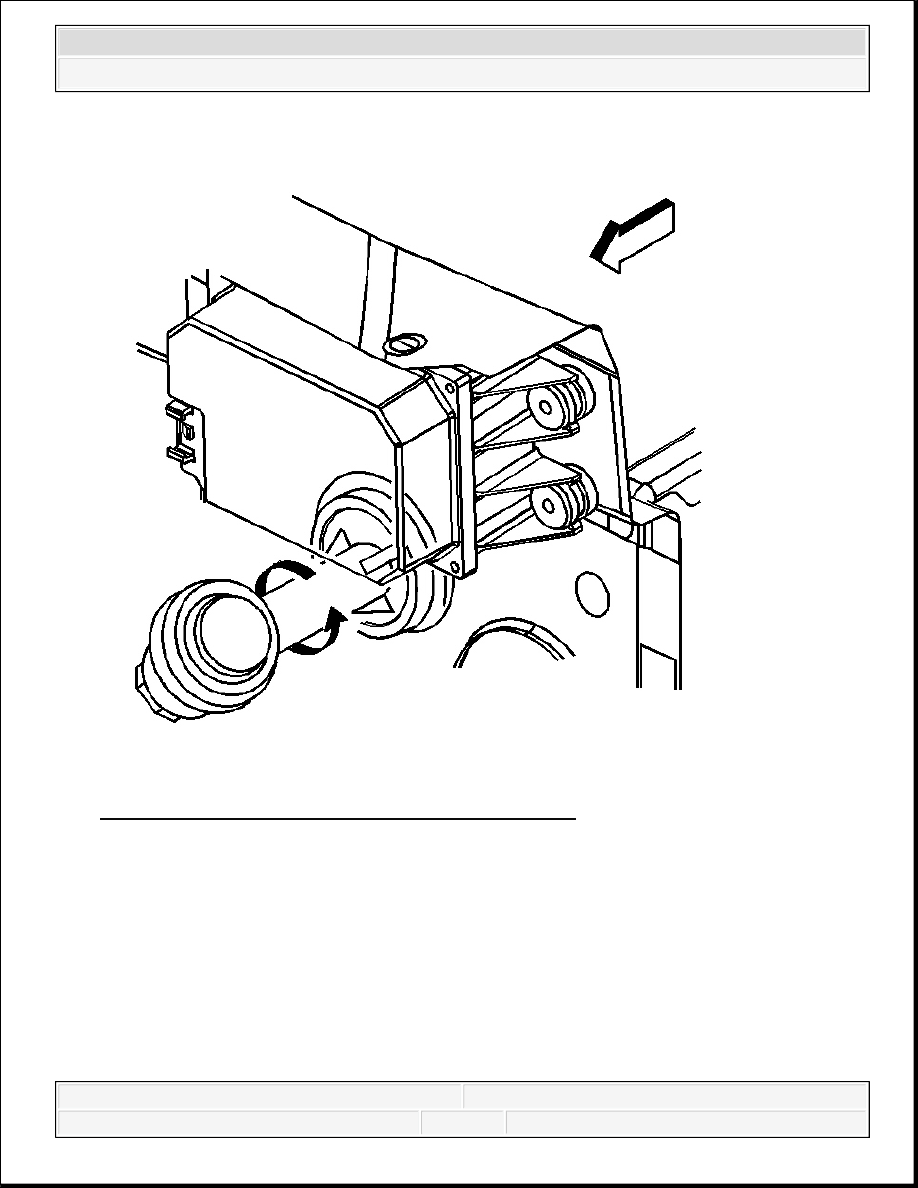

Fig. 12: Rotating Clutch Master Cylinder 45 Degrees
Courtesy of GENERAL MOTORS CORP.
2. Push in and rotate the clutch master cylinder 45 degrees counterclockwise to the locked
position.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

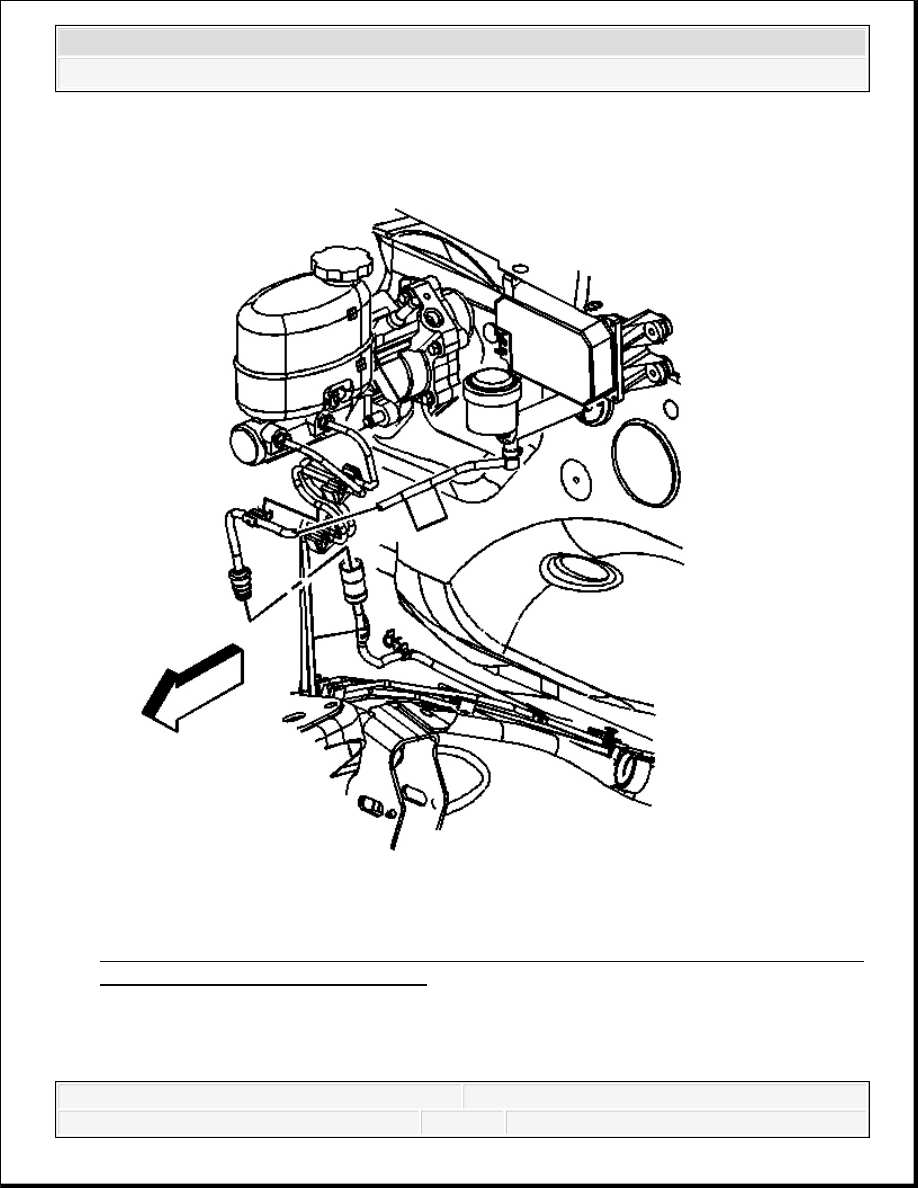

Fig. 13: Clutch Master Cylinder To Clutch Actuator Cylinder Quick Connect Fitting
(NV 3500 or NV 4500 Transmission)
Courtesy of GENERAL MOTORS CORP.
3. Disconnect the clutch actuator cylinder to clutch master cylinder quick connect fitting.
4. Install the clutch master cylinder clip to the brake pressure module valve pipe.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

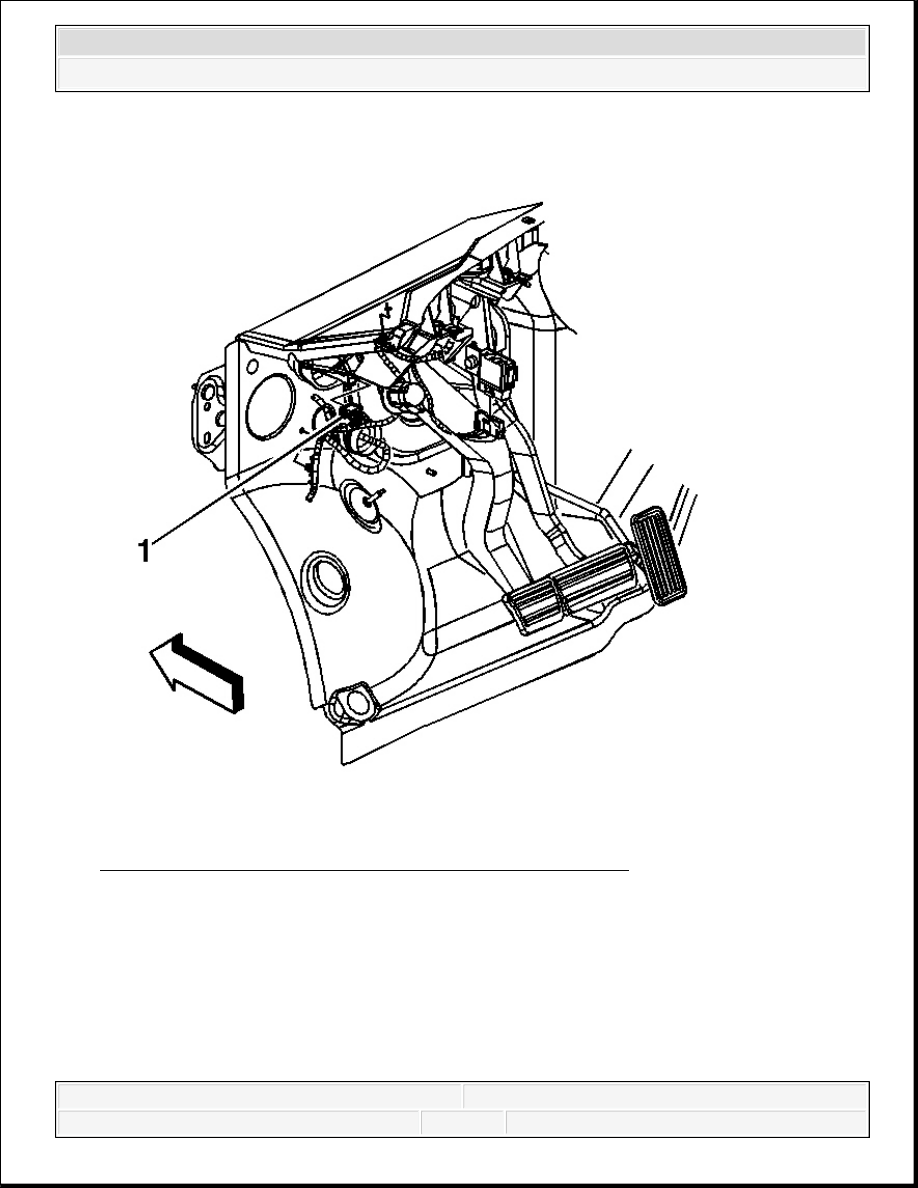

Fig. 14: Clutch Pedal Position Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
5. Apply light pressure to the clutch pedal to couple the pushrod socket to the clutch pedal.
6. Connect the clutch pedal position switch electrical connector (1).
7. Pump the clutch pedal 3 time prior to starting the vehicle to ensure connection is complete.
HYDRAULIC CLUTCH BLEEDING
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
