Chevrolet Silverado / GMC Sierra. Manual - part 1261

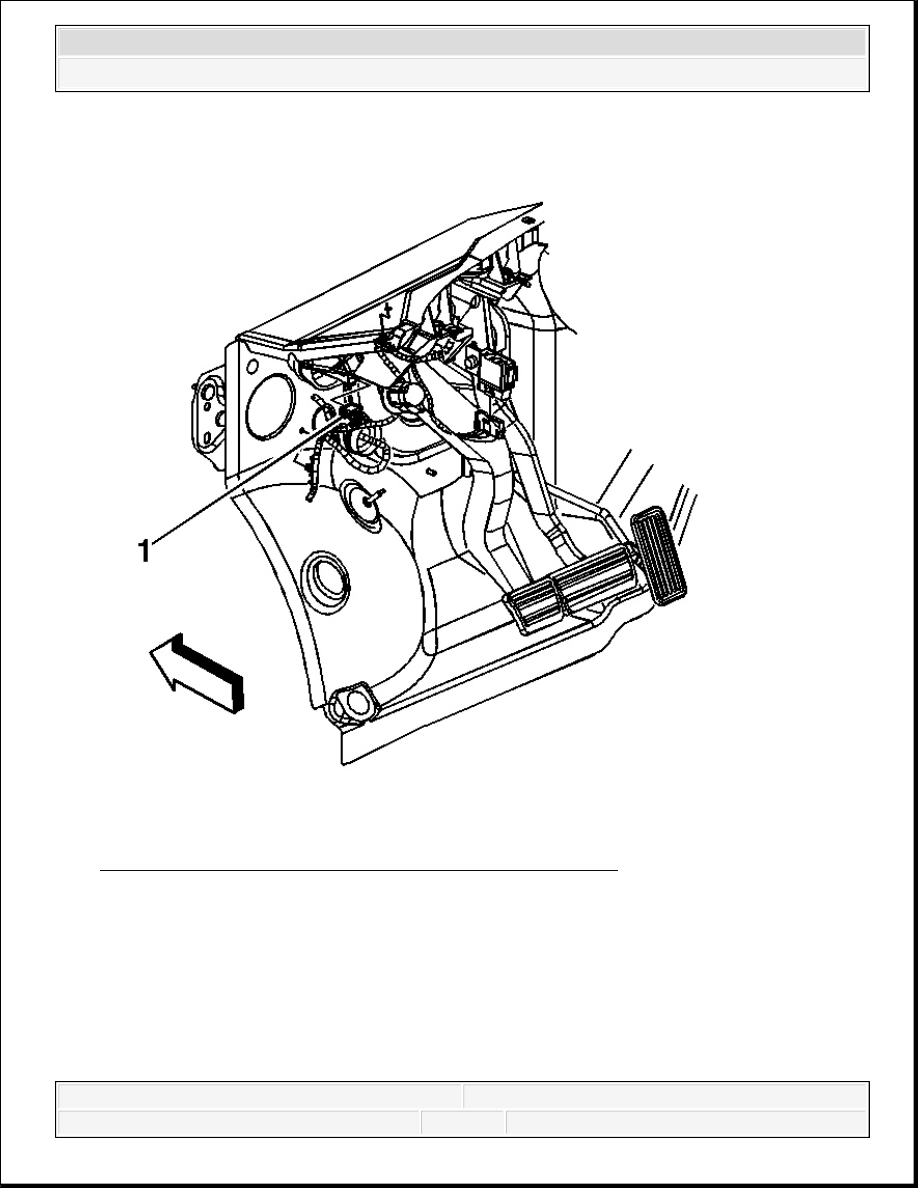

Fig. 7: Clutch Pedal Position Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the clutch pedal position switch electrical connector (1).
2. Push the clutch pedal in and squeeze the pushrod bushing tabs in, in order to release the
pushrod bushing from the clutch pedal.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

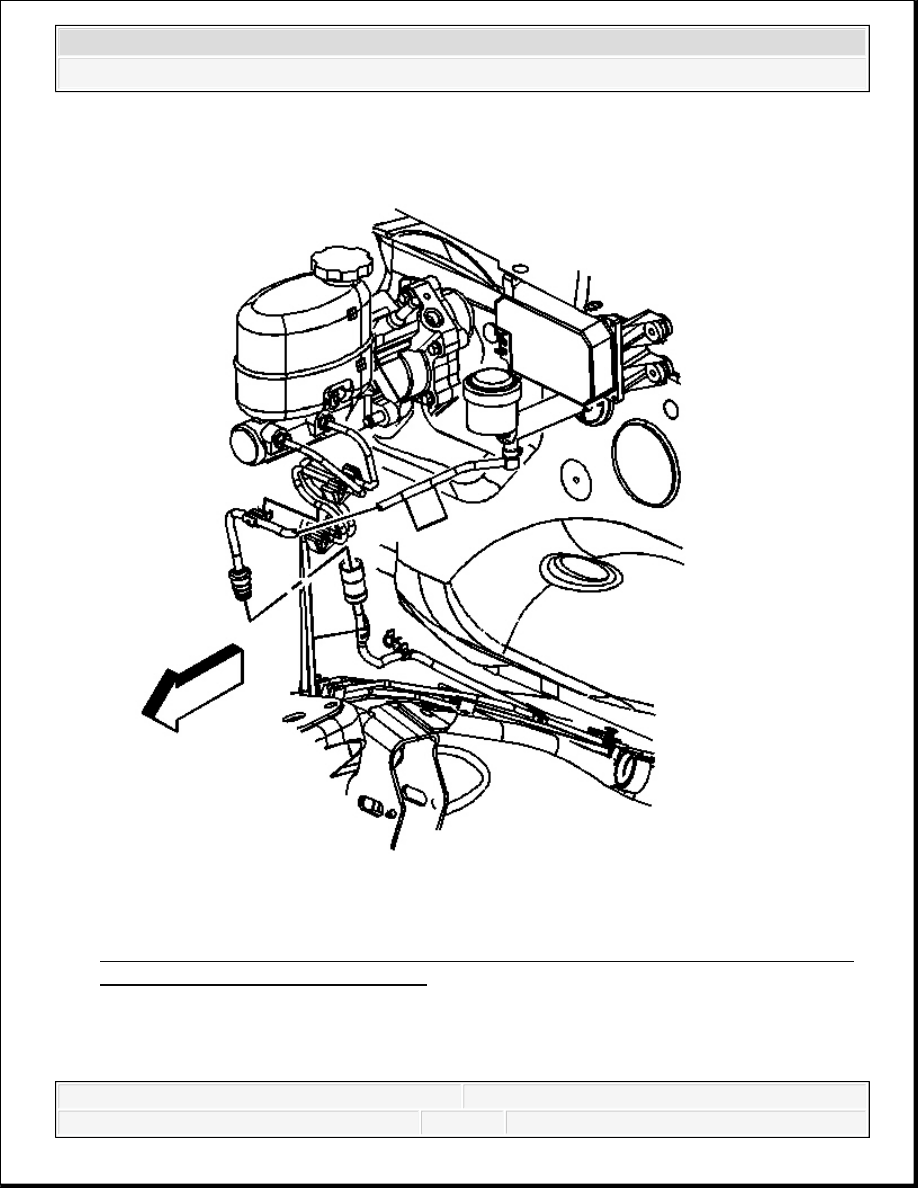

Fig. 8: Clutch Master Cylinder To Clutch Actuator Cylinder Quick Connect Fitting
(NV 3500 or NV 4500 Transmission)
Courtesy of GENERAL MOTORS CORP.
3. Disconnect the clutch actuator cylinder to clutch master cylinder quick connect fitting.
4. Remove the clutch master cylinder clip from the brake pressure module valve pipe.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

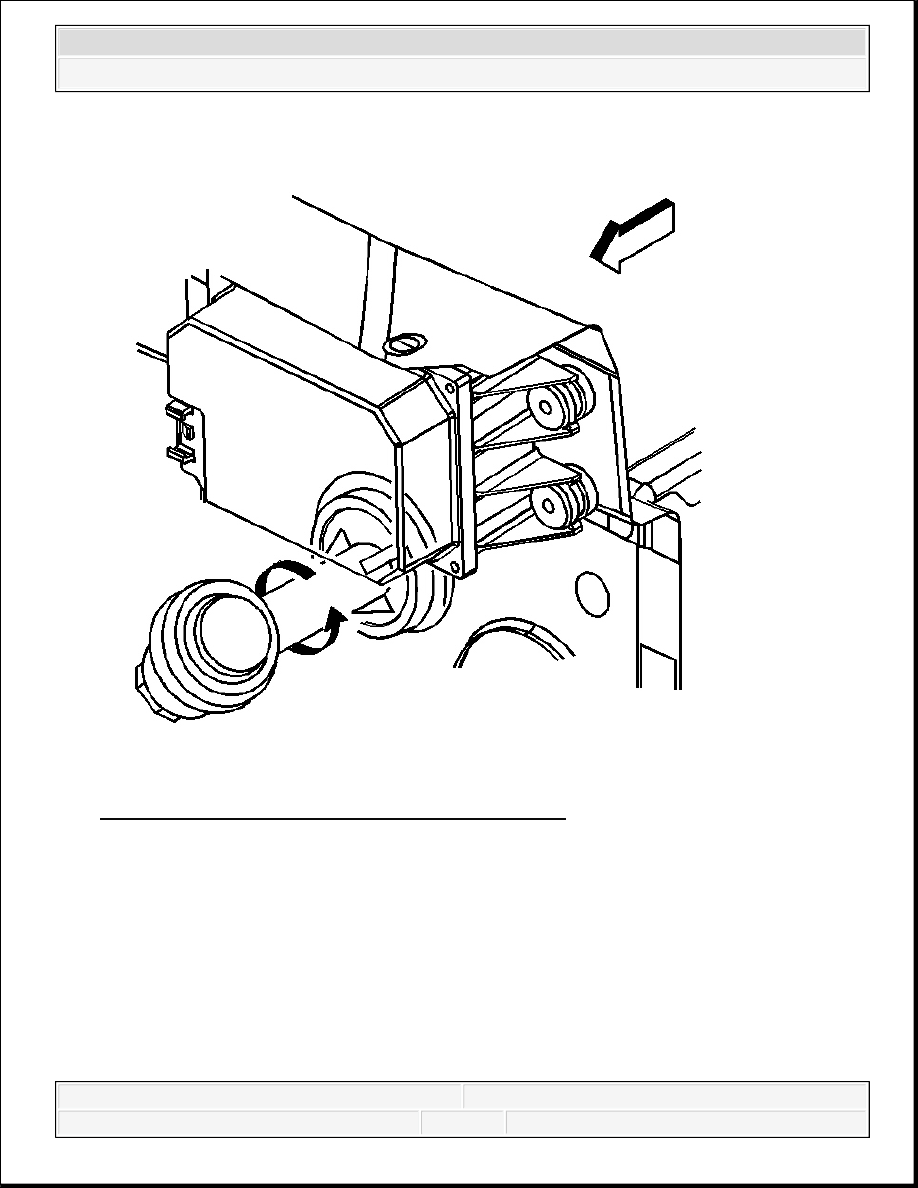

Fig. 9: Rotating Clutch Master Cylinder 45 Degrees
Courtesy of GENERAL MOTORS CORP.
5. Rotate the clutch master cylinder 45 degrees clockwise to the unlocked position.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

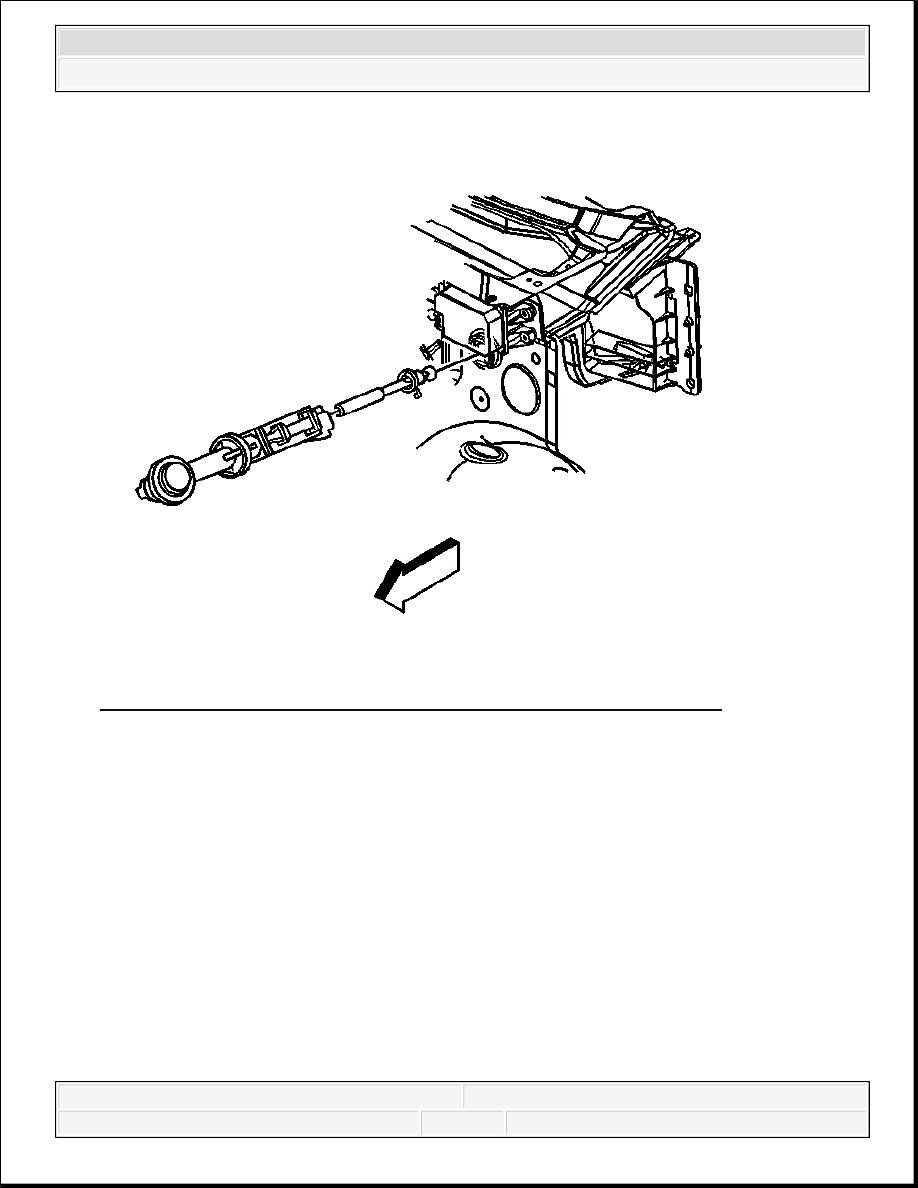

Fig. 10: Clutch Master Cylinder (NV 3500 or NV 4500 Transmission)
Courtesy of GENERAL MOTORS CORP.
6. Remove the clutch master cylinder.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
