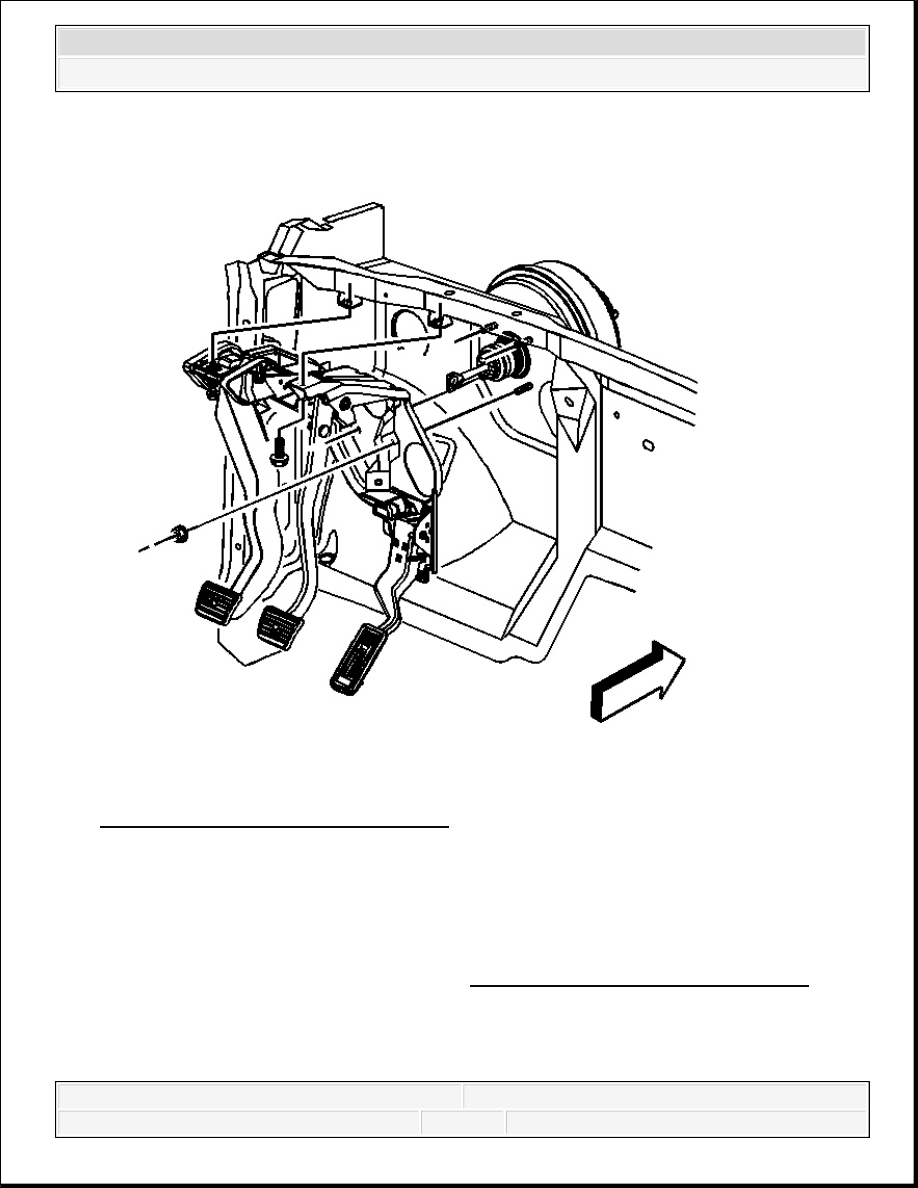

Fig. 3: Clutch Pedal And Brake Module Assembly
Courtesy of GENERAL MOTORS CORP.
5. Remove the clutch pedal to brake module bolts.
6. Remove the clutch pedal sub-assembly.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

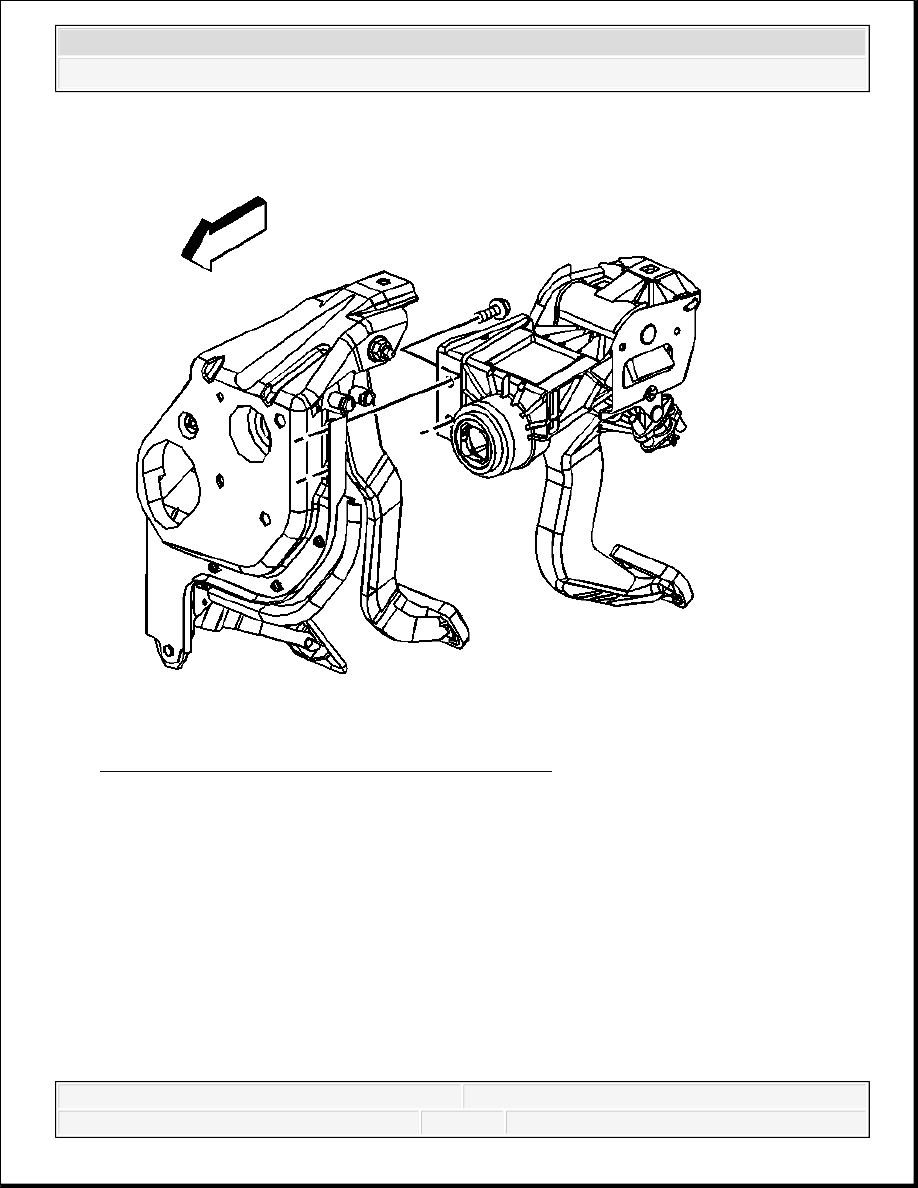

Fig. 4: Clutch Pedal And Brake Module Assembly
Courtesy of GENERAL MOTORS CORP.
1. Install the clutch pedal sub-assembly.
2. Install the clutch pedal to brake module bolts.
Tighten: Tighten the bolts to 50 N.m (37 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

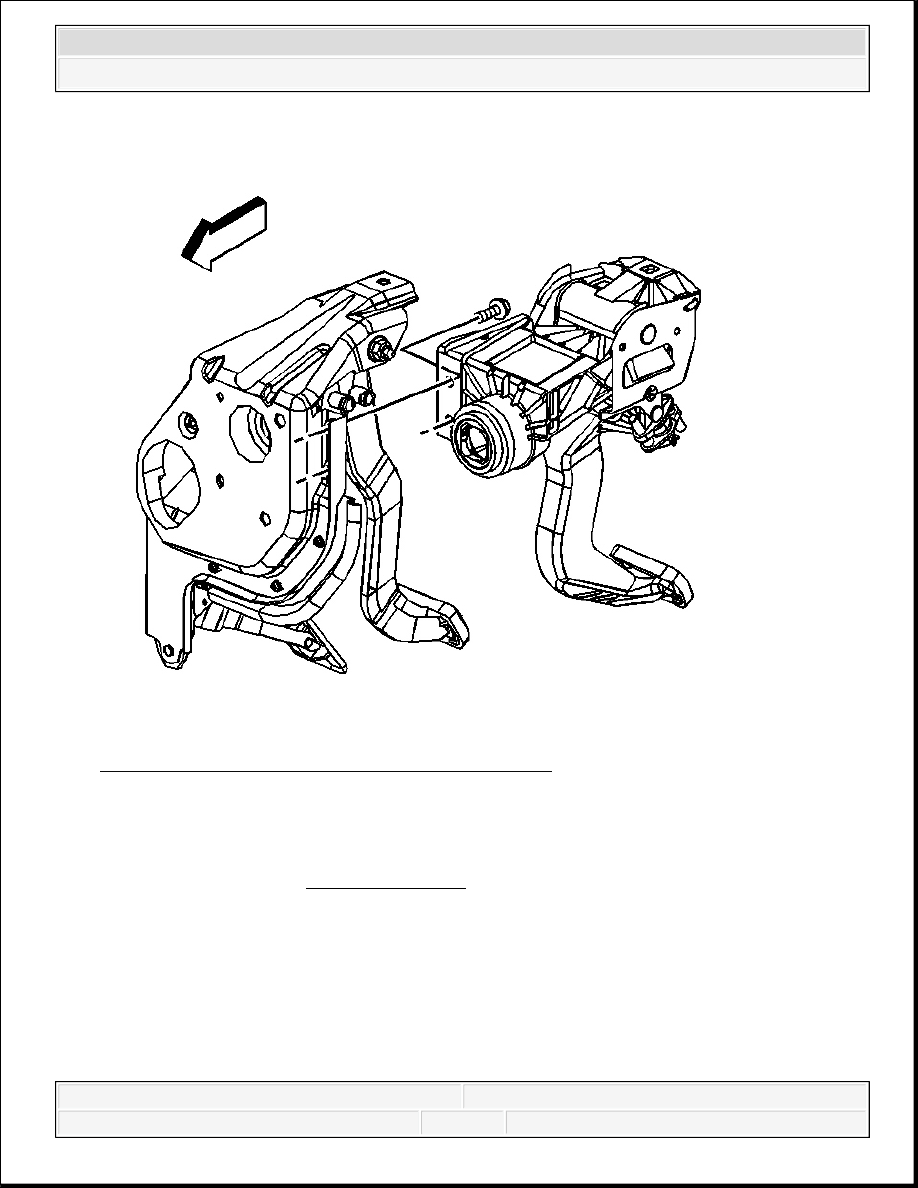

Fig. 5: Clutch Pedal Bracket Assembly
Courtesy of GENERAL MOTORS CORP.
3. Install the clutch pedal to clutch pedal bracket bolt.
Tighten: Tighten the bolt to 36 N.m (27 lb ft).
4. Remove the clutch master cylinder. Refer to Clutch Master Cylinder Replacement.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

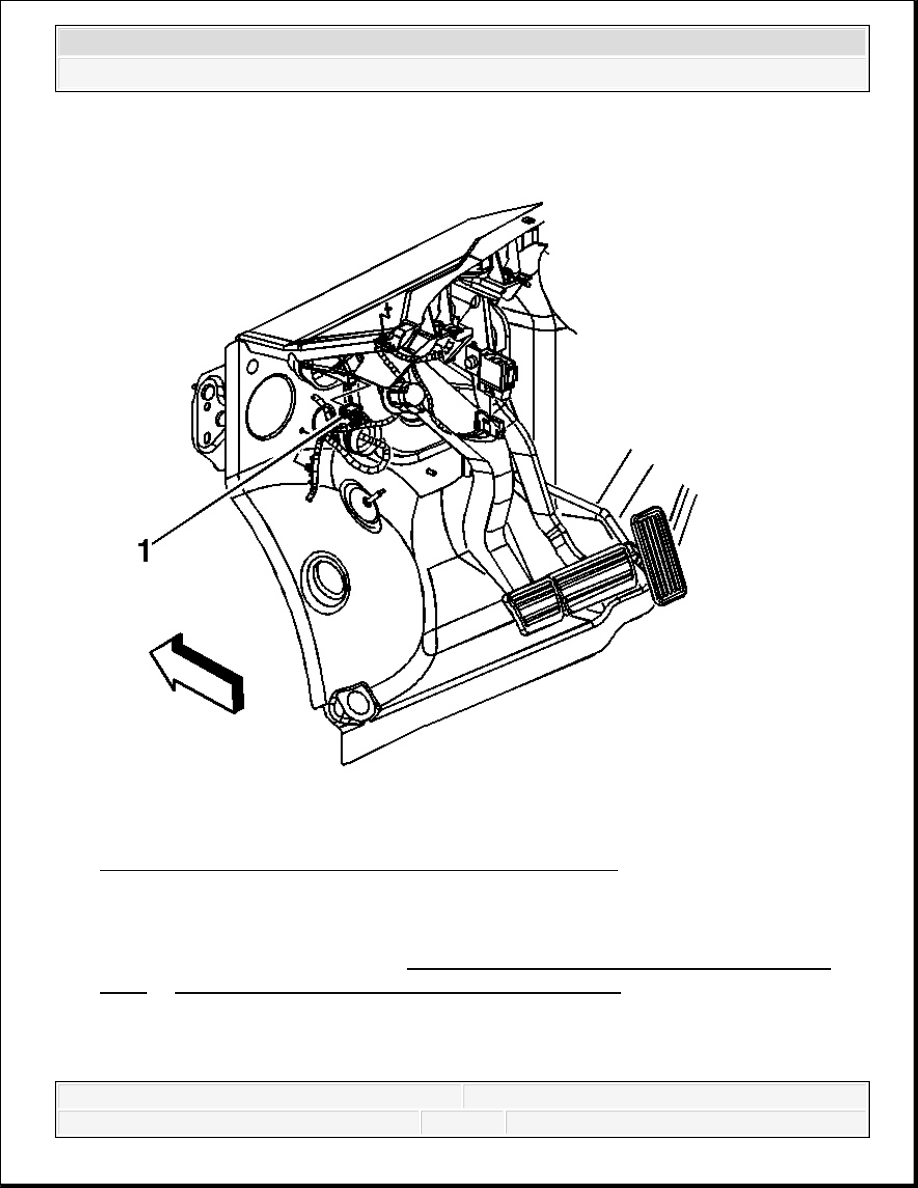

Fig. 6: Clutch Pedal Position Switch Electrical Connector
Courtesy of GENERAL MOTORS CORP.
5. Connect the clutch pedal engine start switch electrical connector (1).
6. Install the instrument panel. Refer to Instrument Panel Service Positioning (Without
SLT) or Instrument Panel Service Positioning (With SLT) .
CLUTCH MASTER CYLINDER REPLACEMENT
Removal Procedure
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Clutch - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
