FRONT FENDER REPLACEMENT - LEFT SIDE

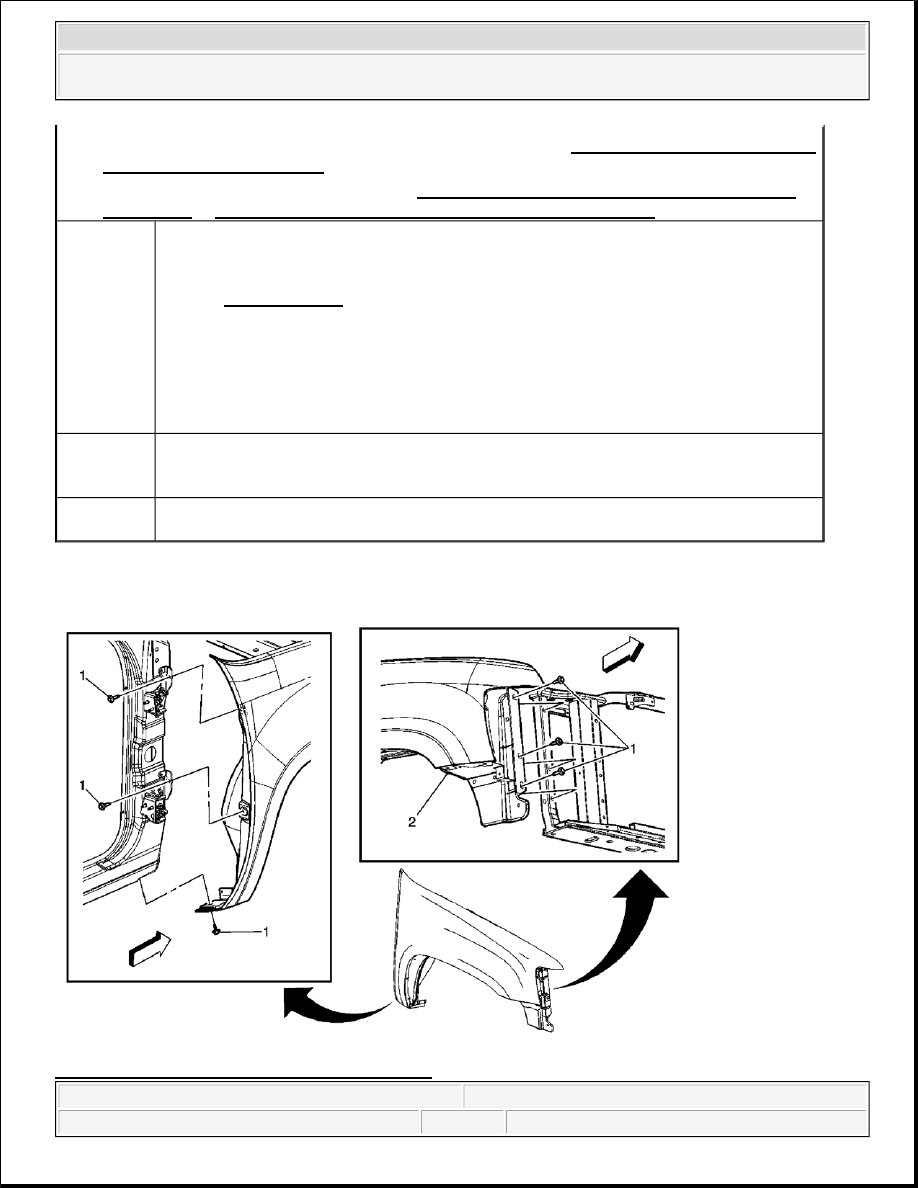

Fig. 20: View Of Left Fender, Mounting Nuts & Bolts
Courtesy of GENERAL MOTORS CORP.

Remove the endgate cable from the body side of the vehicle. Refer to Endgate Cable Replacement.

1

Pickup Box Endgate
Tip: Use a partner to help support the pickup box endgate and hold at a forty-five degree
angle while pulling to disengage from the body side endgate lower hinge.

Callout

Component Name

Preliminary Procedures

1. Remove the headlamp. Refer to Headlamp Replacement (GMC HD) or Headlamp Replacement

(Chevrolet) .

2. Remove the front end sheet metal diagonal brace. Refer to Front End Sheet Metal Diagonal

Brace Replacement.

3. Remove the front fender rear upper brace. Refer to Front Fender Rear Upper Brace

Replacement.

4. Remove the auxiliary battery tray. Refer to Auxiliary Battery Tray Replacement (6.2L, and

6.6L)

5. Remove the left hood hinge. Refer to Hood Hinge Replacement.

6. Remove the left hood link. Refer to Hood Link Replacement.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

FRONT FENDER REPLACEMENT - RIGHT SIDE

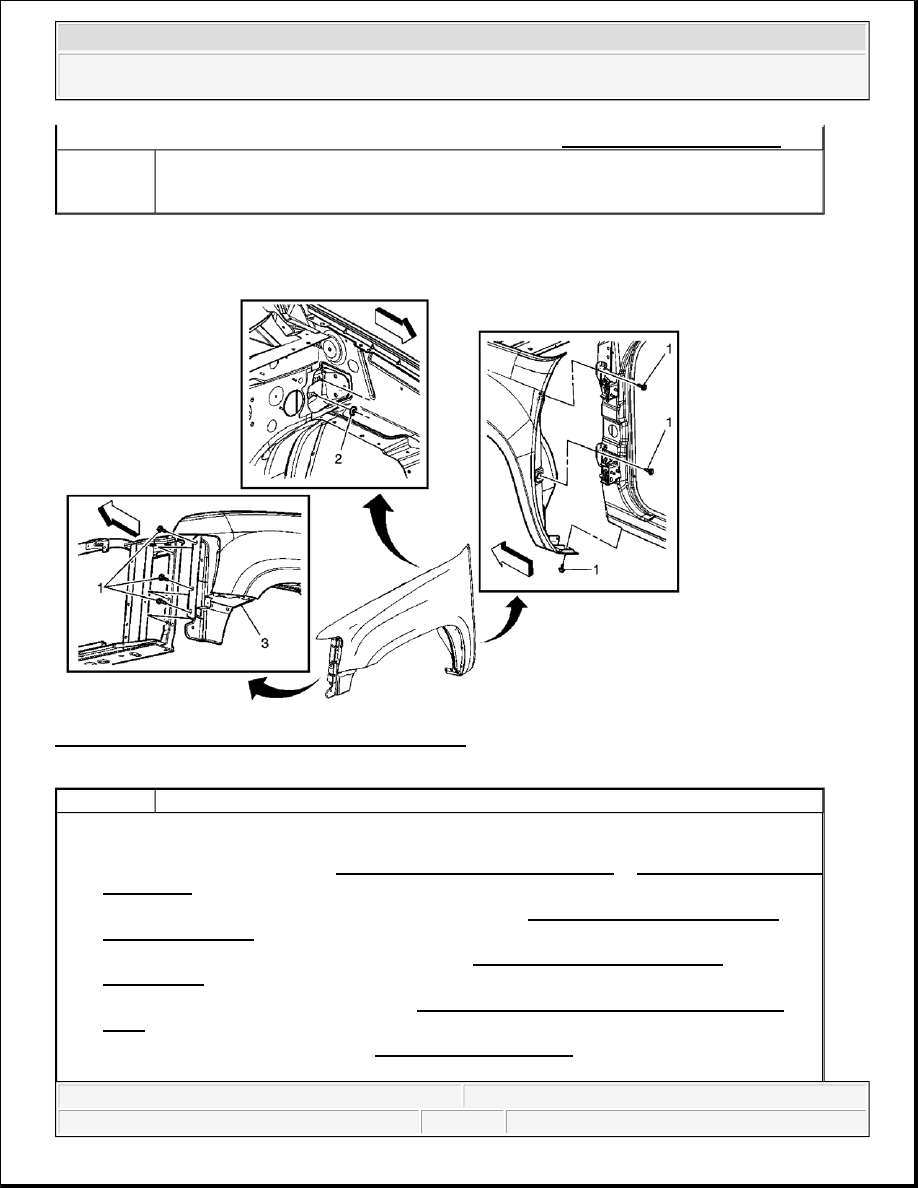

Fig. 21: View Of Right Fender & Mounting Bolts

7. Remove the underhood electrical center/junction block. Refer to Underhood Electrical Center or

Junction Block Replacement .

8. Remove the left wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Left Side

(Chevrolet) or Front Wheelhouse Liner Replacement - Left Side (GMC) .

1

Left Fender Mounting Bolts (Qty: 6)

Tighten: 30 N.m (22 lb ft)


Procedure:
Apply threadlock compound to the bolts.

NOTE:

Refer to Fastener Notice .

2

Left Fender Mounting Nuts (Qty: 2)

Tighten: 25 N.m (18 lb ft)

3

Left Fender
Tip: Transfer any necessary additional parts as needed.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 24

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of GENERAL MOTORS CORP.

HOOD PRIMARY LATCH RELEASE CABLE HANDLE REPLACEMENT

Callout

Component Name

Preliminary Procedures

1. Remove the headlamp. Refer to Headlamp Replacement (GMC HD) or Headlamp Replacement

(Chevrolet) .

2. Remove the front fender rear upper brace. Refer to Front Fender Rear Upper Brace

Replacement.

3. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

4. Remove the air cleaner box tray.

5. Remove the coolant reservoir bottle from the right fender and set it aside. Do not open the cooling

system. Refer to Radiator Surge Tank Replacement (Non-HP2) .

6. Remove the battery tray. Refer to Battery Tray Replacement .

7. Remove the right hood hinge. Refer to Hood Hinge Replacement.

8. Remove the right hood link. Refer to Hood Link Replacement.

9. Remove the right wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Right Side

(GMC) or Front Wheelhouse Liner Replacement - Right Side (Chevrolet) .

1

Right Fender Mounting Bolts (Qty: 6)

Tighten: 30 N.m (22 lb ft)


Procedure:
Apply threadlock compound to the bolts.

NOTE:

Refer to Fastener Notice .

2

Right Fender Assembly
Tip: Transfer any necessary additional parts as needed.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 25

© 2005 Mitchell Repair Information Company, LLC.

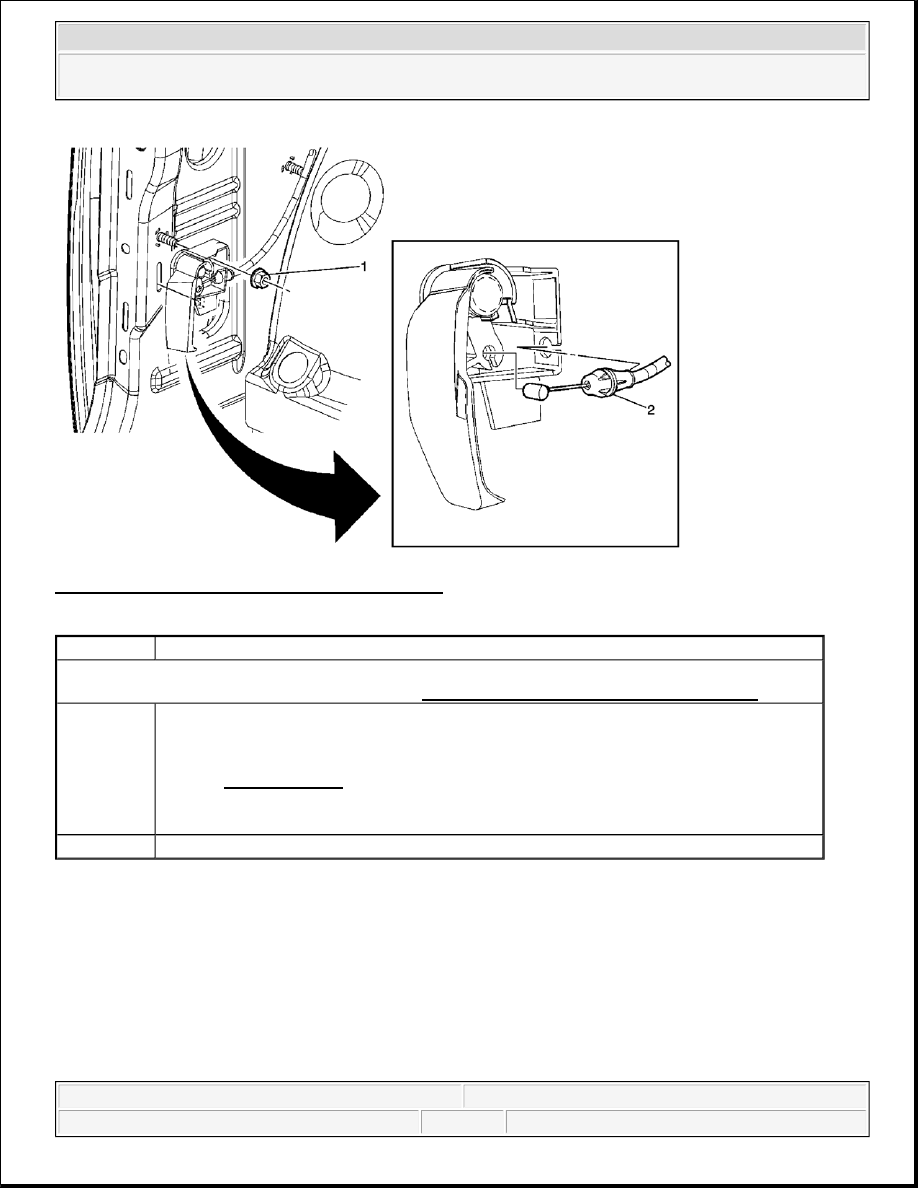

Fig. 22: View Of Hood Latch Release Cable & Nut
Courtesy of GENERAL MOTORS CORP.

ENDGATE LOWER HINGE REPLACEMENT - BODY SIDE

Callout

Component Name

Preliminary Procedure:
Remove the body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .

1

Hood Latch Release Handle Nut

Tighten: 9 N.m (80 lb in)

NOTE:

Refer to Fastener Notice .

2

Hood Latch Release Handle
