Chevrolet Silverado / GMC Sierra. Manual - part 1238

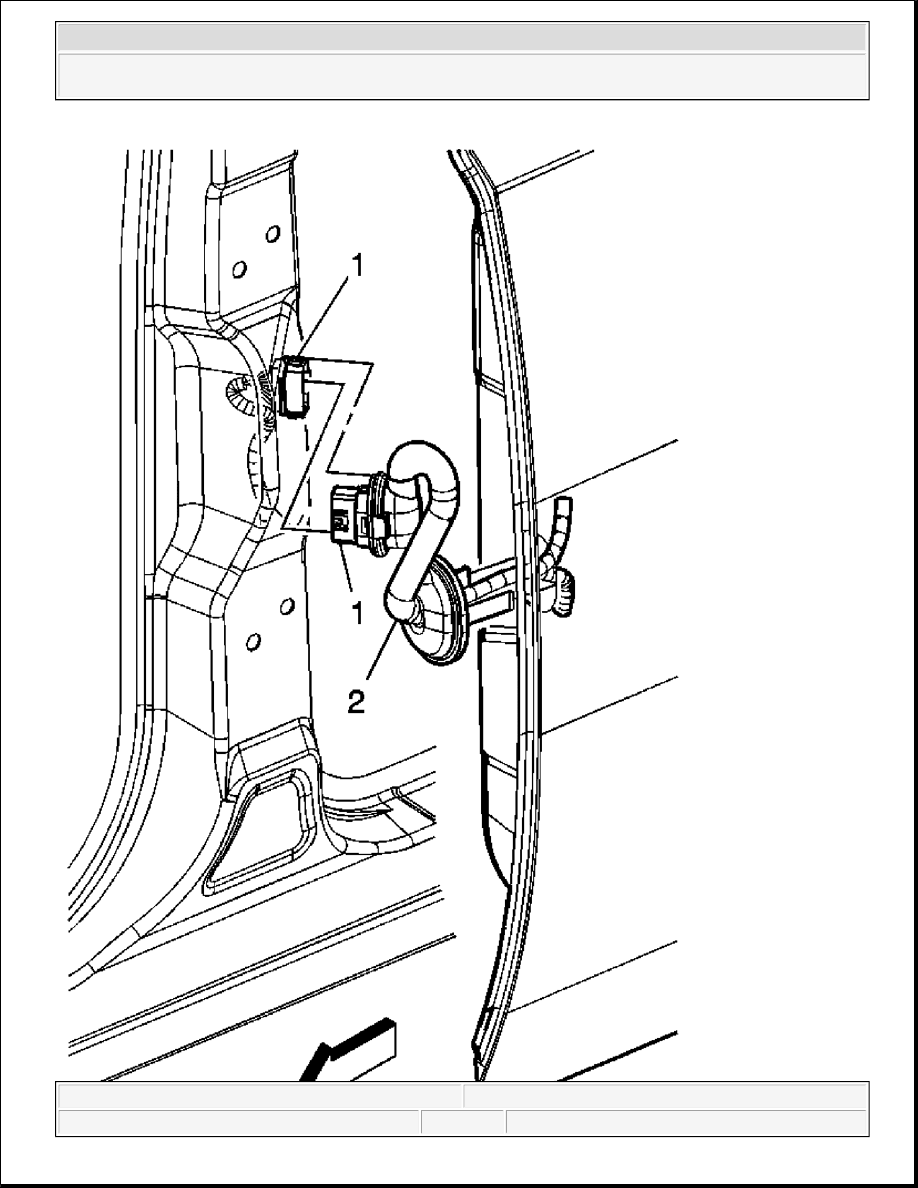

Fig. 12: View Of Conduit Grommet & Electrical Connector
Courtesy of GENERAL MOTORS CORP.

REAR SIDE DOOR CONDUIT REPLACEMENT

Callout

Component Name

Preliminary Procedure:
Remove the hinge pillar insulator cover. Refer to Body Hinge Pillar Trim Panel Replacement .

1

Electrical Connector

Procedure

1. Mark the location and the color of the wires to the electrical socket before removing

the wires.

2. Disconnect the door wiring harness electrical connector from the body harness.

3. Remove the wiring harness wiring one at a time from the conduit.

4. Remove the wiring harness from the rubber conduit.

2

Conduit Grommet



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:21 PM

Page 15

© 2005 Mitchell Repair Information Company, LLC.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

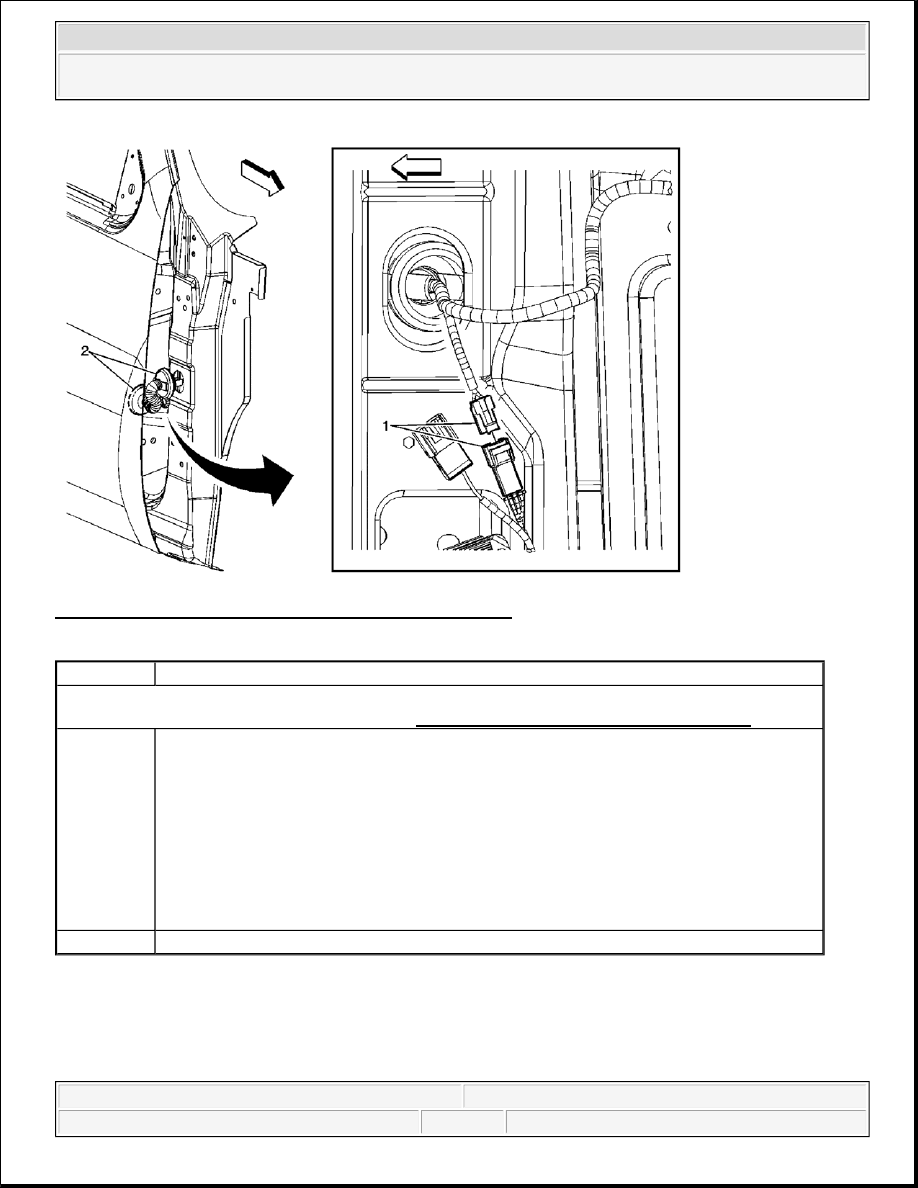

Fig. 13: View Of Rear Door Conduit Grommet & Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

REAR SIDE DOOR HINGE COVER REPLACEMENT

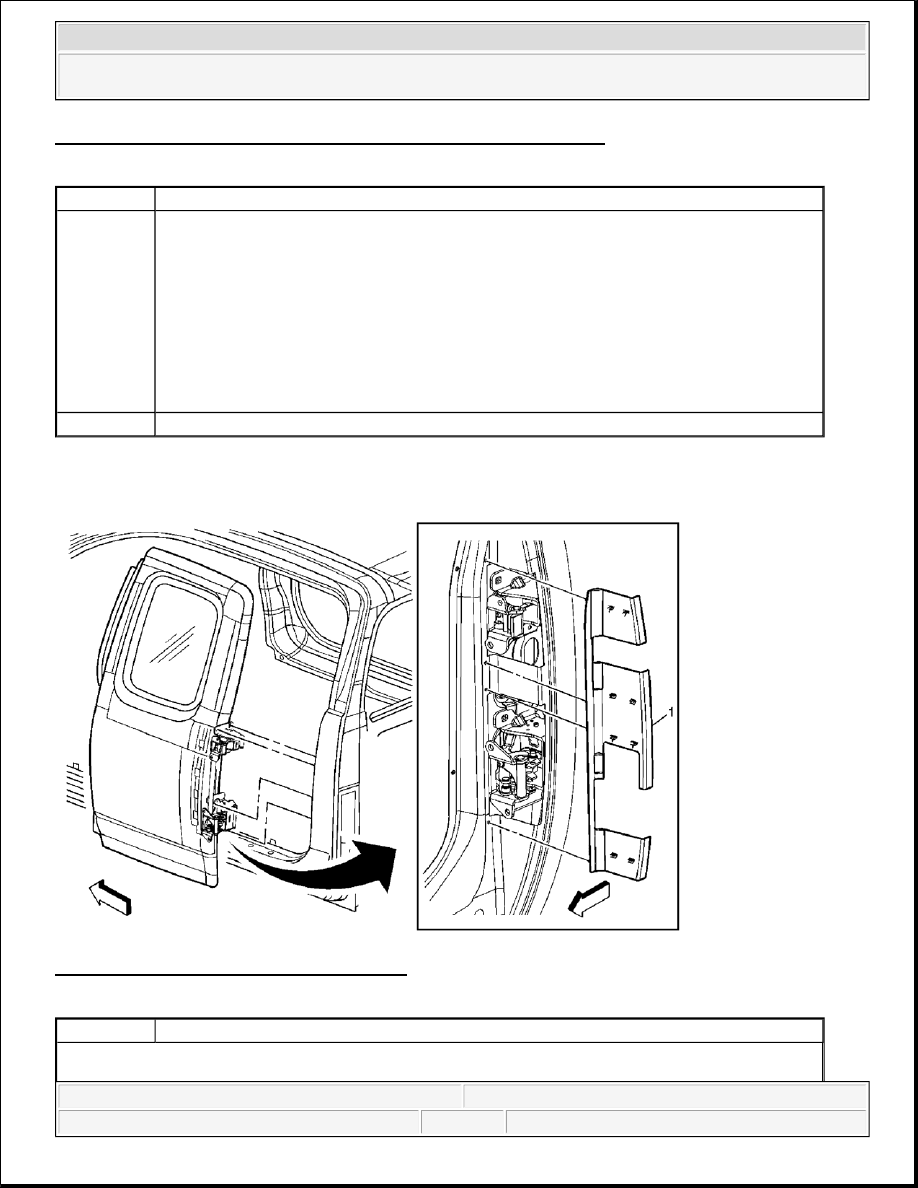

Fig. 14: View Of Rear Side Door Hinge Cover
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Electrical Connectors

Procedure

1. Mark the location and the color of the wires to the electrical socket before removing

the wires.

2. Disconnect the door wiring harness electrical connector from the body harness.

3. Remove the wiring harness wiring one at a time from the conduit.

4. Remove the wiring harness from the rubber conduit.

2

Rear Door Conduit Grommet

Callout

Component Name

Preliminary Procedure:



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

FRONT SIDE DOOR REPLACEMENT

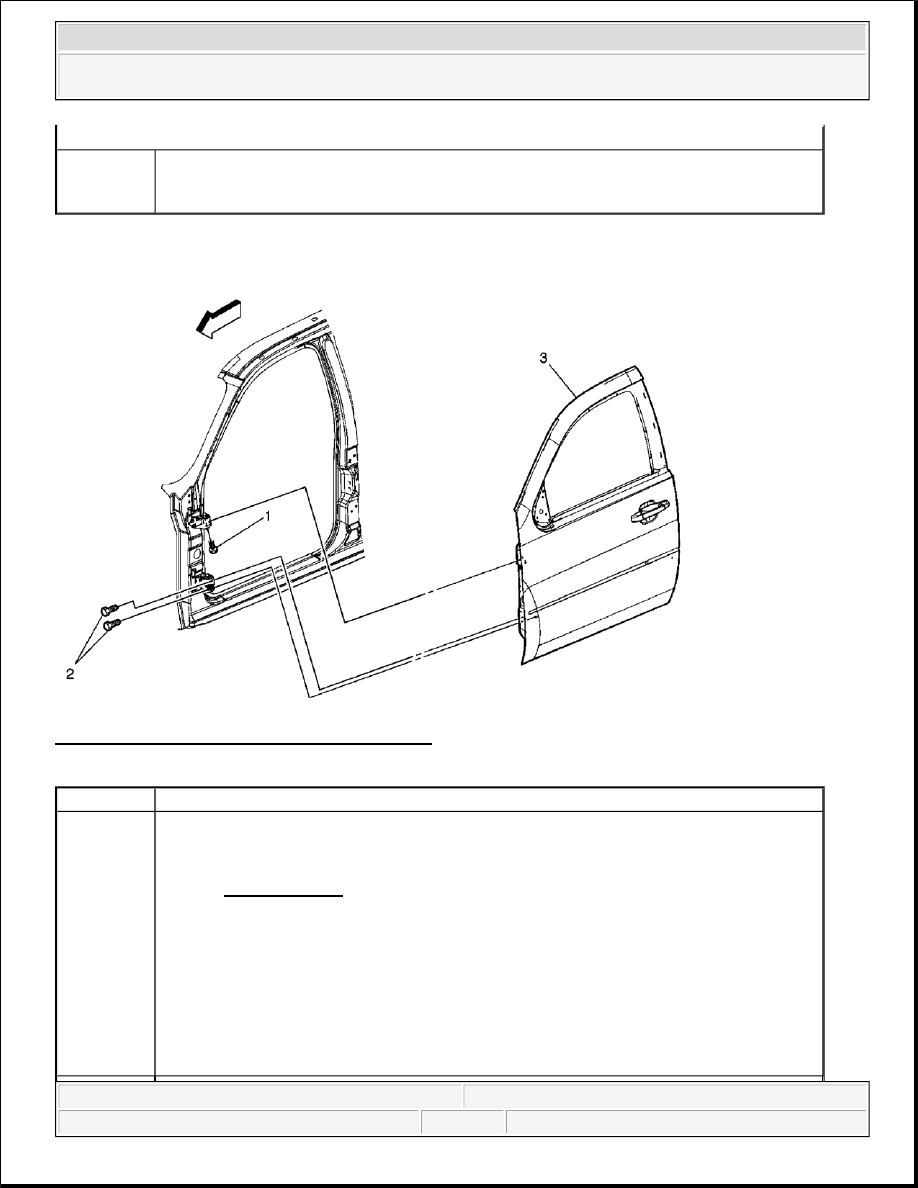

Fig. 15: View Of Front Side Door & Components
Courtesy of GENERAL MOTORS CORP.

Open the rear door to the full open position.

1

Rear Side Door Hinge Cover
Procedure:
Pull rearward on the hinge cover to release the 12 integral retainers.

Callout

Component Name

1

Front Side Door Upper Hinge Bolt (Qty: 2)

Procedure

1. Support the door before removing the hinge bolts.

2. Disconnect the electrical connector.

3. With the aid of an assistant, remove the door.

Tighten: 25 N.m (18 lb ft)

NOTE:

Refer to Fastener Notice .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.
