Chevrolet Silverado / GMC Sierra. Manual - part 1236

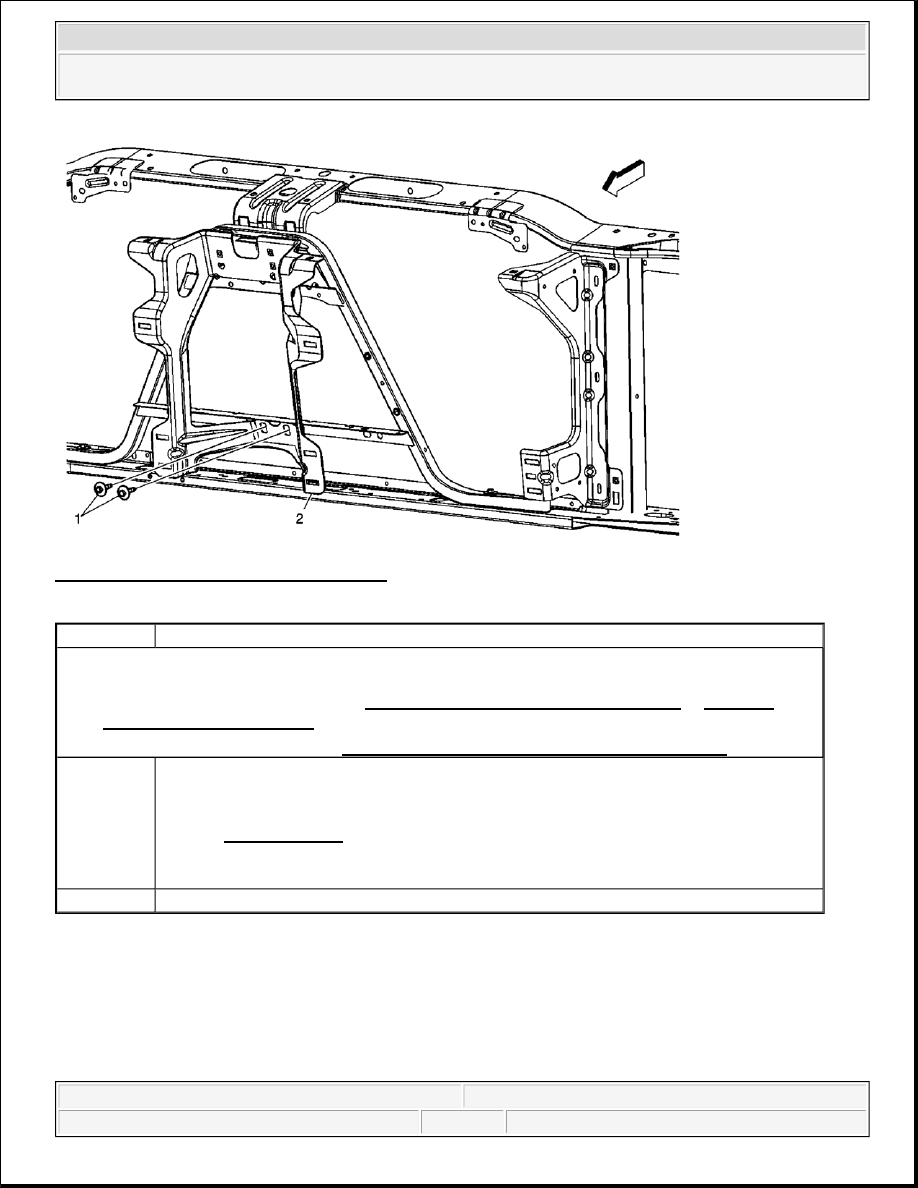

Fig. 4: View Of Diagonal Fender Brace & Bolts
Courtesy of GENERAL MOTORS CORP.

FRONT FENDER UPPER BRACKET REPLACEMENT

Callout

Component Name

1

Front End Sheet Metal Diagonal Brace Bolts (Qty: 2)

2

Front End Sheet Metal Diagonal Brace



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:21 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

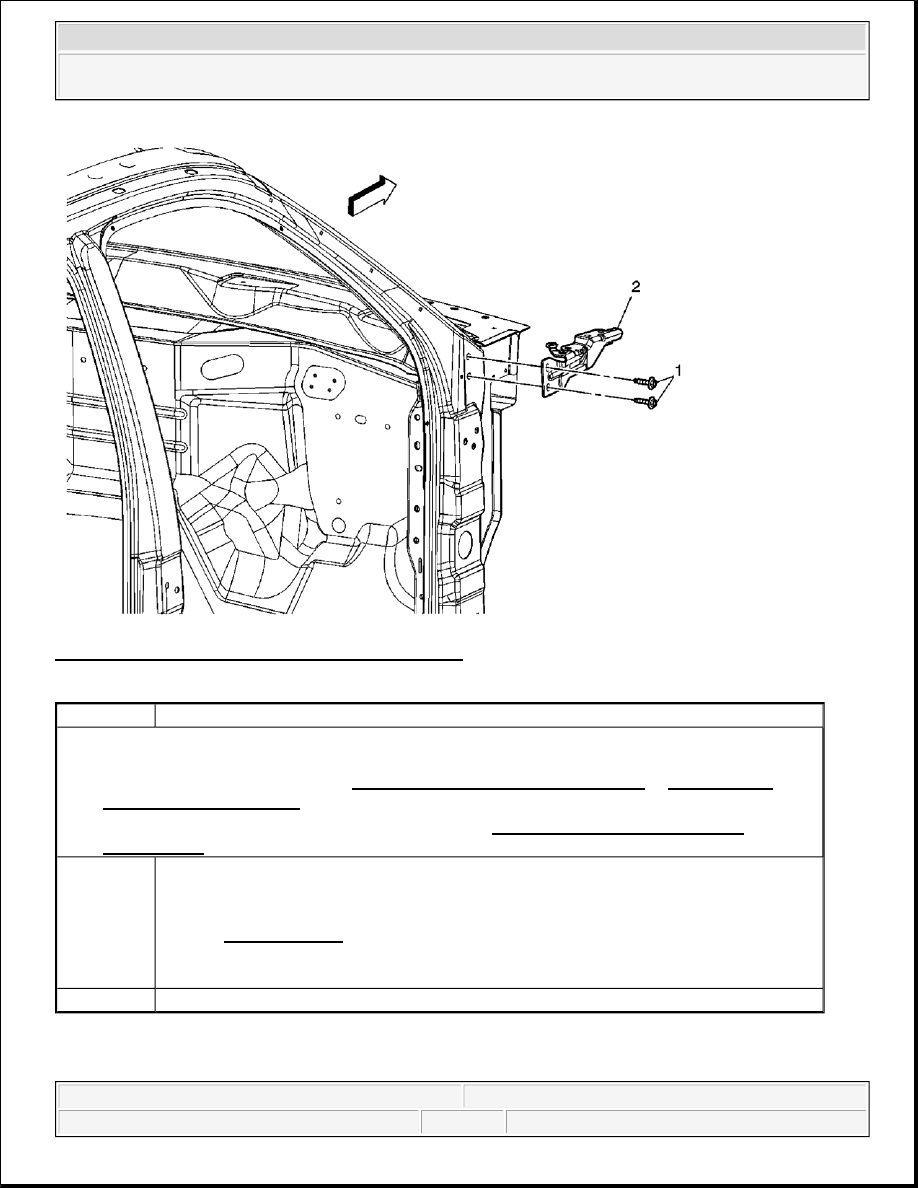

Fig. 5: View Of Front Fender Upper Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.

FRONT FENDER REAR UPPER BRACE REPLACEMENT

Callout

Component Name

Preliminary Procedures

1. Remove the front fender. Refer to Front Fender Replacement - Left Side or Front Fender

Replacement - Right Side.

2. Remove the windshield side reveal molding. Refer to Windshield Side Reveal Molding

Replacement .

1

Front Fender Upper Bracket Bolt (Qty: 2)

Tighten: 25 N.m (18 lb ft)

NOTE:

Refer to Fastener Notice .

2

Front Fender Upper Bracket



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:21 PM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

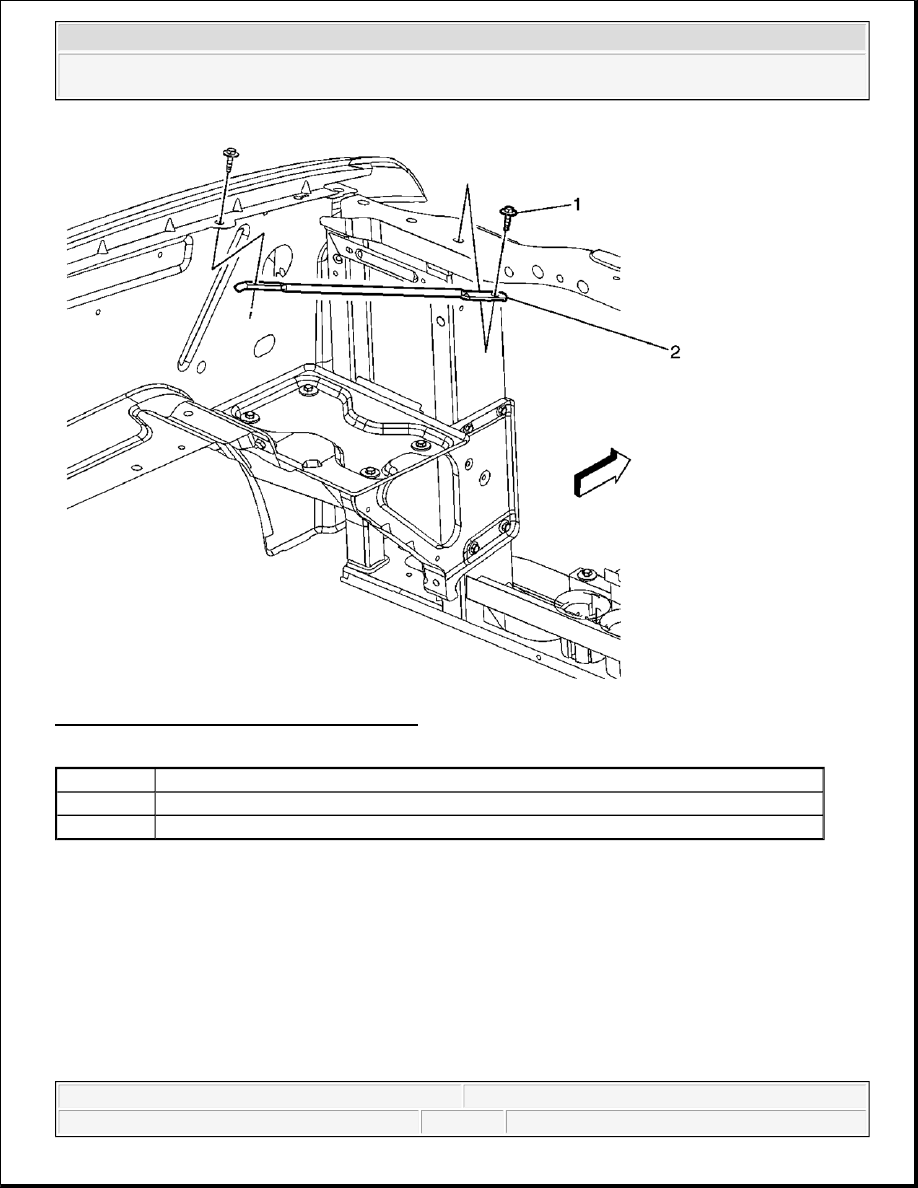

Fig. 6: View Of Rear Fender Brace & Bolts
Courtesy of GENERAL MOTORS CORP.

HOOD STOP BRACKET REPLACEMENT

Callout

Component Name

1

Front Fender Rear Upper Brace Bolt (Qty: 4)

Tighten: 25 N.m (18 lb ft)

NOTE:

Refer to Fastener Notice .

2

Front Fender Rear Upper Brace



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:21 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

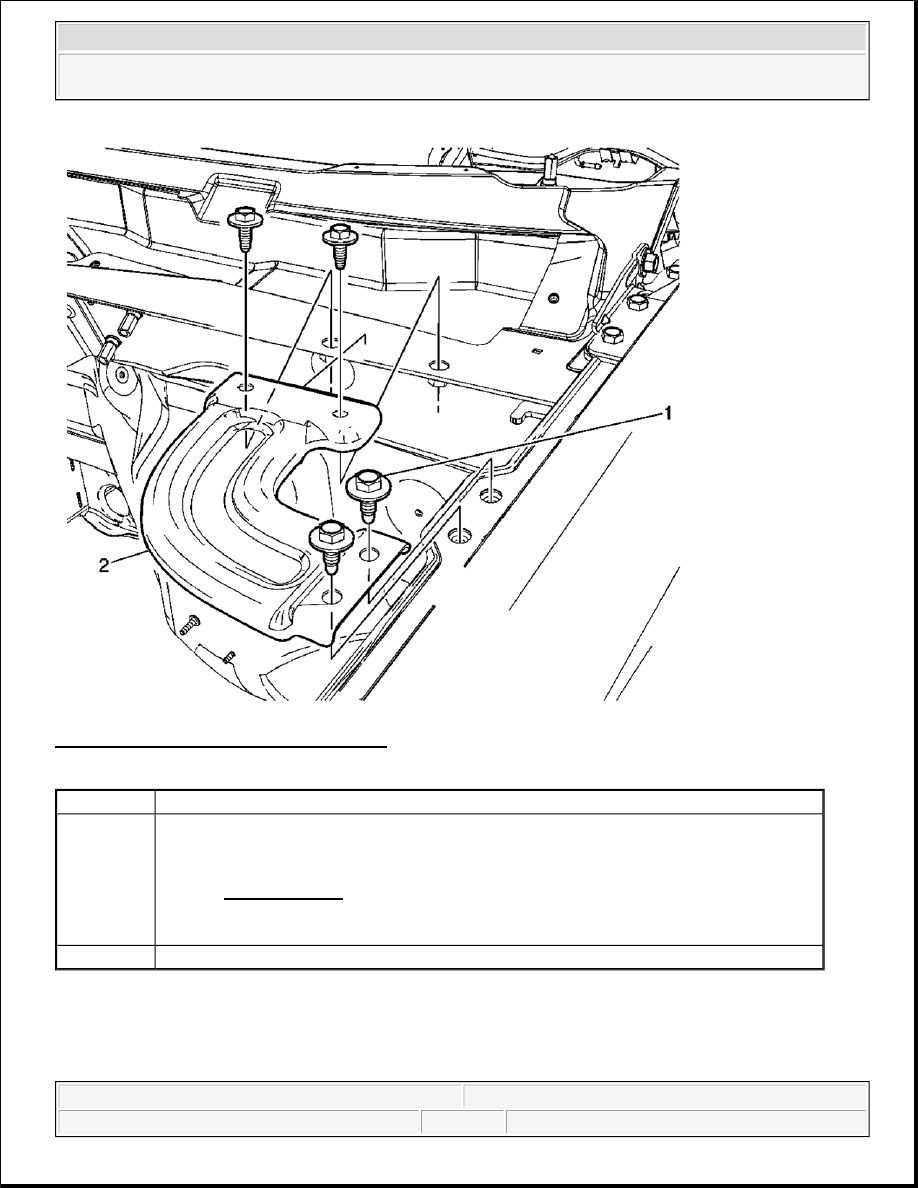

Fig. 7: View Of Hood Stop Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.

HOOD STOP BUMPER BRACKET REPLACEMENT

Callout

Component Name

Preliminary Procedures

1. Remove the radiator grille. Refer to Radiator Grille Replacement (Chevrolet) or Radiator

Grille Replacement (GMC) .

2. Remove the hood latch. Refer to Hood Primary and Secondary Latch Replacement.

1

Hood Stop Bracket Bolts (Qty: 2)

Tighten: 9 N.m (80 lb in)

NOTE:

Refer to Fastener Notice .

2

Hood Stop Bracket



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:21 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.
