REAR DOOR REPLACEMENT (EXTENDED CAB)

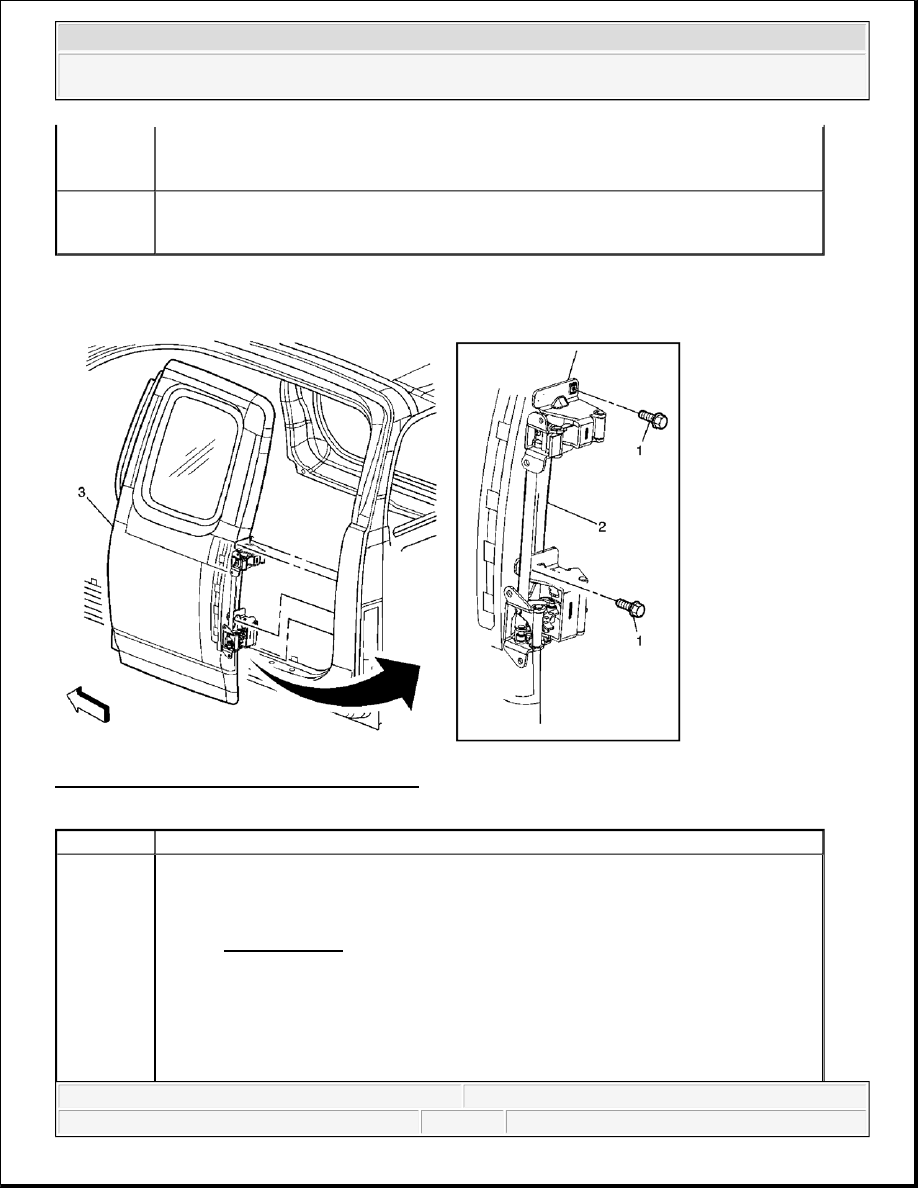

Fig. 16: View Of Rear Side Door & Hinge Bolts
Courtesy of GENERAL MOTORS CORP.

2

Front Side Door Lower Hinge Bolt (Qty: 2)

Tighten: 25 N.m (18 lb ft)

3

Front Side Door
Procedure:
Transfer components as necessary.

Callout

Component Name

1

Rear Side Door Upper Hinge Bolt (Qty: 2)


Tip:



Support the door before removing the hinge bolts.



Disconnect the electrical connector.

NOTE:

Refer to Fastener Notice .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

REAR DOOR REPLACEMENT (CREW CAB)

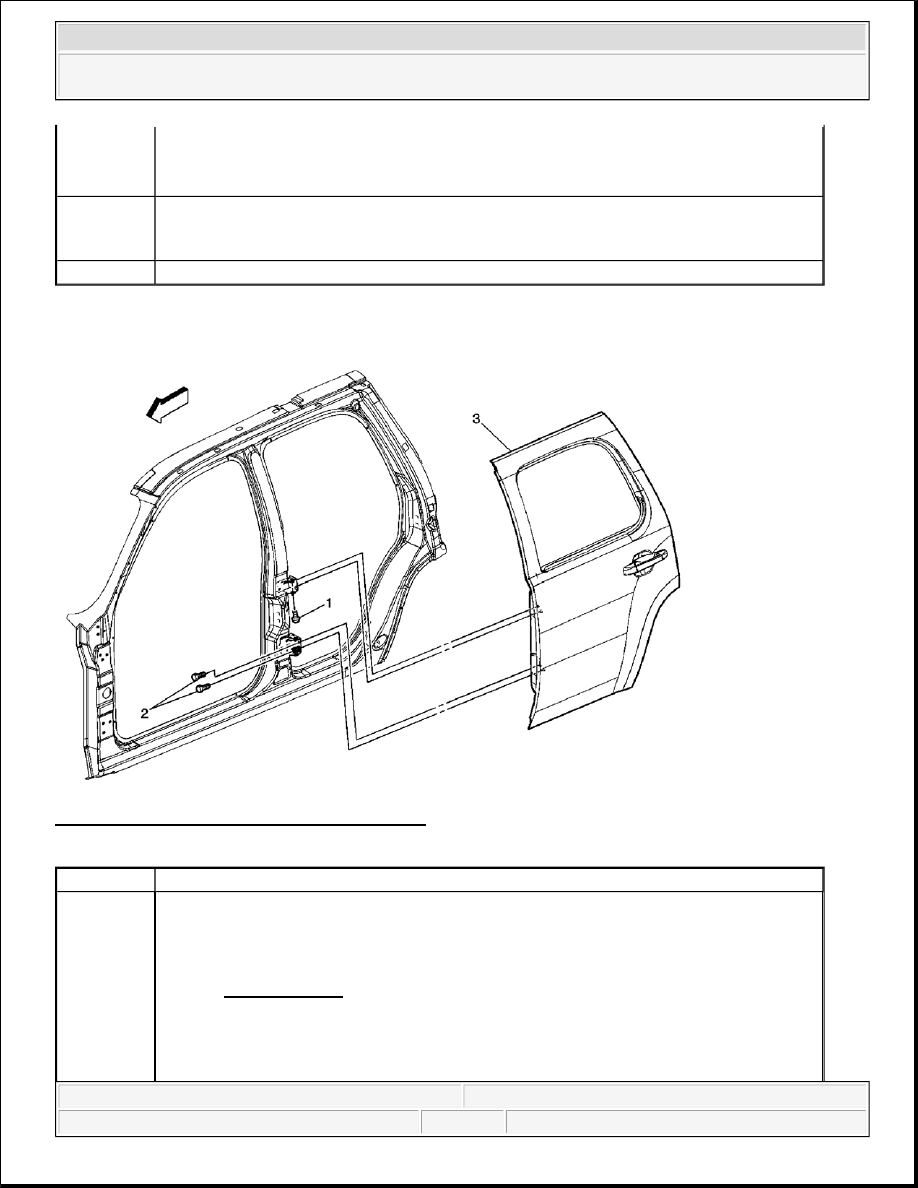

Fig. 17: View Of Rear Side Door & Components
Courtesy of GENERAL MOTORS CORP.



With an assistant remove the door.

Tighten: 25 N.m (18 lb ft)

2

Rear Side Door Lower Hinge Bolt (Qty: 2)

Tighten: 25 N.m (18 lb ft)

3

Rear Side Door

Callout

Component Name

1

Rear Side Door Upper Hinge Bolt (Qty: 2)

Procedure

1. Support the door before removing the hinge bolts.

NOTE:

Refer to Fastener Notice .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

ENDGATE ADJUSTMENT

Adjustment Procedure

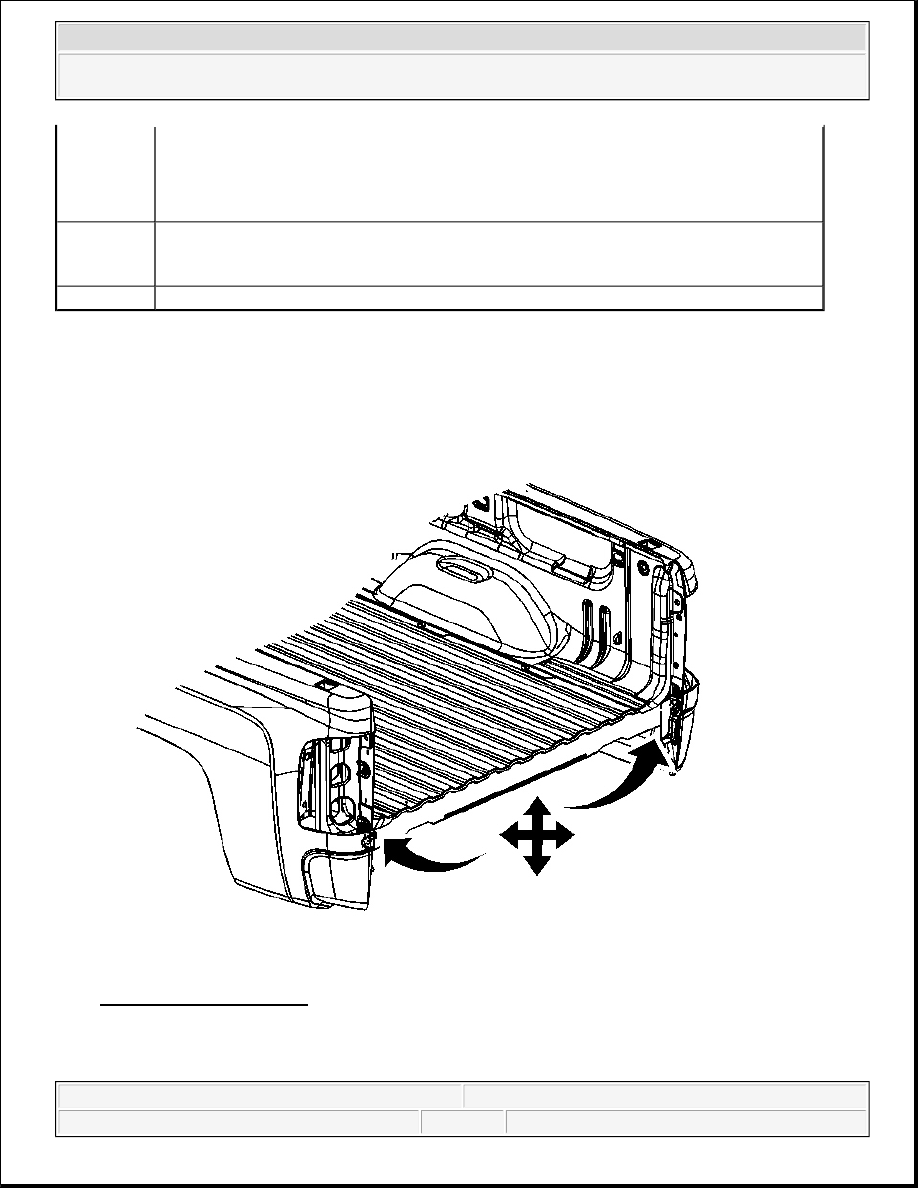

Fig. 18: Adjusting Endgate
Courtesy of GENERAL MOTORS CORP.

1. With the endgate closed, determine the amount of adjustment will be needed.

2. Disconnect the electrical connector.

3. With the aid of an assistant, remove the door.

Tighten: 25 N.m (18 lb ft)

2

Rear Side Door Lower Hinge Bolt (Qty: 2)

Tighten: 25 N.m (18 lb ft)

3

Rear Side Door



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

2. If adjustment is necessary, remove the endgate. Refer to Endgate Replacement (Pickup Box).

3. Mark the position of the hinges with a grease pencil.

4. Loosen the endgate bolts and adjust the endgate hinges by moving the hinges in the following directions.



Upward or downward



Inward or outward

5. Reinstall the endgate and determine if any further adjustments are needed.

6. When the proper adjustments are set, tighten the hinge bolts.

Tighten: Tighten the hinge bolts to 40 N.m (30 lb ft).

ENDGATE REPLACEMENT (PICKUP BOX)

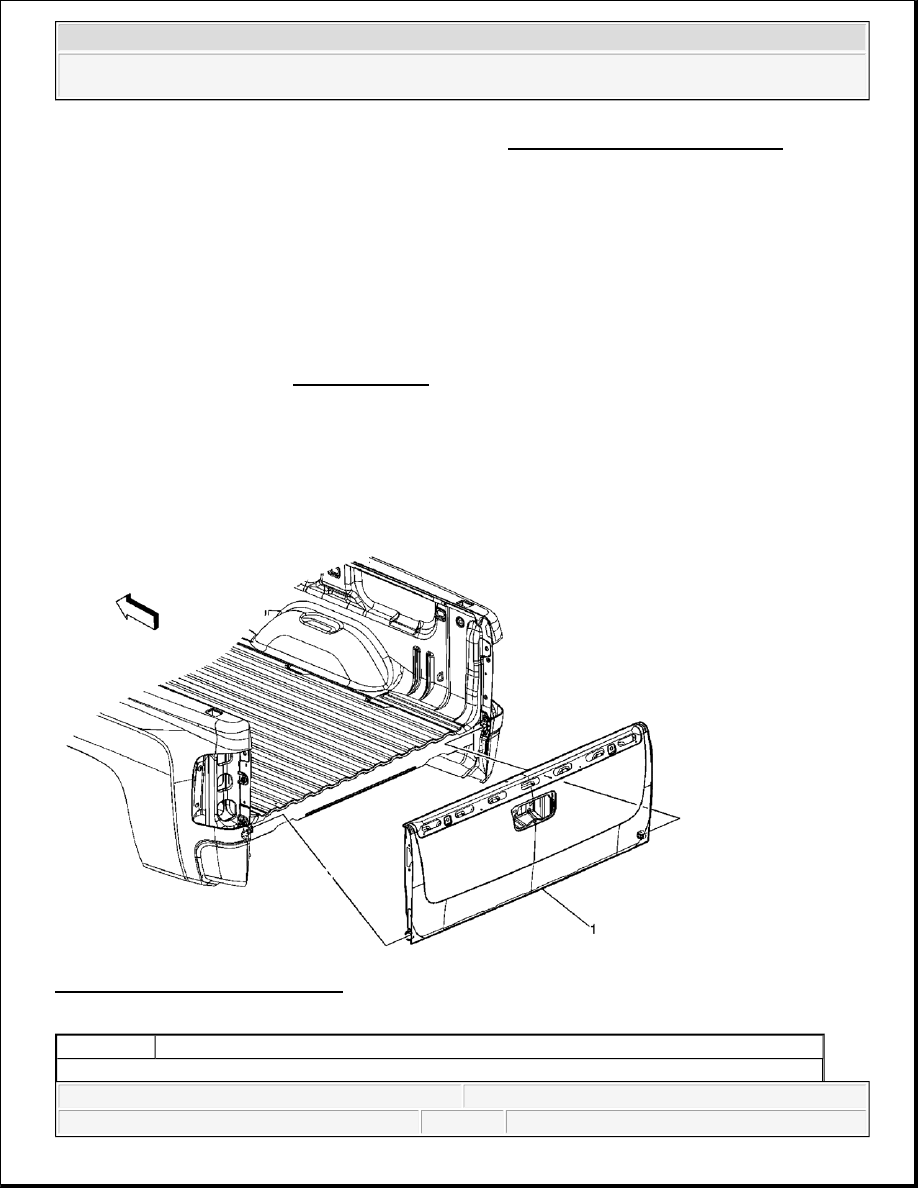

Fig. 19: View Of Pickup Box Endgate
