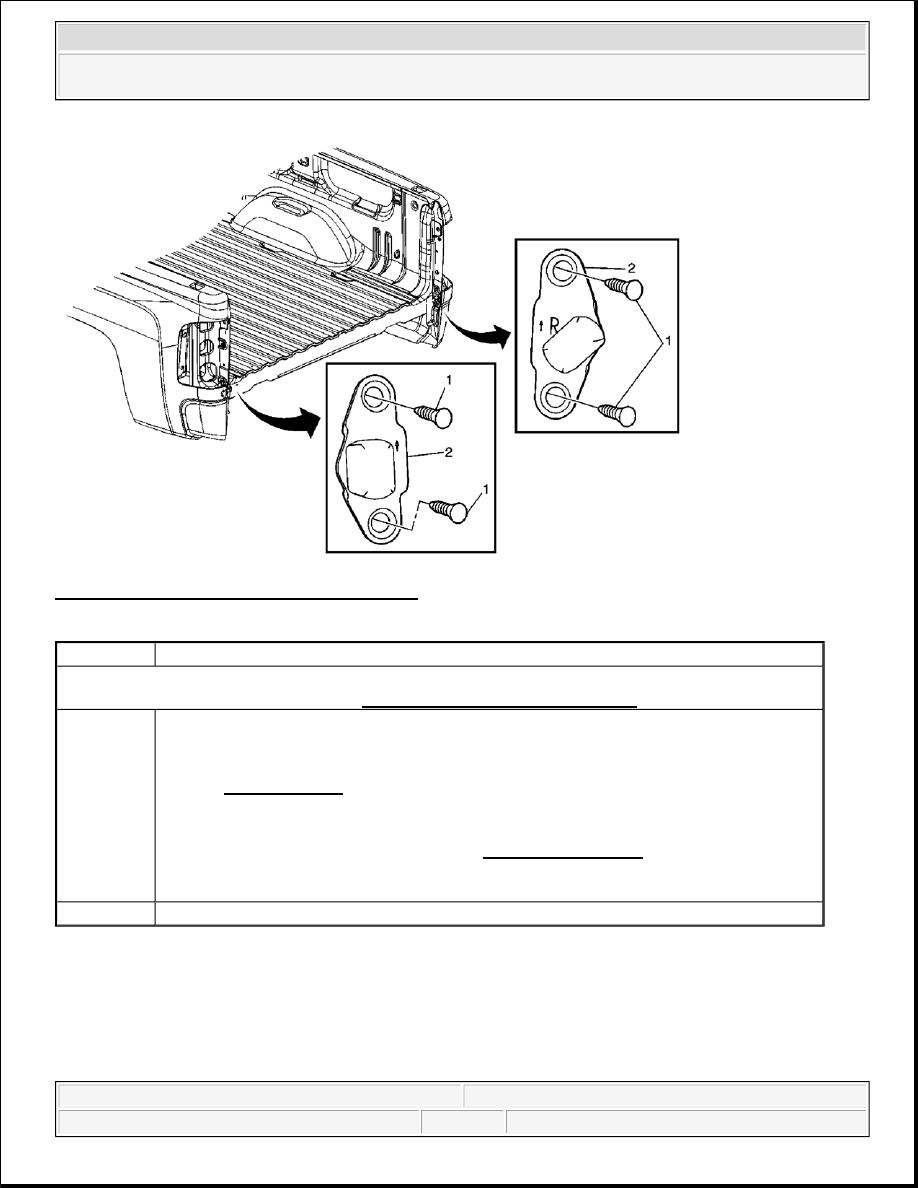

Fig. 23: View Of Endgate Lower Hinge & Bolts
Courtesy of GENERAL MOTORS CORP.

FRONT SIDE DOOR HINGE REPLACEMENT

Callout

Component Name

Preliminary Procedure:
Remove the pickup box endgate. Refer to Endgate Replacement (Pickup Box).

1

Endgate Lower Hinge (Body Side) Bolt (Qty: 4)


Tip: If necessary, adjust the hinges. Refer to Endgate Adjustment.

Tighten: 40 N.m (30 lb ft)

NOTE:

Refer to Fastener Notice .

2

Endgate Lower Hinge (Body Side)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

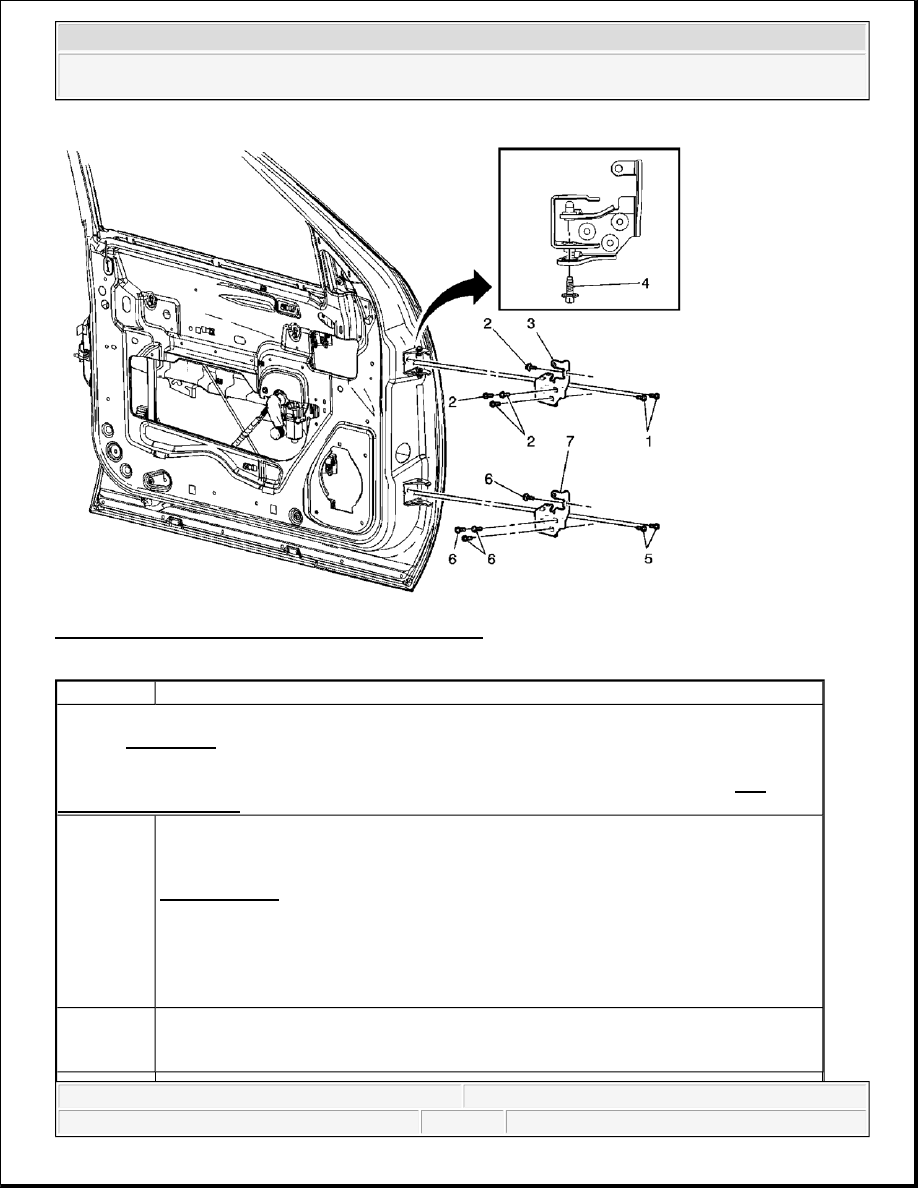

Fig. 24: View Of Front Side Door Hinge & Components
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR
Disabling and Enabling .

CAUTION:

Refer to SIR Caution .

1

Front Side Door Hinge Upper Bolt (Qty: 3)


Tip: Replace only one hinge at a time.

Tighten: 25 N.m (18 lb ft)

NOTE:

Fastener Notice .

2

Front Side Door Hinge Upper Bolt (Qty: 3)

Tighten: 25 N.m (18 lb ft)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

HOOD HINGE REPLACEMENT

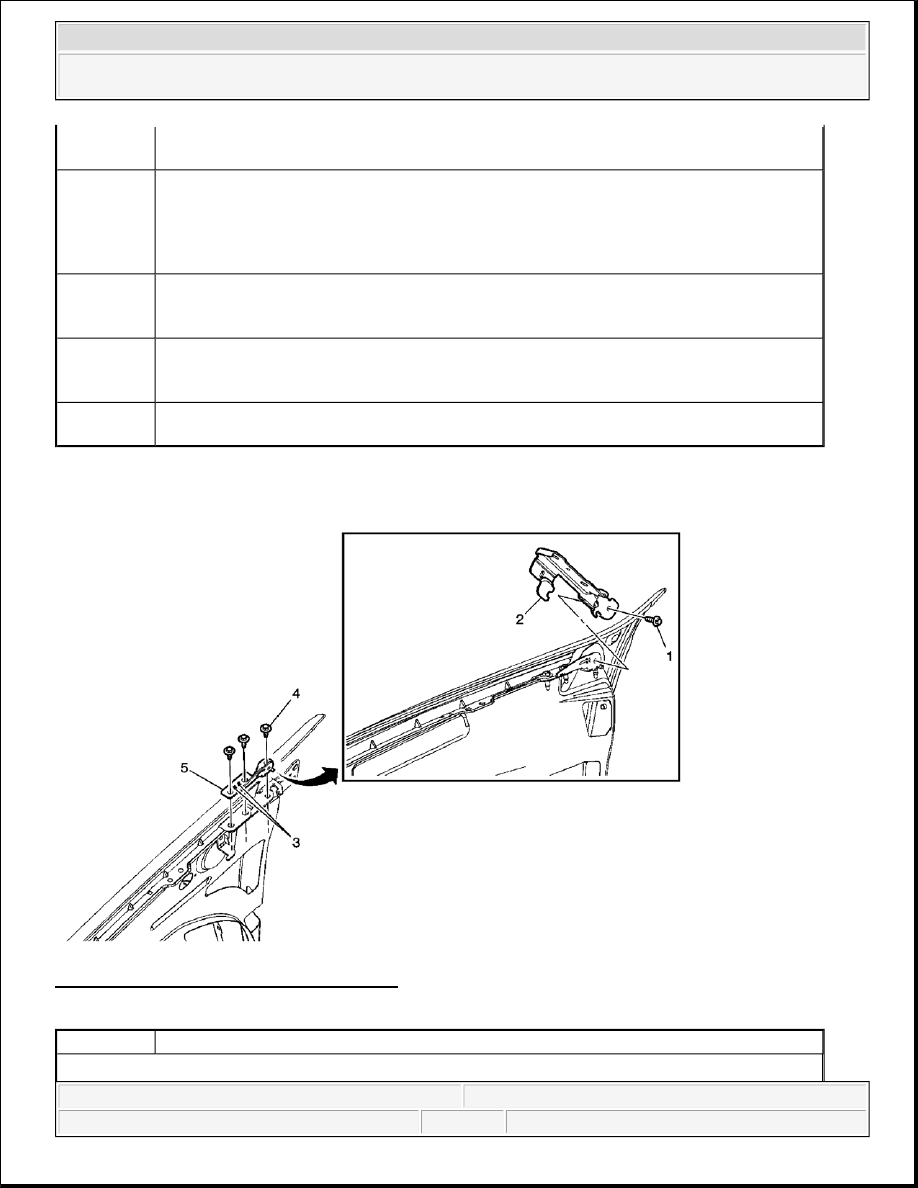

Fig. 25: View Of Hod Hinges & Components
Courtesy of GENERAL MOTORS CORP.

3

Front Side Door Upper Hinge
Tip: Check the door for proper alignment, then adjust as necessary.

4

Front Side Door Hinge Lower Bolt
Tip: After installation of the replacement upper hinge, from the underside of the hinge,
remove the temporary keeper pivot bolt and replace with longer permanent bolt.

Tighten: 25 N.m (18 lb ft)

5

Front Side Door Hinge Lower Bolt (Qty: 3)

Tighten: 25 N.m (18 lb ft)

6

Front Side Door Hinge Lower Bolt (Qty: 4)

Tighten: 25 N.m (18 lb ft)

7

Front Side Door Lower Hinge
Tip: Check the door for proper alignment, then adjust as necessary.

Callout

Component Name

CAUTION:



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

HOOD OPEN ASSIST SPRING REPLACEMENT

Preliminary Procedures

1. Remove the hood. Refer to Hood Replacement.

2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .

3. Remove the hood open assist spring. Refer to Hood Open Assist Spring Replacement.

When a hood hold open device is being removed or installed, provide alternate support to avoid the
possibility of damage to the vehicle or personal injury.

1

Hood Upper Hinge Bolt

Tighten: 25 N.m (18 lb ft)

NOTE:

Refer to Fastener Notice .

2

Hood Upper Hinge

3

Hood Lower Hinge Welds


Procedure:
Locate and drill out all factory welds. Note weld are only for factory processing purposes.
The replacement hinge does not need to be welded, just bolted on.

CAUTION:

When working with any type of glass or sheet metal with exposed or rough edges, wear
approved safety glasses and gloves in order to reduce the chance of personal injury.

4

Hood Lower Hinge Bolt (Qty: 3)

Tighten: 25 N.m (18 lb ft)

5

Hood Lower Hinge
