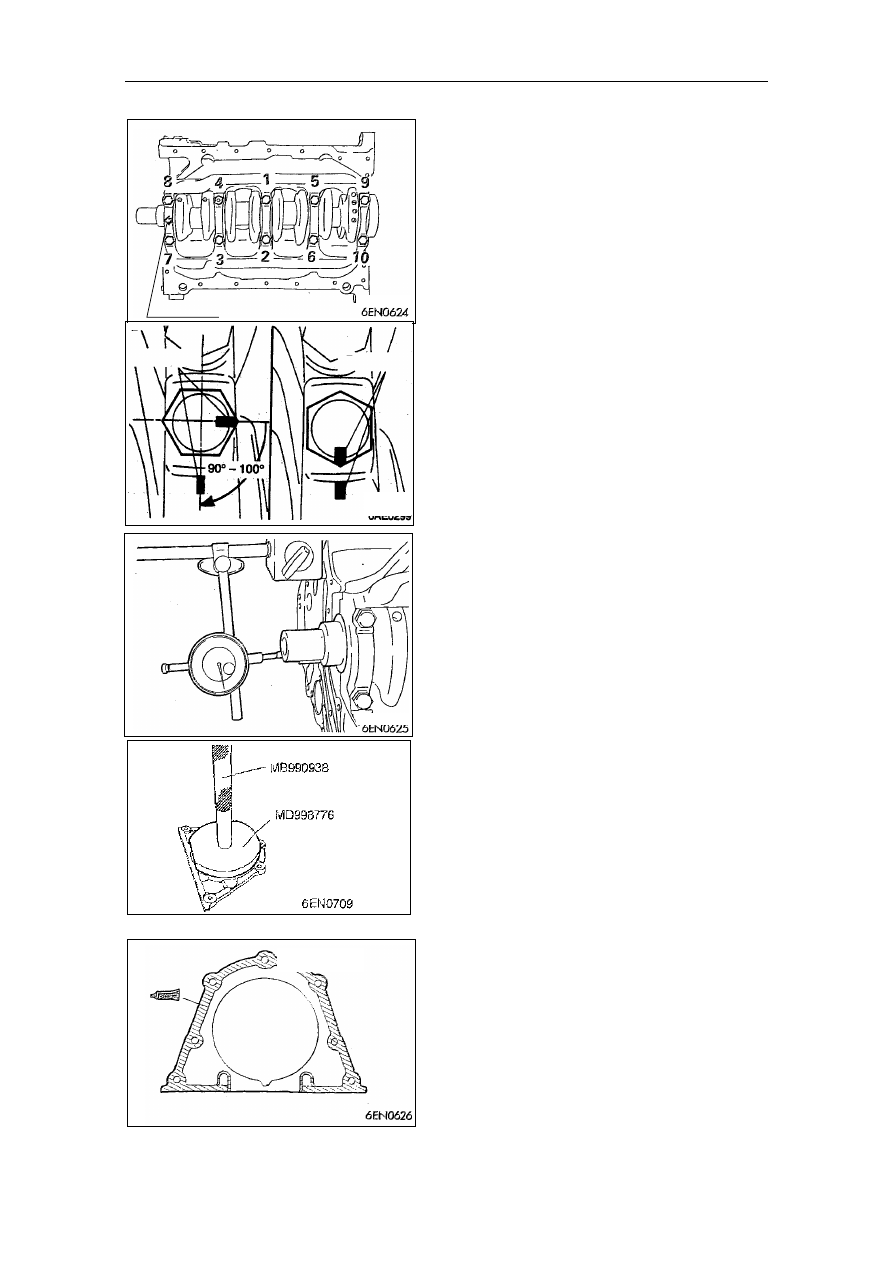

(5) Daub paint mark on every nut head.
(6) Daub paint mark on the main
bearing cap of which the position is
from paint mark on bolts to
screwing direction of 90～100°
(7) Screw nuts on from 90 ～ 100 °
regulated in the picture above,
according to screwing order till paint
mark on bolts aligns paint mark on
main bearing cap.
Notice:
If screwing angle is less than 90°,
screwing specified capability can’t
be assured. When screwing it on,
pay much attention to screwing
angle.
If screwing nuts are excessively
tightened (exceed angle of 100°) ,
screw nuts off totally. And restart
to screw nuts from Step 1.
(8) After installing main bearing cap,
assure if crankshaft can turn
smoothly and check axial clearance.
If axial clearance exceeds usage
limit value, replace NO.3 crankshaft
thrust bearing of crankshaft.
Standard value：0.05～0.18mm
Limit value：0.25mm

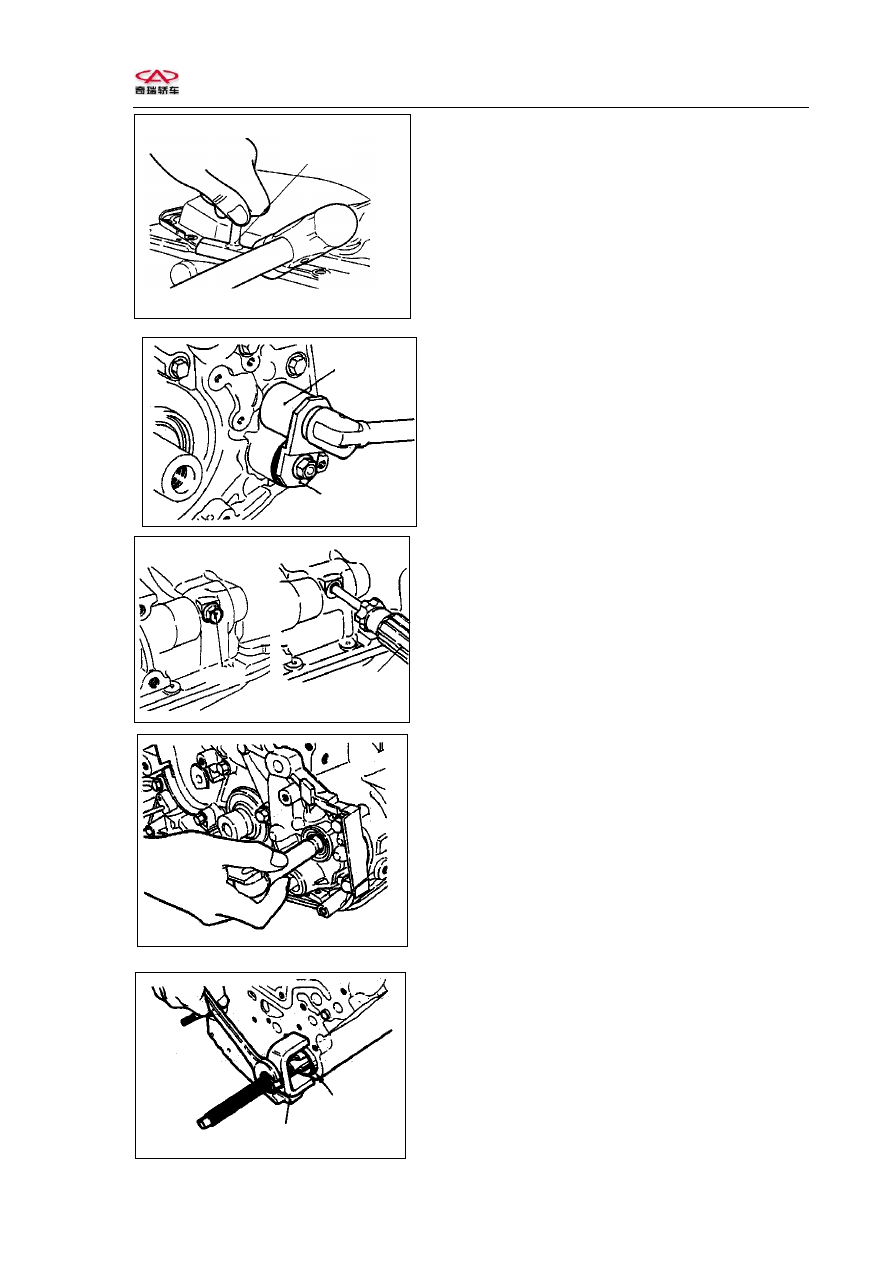

Oil seal installation
Rear oil seal cap installation
Specified sealant：
Brand ： Mitsubishi pure components
MD970389
or
corresponding
equivalents.
Notices:
(1) Ensure rear oil seal cap is installed
quickly when sealant is still wet.
( ≤15 min)
(2) After installing, keep sealed
area away from lubricate grease
and coolant for one hour.
Arrow
Paint mark
Paint mark
