Chery Tiggo T11 LHD. Manual - part 54

Chery T11 Service Manual Electric Injection System

P0204-0 Fuel injector D (No 2 cylinder) circuit

failure

P1530-1 Short circuit of A/C compressor relay

circuit to the positive electrode of power

supply

P0230-1 Short circuit of fuel pump relay to the

positive electrode of power supply

P1530-2 Open circuit of A/C relay circuit or short

circuit to earth

P0230-2 Open circuit of fuel pump relay or short

circuit to earth

P1604-0 EEPROM error

P0325-0 Bad connection to the knock sensor

P1610-0 Anti-theft controller error

P0335-0 No 58X crankshaft position sensor signal

P1610-8 ECM

and

anti-theft

controller

communication error

P0335-8 58X crankshaft position sensor signal

error

P2000-1 Over-high temperature of front A/C

evaporator

P0342-0 Low camshaft position signal

P2000-2 Too-low temperature of front A/C

evaporator

P0342-2 High camshaft position signal

P2001-1 Over-high temperature of rear A/C

evaporator

P0351-1 Short circuit between the ignition coil

1-4 cylinder drive circuit and the positive

electrode of power supply

P2001-2 Too-low temperature of rear A/C

evaporator

P0351-2 Open circuit of the ignition coil 1-4

cylinder drive circuit or short circuit to

earth

P2100-2 Short circuit of rear A/C trip relay to

battery

P0352-1 Short circuit between the ignition coil

2-3 cylinder drive circuit and the positive

electrode of power supply

P2100-8 Open circuit of rear A/C trip relay or

short circuit to earth

P0352-2 Open circuit of the ignition coil 2-3

cylinder drive circuit or short circuit to

earth

Chery T11 Service Manual Electric Injection System

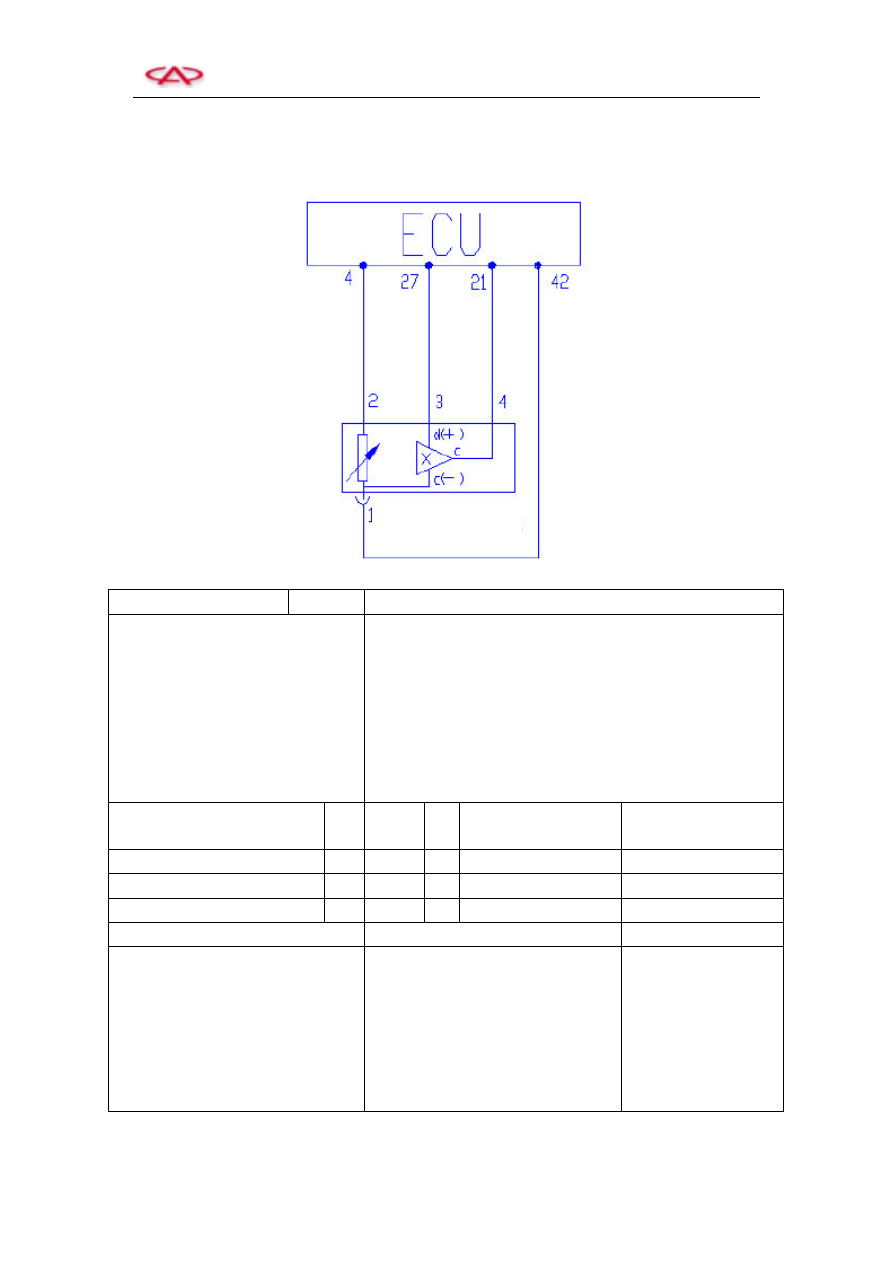

3. Method of Trouble Shooting

Failure Code:

P0105-1

Over-high intake manifold absolute pressure sensor signal

Set emergency control scheme:  Switch on the failure lamp till the failure disappears

  When the engine stops: 90 kPa
  When the engine idles: = 45 kPa
  When the engine operates: the pressure of manifold changes

as the opening of throttle

 If the cylinder pressure detection technology is applied,

there is 50% of probability that the fuel injection sequence

has 360 degree of ram off.

Connection terminal:

20U

Pressure/Temperature

Sensor

Normal Measurement

Signal

5V reference voltage:

Manifold pressure signal:

0.5 to 4.5V

Sensor signal earth:

Condition for Determination

Possible Reason

Actions

Engine operation

No TPS failure

MAP > 98.117 kPa

TPS < 19.141%

Failure duration > 2.5 s

1) Short circuit of harness pressure

signal circuit to 5V reference

voltage circuit or the positive

electrode of power supply

2) Sensor damaged

3) ECM’s pressure signal input

interface failure

1) Repair harness

2) Replace sensor

3) Replace ECM

T11 Intake Pressure

/Temperature Sensor

Chery T11 Service Manual Electric Injection System

Failure Code: P0105-2

Too-low intake manifold absolute pressure sensor signal

Set emergency control scheme:  Switch on the failure lamp till the failure disappears

  When the engine stops: 90 kPa
  When the engine idles: = 45 kPa
  When the engine operates: the pressure of manifold changes

as the opening of throttle

 If the cylinder pressure detection technology is applied,

there is 50% of probability that the fuel injection sequence

has 360 degree of ram off.

Connection terminal:

20U

Pressure/Temperature

Sensor

Normal

Measurement Signal

5V reference voltage:

Manifold pressure signal:

0.5 to 4.5V

Sensor signal earth:

Condition for Determination

Possible Reason

Actions

No TPS failure

MAP < 14.047 kPa

RPM < 1050 rpm

TPS > 18.75%

Failure duration > 2.5 s

1) Unreliable

connection

the

connecting parts

2) Open circuit of harness pressure

signal circuit

3) Short circuit of harness pressure

signal circuit to earth

4) Open circuit of 5V reference

voltage circuit

5) Open circuit of sensor signal earth

wire

6) Harness 5V reference voltage

direction is reverse with the

reference earth wire (this failure

may cause the damage of sensor)

7) Sensor damaged

8) ECM’s pressure signal input

interface failure

1) Connect again

2) Repair harness

3) Repair harness

4) Repair harness

5) Repair harness

6) Repair harness

7) Replace sensor

8) Replace ECM

Chery T11 Service Manual Electric Injection System

Failure Code:

P0110-1

Too-low intake temperature sensor signal

Set emergency control scheme:  Switch on the failure lamp till the failure disappears

 The air intake temperature shall be equal to the coolant

temperature, but not more than 44.25℃

Connection terminal:

20U

Pressure/Temperature

Sensor

Normal

Measurement Signal

Intake temperature signal:

0.5 to 4.5V

Sensor signal earth:

Condition for Determination

Possible Reason

Actions

Engine operation time > 120 s

MAT < -38.25℃

Failure duration > 2 s

1) Unreliable connection of the connecting

parts

2) Open circuit of temperature signal

circuit

3) Open circuit of sensor signal earth

4) Short circuit of temperature signal wire

to the positive electrode of power

supply

5) Sensor damaged

6) ECM’s this signal input interface failure

1) Connect again

2) Repair harness

3) Repair harness

4) Repair harness

5) Replace sensor

6) Replace ECM

Failure Code:

P0110-2

Over-high intake temperature sensor signal

Set emergency control scheme:  Switch on the failure lamp till the failure disappears

 The air intake temperature shall be equal to the coolant

temperature, but not more than 44.25℃

Connection terminal:

20U

Intake Temp.

Sensor

Pressure/Temperat

ure

Sensor

Normal

Measurement Signal

Intake temperature signal:

0.5 to 4.5V

Sensor signal earth:

Condition for Determination

Possible Reason

Actions

Engine operation time > 60 s

MAT > 148.5℃

Failure duration > 2 s

1) Short circuit of temperature signal

circuit to earth

2) Sensor damaged

3) ECM’s this signal input interface failure

1) Repair harness

2) Replace sensor

3) Replace ECM
