Chery T11 Service Manual                    Electric Injection System

21



14. Air Conditioning Control System (A/C)

Principle:  Turn  on  these  A/C  switches.  If  both

the  A/C  pressure  and  the  data  detected  by  the

evaporator  temperature  sensor  are  normal,  the

A/C  request  signal  will  pass  through  these

switches and  get to  the  ECU.  The  ECU  controls

the A/C relay attracting after it detects this signal.

At  the  same  time,  it  gives  stepper  motor  a

speed-increasing  signal,  and  switches  on  the

electronic  fan.  And  the  A/C  system  begins  to

operate.

Conditions to switch off A/C system:

1)  Throttle position sensor failure;

2)  Vehicle speed sensor failure;

3)  When the engine is with large load;

4)  Evaporator temperature sensor failure;

5)  The  evaporator  temperature  is  less  than

1.5℃;

6)  The engine speed is overspeed;

7)  The  coolant  temperature  is  greater  than

108℃;

8)  Refueling is too quick.

Trouble Diagnosis:

1)  Short circuit of A/C relay wire to earth;

2)  Short  circuit  of  A/C  relay  wire  to  power

supply;

3)  Open circuit of A/C relay wire;

4)  Too-low  evaporator  temperature  sensor

temperature;

5)  Over-high  evaporator  temperature  sensor

temperature.

Troubleshooting:

1)  Examine the wire of A/C system;

2)  Examine  the  damage  of  A/C  system’s

evaporator temperature sensor;

3)  Examine  the  wire  jumping  inside  the

harness.



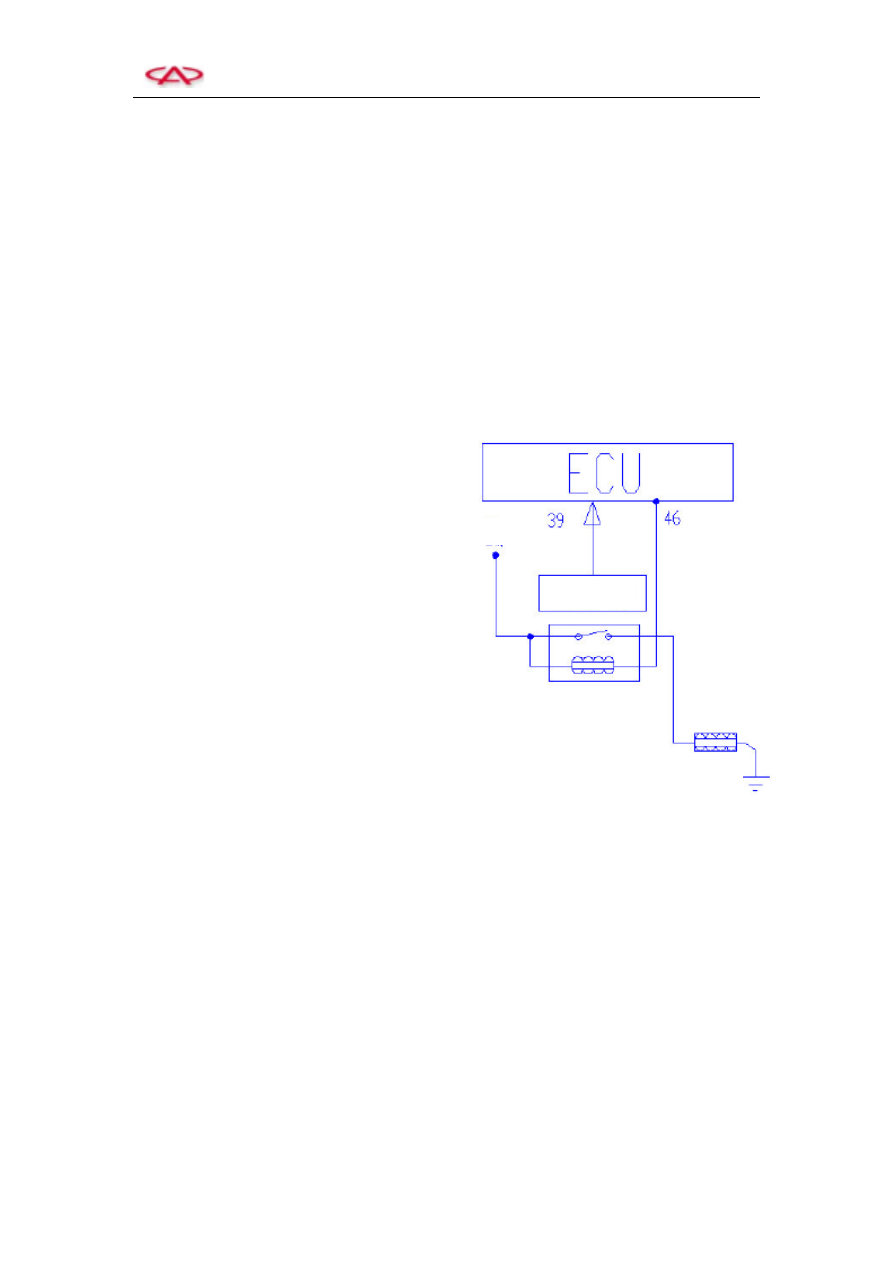

Circuit diagram of A/C control system

Pin:

No  1  for  the  A/C  request  signal  (to  ECU

39#);

No 2 for the A/C relay control (to ECU 46#).



A/C Request Signal

Power Supply

A/C Compressor Clutch



Chery T11 Service Manual                    Electric Injection System

22



15. Fan Control (FAN)

MT 20U  controls the  fan’s low/high speed.  Based  on

the  water  temperature,  air  conditioning  and  other

signals,  the  control  system  can  control  the  fan’s  low

and  high  speed  operation.  If  the  condition  is

applicable,  the  MT  20U  will  control  the  fan  system

delay.

Control Mode:

For  1

st

  gear,  the  fan  is  switched  on  at  98℃  and

switched off at 94℃;

For 2

nd

  gear, the fan is switched on at 105℃  and

switched off at 101℃;

If  the  water  temperature  is  greater  than  101℃

after  the  fan is switched  off,  the fan  continues to

operate for 1 minute;

If the water temperature is greater than 94℃  after

the  fan  is  switched  off,  the  fan  continues  to

operate for 0.5 minute;

If  the  water  temperature  is  less  than  85℃  after

the fan is switched off, the fan stops;

Trouble Diagnosis:

1)  Short  circuit  of  high-speed  relay  wire  to  power

supply;

2)  Short circuit of high-speed relay wire to earth;

3)  Open circuit of high-speed relay wire;

4)  Short  circuit  of  low-speed  relay  wire  to  power

supply;

5)  Short circuit of low-speed relay wire to earth;

6)  Open circuit of low-speed relay wire;

Troubleshooting:

In  ECU  side,  examine  the  short  or  open  circuit  of

these  wires in accordance with  the  pins shown in the

left figure.



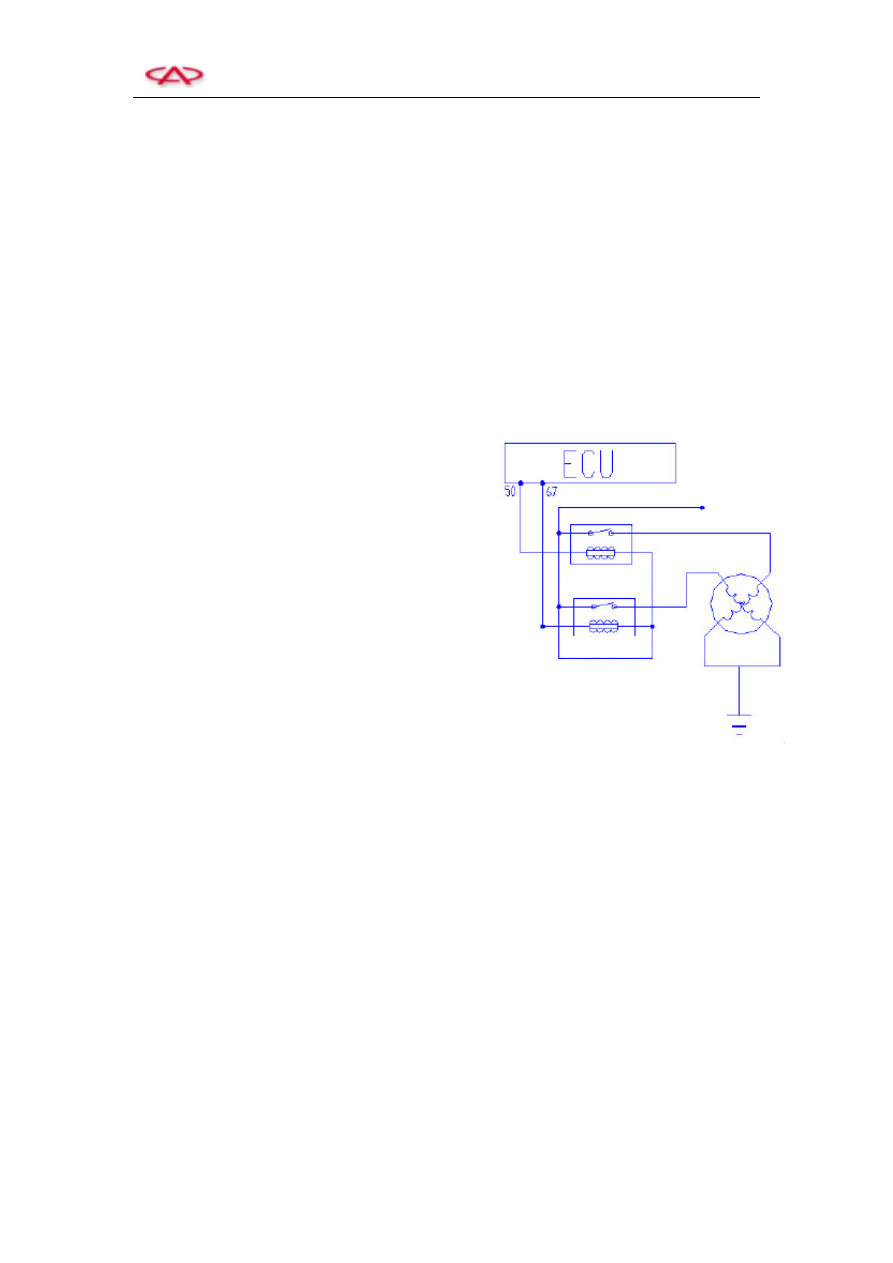

Circuit diagram of fan control system

In  this  figure  above,  the  high/low  speed

pins  are  the  same  as  the  actual  pins.  But

the actual circuit diagram is different from

this circuit diagram above. The latter is for

reference only.





Main Power Supply

Dual-Speed Fan

High-speed fan relay

Low-speed fan relay



Chery T11 Service Manual                    Electric Injection System

23



16. Definition of ECU Pins



Pin

Connection Point

Type

Pin

Connection Point

Type

Ignition  switch  control  fire  wire

(supply)

Input

Unused



Speed signal sensor

Input

5V standard power supply

Output

5V standard supply earth wire

Earth

Front oxygen sensor signal (low level)

Input

Unused



Unused



Unused



10

Unused



11

Diagnosis communication

Output

12

Speed sensor signal (high level)

Input

13

Unused



14

Unused



15

Unused



16

Unused



17

Battery supply (+12V)

Input

18

Battery supply (+12V)

Input

19

Unused



20

5V standard power supply

Output

21

5V standard power supply earth wire

Earth

22

Unused



23

Unused



24

Throttle position sensor signal

Input

25

Unused



26

A/C evaporator temperature sensor

Input

27

Intake manifold temperature sensor

Input

28

Speed sensor signal (low level)

Input

29

Unused



30

Diagnosis request

Input

31

Engine failure lamp

Input

32

Ignition switch 1 and 4

Input

33

Idle stepper motor drive coil B

Output

34

Idle stepper motor drive coil A

Output

35

Unused



36

Unused



37

Unused



38

Rear oxygen sensor signal (low level)

Input

39

A/C request signal

Input

40

Unused



41

Unused



42

Air intake pressure sensor signal

Input

43

Coolant temperature sensor signal

Input

44

Unused



45

Engine speed signal

Output

46

A/C relay control

Output

47

Fuel pump relay control

Output

48

Unused



49

Unused



50

Fan high-speed control

Input

51

Unused



52

Ignition coil 2 and 3

Input

53

Idle stepper motor coil C

Output

54

Idle stepper motor coil D

Output

55

Fuel injector 1#

Input

56

Fuel injector 2#

Input

57

Unused



58

Unused



59

Unused



60

Unused



61

Front oxygen sensor heating control

Input

62

Front oxygen sensor signal (high level)

Input

63

Canister  control  solenoid  valve

control

Input

64

Rear oxygen sensor heating control

Input

65

Unused



66

Unused



67

Fan low-speed control

Input

68

Unused



69

Knock sensor signal

Input

70

Fuel injector 3#

Input

71

Fuel injector 4#

Input

72

Unused



73

Motive earth

Earth

No







Chery T11 Service Manual                    Electric Injection System

24



Section    Basic Principles of Trouble Diagnosis



1.  Basic Principles

1)  Failure Information Record

MT 20U electronic control unit continuously detect sensors, actuators, related circuits, failure

lamps, battery voltage  and etc, even  detect the  electronic control unit itself,  and  conduct  the

reliability detection on the sensor output signal, actuator drive signal and internal signal (such

as oxygen closed-loop  control, knock control, idle speed control, battery voltage control and

etc.).  Once  one  failure  in  a  certain  process  occurs,  or  one  signal  value  is  unreliable,  the

electronic control unit will immediately set a failure information record in the failure register

of  RAM.  The  failure  information  record  will  be  stored  with  the  form  of  failure  code,  and

displayed in the sequence of failure occurrence.

These  failures  can  be  divided  into  “Stable  Failure”  and  “Chance  Failure”  (such  as  the

failures caused by the transient harness short-circuit or the bad contact of connecting parts) in

accordance with their frequency of occurrence.

2)  Failure State

If the duration of a identified failure  occurrence is initially  greater than the setting stabilized

time,  the  ECU  will  confirm  it  is  a  stable  failure,  and  store  it  as  the  “Stable  Failure”.  If  this

failure disappears, it  will  be  stored  as “Chance  Failure”  and  “Nonexistent”.  If this  failure is

identified again, it still be a “Chance Failure”, but a “existent” history failure doesn’t make an

influence on the normal operation of a engine.

3)  Failure Type

a.  Short circuit to the positive electrode of power supply;

b.  Short circuit to earth;

c.  Open circuit;

d.  Signal unreliable.

4)  Four Failure Types

      Failures of All Electronic Fuel Injection Vehicle Are Basically Defined As These Types.

a.  Max.  failure,  which  means its signal  is greater than the upper  limit  of normal

range.

b.  Min.  failure,  which  means  its  signal  is  less  than  the  lower  limit  of  normal

range.

c.  Signal failure, without signal.

d.  Unreasonable failure, with signal, but the signal is unreasonable.
