T11 Service Manual                        Suspension and Steering



2)  Remove hose, vehicle speed sensor cable of ABS (if  available), hose bracket and brake cable

clip from shock absorber.

3) Remove the steering knuckle with brake disc assembly from shock absorber.

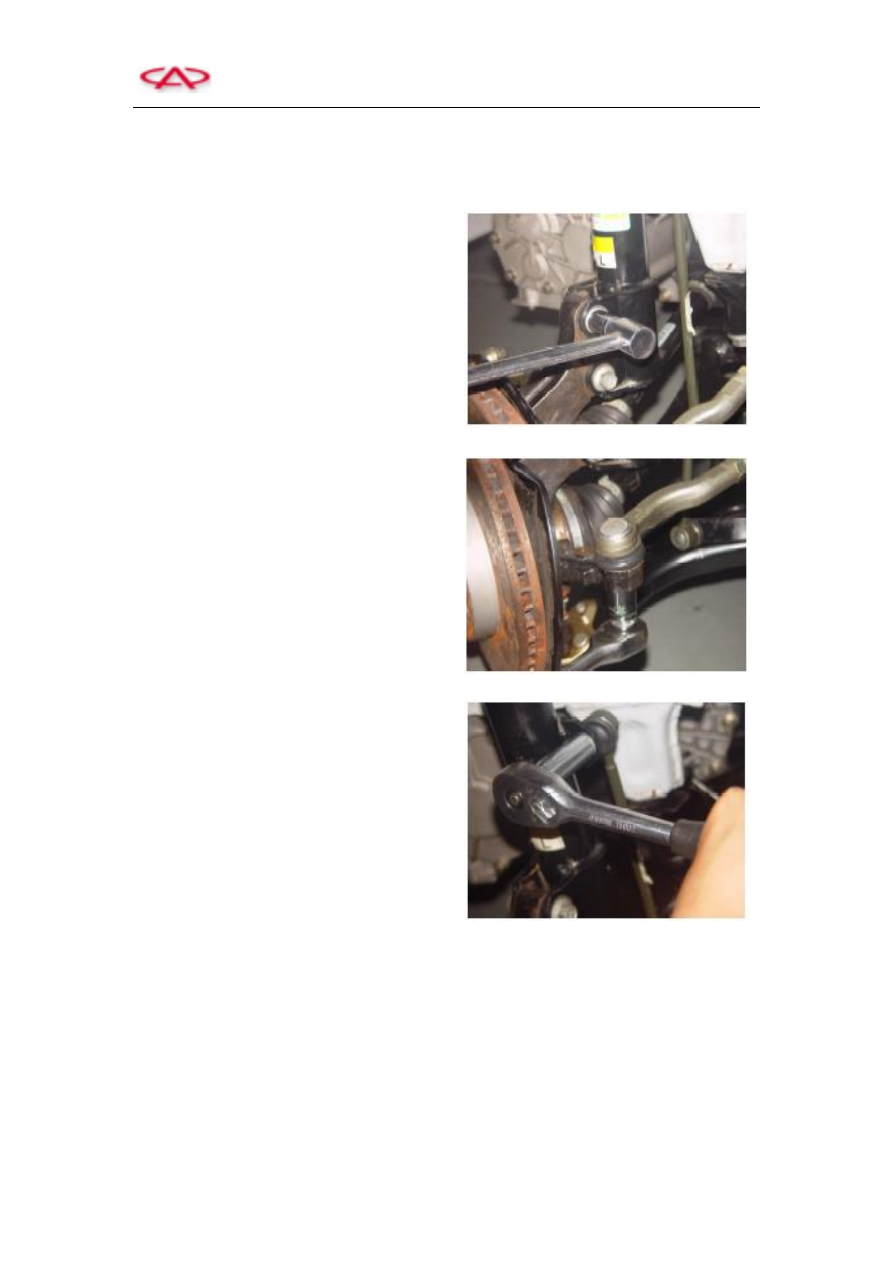

a)  Unscrew  two  nuts  and  bolts  that  join  the

shock  absorber  and  the  steering  knuckle  with

brake disc assembly.



b)  Unscrew  the  bolt  that  connects  steering

knuckle  tie  rod  knuckle  pin  and  steering

knuckle  with  brake  disc  assembly,  and  then

loosen the knuckle pin.



c)  Unscrew  the  bolt  that  connects  the  front

connecting rod to the  shock absorber,  and  then

loosen the front connecting rod.



T11 Service Manual                        Suspension and Steering



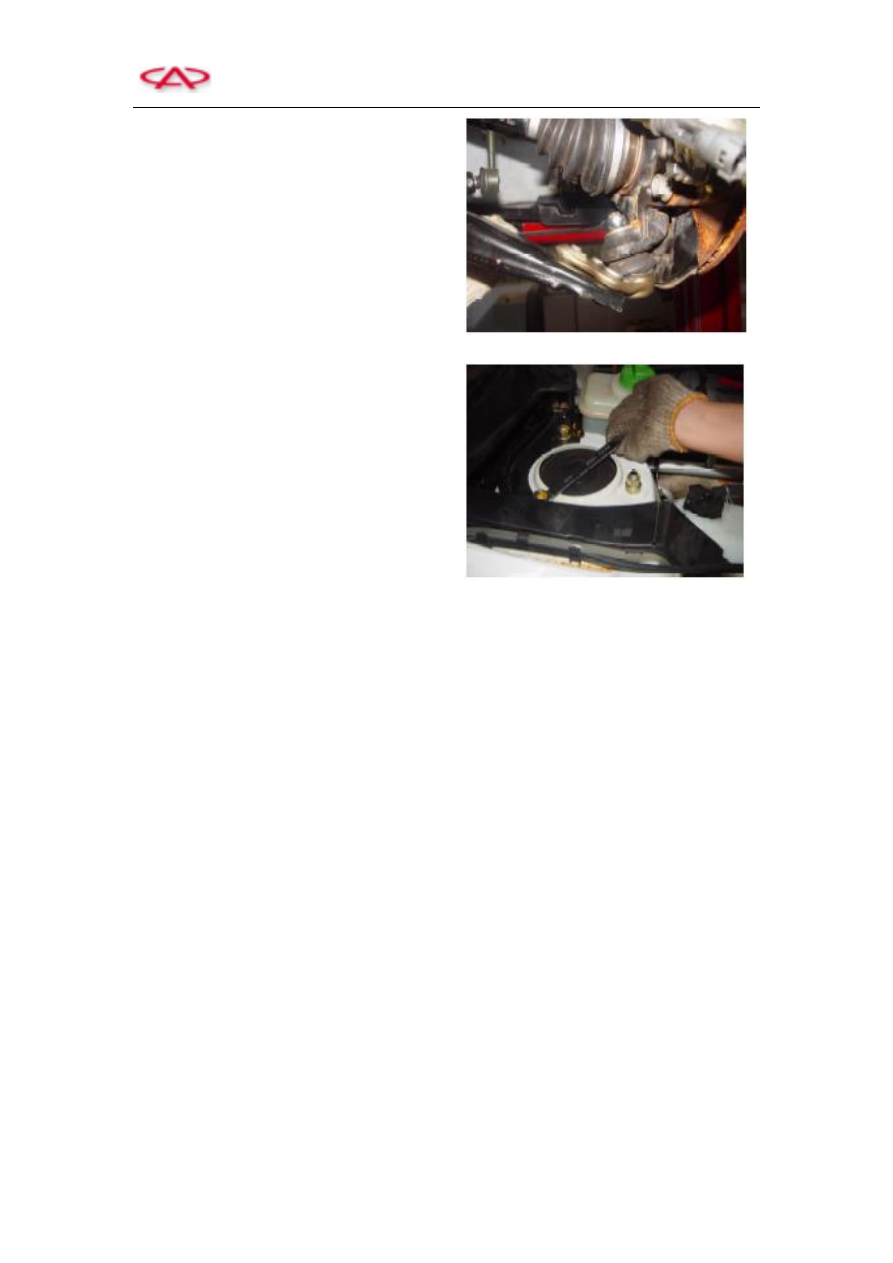

d)  Unscrew  the  bolt  that  connects  the  steering

knuckle  with  brake  disc  assembly  to  control

arm knuckle pin.



e)  Unscrew  the  driving  bolt  from  the  front

wheel.

f) Remove the steering knuckle with brake disc

assembly from shock absorber.

Installation tips: apply engine oil to nut thread.





4) Remove both shock absorber and coil spring.

a) Remove the three nuts joining the shock absorber to vehicle body.

b) Remove the shock absorber together with coil spring.

Installation procedures:

1) Refer to disassembly procedures to perform assembly.

2) Precautions:

a) Once  loosening the binding  bolt  whose  torque  and  angle tightening condition  is controlled  by

yield limit, it must be replaced.

b) After installation, torque each bolt to specification.

c) Check the wheel alignment after installation



3. Inspection

1) Inspect shock absorber.



T11 Service Manual                        Suspension and Steering

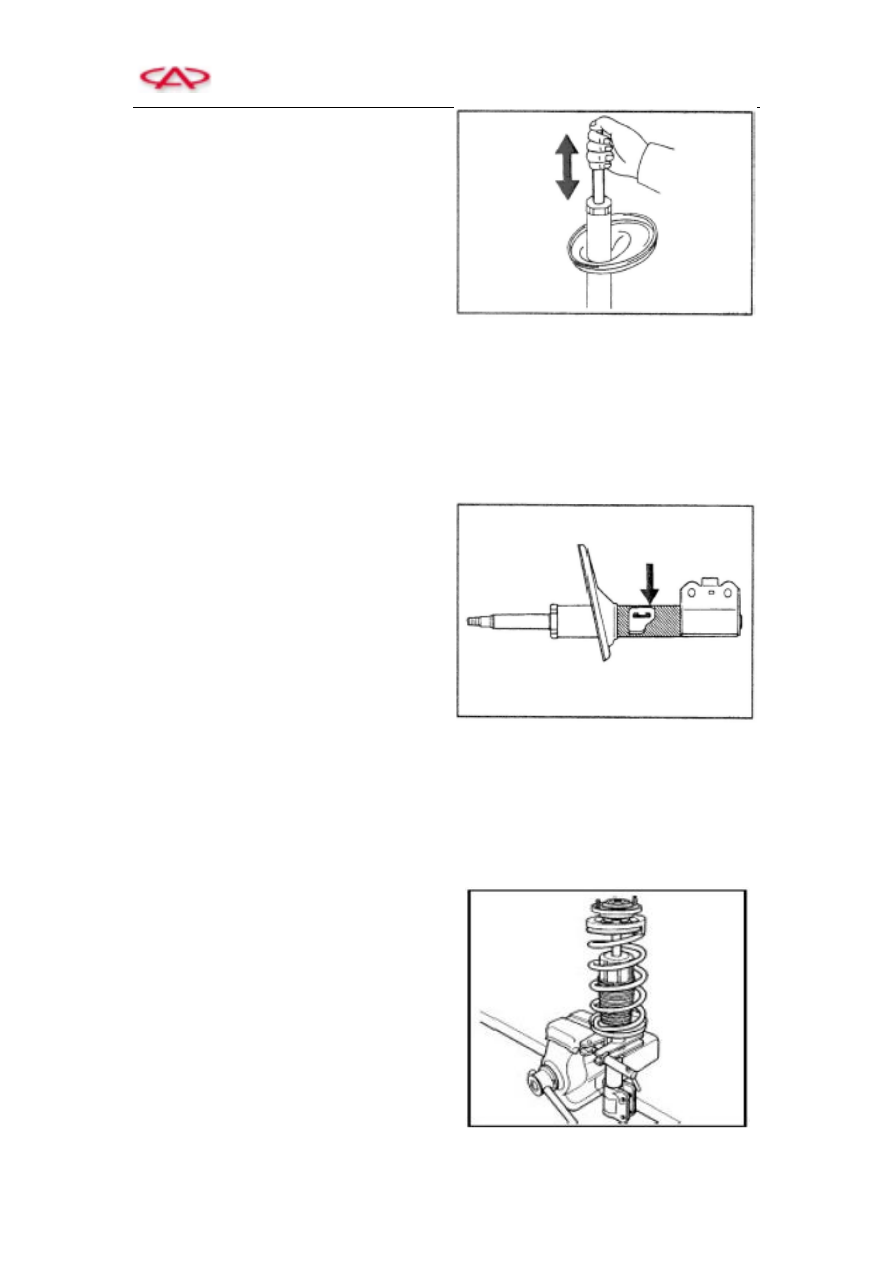

a)  Inspect  shock  absorber  for  oil  leakage,  and

replace  if  necessary. Then inspect the  damping

force  of  shock  absorber,  and  replace  it  if  not

conform to the specification.



b) Inspect the thrust bearing for excessive wear

or  abnormal  noise  of  block.  Then  inspect  the

lower  spring  seat  for  cracks  or  deformations.

Subsequently  inspect  the  limit  stop  for

damages. Finally inspect the stop pad for wear,

crack  or  deformation.  And  replace  defective

parts.





Note: Refer to the following procedures when discarding shock absorber.

2) Disposal of front shock absorber



a)  Stretch  the  shock  absorber  rod  as  far  as

possible.

b)  Discharge the  gas inside  the  shock  absorber

cylinder  by  bit  to  drill  a  hole  in  the  cylinder

body (as shown in the figure).



Caution:  The  gas  discharged  is  hazardous-free,

however, and be cautious to scrap iron splashes

when drilling the cylinder body.



4.  Removal  and  installation  of  shock  absorber  bracket,  shock

absorber bracket components and/or spring



Removal and installation of spring



1)  If  the  assembly  fixture  cannot  be  fixed  onto

the workbench, fix it into bench vice.



T11 Service Manual                        Suspension and Steering



2)  Fix  a  pair  of  claws  that  match  the  spring

diameter into the spring compressor.

Disassembly procedures

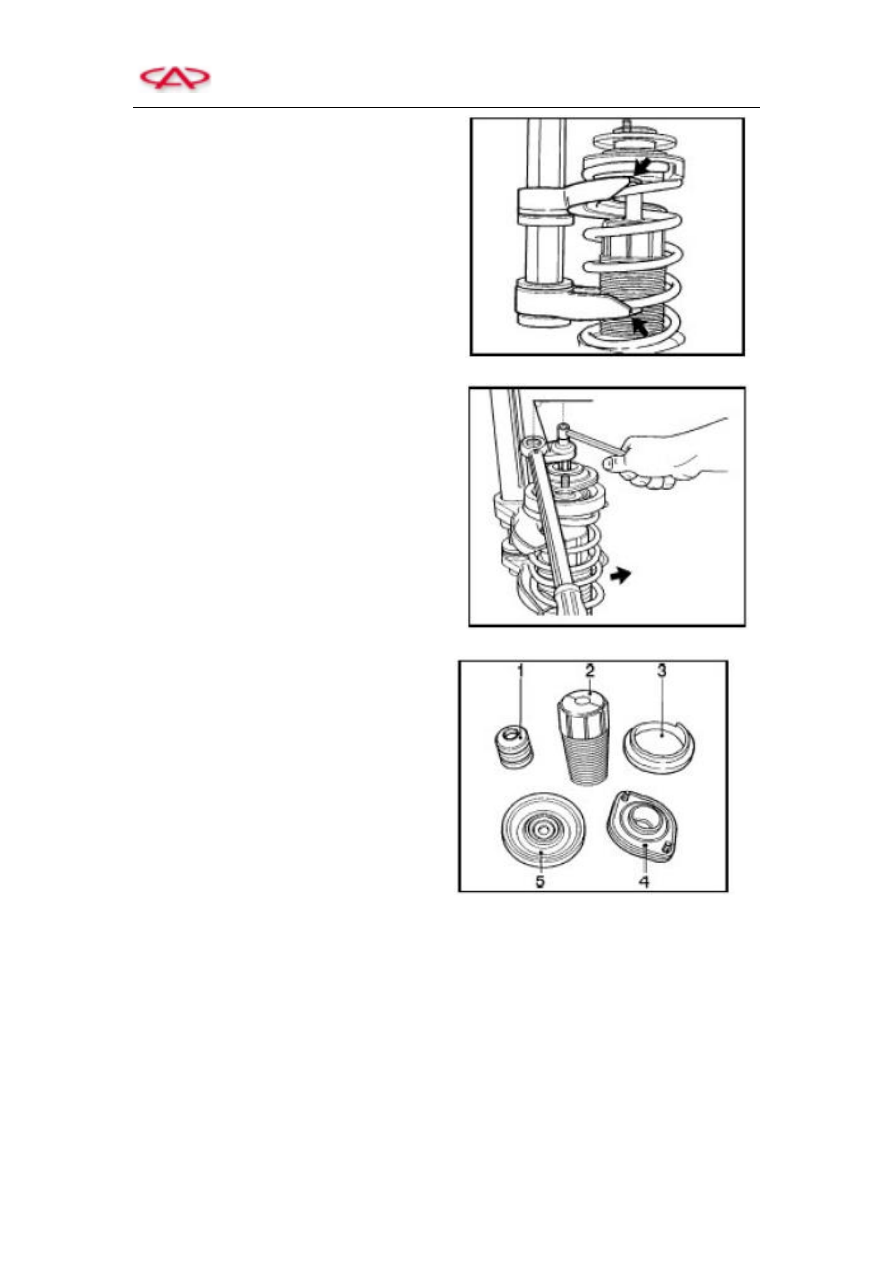

1) Loosen the spring compressor, then locate the

claws  between  the  top  and  bottom  of  springs

(As shown by the arrow).

2) Compress the spring till the spring is released

from spring seat.



3)  Remove  the  shock  absorber  support  bracket

with limiter and washer from connecting rod via

ratchet  wrench  (as  shown  in  the  figure)  that  is

used to unscrew lock nut.



4)  Remove  the  upper  spring  seat  with  absorber

block.

5)  Remove  the  spring  compressor  with  spring

and dust cover.

6) Remove buffer block.

7)  Inspect  the  disassembled  parts  according  to

damage and wear condition.

a) Buffer block.

b) Dust cover.

c) Vibration isolator.

d) Shock absorber support bracket.

e)  The  upper  spring  seat  with  bearing  and

limiter.





8)  If  the  used  shock  absorber  needs  to  be  replaced,  firstly  remove  wheel  speed  sensor  harness

bracket from the shock absorber, then fix it onto a new shock absorber (if there is no wheel sensor
