T11 Service Manual                                        Chassis System





Mount

according

to

manufacturer's

specification.





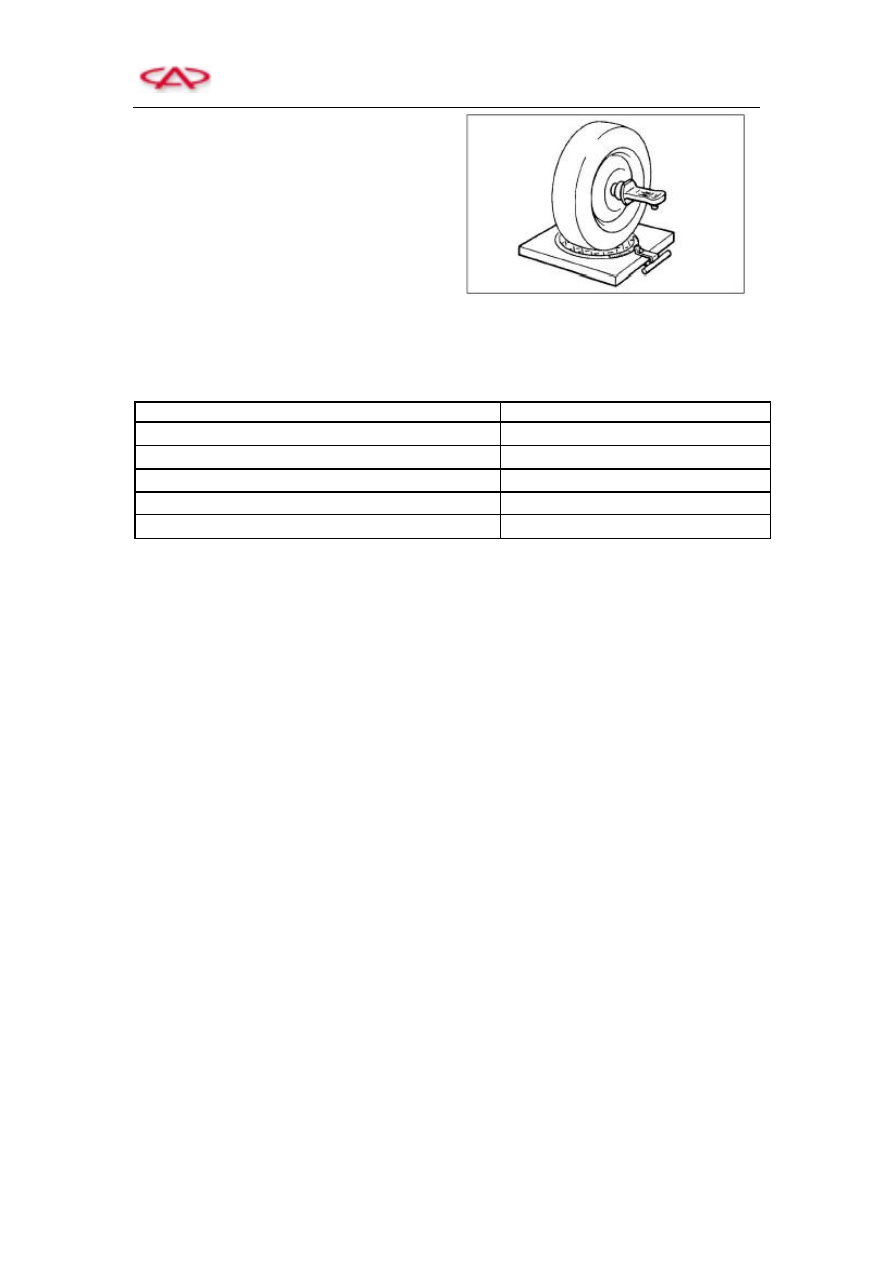

2. Inspect and Adjust Caster Angle, Camber Angle, Front Wheel Toe-in Angle and Steering

angle

The front wheel alignment specification is described as below:

King pin caster angle



2

0

50’ ±1

0



Front wheel camber angle

-0.85

0

±1

0



Front wheel toe-in (for single wheel)

±5’

King pin inclination angle

11

0

30’ ±1

0



Max. steering angle of inner wheel

37

0



Max. steering angle of outer wheel

31.2

0



1) Caster angle

Caster  angle  is  secured  by  structural  design;  therefore,  it  is  unnecessary  to  be  adjusted  during

operation.

The Effect of Caster Angle

The  major  function  of  caster  angle  is  to  keep  the  vehicle  driving  straight  forward.  If  the  caster

angle is positive, when turning the front wheel, the vehicle inner side will descend downward and

the  chassis  will  consequently  ascend.  Therefore,  the  load  will  be  increased  and  transferred  onto

steering knuckle. If the caster angle of the two wheels is identical, the vehicle will go back to the

direction  of  straight  forward  after  steering.  Increasing  positive  caster  angle  will  enhance  the

stability  of  steering  wheel.  However,  the  steering  force  will  increase  as  well.  Reducing  positive

caster angle will reduce the stability of steering wheel. However, the steering force will be reduced.

The caster angle will not affect tire wear, and it is used to stabilize the driving direction and ensure

automatic  straight  returning  back  to  the  center  when  steering.  If  the  vehicle  is  equipped  with  a

conventional mechanical steering system,  the caster angle is usually very small, sometimes even

tends to negative value, thus make steering easier.    If the vehicle is equipped with power steering

device, a larger positive angle is usually set to make the driver feel well when steering. Increasing

positive  caster  angle  will  result  in  an  increase  of  steering  force  as  well  as  increase  of  vehicle

stability when driving forward.

2) Camber angle

Under  normal  conditions,  it  is  unnecessary  to  adjust  camber  angle  after  assembling  independent

suspension and wheel steering knuckle. If the wheel camber deviates from tolerance limit due to

some other reasons, it shall be calibrated via connecting bolt that joins the independent suspension

and the steering knuckle.



T11 Service Manual                                        Chassis System





a)  Prior  to  calibrating,  firstly  inspect  (visual  inspection)  whether  there  are  damages  to  driving

components, and then replace the defective ones.

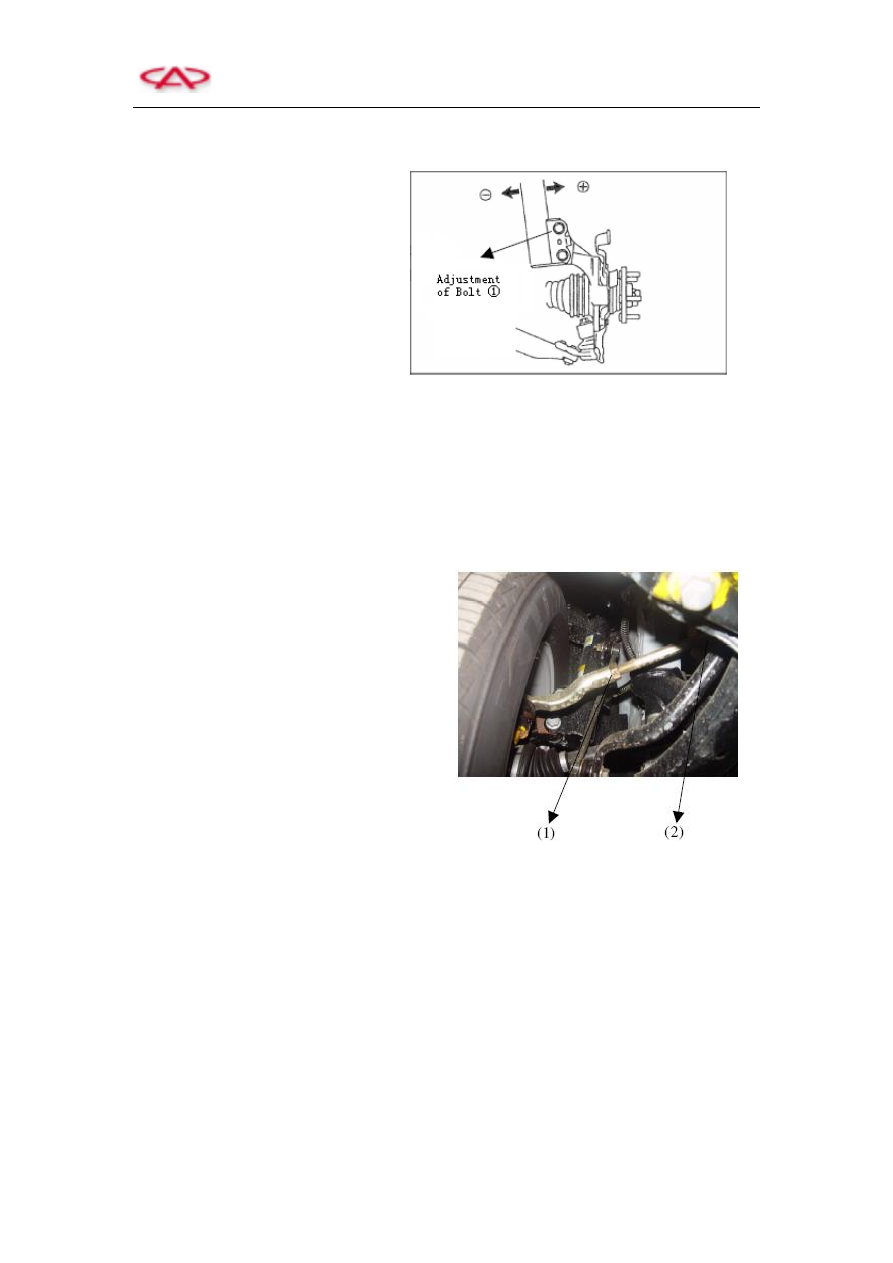

b)  If  the  front-wheel  camber  angle

exceeds  deviation  limit,  loosen  the

connecting  bolt

①  that  joins  the  front

shock

absorber

and

the

steering

knuckle;  finally  move  the  wheel  to

perform calibration.



3) Front wheel toe-in

Toe-in shall be inspected and adjusted via special wheel alignment detector.

a) Prepare for alignment and adjustment according to specific requirement of the detector, then fix

steering wheel facing straight forward via commercially available steering wheel retainer (steering

wheel  must  be  located  at  central  position  with  a  deviation  not  exceeding  ±5°).  And  the  lower

clamping flange bolt of steering shaft must be horizontal.

b) Unscrew the lock nut of steering tie rod.

c)  Remove  the  flexible  jacket  snap  ring  (2)

via pliers.

Note: replace  the snap ring if  its elasticity is

insufficient.

d)  Rotate  the  toe-in  adjusting  rod  to  adjust

the length to specified value as required.



e) Tighten the lock nut (1), then remount

jacket snap ring (2), and inspect the

tightening condition of the lock nut and

ensure the jacket is properly located.







f) After adjusting the front wheel toe-in, inspect whether steering wheel is horizontal. Otherwise

loosen the steering wheel lock nut, and adjust steering wheel to horizontal position, finally torque

the steering wheel lock nut to specification (27~33Nm).

4) Inspect front wheel steering angle

After replacing the steering knuckle tie rod joint or adjusting the toe-in, inspect the steering angle.

If the front wheel steering angle doesn't conform to the specification, inspect and adjust the length

of left and right steering knuckle tie rod.



  Guideline of Troubleshooting

T11 Service Manual                                        Chassis System





Problems

Possible causes

Remedies

Tire undue wear

Incorrect tire pressure
Incorrect wheel alignment parameter

Adjust
Adjust

Tire noise

Incorrect tire pressure
Tire wear

Adjust
Inspect, adjust or replace


Road noise or vehicle body vibration    Insufficient tire pressure

Tire unbalance
Wheel rim or tire deformation
Tire uneven wear

Adjust
Adjust
Repair or replace
Inspect, adjust or replace







Vertical vibration of steering wheel    Tire and wheel rim excessive deflection

Wheel screw cap or axle stub loose
Tire unbalance
Engine suspension rubber crack or wear
Gearbox bracket rubber crack or wear

Replace
Lock
Adjust
Replace
Replace

Circular vibration of steering wheel    Tire and wheel rim excessive deflection

Wheel screw cap or axle head loose
Tire unbalance
Tire uneven wear
Insufficient tire pressure
Damage or wear of front-wheel bearing
Steering system malfunction
Suspension system malfunction

Replace
Lock
Adjust
Inspect
Adjust
Replace
Inspect
Inspect

Unilateral deflection of steering wheel   Incorrect tire pressure

Wire excessive or uneven wear
Steering system malfunction
Brake system malfunction
Suspension system malfunction

Adjust
Inspect
Inspect
Inspect
Inspect

  Traveling instability

Right and left tire pressure non-uniform.
Wheel rim or tire deformation
Wheel screw cap loose
Steering system malfunction
Suspension system malfunction

Adjust
Repair or replace
Lock
Inspect
Inspect

Braking deflects to one side

Right and left tire pressure non-uniform
Brake system malfunction

Adjust
Inspect

Steering wheel is heavy



Insufficient tire pressure
Steering system malfunction
Suspension system malfunction
Incorrect wheel alignment parameter

Adjust
Inspect
Inspect
Inspect

Poor straight returning of steering
wheel




Insufficient tire pressure
Steering system malfunction
Suspension system malfunction
Incorrect caster angle of front wheel

Adjust
Inspect
Inspect
Adjust
