Chery Tiggo T11 LHD. Manual - part 33





T11 Service Manual                                        Chassis System





Note the allowed deformation of wheel rim:

The  average  maximum  allowable  unflatness  depth  at  the  two  edges  of  the  wheel  rim  shall  not

exceed:

Steel wheel rim: 5mm

Aluminum alloy wheel rim: 3mm

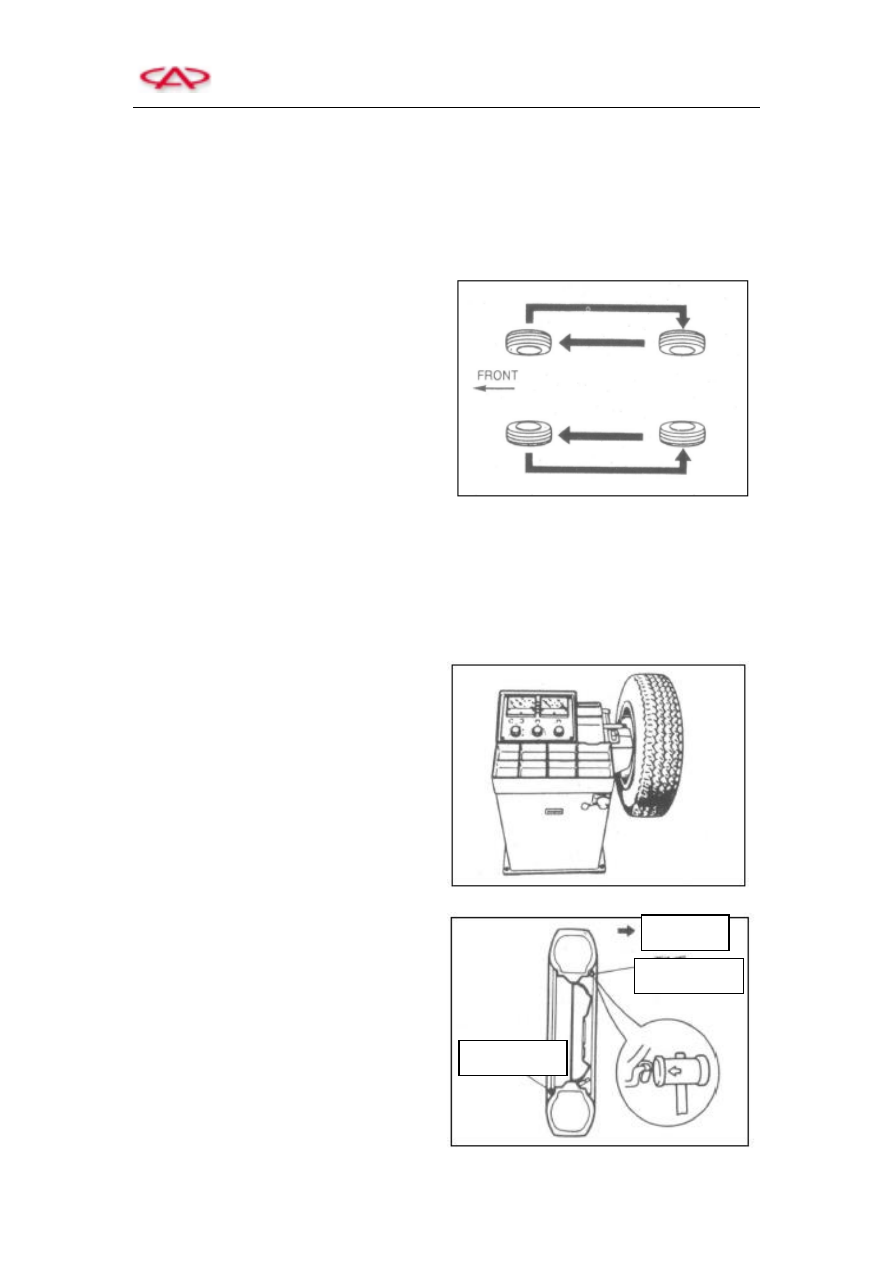

9)  Tire swap

In  order  to  prolong  the  service  life  of  tire  and

confirm  its  wear  condition,  tire  swap  shall  be

performed  every  6000km  (3750  miles),  as

shown in the figure.





Tire Swap

Note:

Front wheels shall use the best ones.

After tire swap, set its pressure to specified value.

10) Wheel balance adjustment



After  inflating  the  tire,  tighten  the  valve  cap

and perform dynamic balancing test, then fix a

proper  balance  weight  at  the  internal  and

external  fringe  of  wheel  rim.  The  ultimate

unbalancedness  of  the  assembly  shall  be  less

than  100g.cm,  which  is  approximately

equivalent  to  a  5g-balance  weight  located  at

the internal and external fringe of wheel rim.

Note: It is only allowed to employ one balance

weight  to  each  wheel  at  each  side.  Moreover,

the  maximum  mass  shall  not  exceed  70g.

Avoid  excessive  knock  to  the  balance  weight

during  installation.  If  the  operator  feels  the

knock  is  excessive,  then  timely  replace  the

balance  weight.  And  the  replaced  balance

weight is not reusable.





Outer Side

Balance Weight

Balance Weight

T11 Service Manual                                        Chassis System







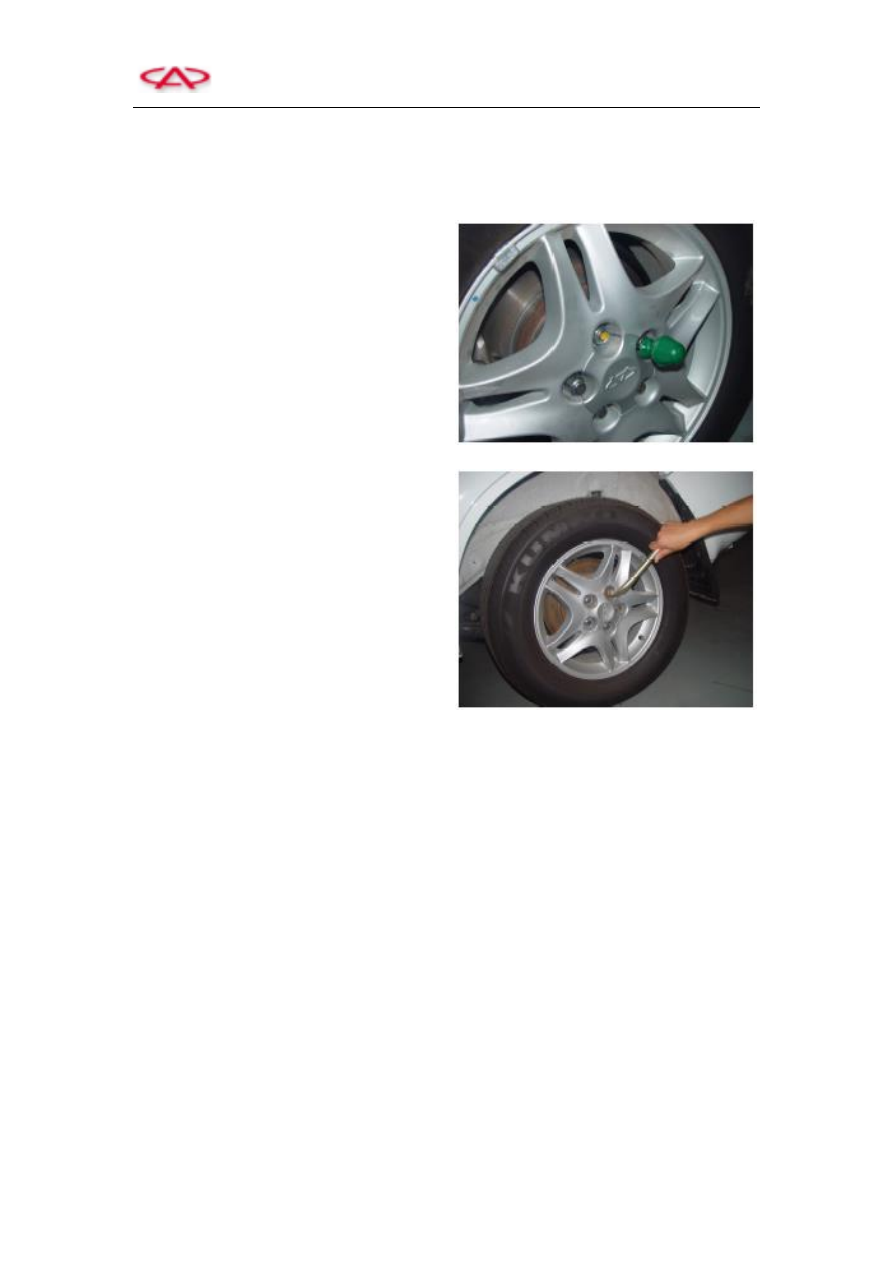

11) Wheel Removal and Installation

Disassembly procedures:

a.  Remove the trim cover of the wheel.







b.  Unscrew the binding bolt of the wheel.

c.  Remove the wheel.







Installation procedures:

1)  When  installing  wheel  and  tire  assembly,  firstly,  manually  screw  bolts  to  wheel  hub  for

pretension,  then  use  special  tools  to  tighten  them  in  accordance  with  diagonal  method.  The

tightening torque shall be 100~120Nm.    Never use impact wrench so as to avoid wheel damage

or excessive loosening or tightening.    And never apply grease to wheel bolts.    (With respect to

the  newly  mounted  wheel  and  tire  assembly,  after  the  first  100km  driving,  wheel  bolt  shall  be

tightened  once  so  as  to  ensure  proper  tightening  torque.    Inspection  of  wheel  bolt  tightening

torque shall be one of the routine maintenance works).

2)  Employ right-angled intersection  method when tightening the fixing nut, the tightening status

shall  be  similar,  and  the  wheel  shall  be  able  to  rotate  freely.  In  addition,  wheel  shall  be  on  the

ground when performing final tightening.

3) Mount trim cover or place it as required. Manually flap or employ rubber tools to knock it in

when installing cassette-type trim cover.



T11 Service Manual                                        Chassis System

















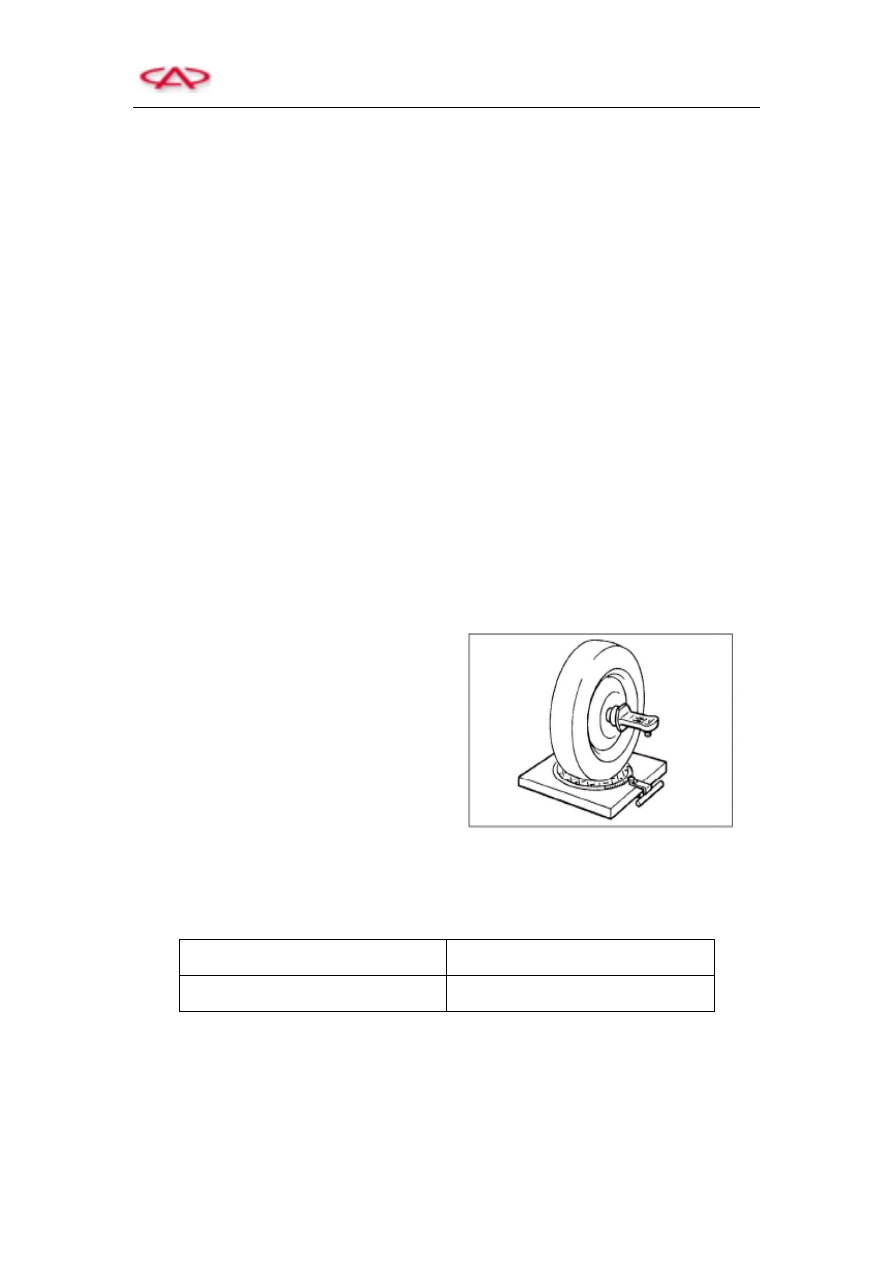

 Rear Wheel Alignment

1.  Mount  the  Wheel  Alignment  Gauge  or  Wheel  Alignment  Tester

onto the Wheel.

1)  Mount  according  to  manufacturer's

specification.







2)  Perform  detection  and  adjustment  to  the  vehicle  according  to  specification,  and  the  vehicle

alignment requirement is as follows:



General toe-in of rear wheel

18'±30'

Rear wheel camber angle

-54'±30'

2. Adjustment of Rear Wheel Toe-in

T11 Service Manual                                        Chassis System





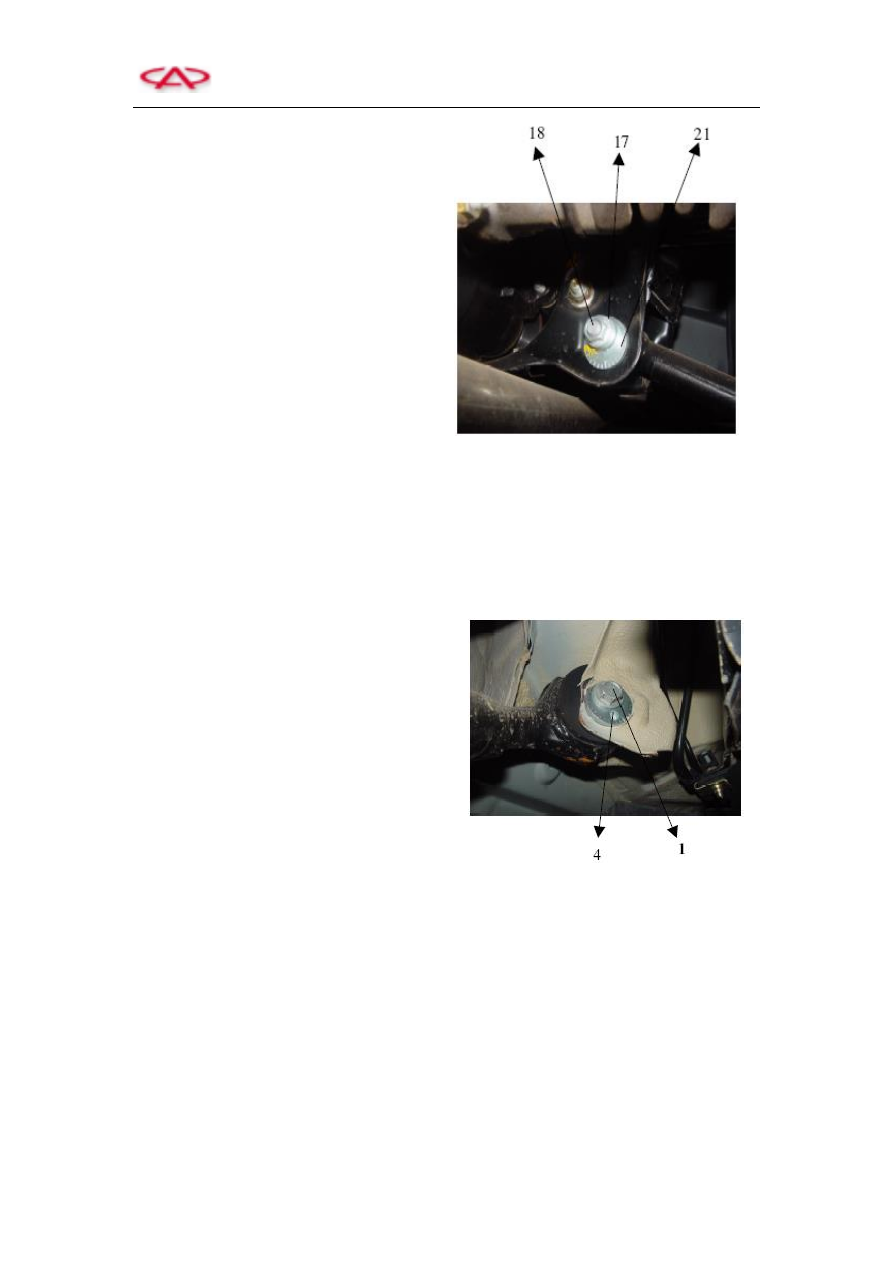

——If  the  rear  wheel  toe-in  doesn't  meet  the

requirements,  use  eccentric  compensating  pipe

18  or  eccentric  adjust  nut  21  to  perform

adjustment. Loosen the bolt 17, and be cautious

to  prevent  eccentric  compensating  pipe  18  and

eccentric  adjust  nut  21  from  loosening  out  of

the  groove,  then  turn  eccentric  compensating

pipe  18  and  eccentric  adjust  nut  21  till  the

toe-in  value  of  rear  wheel  meets  the

requirement,  finally  torque  the  bolt  17  to

specification.    (The right and left side shall be

identical)











3. Adjustment of Rear Wheel Camber Angle

——  If  the  rear  wheel  camber  angle  doesn't

meet

the

requirements,

use

eccentric

compensating  pipe  or  eccentric  adjust  nut  4  to

perform adjustment.

Loosen  bolt  1,  and  be  cautious  to  prevent  the

eccentric  compensating  pipe  and  eccentric

adjust  nut  4  from  loosening  out  of  the  groove,

then  turn  eccentric  compensating  pipe  and

eccentric adjust nut 4 till  the chamber  value of

rear  wheel  meet  the  requirements,  and  finally

torque  bolt  1  to  specification.    (The  left  and

right side shall be identical)



      Front Wheel Alignment

1.Mount the Wheel Alignment Gauge or Wheel Alignment Tester onto the Wheel
