Chery Tiggo T11 LHD. Manual - part 16

Chery T11 Service Manual

Body and Accessories

-62-

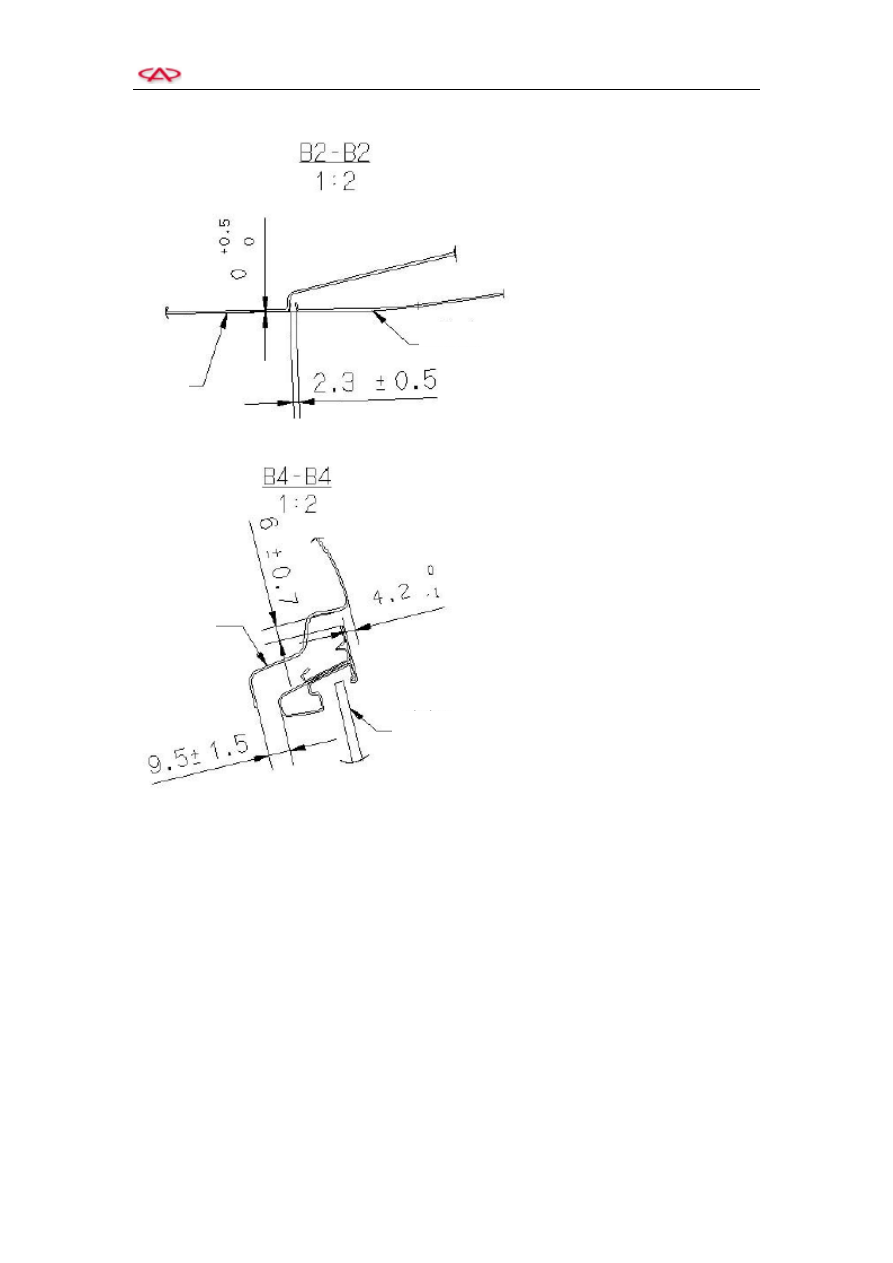

Crosssection B3-B3, requirements on clearance and levelness.

Crosssection B4-B4, requirements on clearance and levelness.

Side wall

Front rear door

Fender

Chery T11 Service Manual

Body and Accessories

-63-

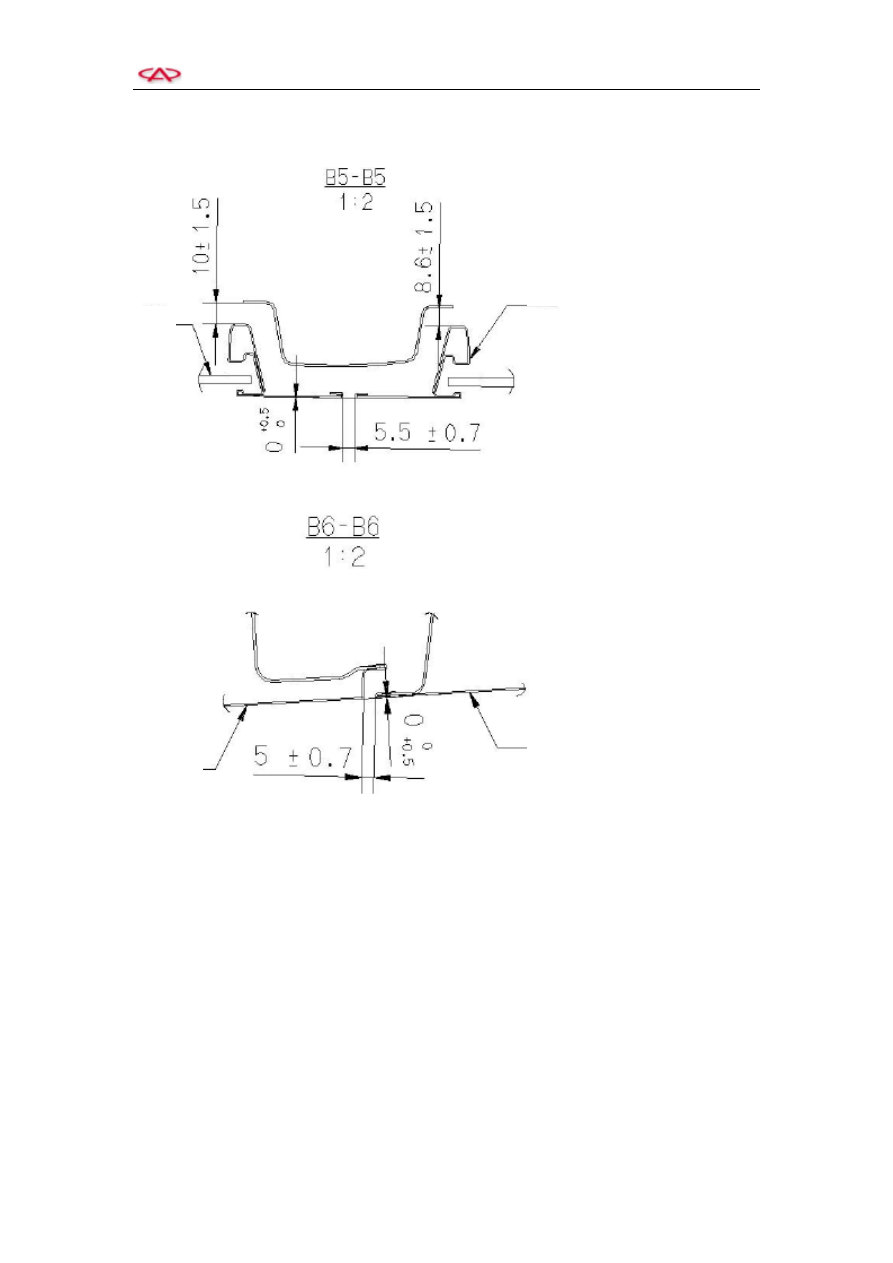

Crosssection B5-B5, requirements on clearance and levelness.

Crosssection B6-B6, requirements on clearance and levelness.

Front door

Back door

Front door

Back door

Chery T11 Service Manual

Body and Accessories

-64-

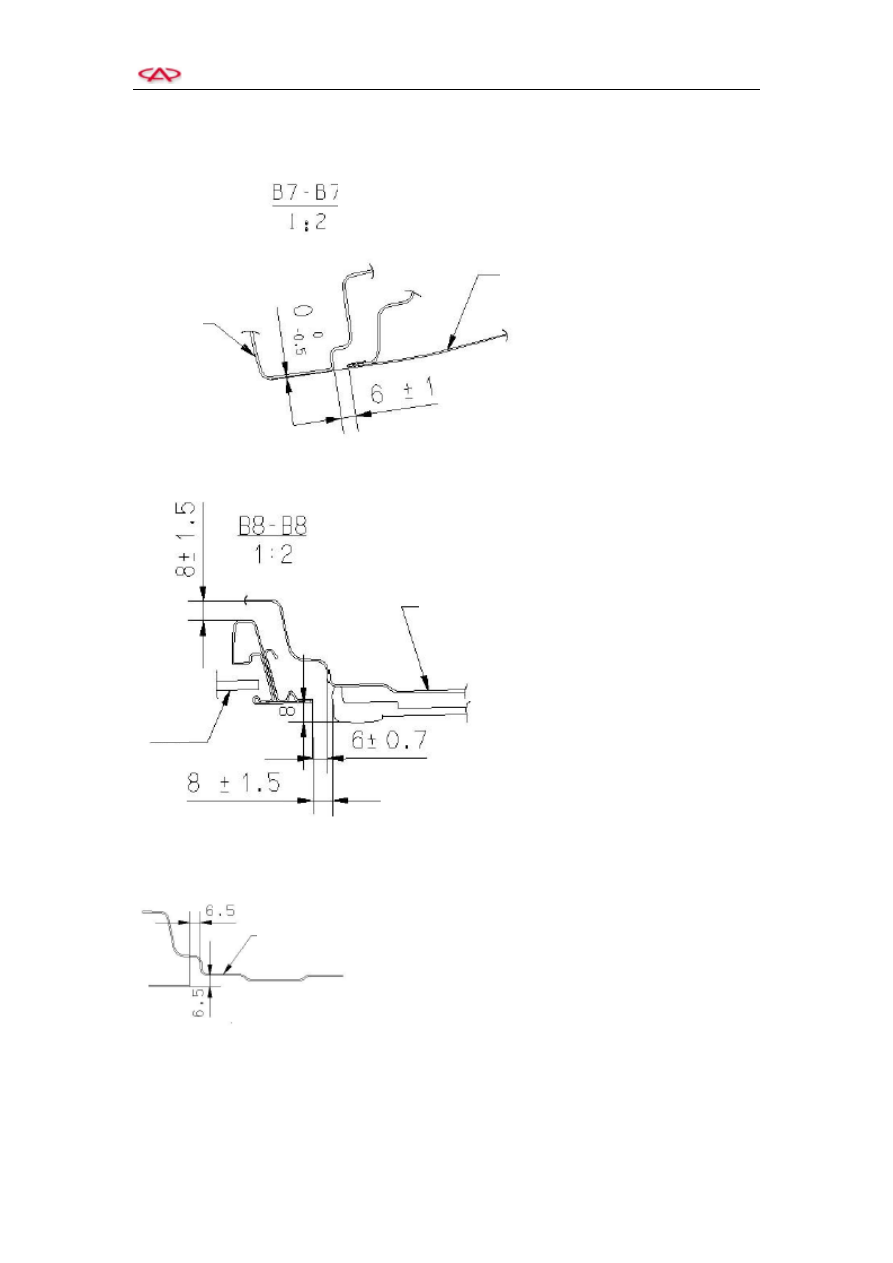

Crosssection B7-B7, requirements on clearance and levelness.

Crosssection B8-B8, requirements on clearance and levelness.

Crosssection B1-B1, requirements on clearance and levelness.

Back door

Side wall

External plate
of side wall

Rear

triangle

window

Rotation

Chery T11 Service Manual

Body and Accessories

-65-

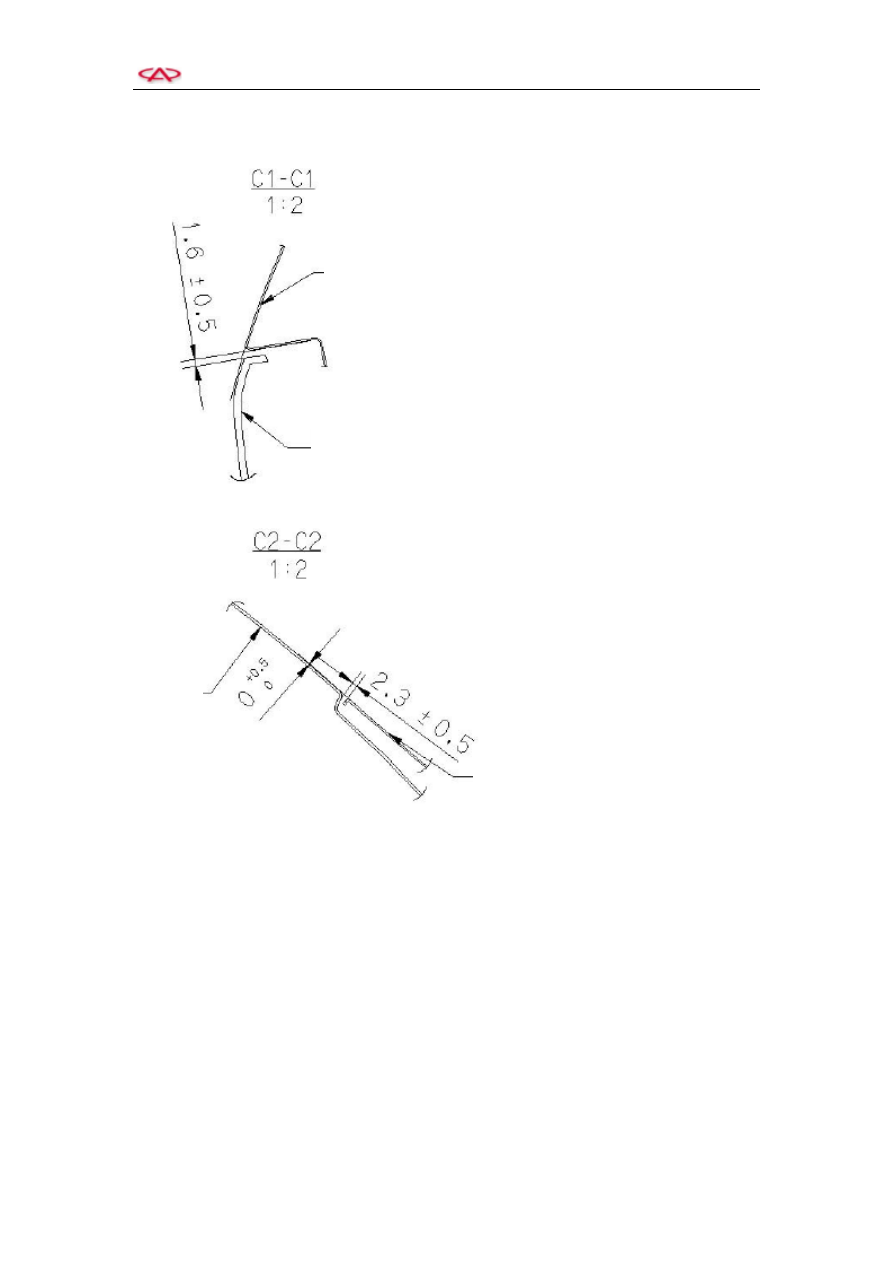

Crosssection C1-C1, requirements on clearance and levelness.

Crosssection C2-C2, requirements on clearance and levelness.

Front
bumper

Fender

Side wall

Fender
