part with the cut.

(6)    Weld the joint with gas welding  or  CO2  gas  protection welding.  Carry out  spot welding  in
the  span  of  3050mm  firstly,  weld  again  when  it  is  levelled  by  striking.  For  welding  line  with
higher requirement on strength, it shall be welded on both sides.

(7)    Hammer the completed welding line with flat hammer to eliminate welding stress, then have
it shaped and polished by sand grinder.



4. Fold Repair

    Based on the damage extent of metal work, fold can be divided into “live fold’’ and “dead fold’’.
“Live fold’’ is of lamp fold which can be eliminated by direct hammering on the most protruding
ridge. “Dead fold’’ is of flod with serious damage. As the folded parts are squeezed together, direct
hammering on the most protruding ridge may get the flod even worse. This is why it is called as
“dead fold’’. The principle to correct flod is to release “dead fold’’ firstly by gradually converting
it  into  “live  flod’’,  then  convert  the  “live  fold’’  into  sunken  or  protruding,  and  have  it  repaired
according to the method for sunken repairing. The steps for repairing are as follows:

(1) Adopte the method of support and pull to apply a corrective force in the opposite of striking
force on the fold of metal work to spread or revive the fold.

(2) Dismantle the metal work with fold damage from the platform. Starting from the inner side of
the fold area, prize up and heat the “dead fold’’ with proper tommy bar and torch gun at the same
time.  Revive  the  “dead  fold’’through  repeated  heating  and  prizing  up.  Finally  convert  all  “dead
folds’’ into “live folds’’.

(3) Beat out “live fold’’ from the inner side of the fold area. The hammer shall be fallen the most
protruding ridge. Meanwhile, please note that each beat must be supported by the platform. After
one side of the fold is roughly levelled, turn to the other side till all folds are fully spreaded.

(4)  Measure  with  the  sample,  heat  and  strike  the  sunkin  and  protruding  places  to  restore  the
original shape roughly.

(5) After trial assembly onto the vehicle, check by sample again to make further fine correction,
and finally to achieve the requriement.

(6) Fold with partial serious damage which can’t be repaired can be mended by replacing.



  Welding of Doors and Bonnets

For  welding  on  doors  and bonnets,  the  following  welding  methods  can  be  selected  flexibly:  gas
weld  (oxygen  acetylene  weld),  CO2  gas  protection  weld,  manual  arc  welding,  resistence  spot
welding,  brazing  welding  and  so  on.  Moreover,  in  order  to  maintain  the  original  strength  and
durability  of  the  body,  welding  method  used  for  the  manufacture  of  the  door  and  cover  shall  be
adopted  as  far  as  possible,  and  the  size  and  type  of  welding  joint  shall  be  similar  with  the  one
adopted in original manufacturer.

In  the quality of  appearance,  the welding  spot  shall be free from any  defect  such as burn down,
half welding, crack as well as large quantity of burrs, the surface shall be level and pretty without
obvious distortion or deformation, and the depth of impress shall be less than 1/5 of the thickness
of the plate; Whether the strength of the welding spot is enough or not, non-destructive test can be
carried  out  by  flat  shovel  and  iron  hammer,  where  flat  shovel  is  used  to  check  for  any  seal  off
between welding spots firstly, then strike by iron hammer to restore the original state; The welding
joint shall be free from any splash, tidy and free from any defect such as undercut, overlap, weld
penetration on the surface.



Chery T11 Service Manual



Body and Accessories





-51-

  Dimension and Levelness Requirements for Openings on Various
Parts of Body

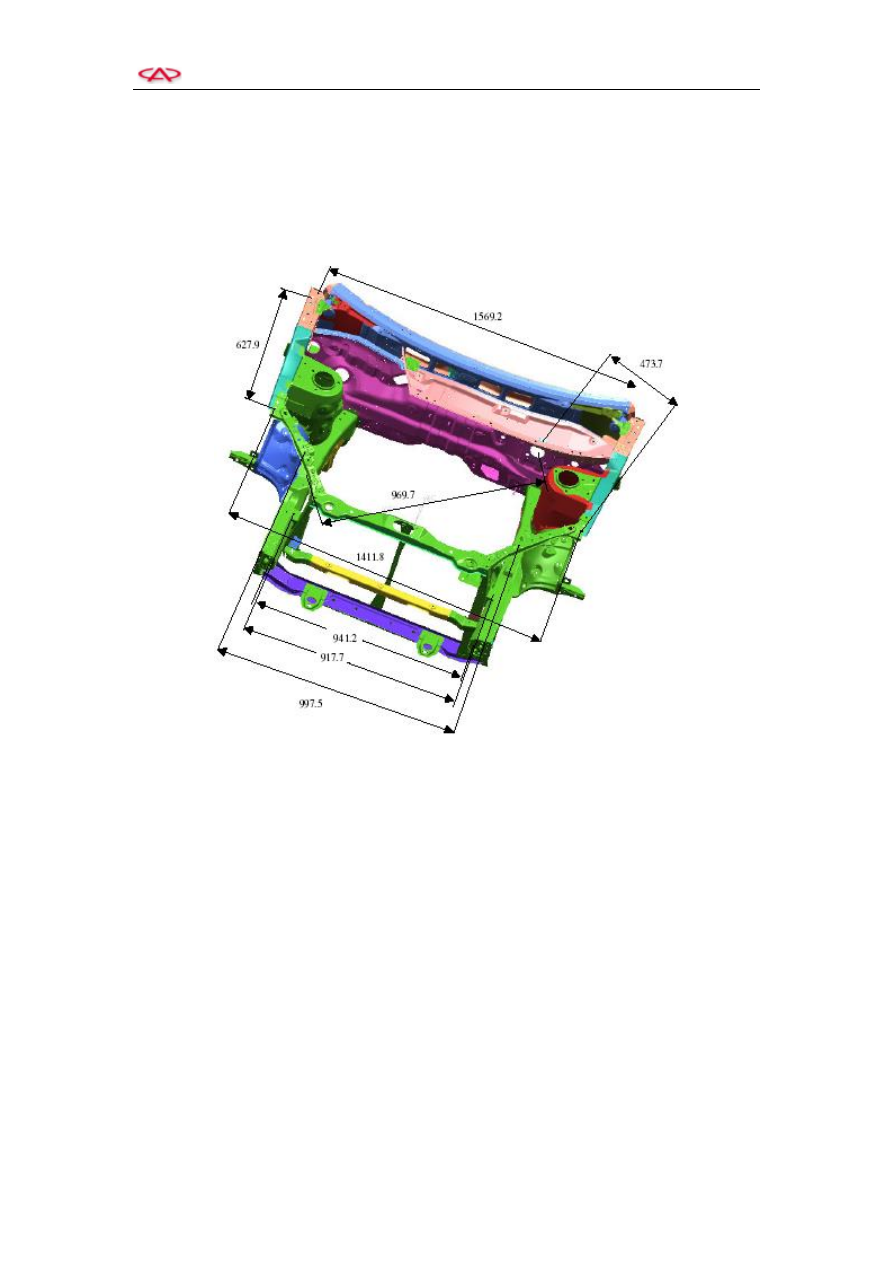

1. Front Structure Part

1) Dimension of Engine Compartment







Chery T11 Service Manual



Body and Accessories





-52-



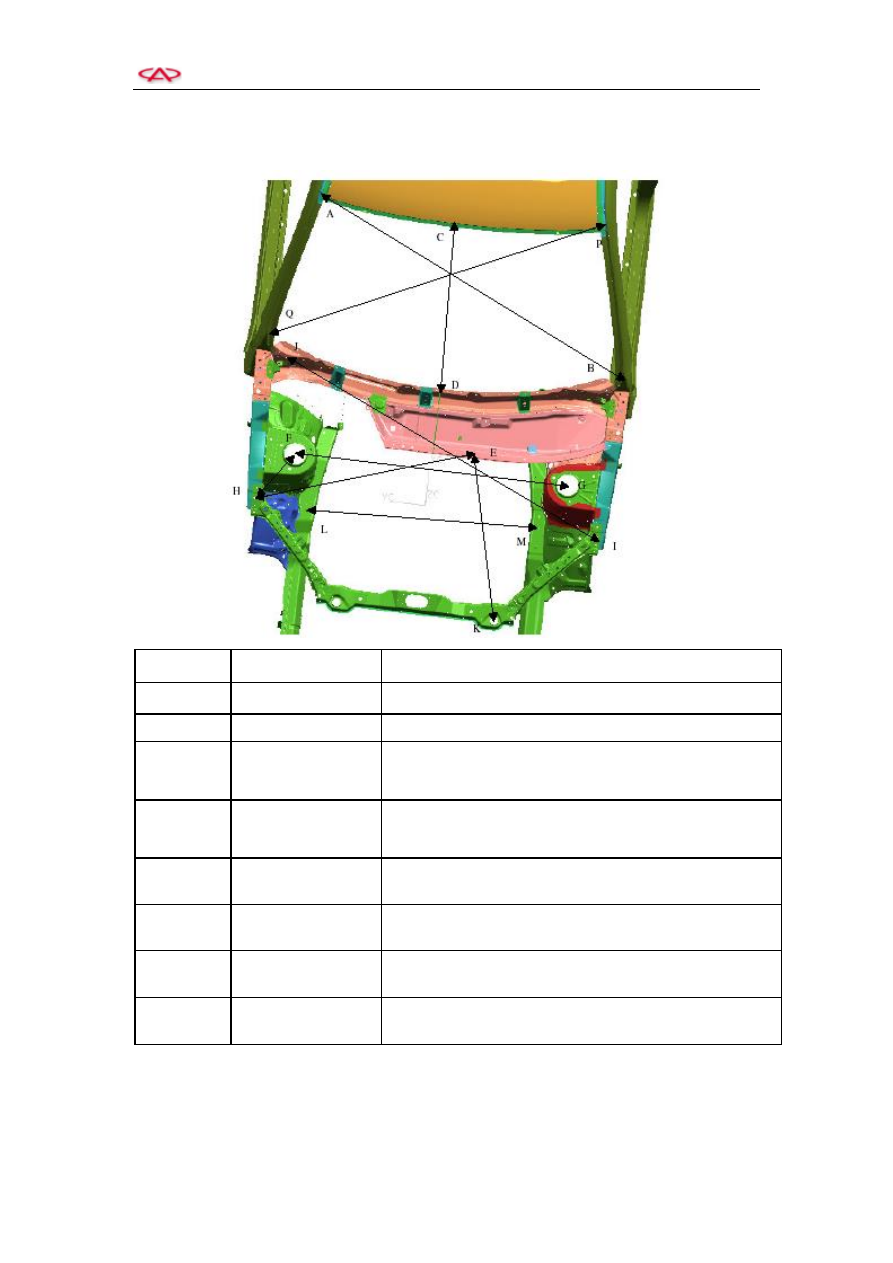

2) Dimension of Openings in Various Parts



        S/N


    Control Dimension


Description



        AB=PQ


        1485.8


Diagonal distance of front windscreen


        CD


        733.2


Distance of front windscreen atY0


        IJ


        l 491.6


Center distance between the right end of upper cover of the
lower beam of front windscreen and the installation hole      of
front fender


        EH


        736.1


Center distance between the upper cover hole of the lower
beam of front windscreen and the installation hole of front
fender


        FH


        270.7


Center distance between the hole of front shock absorber and
the installation hole of front fender


        FG


        1126.8


Center distance between the holes of left/right front shock
absorber


        LM


        952.8


Center distance between the holes of left/right engine
suspension

        KE


        690.5


Center distance between the upper cover hole of front
windscreen beam and the installation hole of radiator










Chery T11 Service Manual



Body and Accessories





-53-

Note:  Sketch  of  Clearances  in  the  Whole  Vehicle,  see  Appendix:  Sketch  of  PART  NO:  T11

Surface Clearances-Levelness



2. Side Fender Part

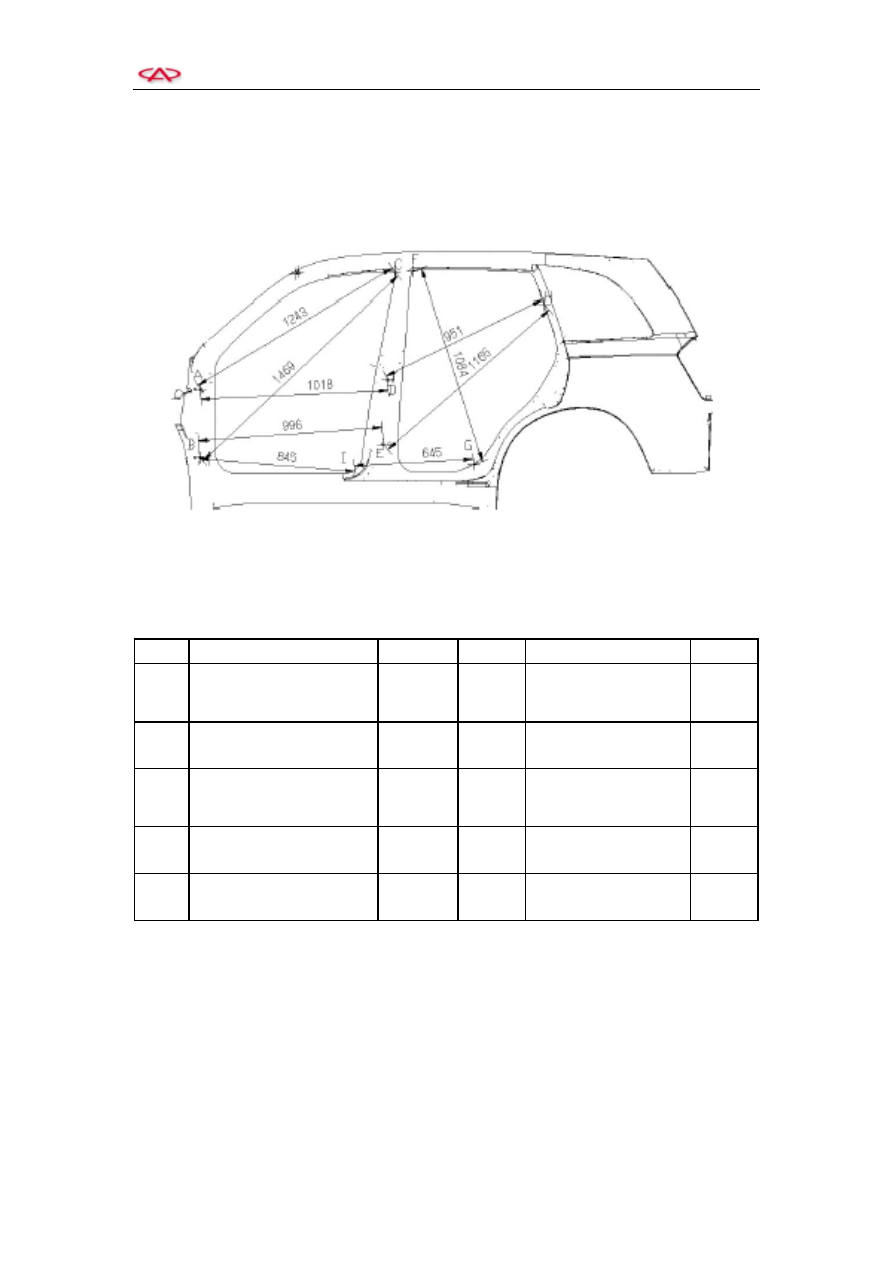

Dimension of Openings in Various Parts



Dimension of body, Left-Right

Remark:  Captial  letter  represents  right  side  of  the  body,  lowercase  r e p r e s e n t s   l e f t   s i d e
o f   t h e   b o d y   (Rear view).





Symbol


        Description


  Diameter


  Symbol


        Description


Diameter


Aa



Installation hole of front door
upper hinge




Ff



Front upper corner of
back door guide rail at
side fender




Bb



Installation hole of front door
lower hinge




Gg



Support  point  of  back
door




Cc



Upper  corner  of  front  door
guide rail at side fender




Hh



Rear  upper  corner  of
back  door  guide  rail  at
side fender




Dd



Installation hole of back door
upper hinge


l 3



Ii



Support  point  of  front
door




Ee



Installation hole of back door
lower hinge


l 5
