Chery Tiggo T11 LHD. Manual - part 10

Chery T11 Service Manual

Body and Accessories

-38-

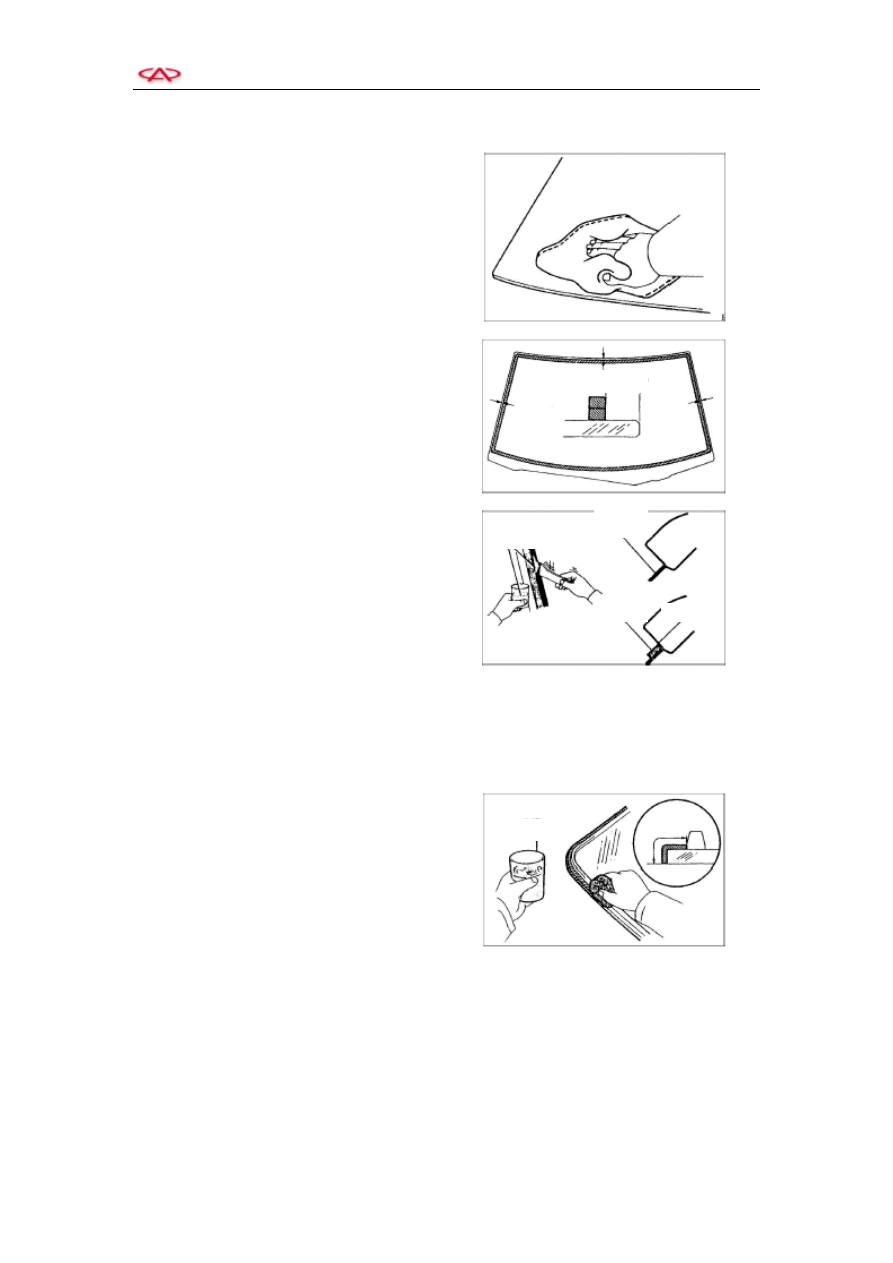

6) Clean the contact of the glass.

Clean any dirt on the perimetric surface with

detergent.

Note: Please do not touch the surface of

glass after cleaning.

7) Install waterstop.

Install the waterstop by double sided

adhesive tape as shown in the figure.

Note: Please do not touch the surface of

glass after cleaning.

8) Paint a layer of primer M at the contact

with body.

Paint a layer of primer M at the surface of

body with brush.

Note:

Please wait for more than 3 minutes to allow

the primer drying up.

Please do not paint on the adhesive.

Please do not keep unsealed primer M for

future use.

9) Paint a layer of primer G at the contact

with glass.

a. Paint a layer of primer G at the glass

edge or contact with brush or sponge.

b. Wipe it out with clean cloth before the

primer is drying up.

Note:

Please wait for at least 3 minutes to allow the

primer drying up.

Please do not paint on the adhesive.

Please do not keep unsealed primer G for

future use.

Primer M

Adhesive

7mm (0.28in)

Primer M

Primer G

Chery T11 Service Manual

Body and Accessories

-39-

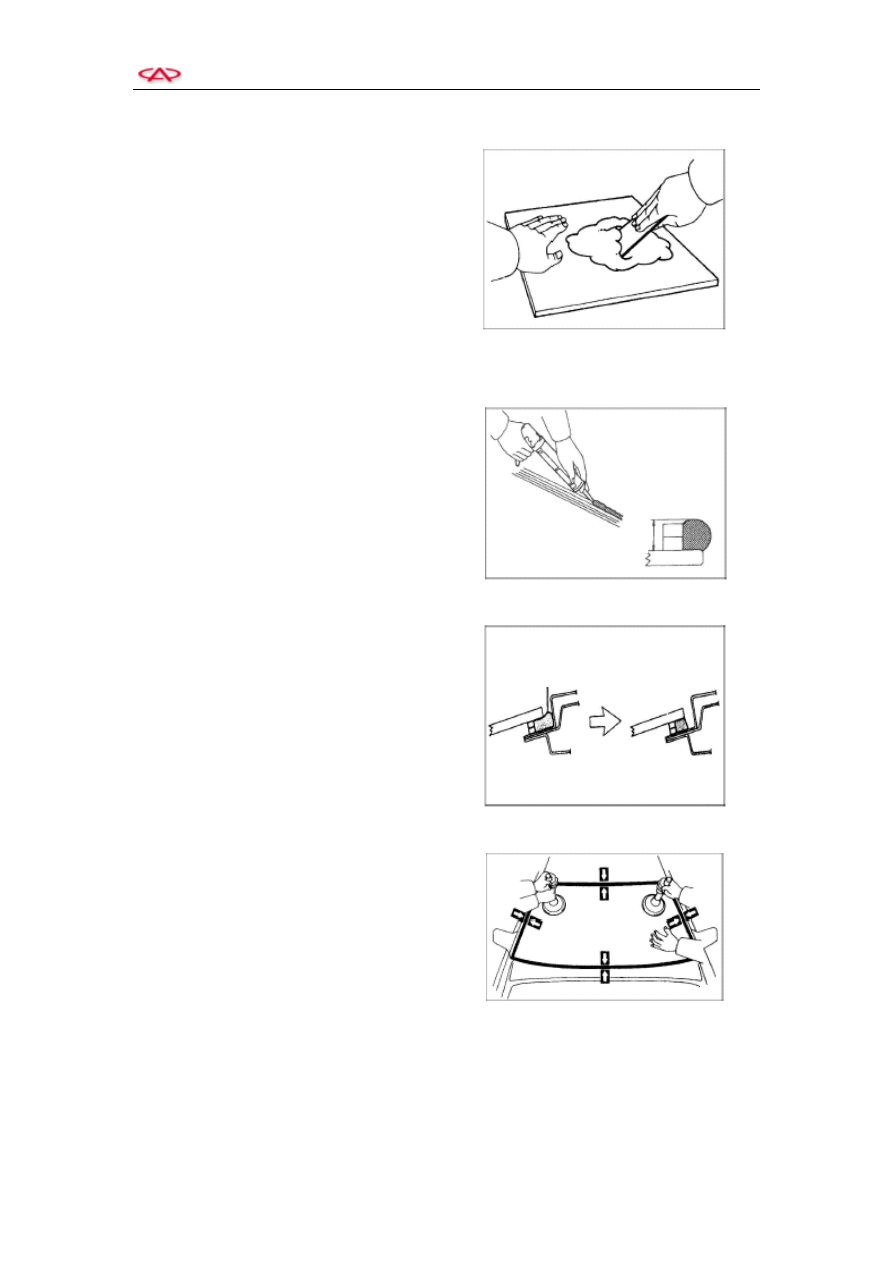

10) Adhesive Mixing.

a. Clean the glass and scraper with

solvent.

b. Mix 500g of main solvent with 75g of

hardener by scraper on glass or similar
stuff.

Note:

Make sure to complete the installation of fillet
within the valid period of adhesive.

The adhesive shall be mixed within 5 minutes.

11) Adhesive Applying

a. Cut off the tip of the tube, and fill the

adhesive into the tube.

b. Install the tube into sealed glue gun.

c. Apply the adhesive to the glass as

shown in the figure.

12) Glass Installation.

Hint: Make sure that the waterstop is well

sticked to the body as shown in the figure.

a. Install the glass, and have the marks on

the glass well aligned with the marks on
the body, then press the edge to push the
glass into its place gently.

b. Apply some adhesive on the edge of the

glass with scraper.

10mm (0.39in)

Adhesive

Chery T11 Service Manual

Body and Accessories

-40-

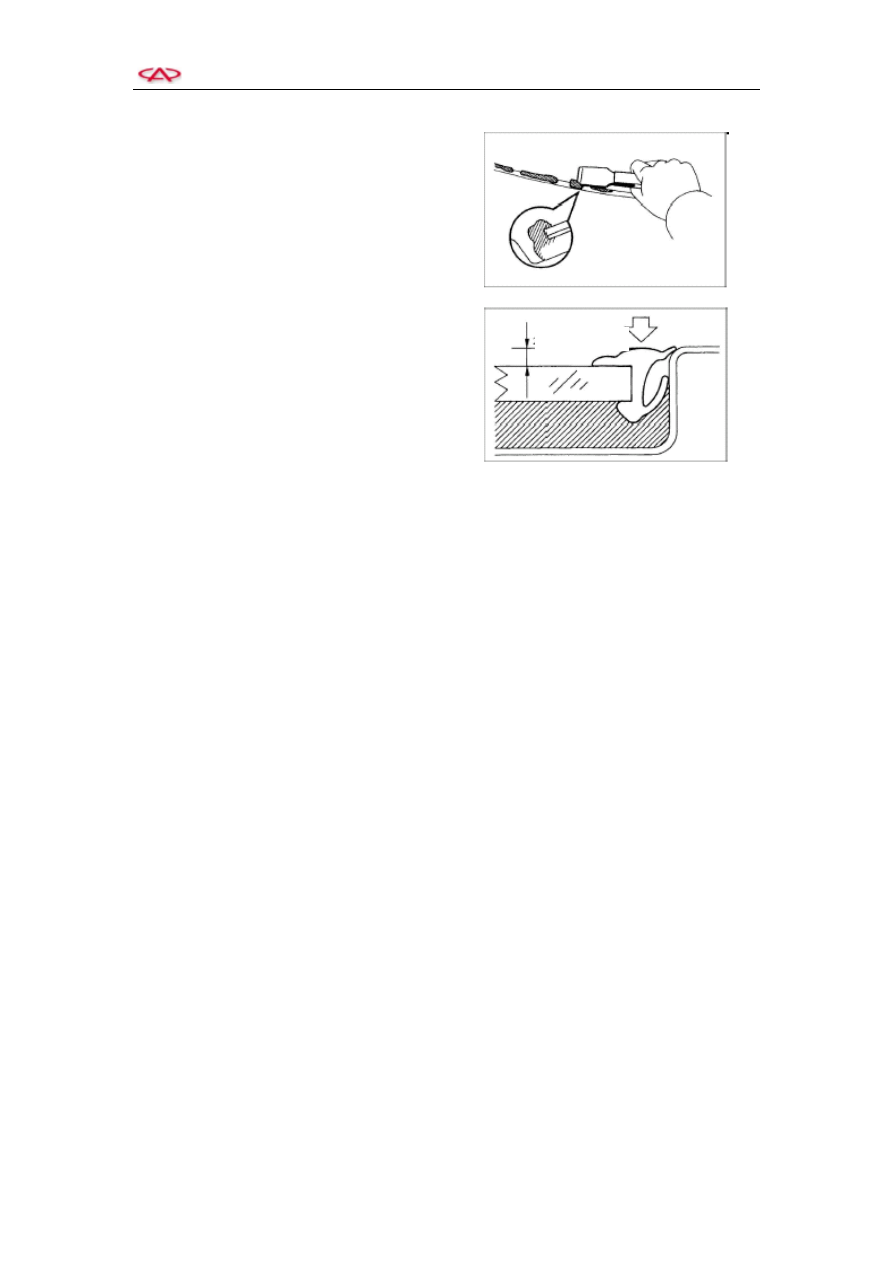

c. Remove excessive or overflow adhesive

by scraper.

d. Clamp the glass till the adhesive is

hardened.

13) Check for any leakage, and have it

repaired.

a. Carry out leakage test after the period

for hardening.

b. Block any leakage with glue.

14) Install the top fillet for windscreen.

Install the top fillet onto the body, bat it
gently with hand to have it well installed.

15) Install the fillet outside.

Install the fillet outside as well as the bolt.

2. Replacement of Rear Windscreen

Dismantle Procedure

1) Remove the lower fillet

2)  Cut  off  the  adhesive  at  both  sides  of  both
ends  of  the  fillet  by  scraper  as  shown  in  the
figure.

Hint: The tip of the scraper shall be wrapped
with tape before use.

Prize up the fillet at six nips by scraper, and
remove the fillet.

3) Remove the glass of rear window.

Lead a wire string toward outside between
the body and the glass.

Bind both ends of the string with wooden
block or similar stuff.

Hint: Please do not damage the two blocks
by the wire string.

Remove the glass

4) Remove the fillet of rear window.

2.7mm (0.11in)

Chery T11 Service Manual

Body and Accessories

-41-

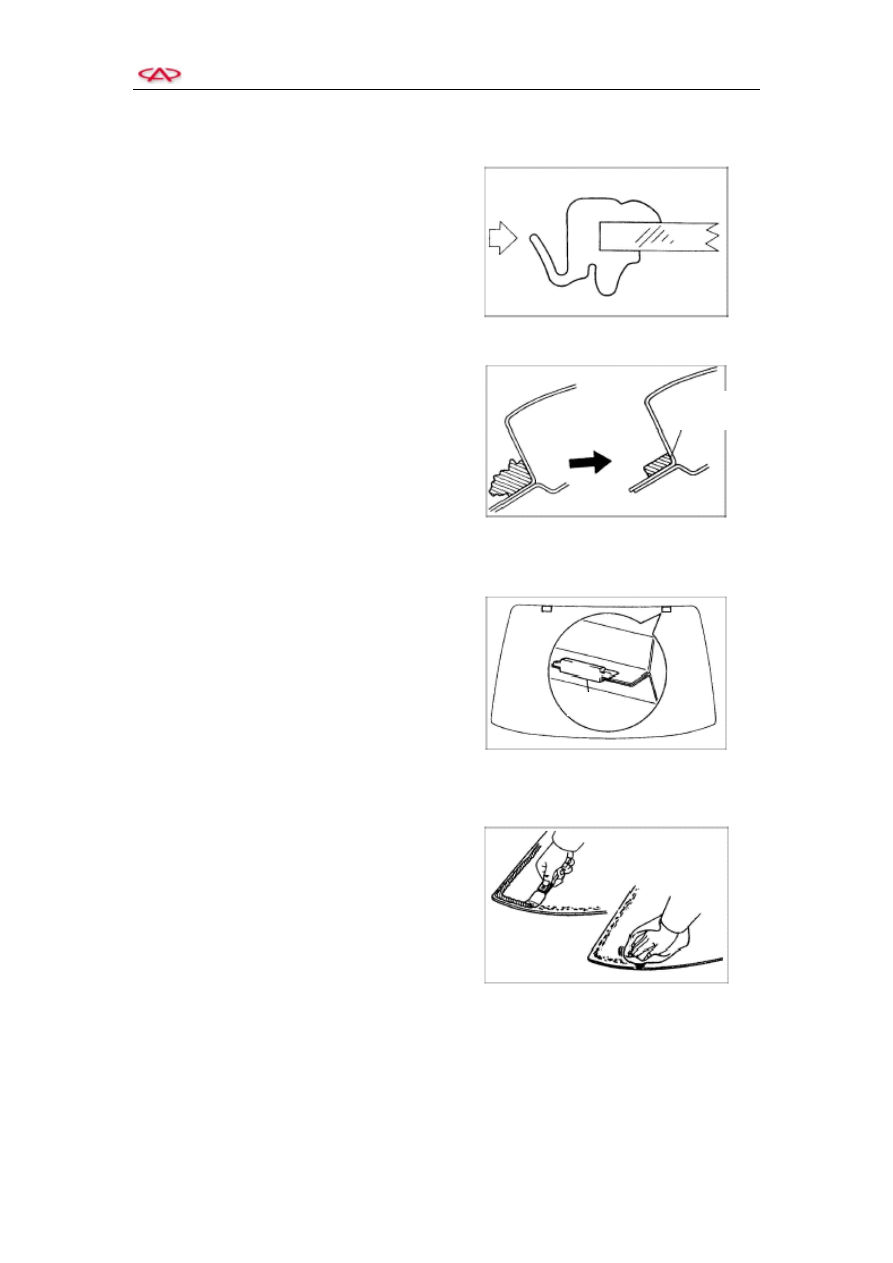

Installation Procedure
1) Install the fillet for rear window

Place the fillet around the glass by hand.

Hint: The rear window glass must be
removed for the installation of the fillet.

2) Clean and trim the contact with body

Cut off any coarse on the body.

Hint: Leave as much as adhesive on the
body.

Clean the cutting surface of adhesive with
clean cloth soaked with detergent.

Hint: The vehicle surface shall be cleaned
even all adhesives are removed.

3) Remove the block.

Remove the block by knief.

4) Clean the dismantled windscreen.

a. Remove any adhesive on the glass by

scraper

b. Clean the glass with detergent

Note: Please do not touch the glass after

cleaning.

Adhesive

Block
