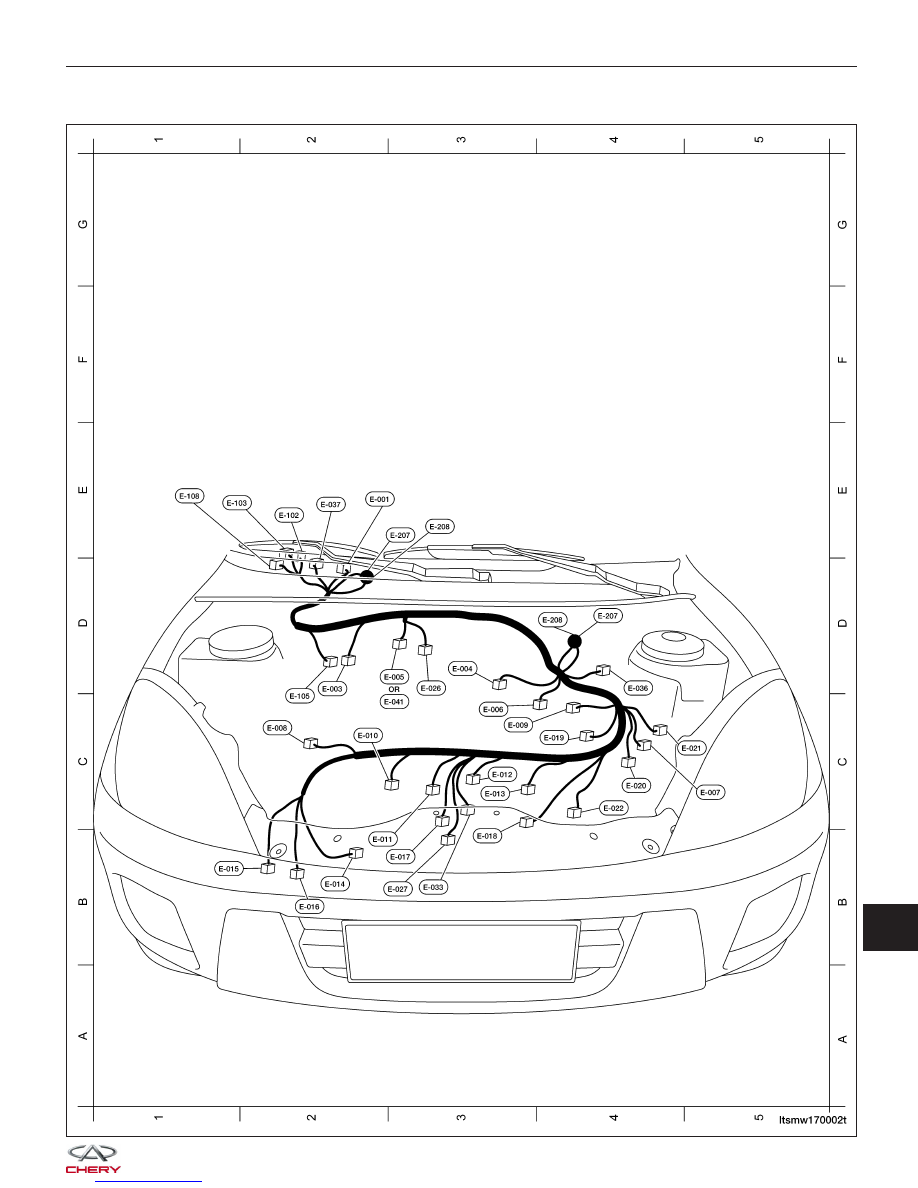

Engine Control Harness - With ACTECO 2.0L Engine

VEHICLE HARNESS ROUTING MAPS

LTSMW170002T

16



E-001

B/81

ECM

D2

E-003

B/4

A/C Pressure Switch

D2

E-004

W-O/4

Upstream Oxygen Sensor

D3

E-005

W-O/4

Downstream Oxygen Sensor (With EOBD)

D3

E-006

B/3

Crankshaft Position Sensor

D4

E-007

B/3

Camshaft Position Sensor

C4

E-008

B/3

Generator

C2

E-009

B/5

Air Flow Sensor

C4

E-010

B/2

Fuel Injector No.1

C2

E-011

B/2

Fuel Injector No.2

C3

E-012

B/2

Fuel Injector No.3

C3

E-013

B/2

Fuel Injector No.4

C3

E-014

B/1

Power Steering Switch

B2

E-015

B/2

A/C Compressor

B2

E-016

B/1

Oil Pressure Switch

B2

E-017

B/3

Knock Sensor

C3

E-018

B/1

Starter Motor

C3

E-019

B/2

Engine Coolant Temperature Sensor

C4

E-020

B/4

Ignition Coil

C4

E-022

B/2

Canister Control Valve

C4

E-026

B/2

Siren

D3

E-027

B/6

Electronic Throttle Control Actuator

B3

E-033

B/4

Manifold Absolute Pressure Sensor

C3

E-036

GR/56

TCM (Transmission Control Module)

D2

E-037

GR/33

A/T Assembly

D4

E-041

B/4

Downstream Oxygen Sensor (Without
EOBD)

D3

E-043

B/2

Fluid Cooler Flow Control Solenoid Valve

D4

E-102

W/14

To C-102

E2

E-103

B/14

To C-103

E2

E-105

B/16

To A-102

D3

E-108

B/2

To C-108

D2

E-207

-

Ground

D2

E-208

-

Ground

D2

VEHICLE HARNESS ROUTING MAPS

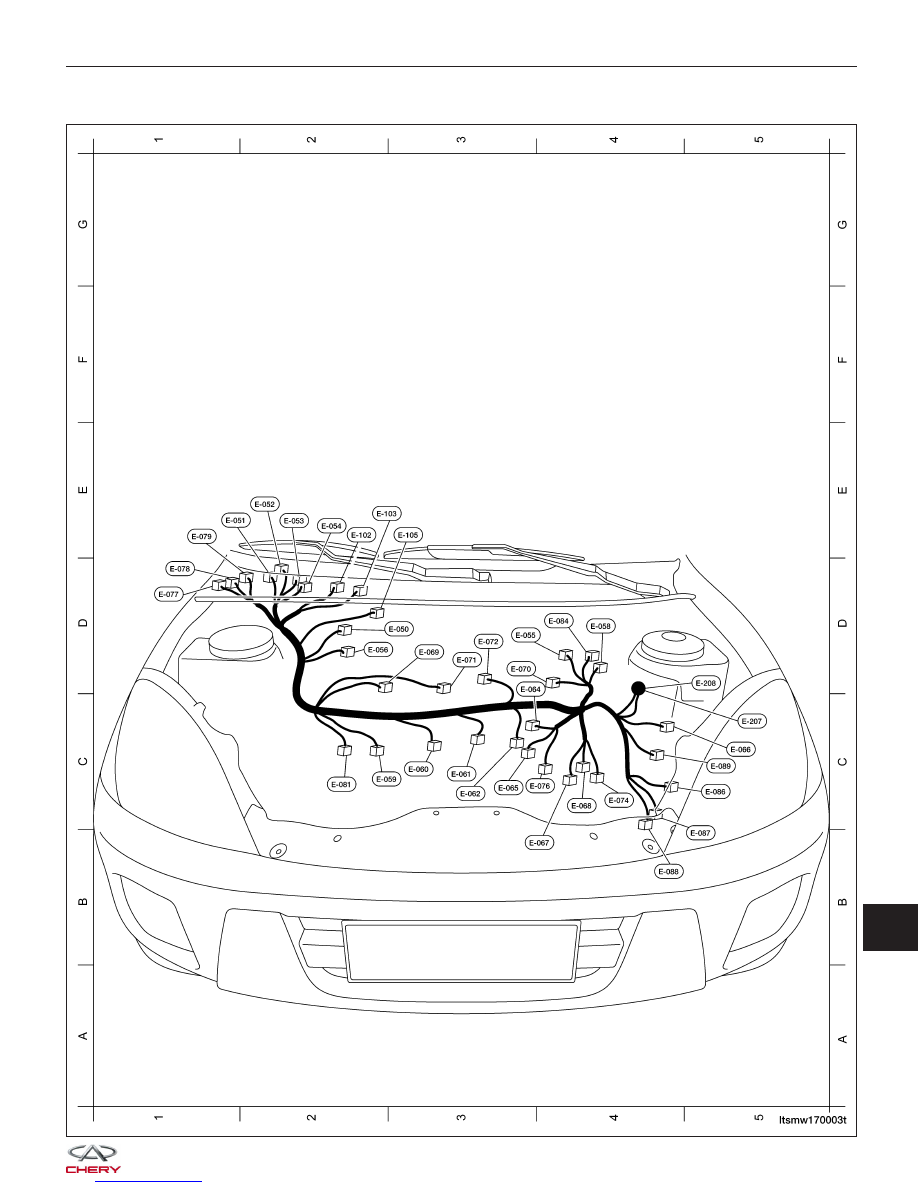

Engine Control Harness - With MITSUBISHI 2.4L Engine

VEHICLE HARNESS ROUTING MAPS

LTSMW170003T

16



E-050

B/4

A/C Pressure Switch

D2

E-051

W/26

ECM

D2

E-052

W/16

ECM

D2

E-053

W/12

ECM

D2

E-054

W/22

ECM

D2

E-055

GR/3

Camshaft Position Sensor

D4

E-056

GR/3

Crankshaft Position Sensor

D2

E-058

B/7

Air Flow Sensor

D4

E-059

GR/2

Fuel Injector No.1

C2

E-060

GR/2

Fuel Injector No.2

C3

E-061

GR/2

Fuel Injector No.3

C3

E-062

GR/2

Fuel Injector No.4

C3

E-064

B/6

Idle Air Control Motor

C3

E-065

B/1

Oil Pressure Switch

C3

E-066

BR/2

Knock Sensor

C4

E-067

B/1

Starter Motor

C4

E-068

B/2

Engine Coolant Temperature Sensor

C4

E-069

GR/3

Ignition Coil 1

D2

E-070

GR/3

Ignition Coil 2

D4

E-071

GR/2

Canister Control Valve

D3

E-072

BR/2

EGR Control Solenoid Valve

D3

E-074

B/4

Upstream Oxygen Sensor

C4

E-076

B/4

Throttle Position Sensor

C4

E-077

W/26

TCM (Transmission Control Module)

D1

E-078

W/16

TCM (Transmission Control Module)

D1

E-079

W/22

TCM (Transmission Control Module)

D1

E-081

GR/4

Generator

C2

E-084

B/1

Coolant Temperature Sensor (For
Instrument Cluster)

D4

E-086

GR/10

A/T Assembly

C4

E-087

GR/10

Gearshift Switch

C4

E-088

B/3

Input Shaft Sensor

C4

E-089

GR/3

Output Shaft Sensor

C4

E-102

W/14

To C-102

D2

E-103

B/14

To C-103

D2

E-105

B/16

To A-105

D2

E-207

-

Ground

C4

E-208

-

Ground

C4

VEHICLE HARNESS ROUTING MAPS
