Chery Tiggo. Manual - part 50





2. Remove the A/C compressor belt.

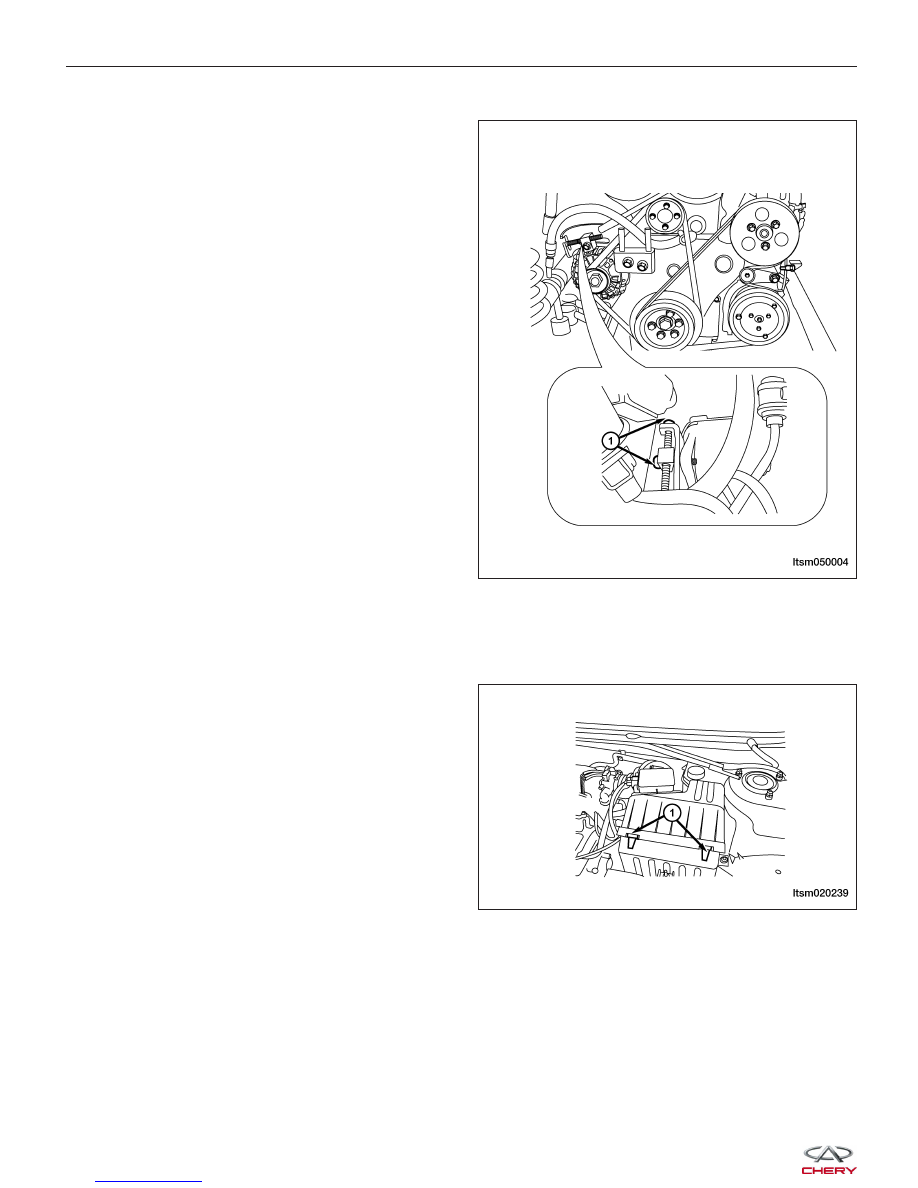

3. Loosen the generator adjustment bolts (1).

4. Remove the generator belt.

5. Installation is in the reverse order of removal.

Air Cleaner Element

Removal & Installation

1. Loosen the air cleaner case side clamps (1) and

raise the air cleaner case (upper).

2. Remove the air cleaner element.

3. Installation is in the reverse order of removal.

ON-VEHICLE SERVICE

LTSM050004

LTSM020239



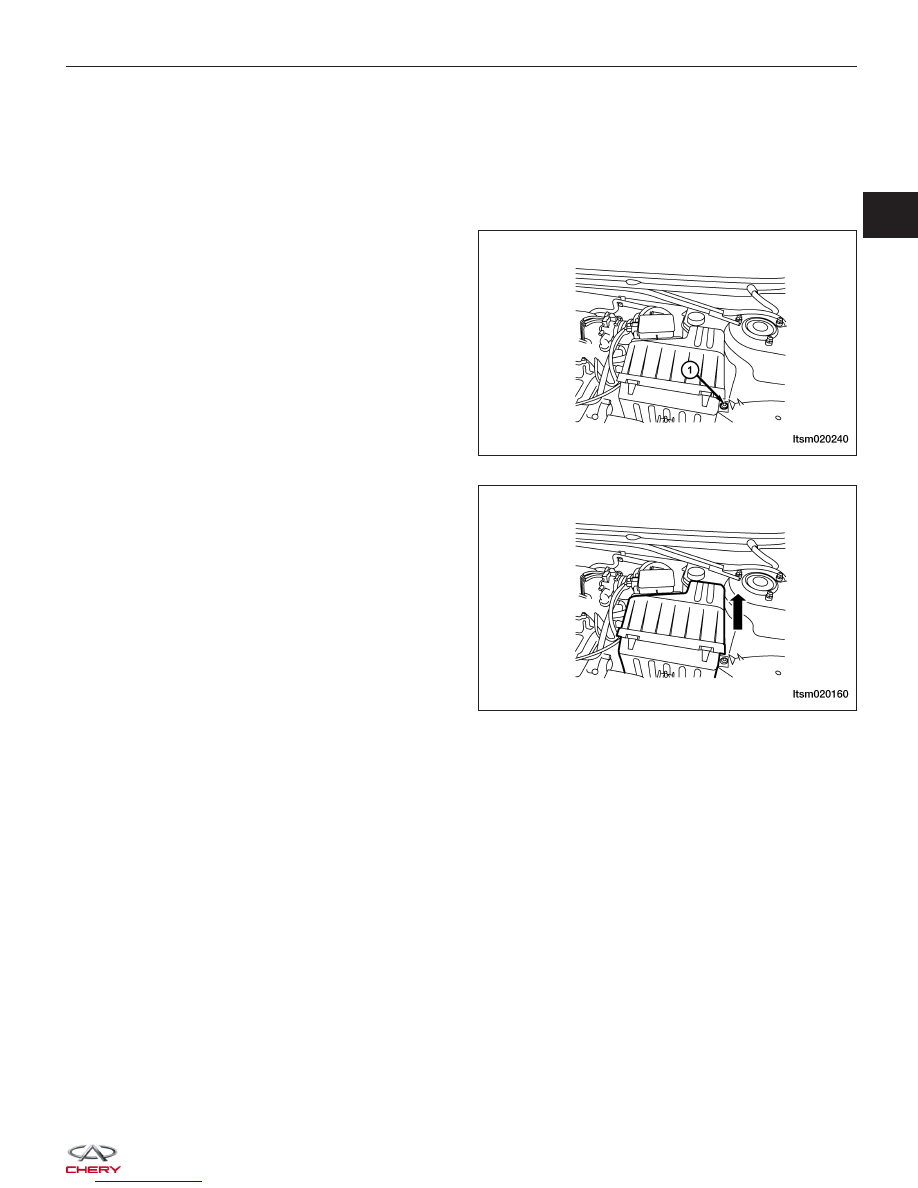

Air Cleaner Housing

Removal & Installation

1. Disconnect the negative battery cable.

2. Disconnect the air flow sensor electrical connector.

3. Loosen the clamp between the air intake hose and the air cleaner.

4. Remove the retaining bolt (1), securing the air

cleaner housing to its base.
(Tighten: Air cleaner housing retaining bolts to
10 N·m)

5. Remove the air cleaner housing.

6. Installation is in the reverse order of removal.

ON-VEHICLE SERVICE

LTSM020240

LTSM020160

02



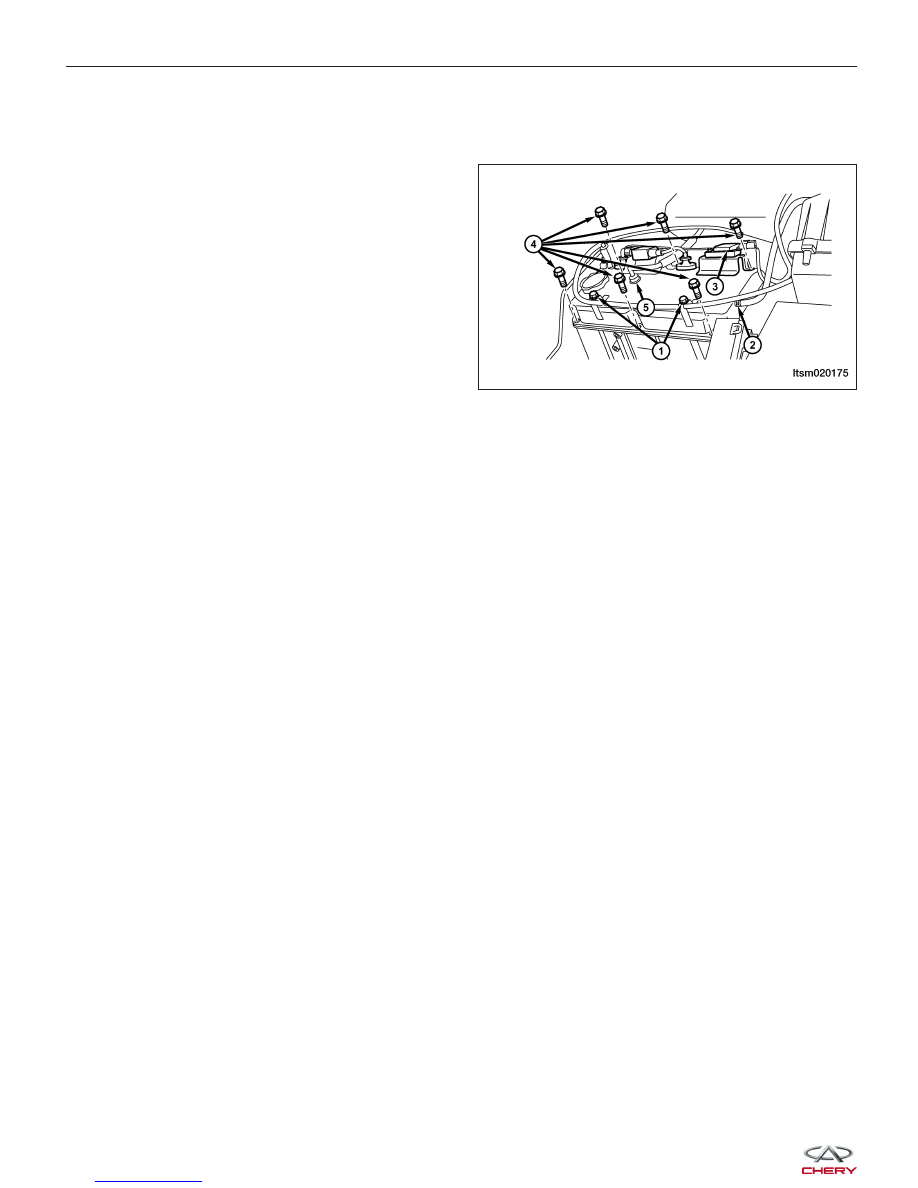

Cylinder Head Cover

Removal & Installation

1. Disconnect the negative battery cable.

2. Remove the accelerator cable bracket bolts (1).

(Tighten: Accelerator cable bracket bolts to 10 N·m)

3. Remove the accelerator cable.

4. Remove the air flow hose clamp (2) and discon-

nect the air flow hose.

5. Remove the spark plug wires (3) and set them

aside (See Spark Plug Wire Removal & Installation
in Section 03 Electronic Engine Controls).

6. Remove the PCV tube (5).

7. Remove the cylinder head cover bolts (4).

(Tighten: Cylinder head cover bolts to 11 N·m)

8. Remove the cylinder head cover from the cylinder head.

9. Remove the cylinder head cover gasket if necessary.

10. Installation is in the reverse order of removal.

NOTE :
Install a new cylinder head cover gasket during installation.

ON-VEHICLE SERVICE

LTSM020175



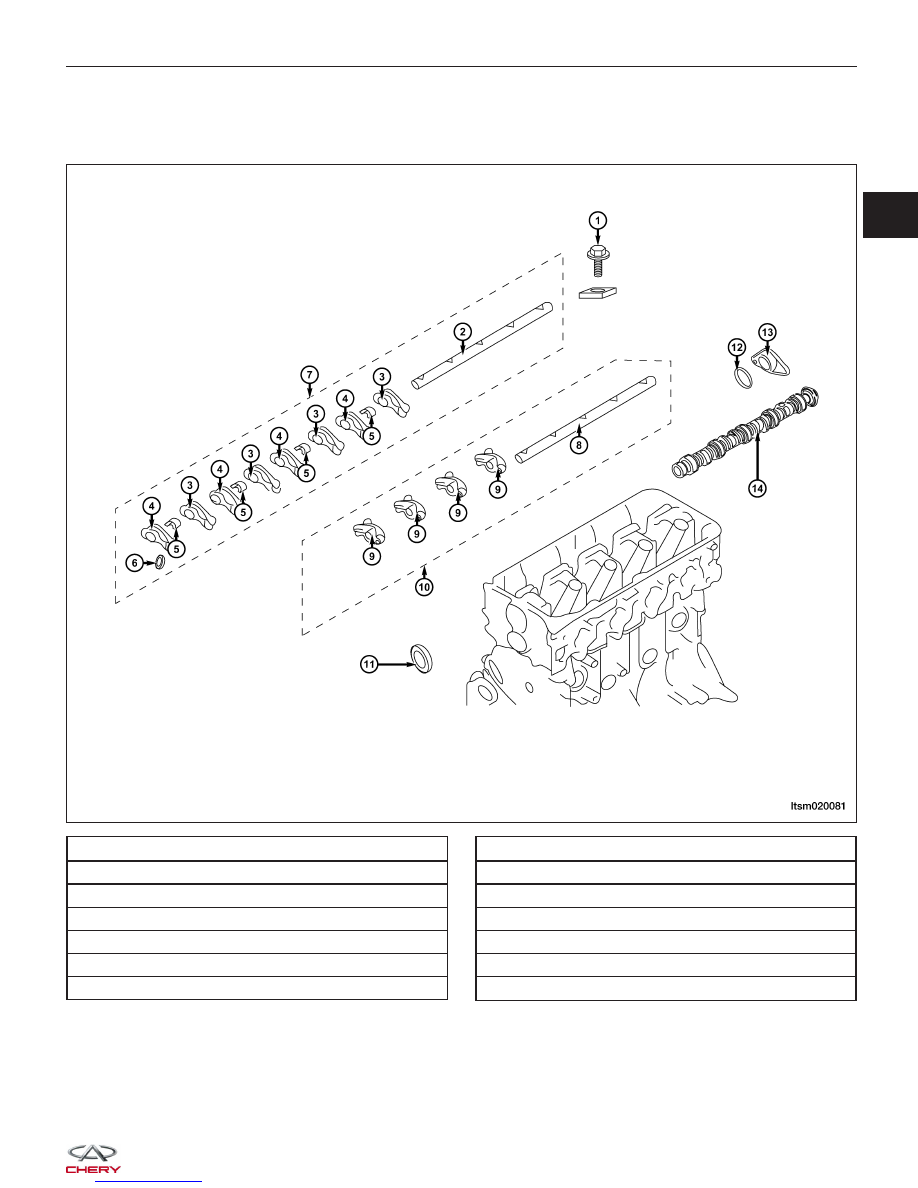

Camshaft

Removal & Installation

NOTE :
The following special tools are required to perform the repair procedure:
• MD-998719 - Camshaft Belt Gear Holder

• MD-990767 - Camshaft Belt Gear Holder

• MD-998443 - Hydraulic Post Keeper

1 - Rocker Shaft Retaining Bolt

2 - Intake Rocker Arm Shaft

3 - Rocker Arm

4 - Rocker Arm

5 - Rocker Shaft Spring

6 - Hydraulic Adjuster

7 - Rocker Arm and Rocker Shaft

8 - Exhaust Rocker Arm Shaft

9 - Rocker Arm

10 - Rocker Arm and Rocker Shaft

11 - Camshaft Oil Seal

12 - O-Ring

13 - Camshaft Thrust Plate

14 - Camshaft

ON-VEHICLE SERVICE

LTSM020081

02
