Chery Tiggo. Manual - part 14

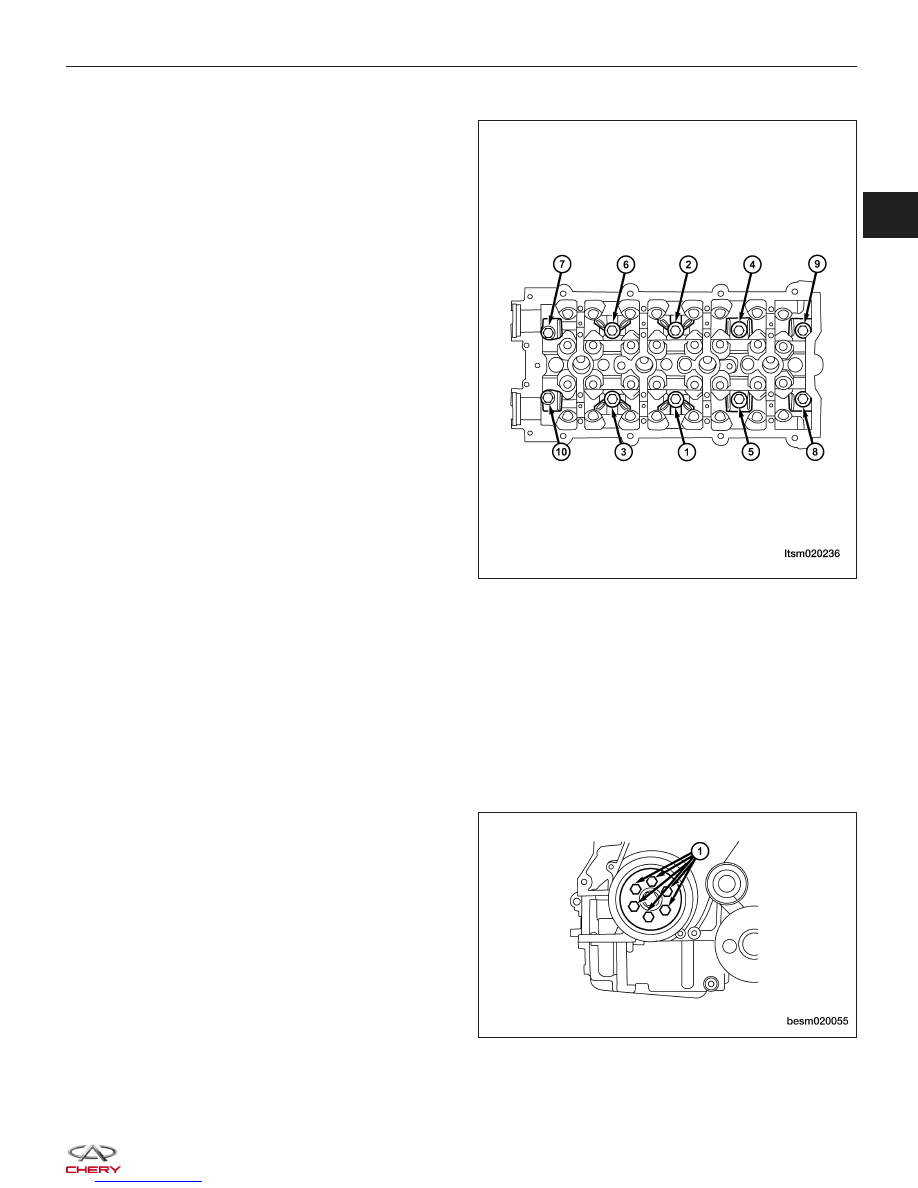

7. Remove the cylinder head bolts in the order

shown.

8. Remove cylinder head gasket.

9. Installation is in the reverse order of removal.

Installation Notes:
• Ensure cylinder head bolt holes in the block are clean, dry (free of residual oil or coolant), and threads are not

damaged.

• The cylinder head bolts should not be reused. The new bolts should be examined before use. If the bolts are

stretched, the bolts should be replaced.

• Position the new cylinder head gasket on the engine block with the part number facing up. Ensure gasket is

seated over the locating dowels in the block.

• Before installing the bolts, the threads should be lightly coated with engine oil.

ON-VEHICLE SERVICE

BESM020065

02

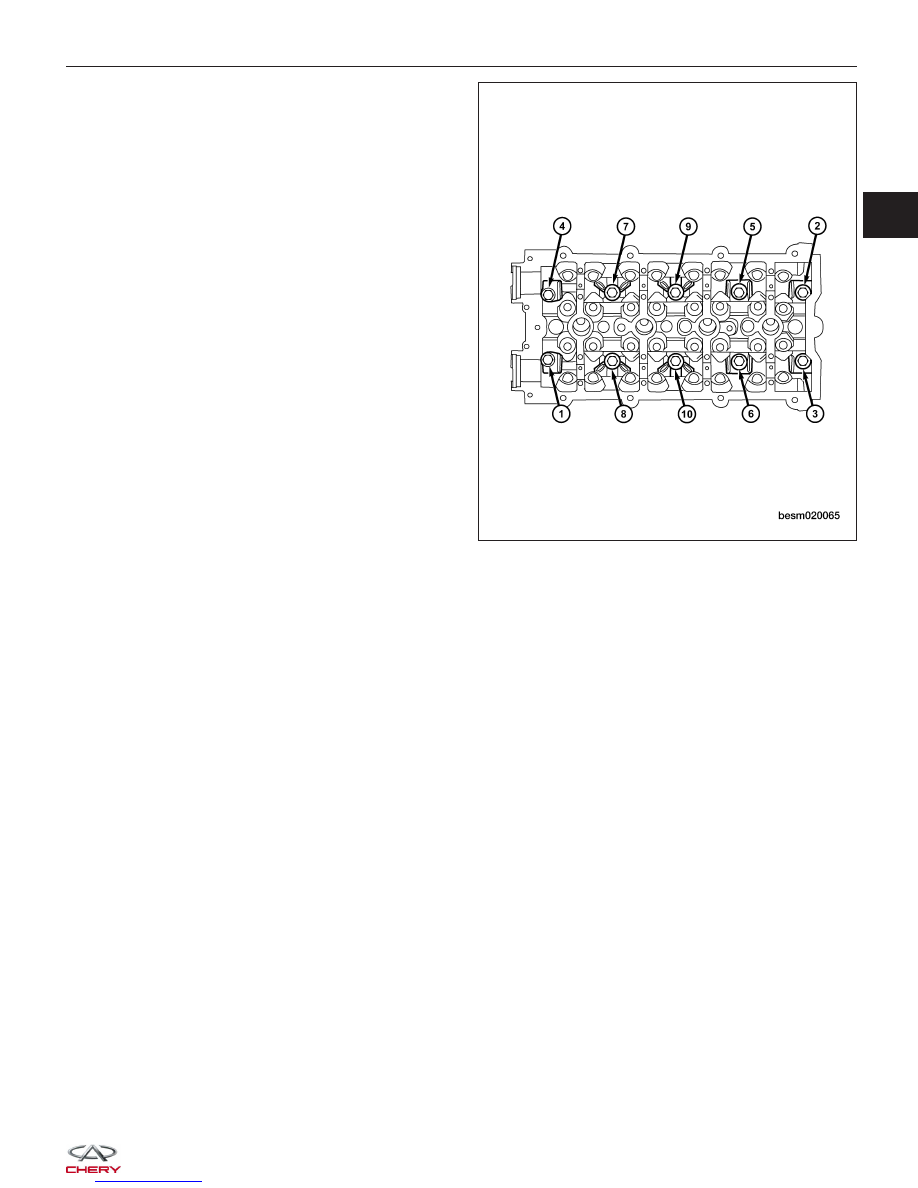

• Install the cylinder head bolts in the order shown.

• Torque the cylinder head bolts in the following three

step sequence:

− 1st Step: Tighten the bolt to 40 ± 5 N·m
− 2nd Step: Tighten the bolt an additional 90 ±

− 3rd Step: Tighten the bolt an additional 90 ±

Front Crankshaft Oil Seal

Removal & Installation

NOTE :
The following special tools are required to perform the repair procedure:
• CH-20007 - Front Crankshaft Seal Installer

• CH-20008 - Front Crankshaft Seal Guide

• CH-20019 - Crankshaft Belt Pulley Fixture

1. Remove the accessory drive belt (See Accessory Drive Belt Removal & Installation in Section 02 Engine).

2. Remove the crankshaft vibration damper bolts (1).

(Tighten: Crankshaft vibration damper bolts to
25 N·m)

3. Remove the engine timing belt (See Engine Timing Belt Removal & Installation in Section 02 Engine).

ON-VEHICLE SERVICE

LTSM020236

BESM020055

02

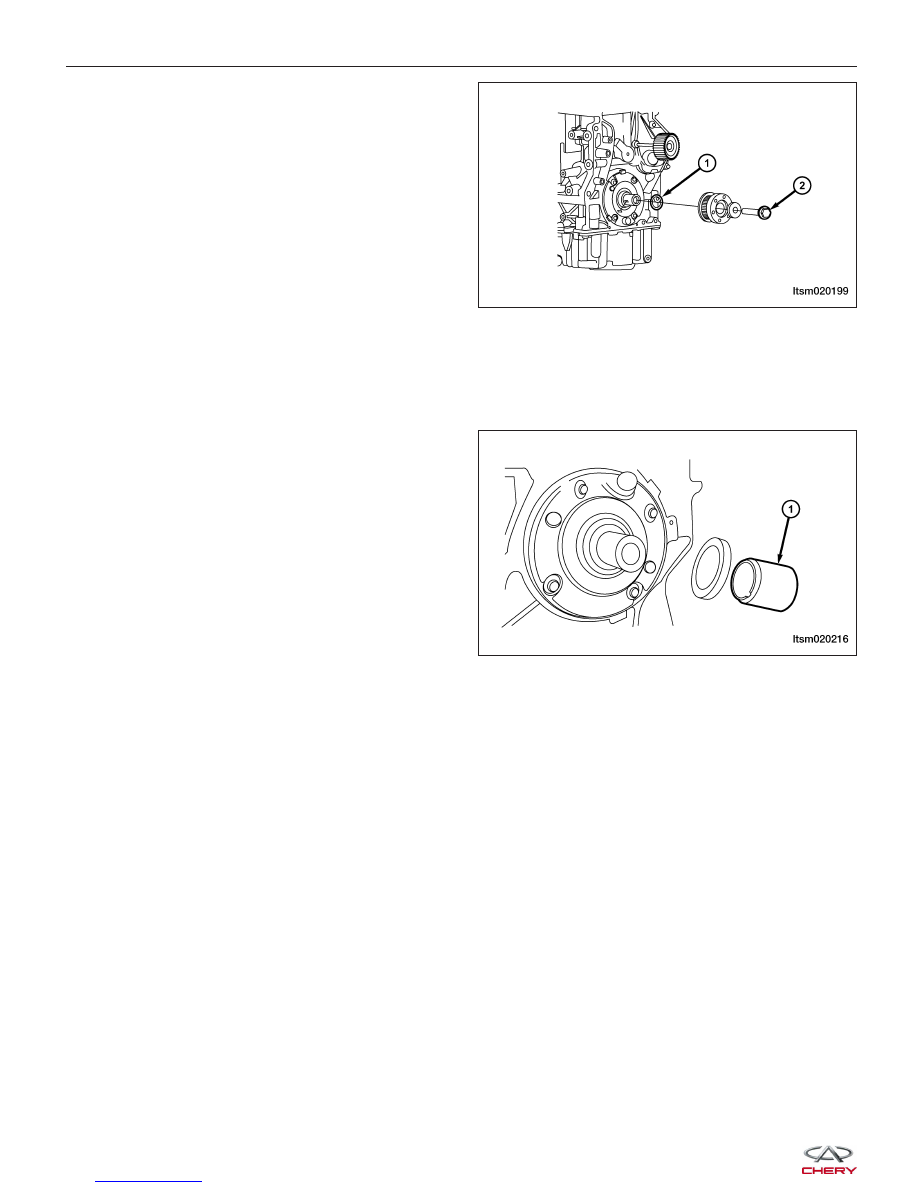

4. Remove the crankshaft timing belt pulley bolt (2)

from the crankshaft.
(Tighten: Crankshaft timing belt pulley bolt to
130 N·m and an additional 65°)

5. Remove the key-way from the crankshaft.

6. Use an appropriate tool and remove the front

crankshaft oil seal (1).

CAUTION:
Be careful not to damage the front cover seal
surface while removing the seal.

7. Installation is in the reverse order of removal.

Installation Notes:
• Lubricate the new front seal with engine oil prior to assembly.

• Use the front crankshaft seal installer CH-20008 (1), to install the new seal.

ON-VEHICLE SERVICE

LTSM020199

LTSM020216



Rear Crankshaft Oil Seal

Removal & Installation

NOTE :
The following special tools are required to perform the repair procedure:
• CH-20005 - Rear Crankshaft Oil Seal Installer

• CH-20006 - Rear Crankshaft Oil Seal Guide

• CH-20043 - Flywheel Fixture

1. Remove the transaxle assembly (See Transaxle Assembly Removal & Installation in Section 08 Transaxle &

Transfer Case).

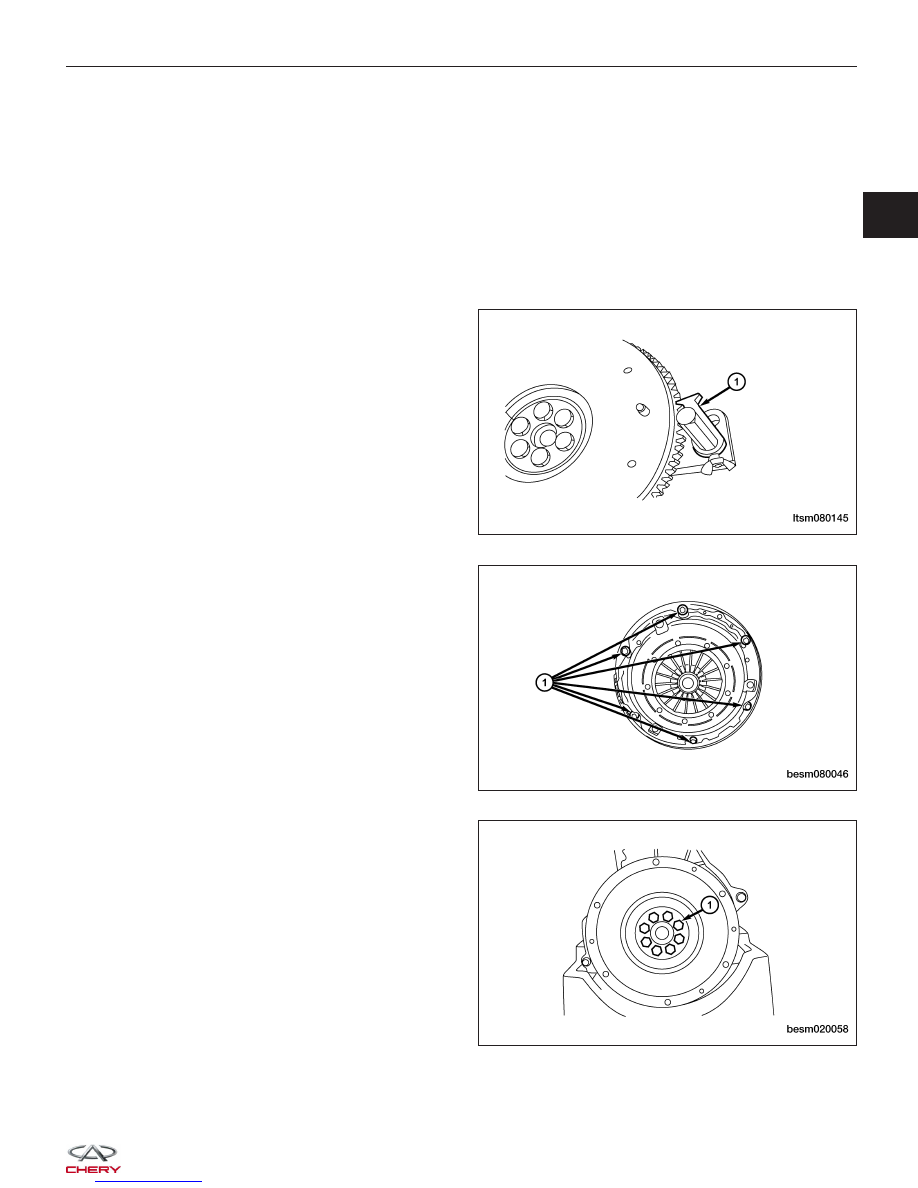

2. Using special tool CH-20043 (1), hold the flywheel.

3. Remove the clutch pressure plate retaining bolts

(1) and then remove the clutch pressure plate.
(Tighten: Clutch pressure plate bolts to 25 N·m)

4. Remove the flywheel bolts (1) and then remove the

flywheel.
(Tighten: Flywheel bolts to 75 N·m)

ON-VEHICLE SERVICE

LTSM080145

BESM080046

BESM020058

02
