Cylinder Compression Pressure Test

• The result of a cylinder compression pressure test can be utilized to diagnose several engine malfunctions.

• Ensure the battery is completely charged and the engine starter motor is in good operating condition. Otherwise

the indicated compression pressures may not be valid for diagnostic purposes.

− Check engine oil level and add oil if necessary.
− Disconnect the spark plug wires.
− Remove all spark plugs from engine (as spark plugs are being removed, check electrodes for abnormal

firing indicators fouled, hot, oily, etc.).

− Record cylinder number of each spark plug for future reference.
− Disconnect fuel injector electrical connectors.
− Be sure throttle blade is fully open during the compression check.
− Insert compression pressure adaptor or the equivalent into each spark plug hole in cylinder head.
− Crank engine until maximum pressure is reached on gauge. Record each cylinder pressure.
− Compression should not be less than 1000 kPa and not vary more than 25 percent from cylinder to cylinder.
− If one or more cylinders have abnormally low compression pressures, repeat the compression test.
− If the same cylinder or cylinders repeat an abnormally low reading on the second compression test, it could

indicate the existence of a problem with the cylinder in question.

NOTE :
The recommended compression pressures are to be used only as a guide to diagnosing engine problems. An engine
should not be disassembled to determine the cause of low compression unless some malfunction is present.

Cylinder Head Gasket Test

• A cylinder head gasket leak can be located between adjacent cylinders, between a cylinder and the adjacent

water jacket or from an oil passage to the exterior of the engine.

• Possible indications of the cylinder head gasket leaking between adjacent cylinders are:

− Loss of engine power
− Engine misfiring
− Poor fuel economy

• Possible indications of the cylinder head gasket leaking between a cylinder and an adjacent water jacket are:

− Engine overheating
− Loss of coolant
− Excessive steam (white smoke) emitting from exhaust
− Coolant foaming

DIAGNOSIS & TESTING



ON-VEHICLE SERVICE

Accessory Drive Belt

Removal & Installation

WARNING!

Inspect the drive belt only when the engine is stopped.

1. While using a suitable tool and securely holding the hexagonal portion of the drive belt tensioner, rotate the

pulley counterclockwise to loosen the drive belt.

WARNING!

Avoid placing hands near the drive belt tensioner while it is being held.

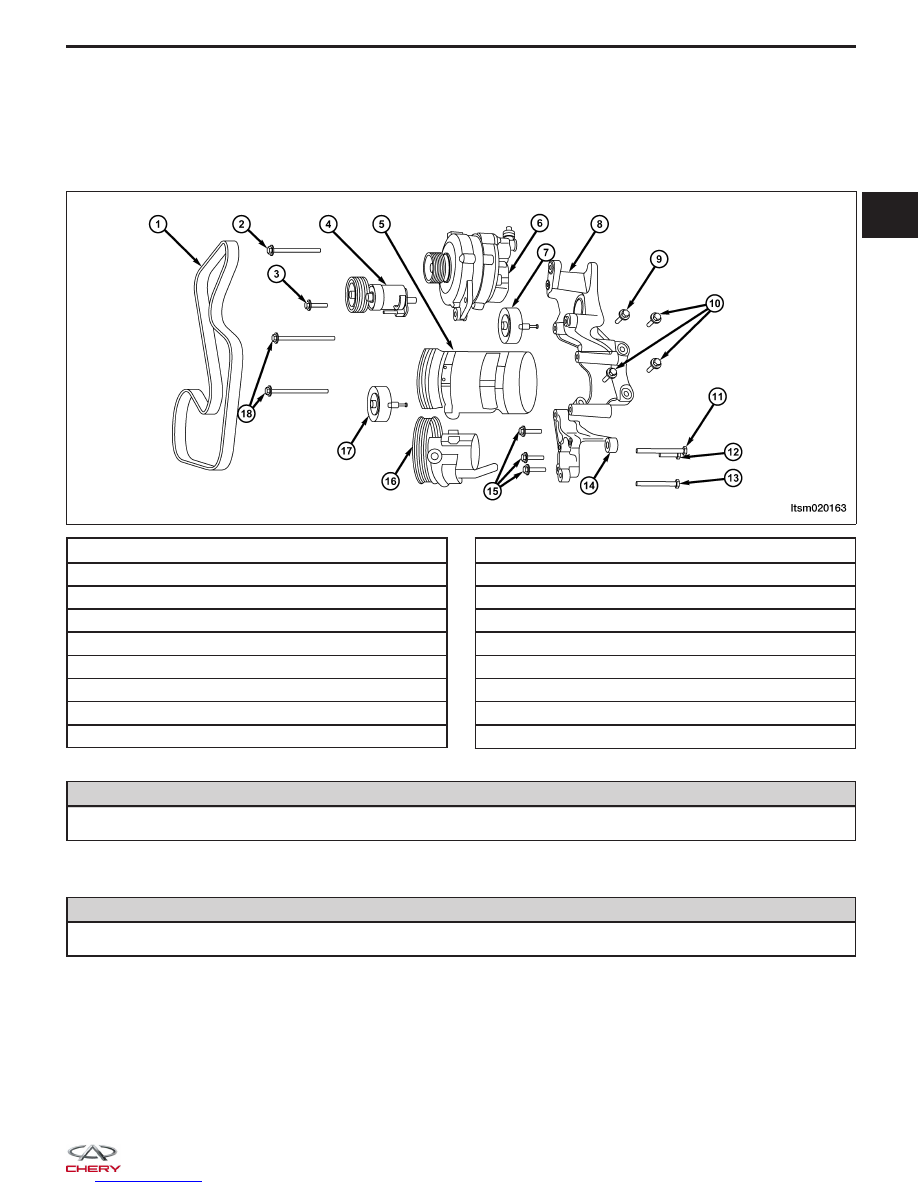

1 - Drive Belt

2 - Generator Bolt

3 - Tensioner Pulley Bolt

4 - Tensioner

5 - Compressor

6 - Generator

7 - Idler Pulley

8 - Generator Bracket

9 - Generator Bracket Bolt

10 - Generator Bracket Bolts

11 - Power Steering Pump Bolt

12 - Power Steering Pump Bolt

13 - Power Steering Pump Bolt

14 - Power Steering Pump Bracket

15 - Power Steering Pump Bracket Bolts

16 - Power Steering Pump

17 - Idler Pulley

18 - Compressor Bolts

LTSM020163

02



2. Remove the drive belt.

3. Remove accessory drive belt tensioner pulley bolt

(1) if necessary.
(Tighten: Accessory drive belt tensioner pulley bolt
to 35 N·m)

4. Installation is in the reverse order of removal.

Air Cleaner Element

Removal & Installation

1. Unhook the air cleaner case side clips (1) and

raise the air cleaner case (upper).

2. Remove the air cleaner element.

3. Install a new air cleaner element.

4. Installation is in the reverse order of removal.

Installation Notes:
• If necessary, clean the inside of the air cleaner housing before installing new air cleaner element.

Air Cleaner Housing

Removal & Installation

1. Disconnect the negative battery cable.

2. Disconnect the air flow sensor electrical connector (1.8L Engine).

ON-VEHICLE SERVICE

LTSM020196

LTSM020238



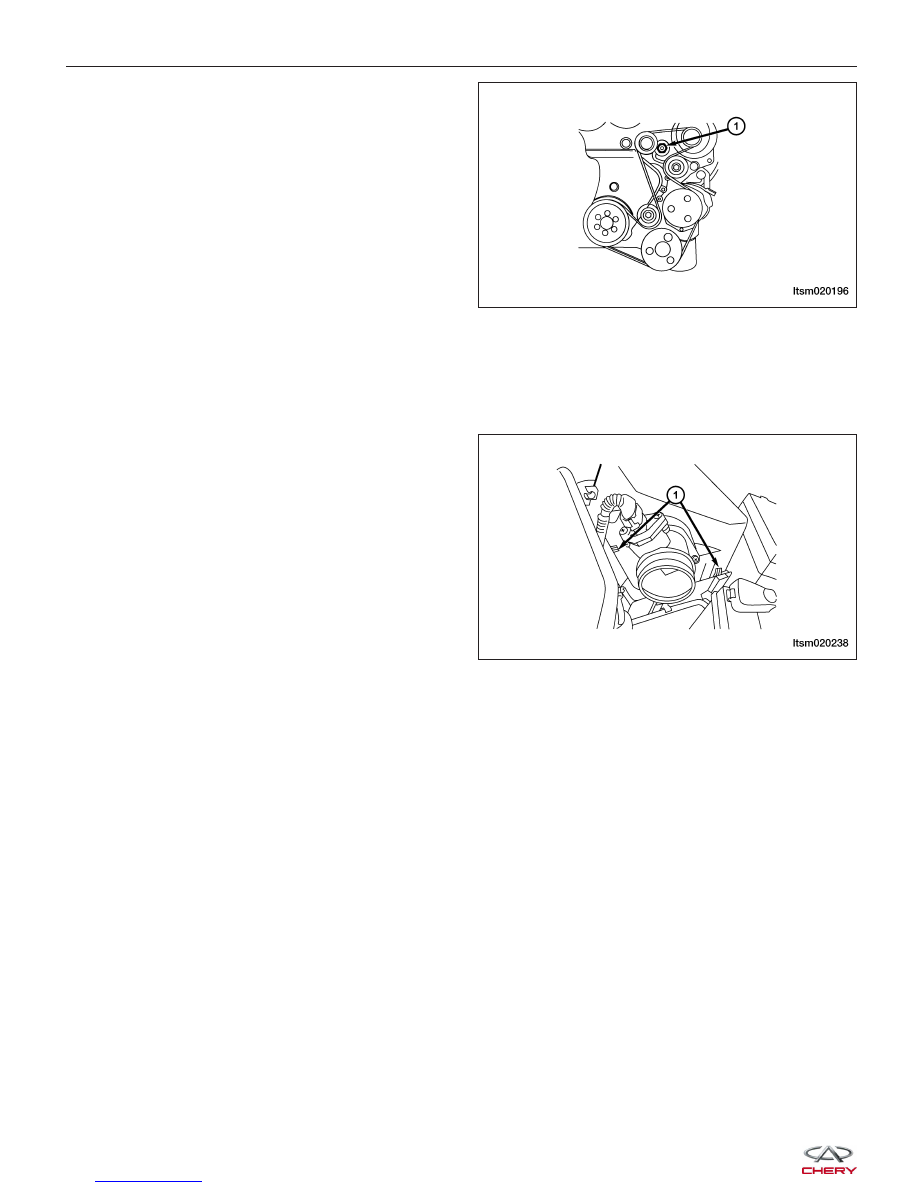

3. Loosen the clamp (1) between the air intake air

hose and the air cleaner and remove the intake air
hose.

4. Remove the screws (1) securing the air cleaner

housing to its base.

5. Remove the air cleaner housing.

6. Remove the air cleaner base.

7. Installation is in the reverse order of removal.

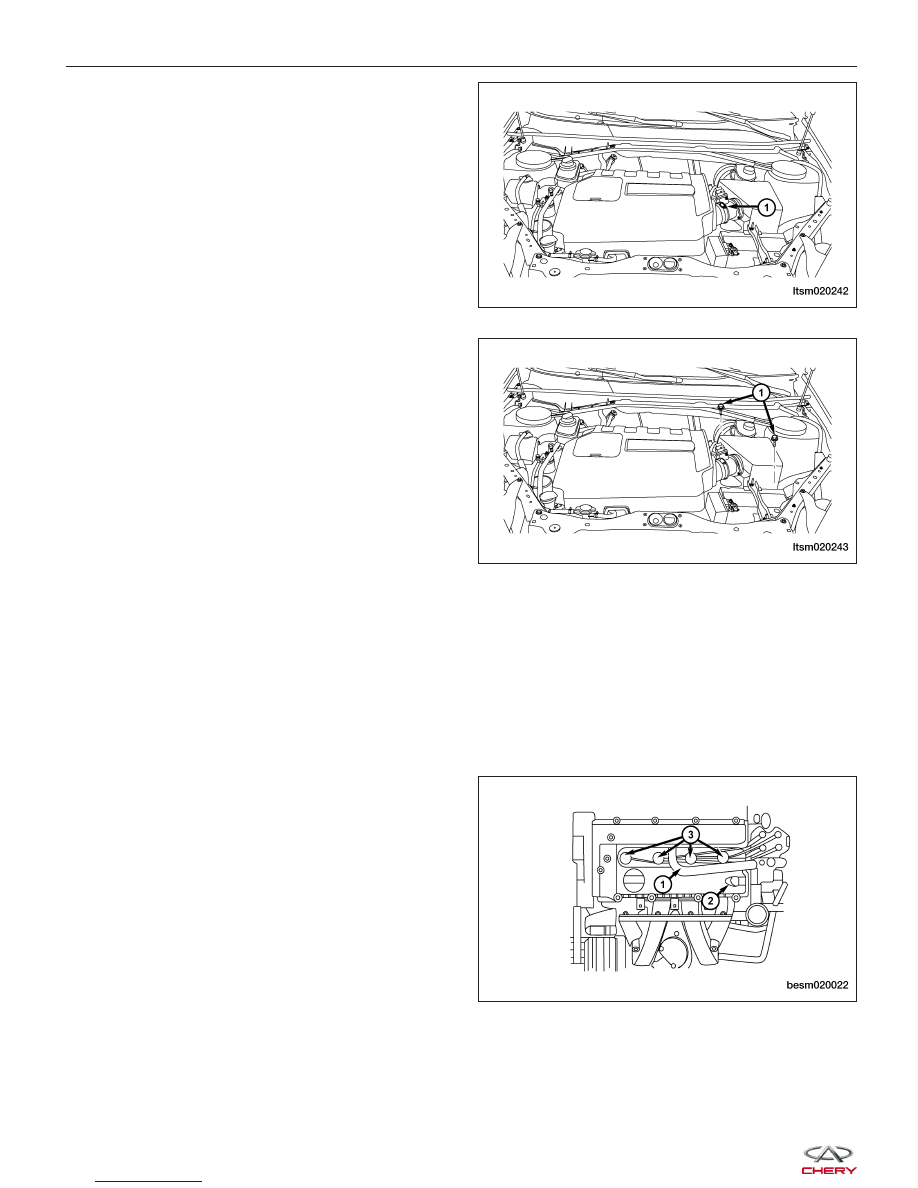

Cylinder Head Cover

Removal & Installation

1. Disconnect the negative battery cable.

2. Remove the engine cover.

3. Use compressed air to blow dirt and debris off the

cylinder head cover prior to removal.

4. Disconnect the camshaft position sensor electrical

connector.

5. Remove the camshaft position sensor (2) and set it

aside.

6. Remove the spark plug wires (3) and set them

aside.

7. Remove the PCV hose (1) from cylinder head

cover.

ON-VEHICLE SERVICE

LTSM020242

LTSM020243

BESM020022
