Chery SQR 7160 sedan. Manual - part 61

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

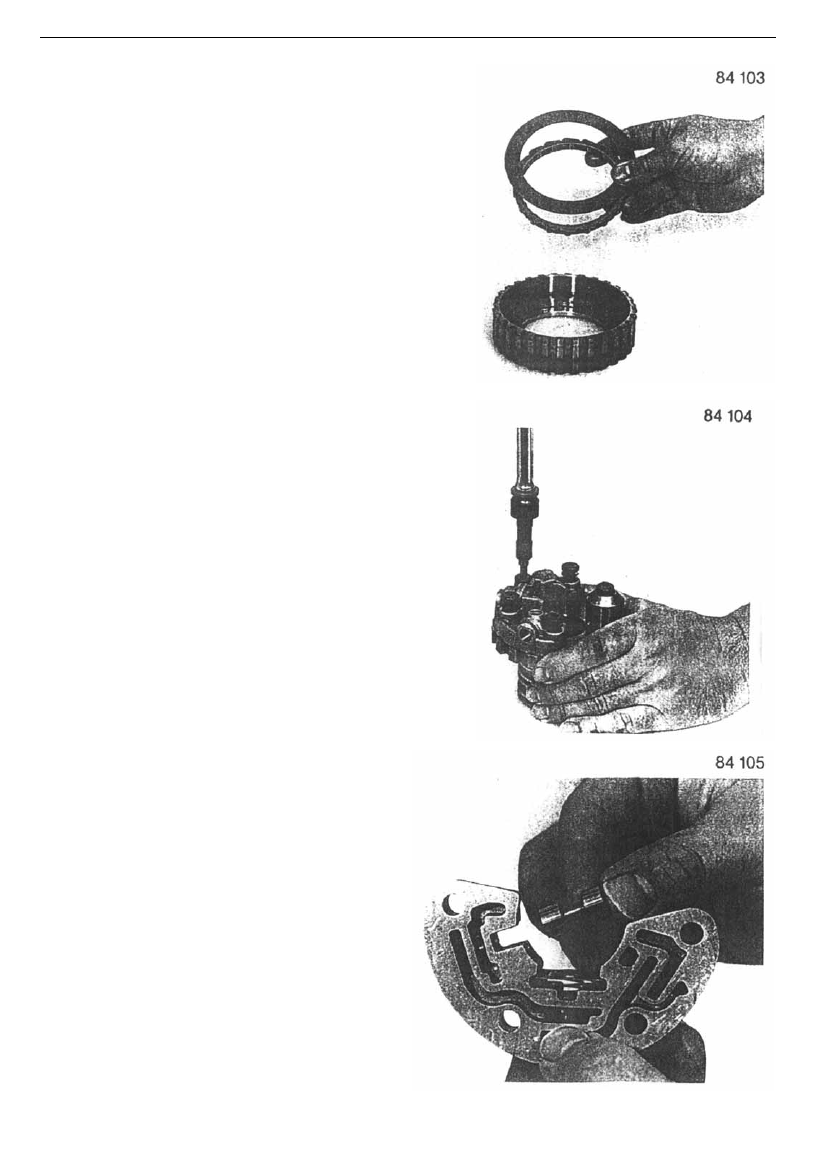

As shown on figure, one-way overrun clutch can be

thoroughly disassembled:

Clutch inner ring, outer gear ring and free wheel.

2.9、Removing governor and speedometer

Loosen four mounting bolts and separate the governor

case from the hub sleeve.

NOTE:

If the case is scratched or damaged, replace a new one.

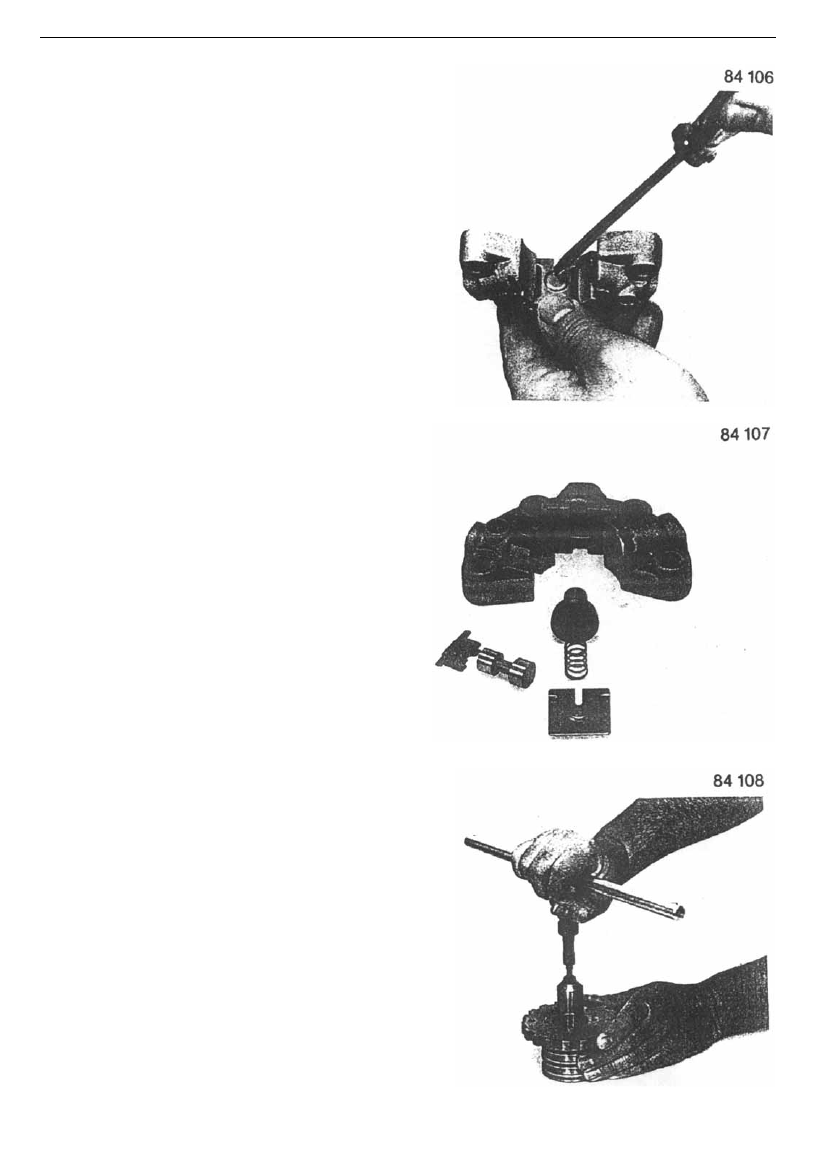

1、Remove the first piston

Take out locking piece, and remove piston 1 off

housing.

-54-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

2、Remove piston 2

Press down spring with screwdriver, remove locking piece,

spring and piston 2.

After removing, components are as shown in figure. There

are only two pistons.

Loosen connecting bolts on the governor hub sleeve, and

remove the centrifugal block.

Remove snap ring and the rubber sealing ring.

-55-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

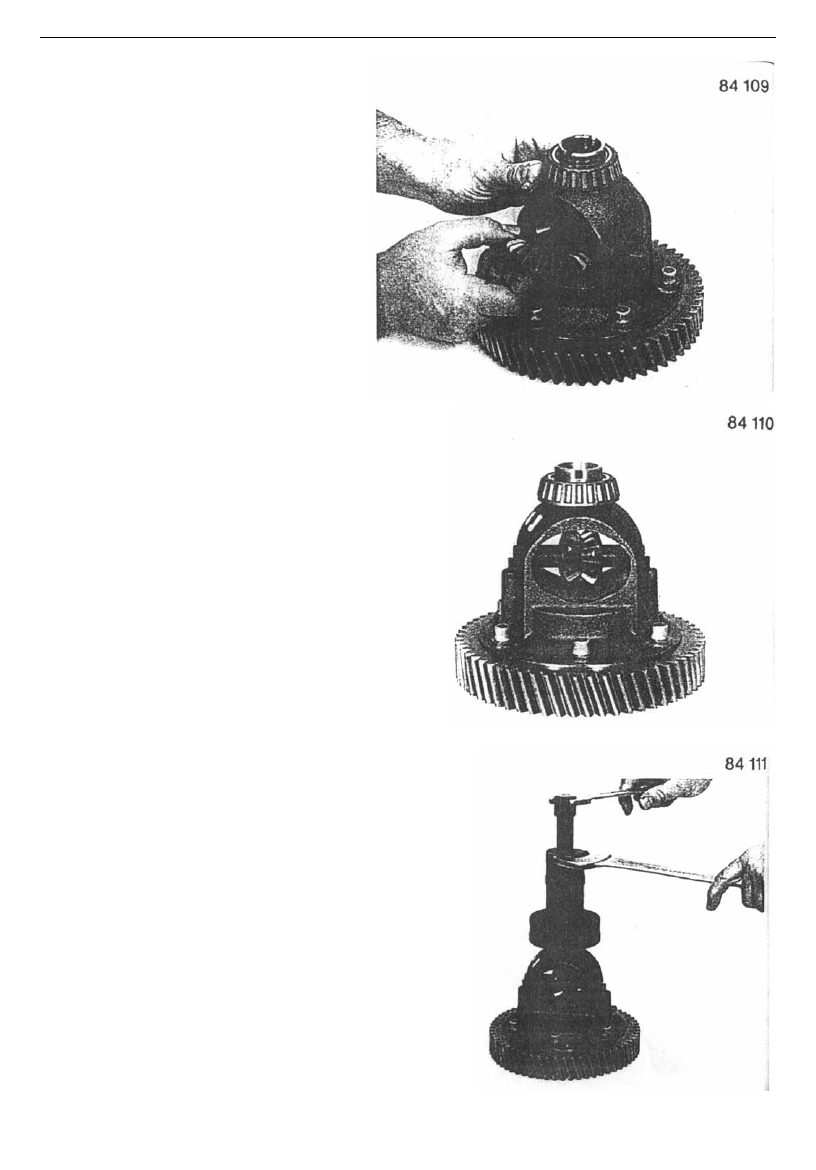

Revolve two planetary gears to appropriate

position, and then take them out.

For new type structure, remove two differential

side shafts, and then take out two side gears.

For convenience of inspecting scratch on side

gears, move the two side gears to the middle

position.

Remove taper rolling bearing inner race with

special tool 5 X 46 000 297. As shown on figure.

-56-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

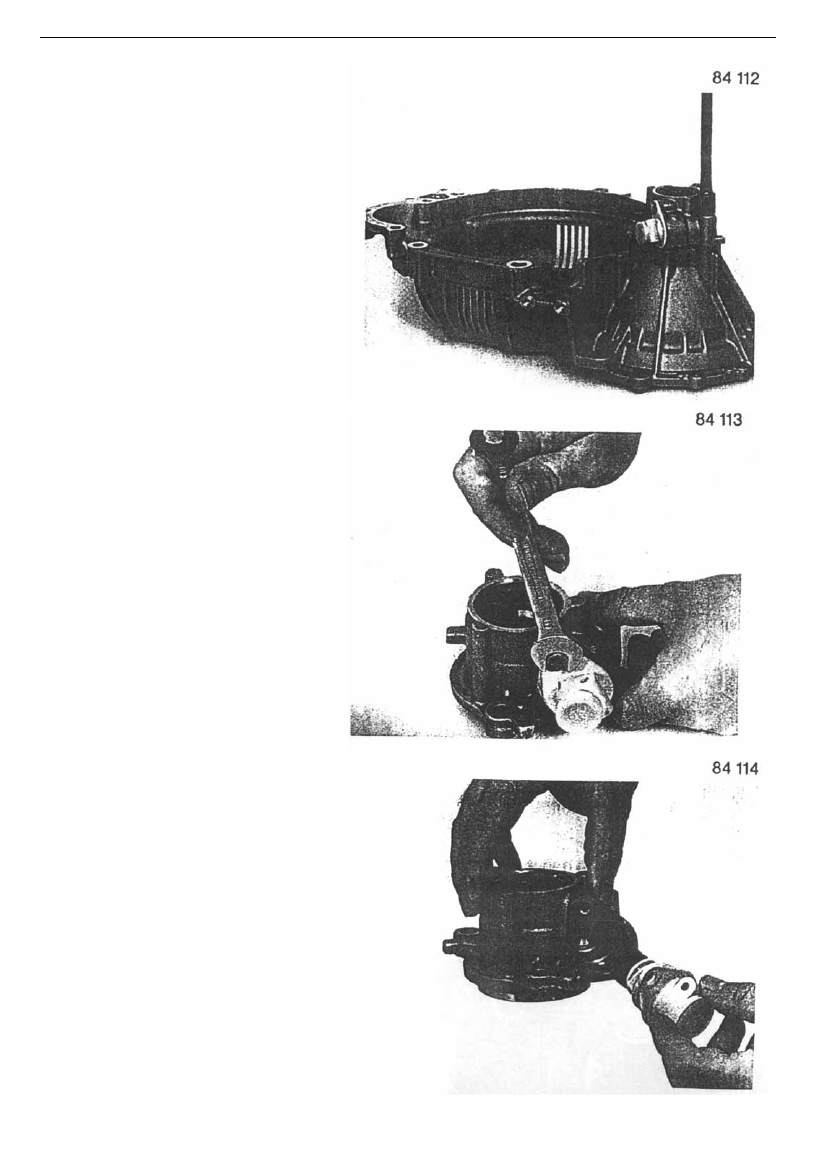

Remove hex bolts in the speed meter drive

gear case .

Tool: 13# sleeve

Loosen mounting bolts in the speedometer

sensing rotor and carrier.

Take out the speedometer sensing rotor and

carrier, and then remove the sealing ring with

appropriate tool.
