Chery QQ Service Manual



Mechanical Part of SQR 472Engine





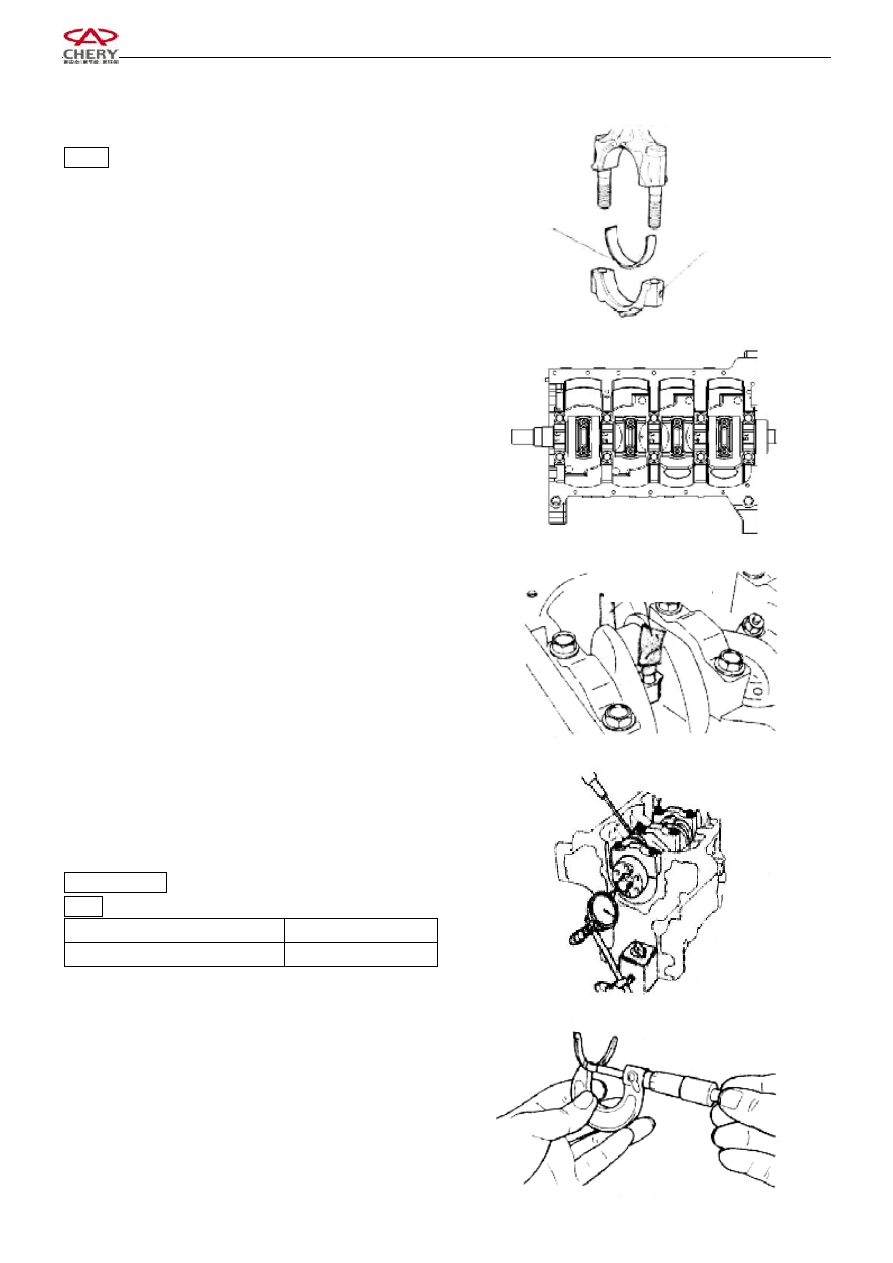

41



2.2.5

If  it  is  beyond  the  limit,  replace  the  bearing

bushing.

Notice:  Replacing  the  bearing  bushing  with  the  product

of  the  same  manufacturer’s  brand.  The  thickness  of  the

connecting  rod  bushing  which  meets  the  requirements  of

clearance  =  diameter  of  big  end  hold  –  axial  diameter  of

connecting  rod  –  standard  value  of  bearing  bushing

clearance









2.2.6

Remove  the  connecting  rod  bearing  cap  and  the

connecting rod bearing bushing













2.2.7

Put  vinyl-resin  protecting  jacket  on  the  threaded

part  of  the  connecting  rod  bolt  so  as  to  prevent  the  bolts

from  scraping  the  cylinder  hole  and  the  crannkshaft

connecting  rod  journal,  and  then  disassemble  the  piston

connecting rod by using the hammer handle striking it out.









2.3  Inspect the axial clearance of crankshaft

2.3.1

Measure the axial clearance of the crankshaft with

a  dial  gauge,  if  it  is  beyond  the  limit,  it  is  necessary  to

replace the axial thrust plate or the crankshaft.

Standard value: 0.089-0.211mm

Limit: 0.30mm

Item

Standard value



1.9

-0.11

-0.03











Connecting Rod

Connecting Cover

Protection Sleeve





Chery QQ Service Manual



Mechanical Part of SQR 472Engine





42



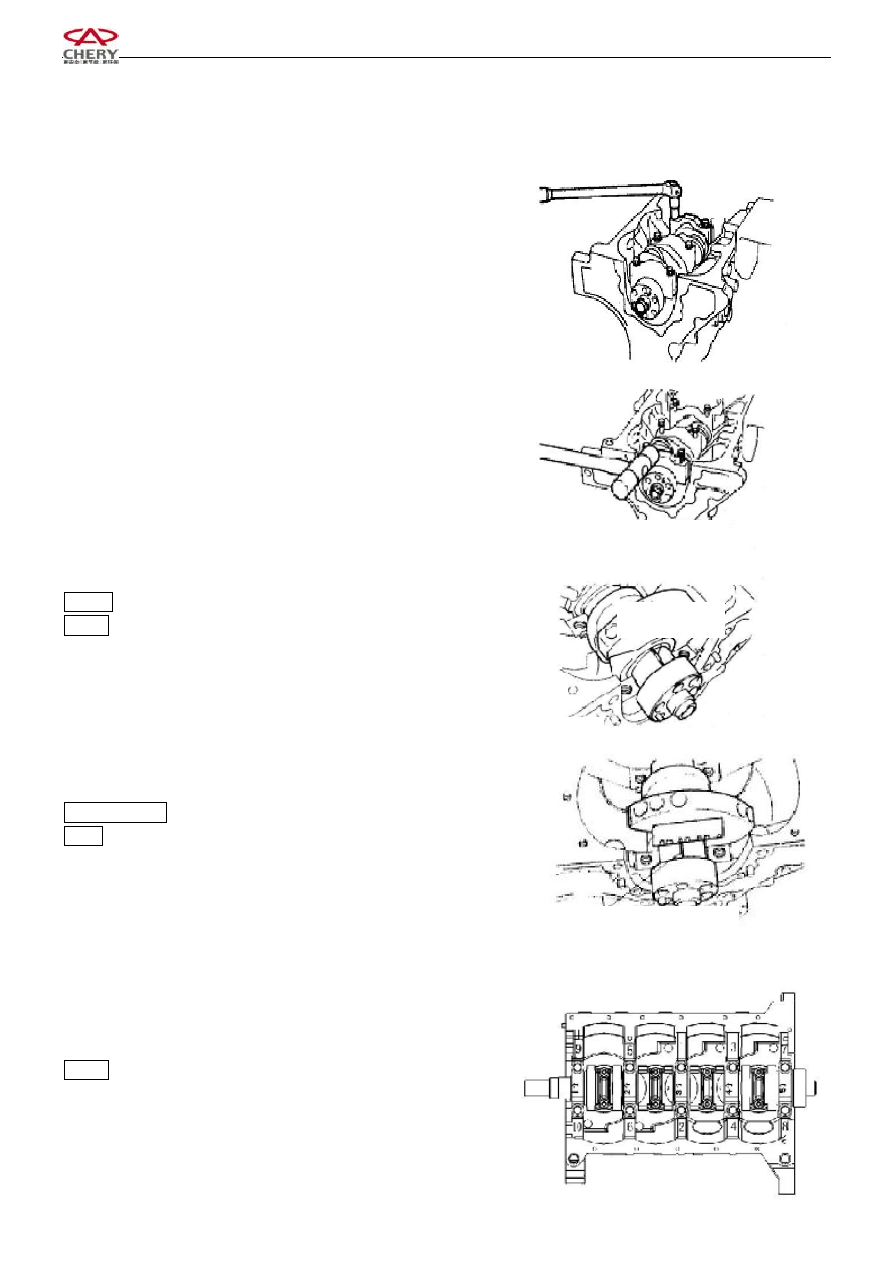

2.4    Inspect the crankshaft for its radial clearance.

2.4.1    Remove  the  crankshaft  bearing  cap  by  softly

tapping with a resin hammer.

2.4.2    Clean the inside and surface of the bearing bushing,

the inside and surface of the bearing cap, the cylinder wall

and  journal.  Inspect  them  for  abrasion  and  damage

carefully.























2.4.3    Adjust the radial clearance of the crankshaft with a

clearance  gauge,  and  tighten  the  bearing  bushing  cover

bolts with the specified torque.

Torque:  70±3.5N.m

Notice:    After  tightening  the  bolts,  the  rotating  torque  of

the crankshaft should be less than 1Nm
(The torque of crankshaft without piston connecting rod)





2.4.4    Remove the bearing cap and measure the maximum

width  with  a  clearance  gauge.  If  the  measurement  result

exceeds the limit, replace the bearing bushing.

Standard value:    0.025-0.069mm

Limit:



0.10mm













2.4.5    Remove  the  main  bearing  bushing  cap  of  the

crankshaft,  crankshaft,  crankshaft  bearing  bushing  and

crankshaft axial thrust plate

Notice:  Tighten  the  bolts  for  the  crankshaft  bearing  cap

in the order shown in the right figure. Tighten the bolts for

three  times,  then  the  torque  must  be  up  to  the  specified

value.







Protection Sleeve

Clearance Gauge

Width Compare of Clearance Gauge





Chery QQ Service Manual



Mechanical Part of SQR 472Engine





43



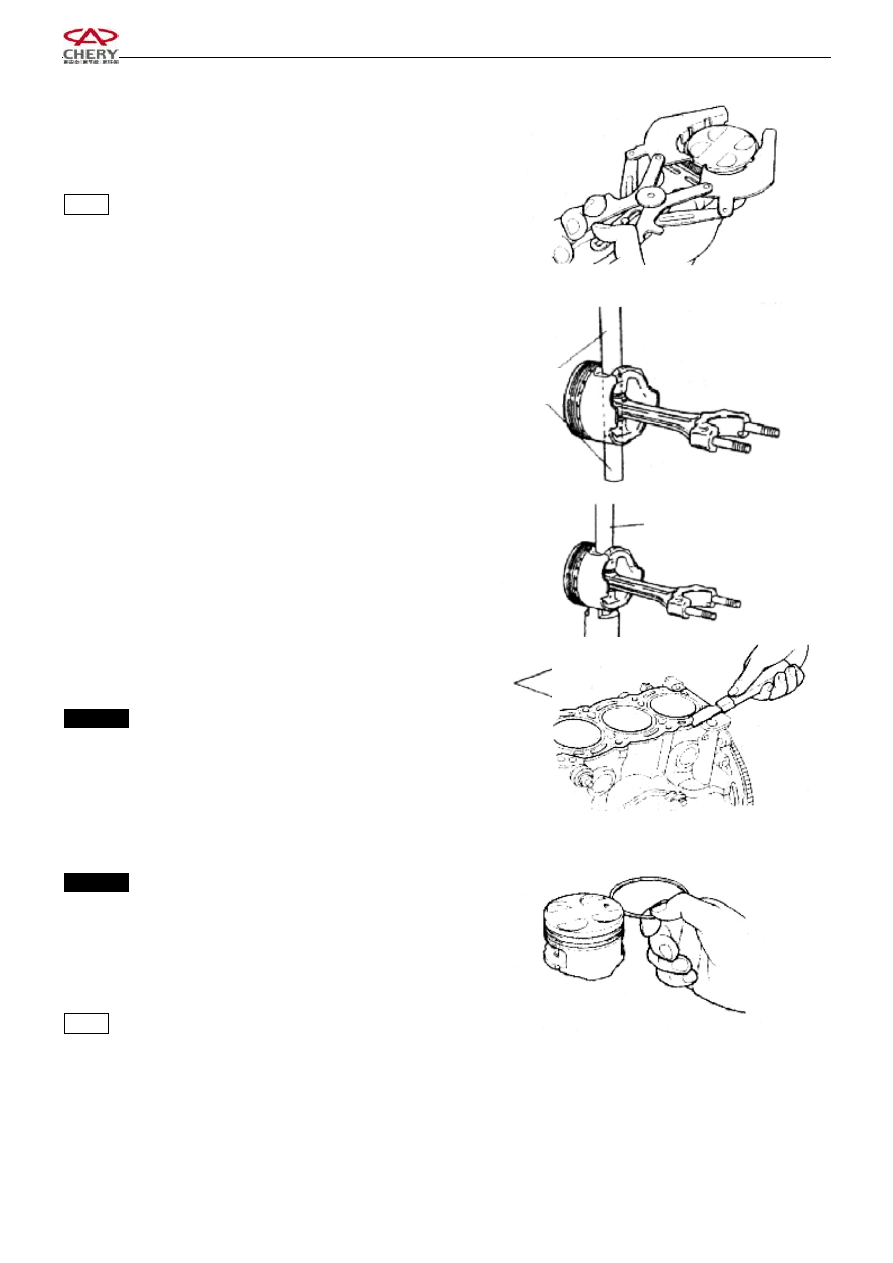

2.5  Disassembly  and  assembly  of  the  piston  and

connecting rod assembly

2.5.1

Remove  the  first  ring,  second  ring  and  the  oil

ring with a pair of piston ring moving pliers.

Notice:  Don’t  get  the  piston  and  piston  ring  of  each

cylinder confused.







2.5.2

Remove  the  piston,  connecting  rod  and  the

piston pin with special tool.



Disassemble the piston pin with special tool as indicated in

the right figure.






①  As indicated in the right figure, disassemble the piston

which  is  at  the  state  mentioned  above  with  special

tools.  Remove  the  piston  pin  with  special  tool,  and

then remove the piston and the connecting rod.



3  Cleanup

3.1  Cylinder Body

Warning:



In  the  course  of  cleanup,  protect  your  eyes

with eyeglass.



3.1.1

Clean  up  the  cylinder  body,  cylinder  head,  oil

pan, oil pump and the oil seal with a flat blade.



3.2  Piston

Warning:



In  the  course  of  cleanup,  protect  your  eyes

with eyeglass.



3.2.1

Use  an  old  ring  to  remove  the  carbon  in  ring

groove.

3.2.2

Remove the carbon of parts with scavenger.

Notice:  Don’t use hard articles such as metal brush.



















Special Tool

Special Tool





Chery QQ Service Manual



Mechanical Part of SQR 472Engine





44

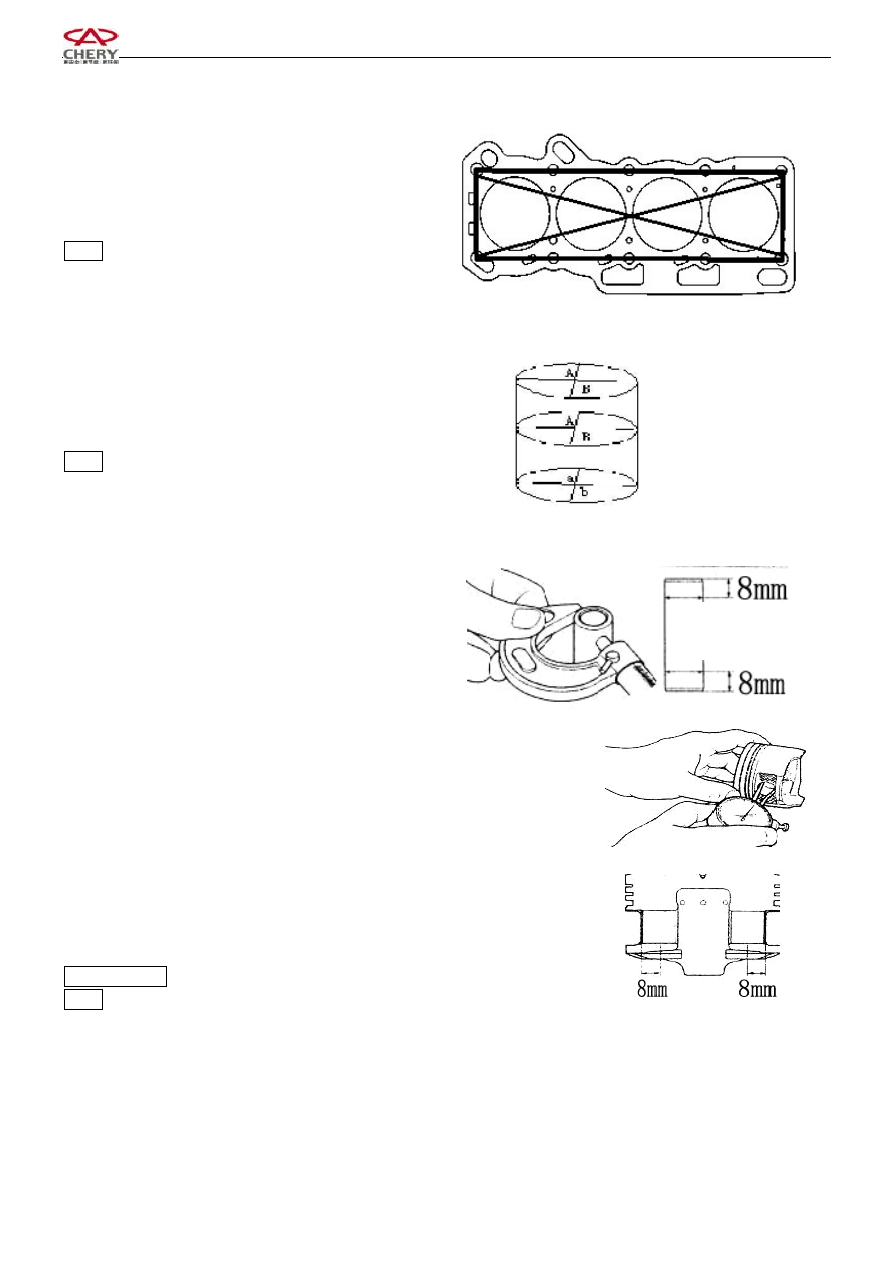

4  Routine Inspection

4.1  Cylinder Body

4.1.1    Inspect  the  top  surface  of  cylinder  body  for  its

flatness

(1)  Measure  at  the  six  points  shown  in  the  right  figure

with a ruler and a feeler gauge.

Limit

0.08mm





4.1.2    Use of bore gauge

Measure  the  cylinder  bore  at  the  positions  as  indicated  in

the  right  figure  with  a  bore  gauge,  and  figure  out  the

difference  between  the  maximum  value  and  the  miximum

value. If the  difference exceeds the limit, repair or replace

the cylinder.

Limit

0.03mm

[Reference]    Roundness: A-B or a-b



Cylindric degree: A-a or

[Reference]  Standard

diameter

of

cylinder:

φ72.00-72.01mm



4.2    Piston

4.2.1

Inspect the piston pin hole for its clearance

Measure  the  piston  pin  at  several  positions  with  a

micrometer  caliper  shown  in  the  figure,  make  the

maximum value as the diameter of pin.





4.2.2

Measure  the  diameter  of  piston  pin  at  several

positions with an inner-diameter dial gauge as shown in the

figure, make the minimum value as the diameter of the pin

hole.





Work  out  the  clearance  with  the  difference  between  the

pin  diameter  and  pin  hole  diameter,  if  the  difference  is

beyond the standard value, replace the piston pin or piston.

Standard value:    0.004-0.009mm

Limit:    0.015mm











Upper Stopper Position of Piston

Lower Stopper Position of Piston

Measurement

Position

of

Piston Pin
