Acura CSX. Manual - part 426

０１

ＳＮＲ９Ａ００Ｊ１６１６６２２２０５１ＫＢＡＴ５０

20-27

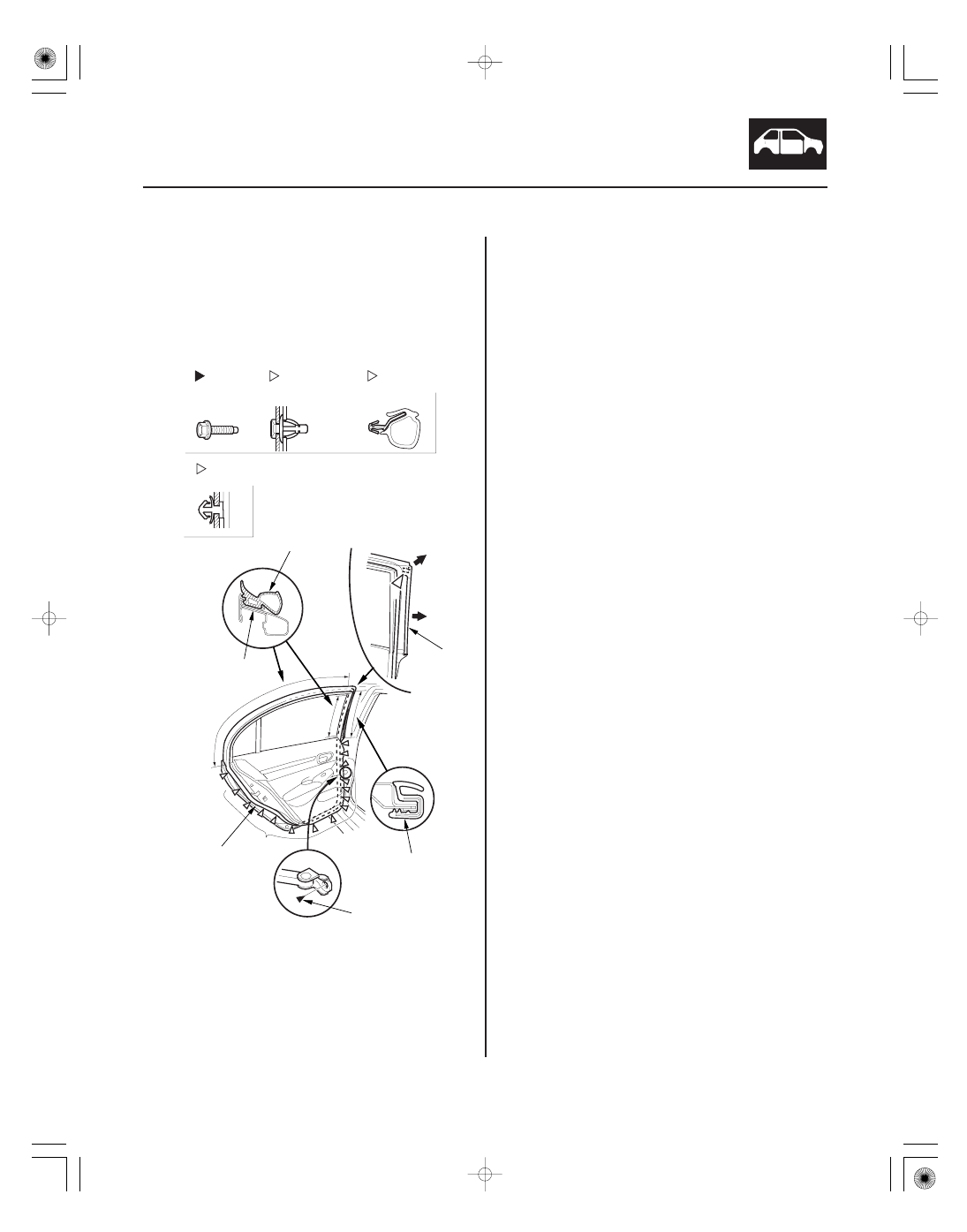

Rear Door Weatherstrip Replacement

Fastener Locations

: Bolt, 1

: Clip, 13

8 x 1.25 mm
29 N·m
(3.0 kgf·m, 22 lbf·ft)

: Clip, 2

: Clip, 1

(White)

(Black)

(Left: Yellow

Right: Green)

NOTE:

• Put on gloves to protect your hands.
• Take care not to scratch the door.
• Remove the clips with a clip remover.

1. At the B-pillar, remove the door checker mounting

bolt (A).

2. Detach the clips (B, C, D), then remove the door

weatherstrip (E).

3. Install the weatherstrip in the reverse order of

removal, and note these items:

• If the clips are damaged or stress-whitened,

replace them with new ones.

• Make sure the weatherstrip is installed in the

holder (F) securely.

• Apply medium strength liquid thread lock to the

door checker mounting bolt before installation.

• When reinstalling the door panel, make sure the

plastic cover is installed properly and sealed
around its outside perimeter to seal out water.

• Check for water leaks (see step 9 on page 20-29).

08/08/21 14:59:10 61SNR030_200_0029

０１

０２

０３

ＳＮＲ９Ａ００Ｊ５４４０００２０３７１ＭＢＡＴ１０

Front

Rear

20-28

Doors

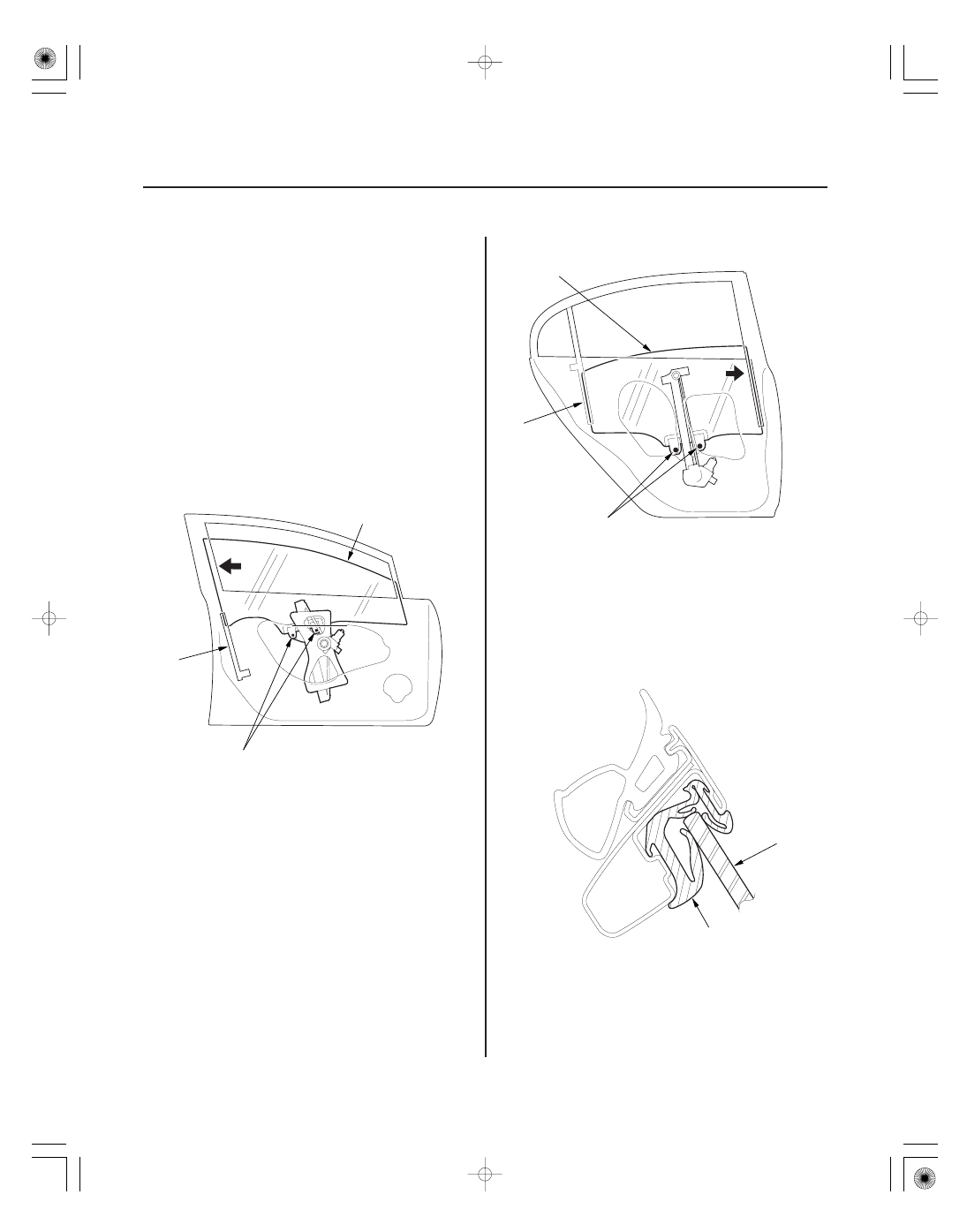

Front and Rear Door Glass Adjustment

B
6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

NOTE: Check the weatherstrip and glass run channel for
damage or deterioration, and replace them if necessary.

1. Place the vehicle on a firm, level surface.

2. Remove these items:

• Door panel:

– Front door (see page 20-7)
– Rear door (see page 20-17)

• Plastic cover:

– Front door (see step 4 on page 20-9)
– Rear door (see step 4 on page 20-19)

3. Carefully move the glass (A) until you can see the

glass mounting bolts (B), then loosen them.

4. Push the glass against the channel (C), then tighten

the glass mounting bolts.

5. Check that the glass moves smoothly.

6. Raise the glass fully, and check for gaps. Also make

sure that the glass (A) contacts the glass run
channel (B) evenly.

08/08/21 14:59:11 61SNR030_200_0030

０１

ＳＮＲ９Ａ００Ｊ１６１２６７０００００ＭＢＡＴ００

Front door

20-29

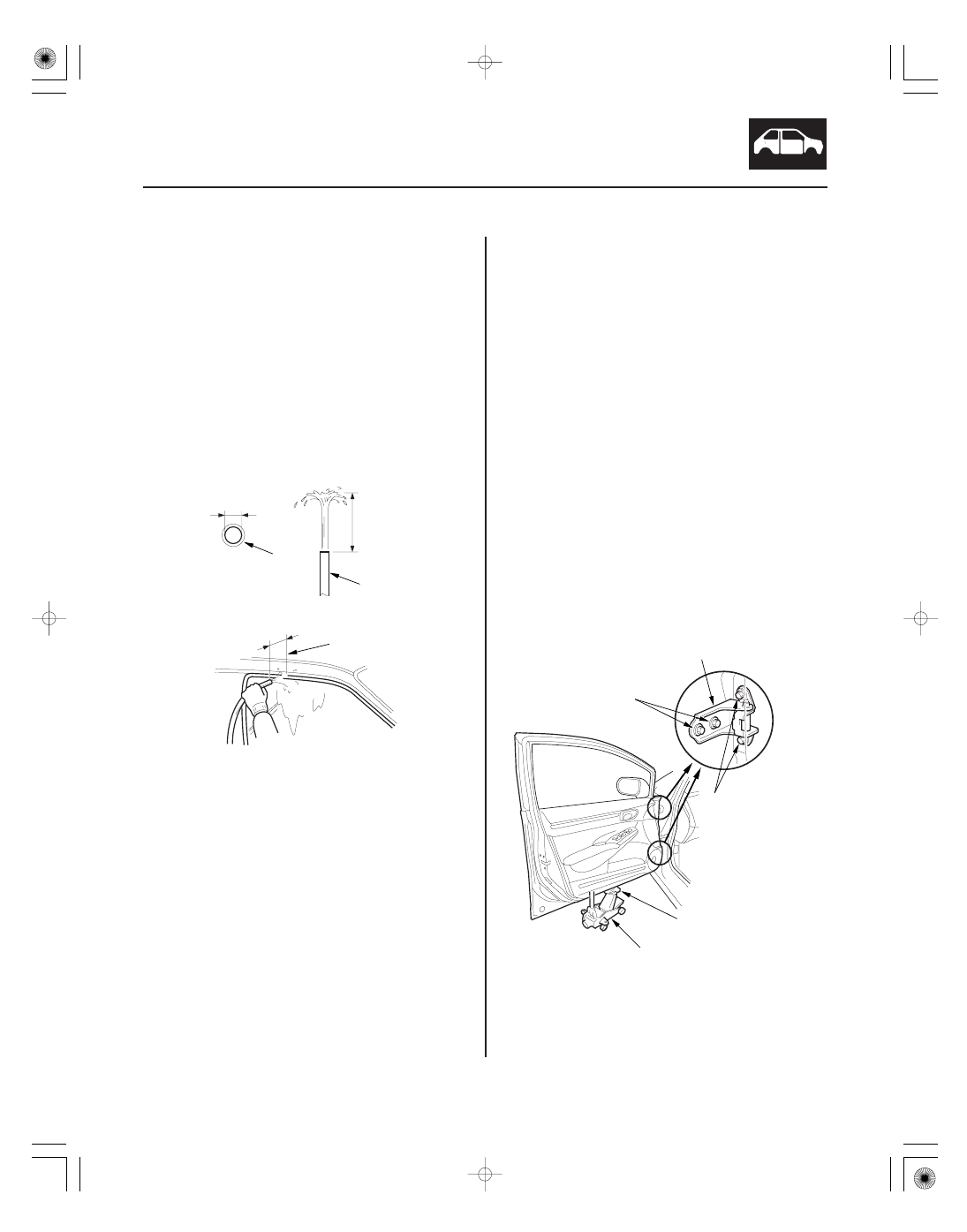

Front and Rear Door Position
Adjustment

12 mm (0.47 in.)

0.5 m (19 in.)

300 mm (12 in.)

D
8 x 1.25 mm
29 N·m
(3.0 kgf·m,
22 lbf·ft)

F
8 x 1.25 mm
29 N·m
(3.0 kgf·m,
22 lbf·ft)

7. Attach the plastic cover making sure it its sealed

around its outside perimeter to seal out water.

8. Reinstall the door panel:

• Front door (see page 20-9)
• Rear door (see page 20-19)

9. Check for water leaks. Run water over the roof and

on the sealing area as shown, and note these items:

• Use a 12 mm (0.47 in.) diameter hose (A).
• Adjust the rate of water flow as shown (B).
• Do not use a nozzle.
• Hold the hose about 300 mm (12 in.) away from

the door (C).

NOTE: Check for a flush fit with the body, then check for
equal gaps between the front, rear, and bottom door
edges and the body. Check that the door and the body
edges are parallel. If necessary, replace the mounting
bolts before adjusting the door position.

1. Place the vehicle on a firm, level surface when

adjusting the doors.

2. Adjust at the hinges (A):

• Pad a floor jack (B) with shop towels (C), then use

the jack to support the door to prevent damage to
the door while adjusting it.

• On the front door: Remove the front inner fender

(see page 20-171). Loosen the hinge mounting
bolts (D) slightly, and move the door backward or
forward, up or down as necessary to equalize the
gaps.

• On the rear door: Loosen the hinge mounting

bolts (E) slightly, and move the door backward or
forward, up or down as necessary to equalize the
gaps.

08/08/21 15:00:01 61SNR030_200_0031
