21. Install timing chain cover.

a. The sealant locations on chain cover and on counter parts (cylinder head, cylinder block, and lower

oil pan) must be free of engine oil and ETC.

b. Before assembling the timing chain cover, the liquid sealant TB1217H should be applied on the gap

between cylinder head and cylinder block The part must be assembled within 5 minutes after
sealant was applied.

Bead width: 2.5 mm (0.1 in.)

Fig. 81: Identifying Sealant Locations On Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.

c. After applying liquid sealant TB1217H on timing chain cover.

The part must be assembled within 5 minutes after sealant was applied.

Sealant should be applied without discontinuity.

Bead width: 2.5 mm (0.1 in.)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 58

© 2006 Mitchell Repair Information Company, LLC.

Fig. 82: Identifying Timing Chain Cover Sealant Bead
Courtesy of KIA MOTORS AMERICA, INC.

d. Install the new gasket (A) to the timing chain cover.

Fig. 83: Identifying Gasket Of Timing Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.

e. The dowel pins on the cylinder block and holes on the timing chain cover should be used as a

reference in order to assemble the timing chain cover to be in exact position.

Tightening torque

B (17): 18.62-21.56 N.m (1.9-2.2 kgf.m, 13.74-15.91 lb-ft)

C (4): 9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

D (1): 58.80-68.80 N.m (6.0-7.0 kgf.m, 43.40-50.63 lb-ft)

E (1): 58.80-68.80 N.m (6.0-7.0 kgf.m, 43.40-50.63 lb-ft)

F (2): 24.50-26.46 N.m (2.5-2.7 kgf.m, 18.08-19.53 lb-ft)

G (4): 21.56-23.52 N.m (2.2-2.4 kgf.m, 15.91-17.36 lb-ft)

H (1): 9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

I (1): 9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

J (1): 9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

NOTE:

Letters refer to positions in Fig. 84.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 59

© 2006 Mitchell Repair Information Company, LLC.

K (4): 9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

L (1): 21.56-26.46 N.m (2.2-2.7 kgf.m, 15.91-19.53 lb-ft) - New bolt

Fig. 84: Identifying Timing Chain Cover Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

f. The engine should not be started for at least 30 minutes after timing chain cover assembly.

22. Using SST (09231-3C100), install timing chain cover oil seal.

Fig. 85: Identifying SST (09231-3C100)
Courtesy of KIA MOTORS AMERICA, INC.

23. Install lower oil pan.

a. Using a gasket scraper, remove all the old packing material from the gasket surfaces.

b. Before assembling the oil pan, the liquid sealant TB1217H should be applied on oil pan.

The part must be assembled within 5 minutes after the sealant was applied.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 60

© 2006 Mitchell Repair Information Company, LLC.

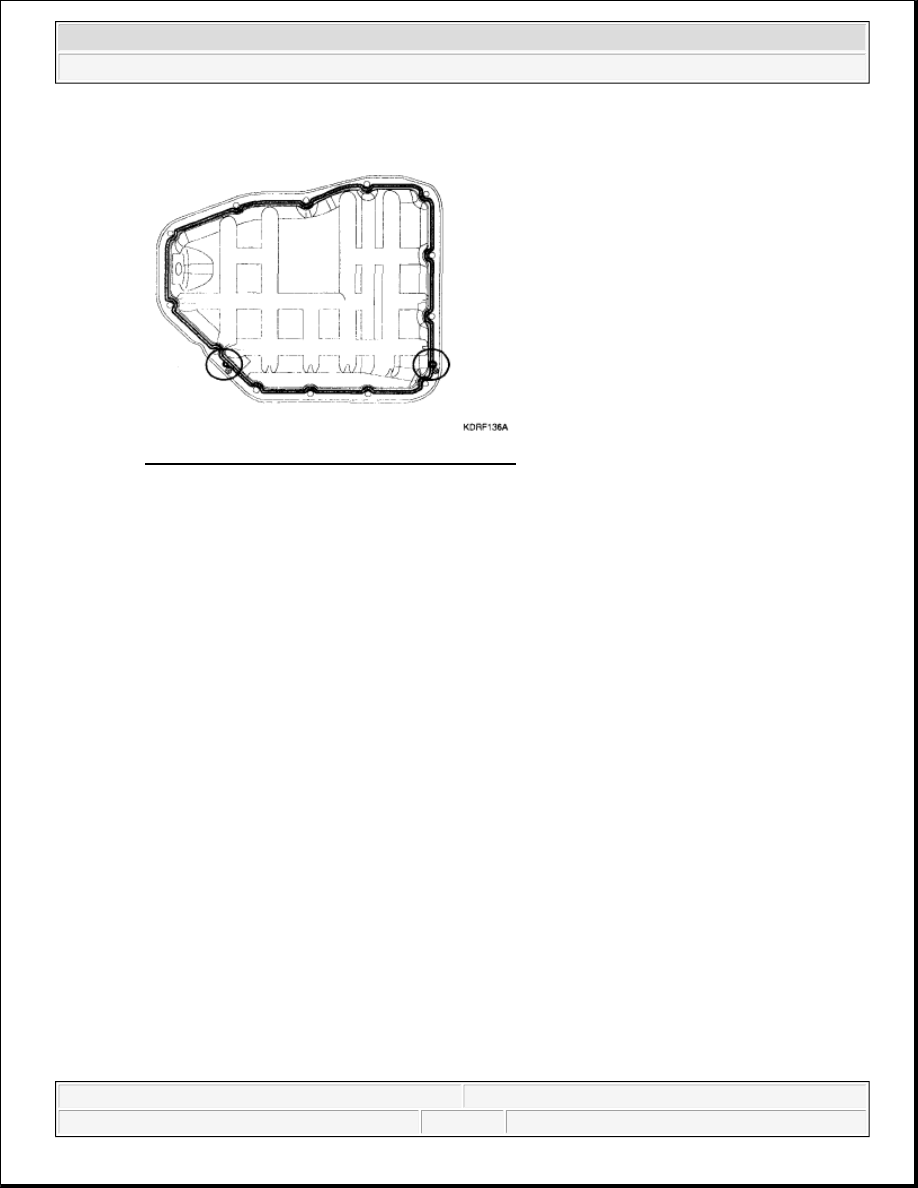

Bead width: 2.5 mm (0.1 in.). But marked area (*) to be 5.0 mm (0.2 in.)

Fig. 86: Identifying Lower Oil Pan Sealant Bead
Courtesy of KIA MOTORS AMERICA, INC.

c. Install oil pan (A).

Uniformly tighten the bolts in several passes.

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

CAUTION:



Ensure the sealing face is clean before assembling two
parts.



Remove harmful foreign matters on the sealing face before
applying sealant.



When applying sealant gasket, sealant must not be
protruded into the inside of oil pan.



To prevent leakage of oil, apply sealant gasket of the inner
threads of the bolt holes.



After assembly, wait at least 30 minutes before filling the
engine with oil.
