2. Install tensioner adapter assembly (A).

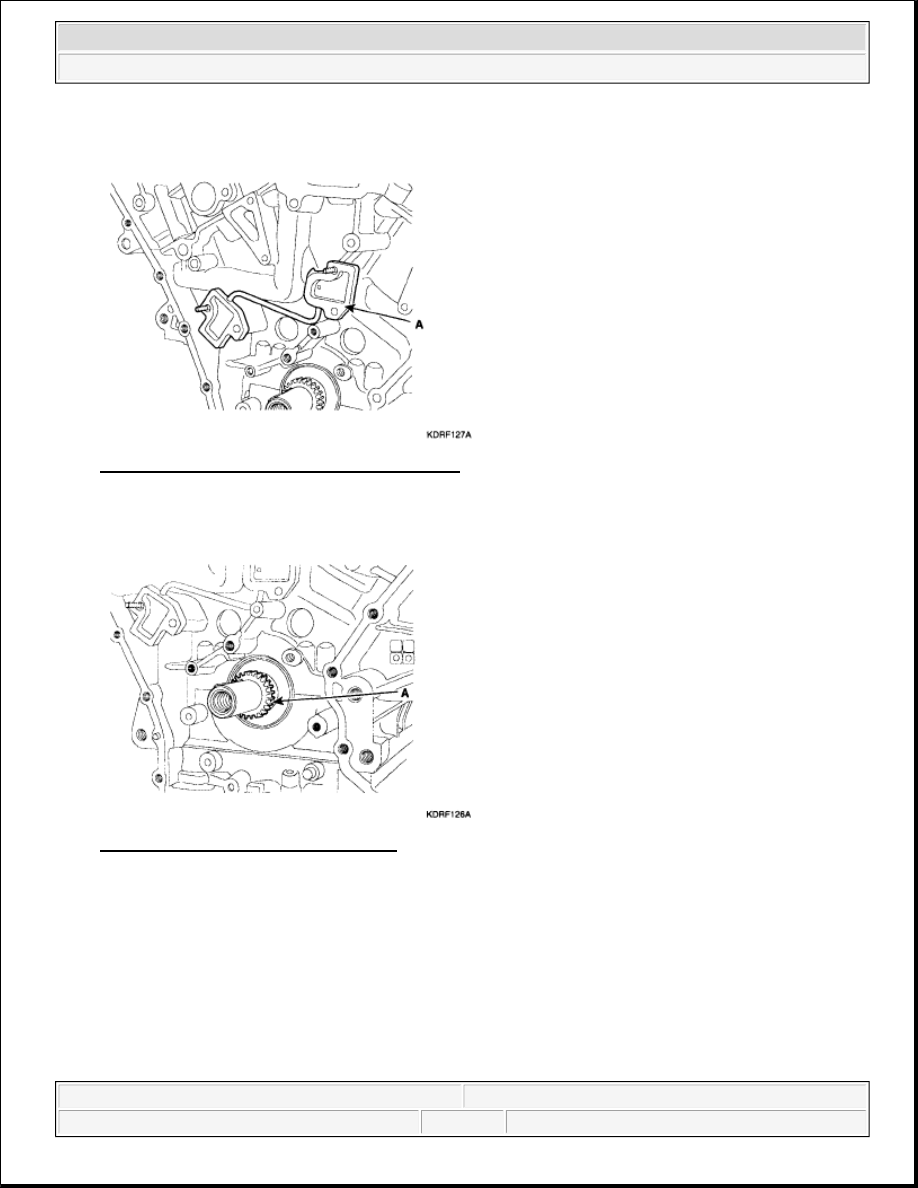

Fig. 65: Locating Tensioner Adapter Assembly
Courtesy of KIA MOTORS AMERICA, INC.

3. Install crankshaft sprocket (A) (LH camshaft drive).

Fig. 66: Locating Crankshaft Sprocket
Courtesy of KIA MOTORS AMERICA, INC.

4. Install LH timing chain guide (A).

Tightening torque

19.60-24.50 N.m (2.0-2.5 kgf.m, 14.17-18.08 lb-ft)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 50

© 2006 Mitchell Repair Information Company, LLC.

Fig. 67: Locating LH Timing Chain Guide
Courtesy of KIA MOTORS AMERICA, INC.

5. Install LH timing chain.

To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below.

Crankshaft sprocket --> Timing chain guide --> Exhaust camshaft sprocket (C) --> Intake camshaft
sprocket (D).

The timing mark of each sprockets should be matched with timing mark (color link) of timing chain at
installing timing chain.

Fig. 68: Identifying Exhaust Camshaft Sprocket And Intake Camshaft Sprocket Timing Marks
Courtesy of KIA MOTORS AMERICA, INC.

6. Install LH timing chain tensioner arm (B).

Tightening torque



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 51

© 2006 Mitchell Repair Information Company, LLC.

18.62-21.56 N.m (1.9-2.2 kgf.m, 13.74-15.91 lb-ft)

7. Install LH chain tensioner (A).

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

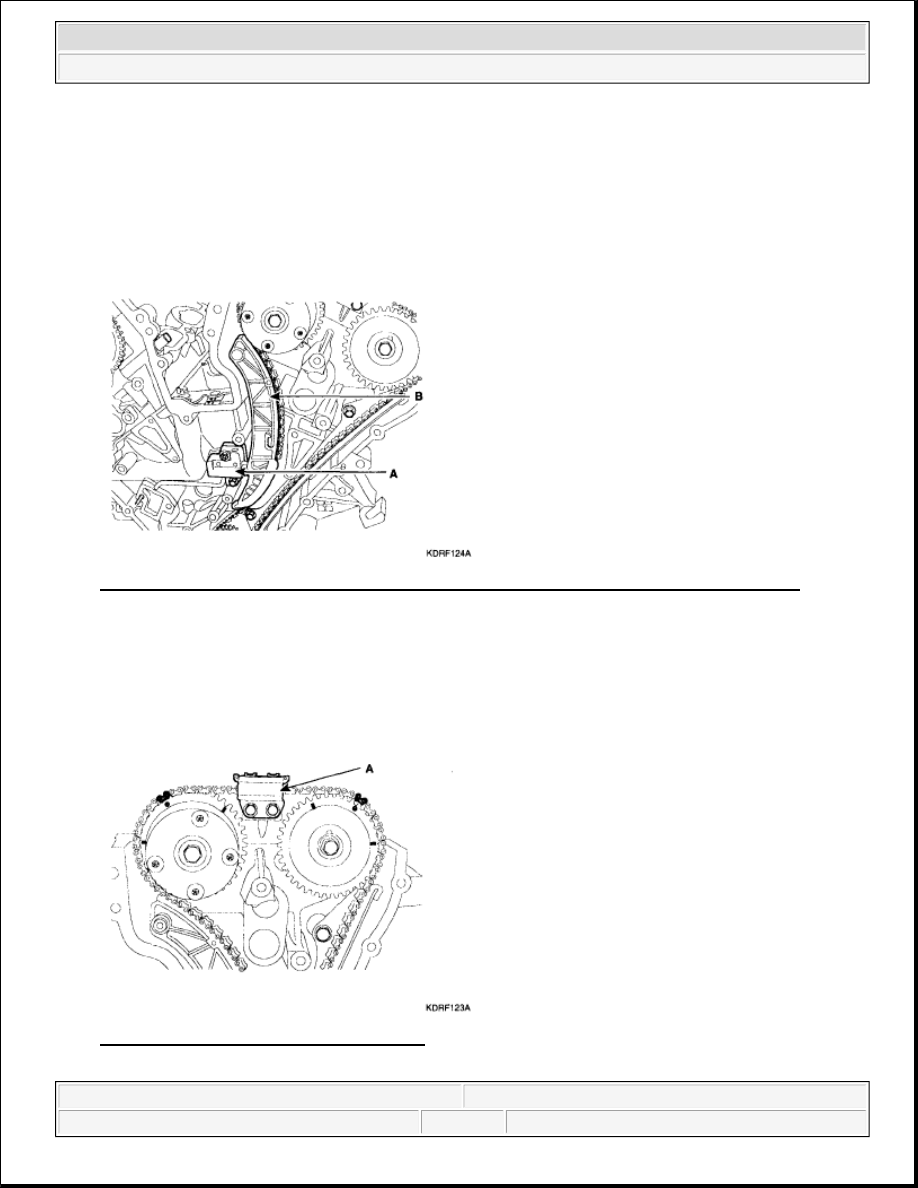

Fig. 69: Locating LH Timing Chain Auto Tensioner And LH Timing Chain Tensioner Arm
Courtesy of KIA MOTORS AMERICA, INC.

8. Install LH cam-to-cam guide (A).

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

Fig. 70: Locating LH Cam-To-Cam Guide
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 52

© 2006 Mitchell Repair Information Company, LLC.

9. Install crankshaft sprocket (A) (Oil pump & RH camshaft drive).

Fig. 71: Locating Crankshaft Sprocket
Courtesy of KIA MOTORS AMERICA, INC.

10. Install oil pump chain (B) and oil pump sprocket (A).

Tightening torque

18.62-21.56 N.m (1.9-2.2 kgf.m, 13.74-15.91 lb-ft)

Fig. 72: Locating Oil Pump Chain Sprocket And Oil Pump Chain
Courtesy of KIA MOTORS AMERICA, INC.

11. Install RH timing chain guide (A).

Tightening torque

19.60-24.50 N.m (2.0-2.5 kgf.m, 14.17-18.08 lb-ft)
