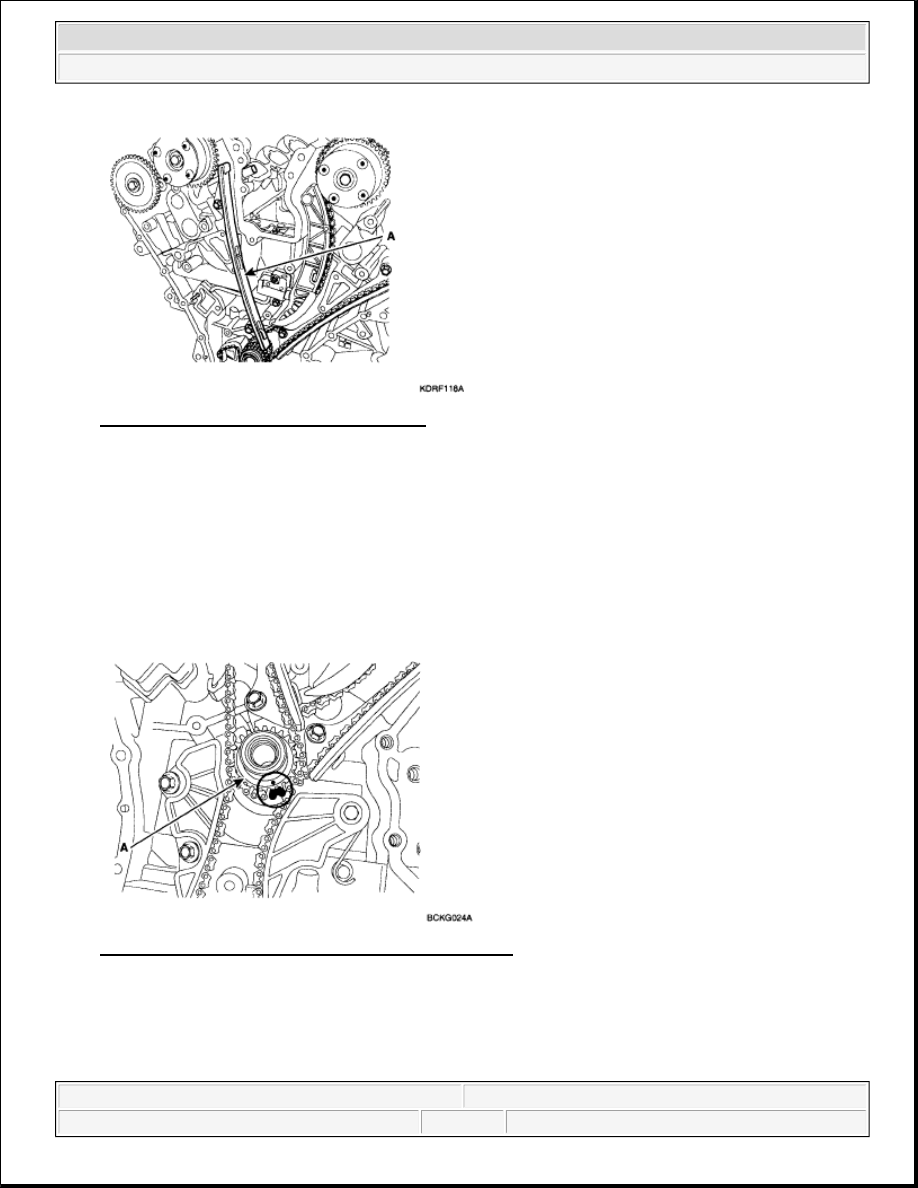

Fig. 73: Locating RH Timing Chain Guide
Courtesy of KIA MOTORS AMERICA, INC.

12. Install RH timing chain.

To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below.

Crankshaft sprocket (A) --> Intake camshaft sprocket (B) --> Exhaust camshaft sprocket (C).

The timing mark of each sprockets should be matched with timing mark (color link) of timing chain at
installing timing chain.

Fig. 74: Locating Crankshaft Sprocket Timing Marks
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 54

© 2006 Mitchell Repair Information Company, LLC.

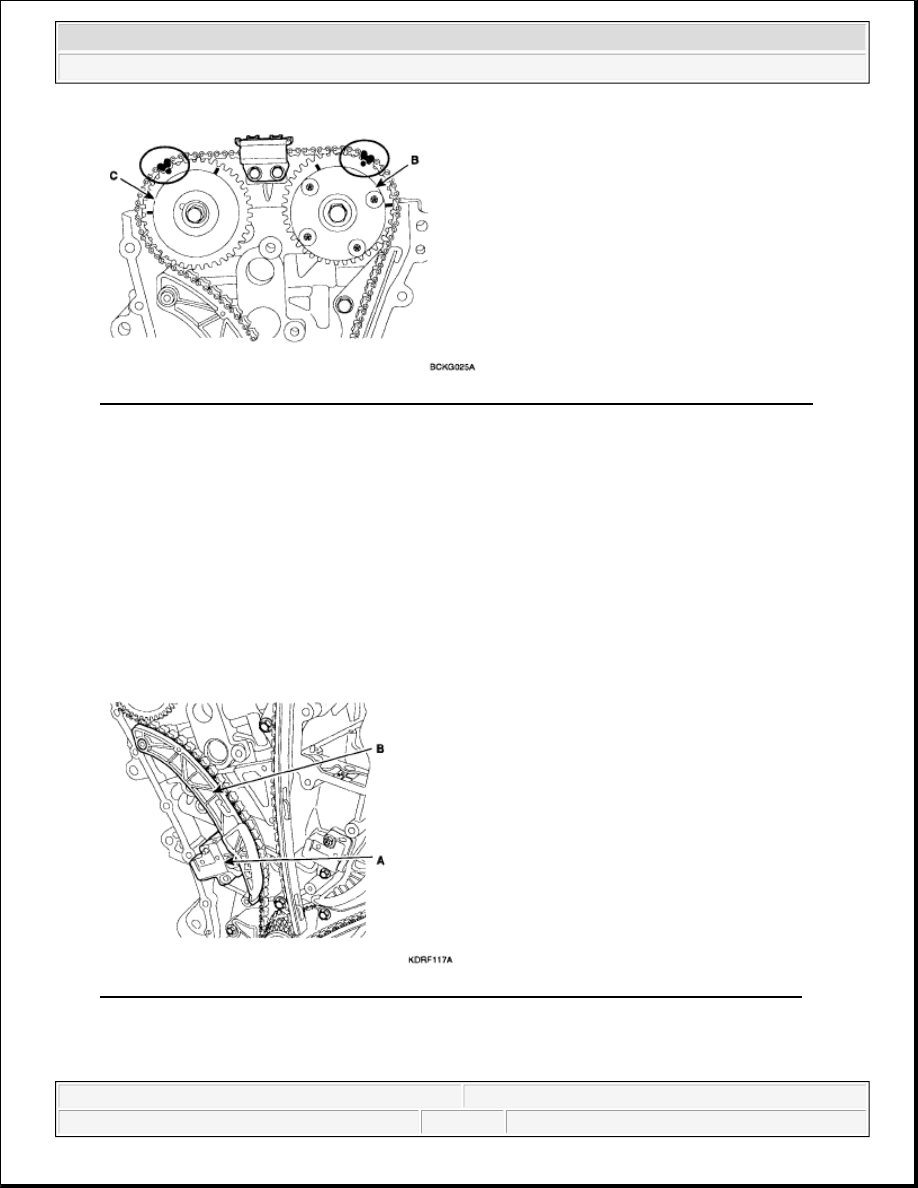

Fig. 75: Locating Intake Camshaft Sprocket And Exhaust Camshaft Sprocket Timing Marks
Courtesy of KIA MOTORS AMERICA, INC.

13. Install RH timing chain tensioner arm (B).

Tightening torque

18.62-21.56 N.m (1.9-2.2 kgf.m, 13.74-15.91 lb-ft)

14. Install RH timing chain auto tensioner (A).

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

Fig. 76: Locating RH Timing Chain Auto Tensioner And RH Timing Chain Tensioner Arm
Courtesy of KIA MOTORS AMERICA, INC.

15. Install RH cam-to-cam guide (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 55

© 2006 Mitchell Repair Information Company, LLC.

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

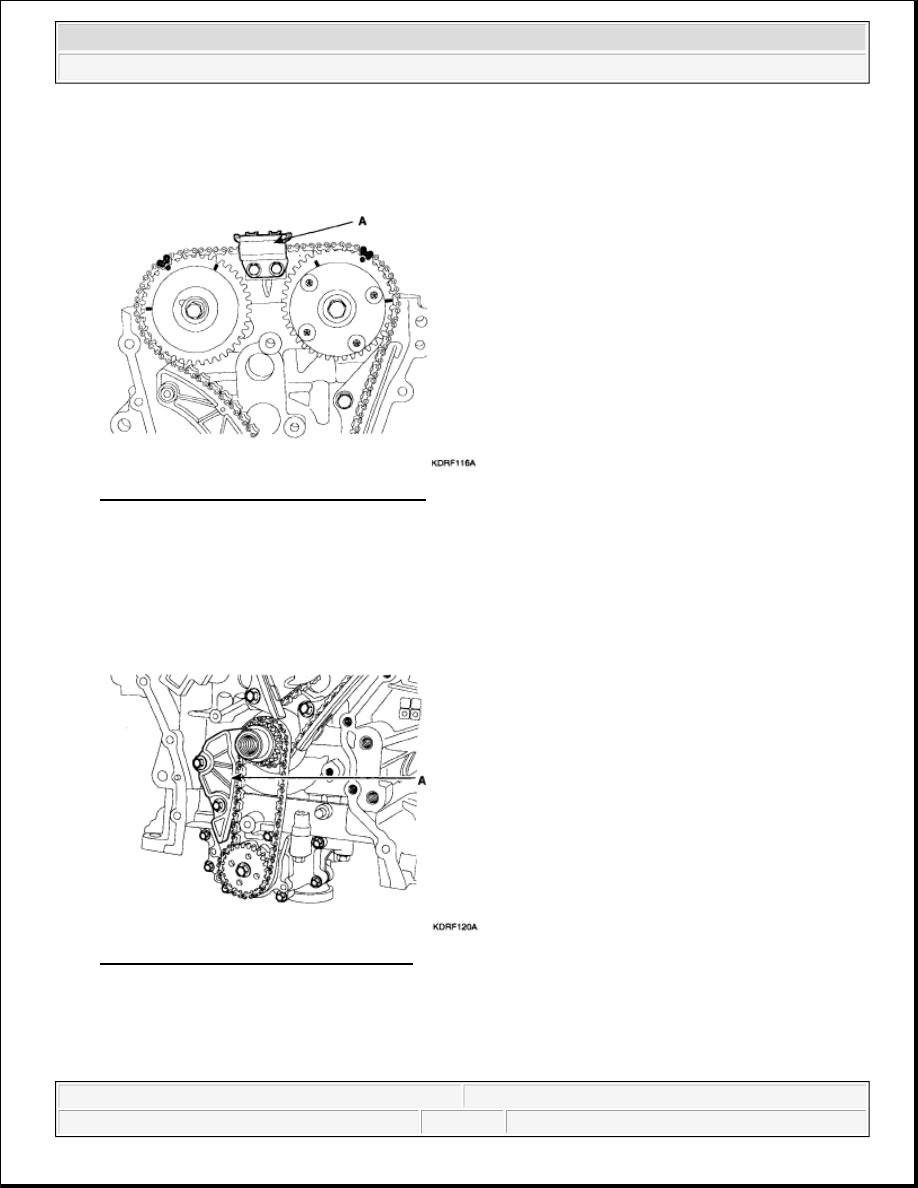

Fig. 77: Locating RH Cam-To-Cam Guide
Courtesy of KIA MOTORS AMERICA, INC.

16. Install oil pump chain guide (A).

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

Fig. 78: Locating Oil Pump Chain Guide
Courtesy of KIA MOTORS AMERICA, INC.

17. Install oil pump chain tensioner assembly (A).

Tightening torque



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 56

© 2006 Mitchell Repair Information Company, LLC.

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

Fig. 79: Locating Oil Pump Chain Tensioner Assembly
Courtesy of KIA MOTORS AMERICA, INC.

18. Pull out the pins of hydraulic tensioners (LH & RH).

19. Install oil pump chain cover (A).

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

Fig. 80: Locating Oil Pump Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.

20. After rotating crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm the

timing mark.

NOTE:

Always turn the crankshaft clockwise.
