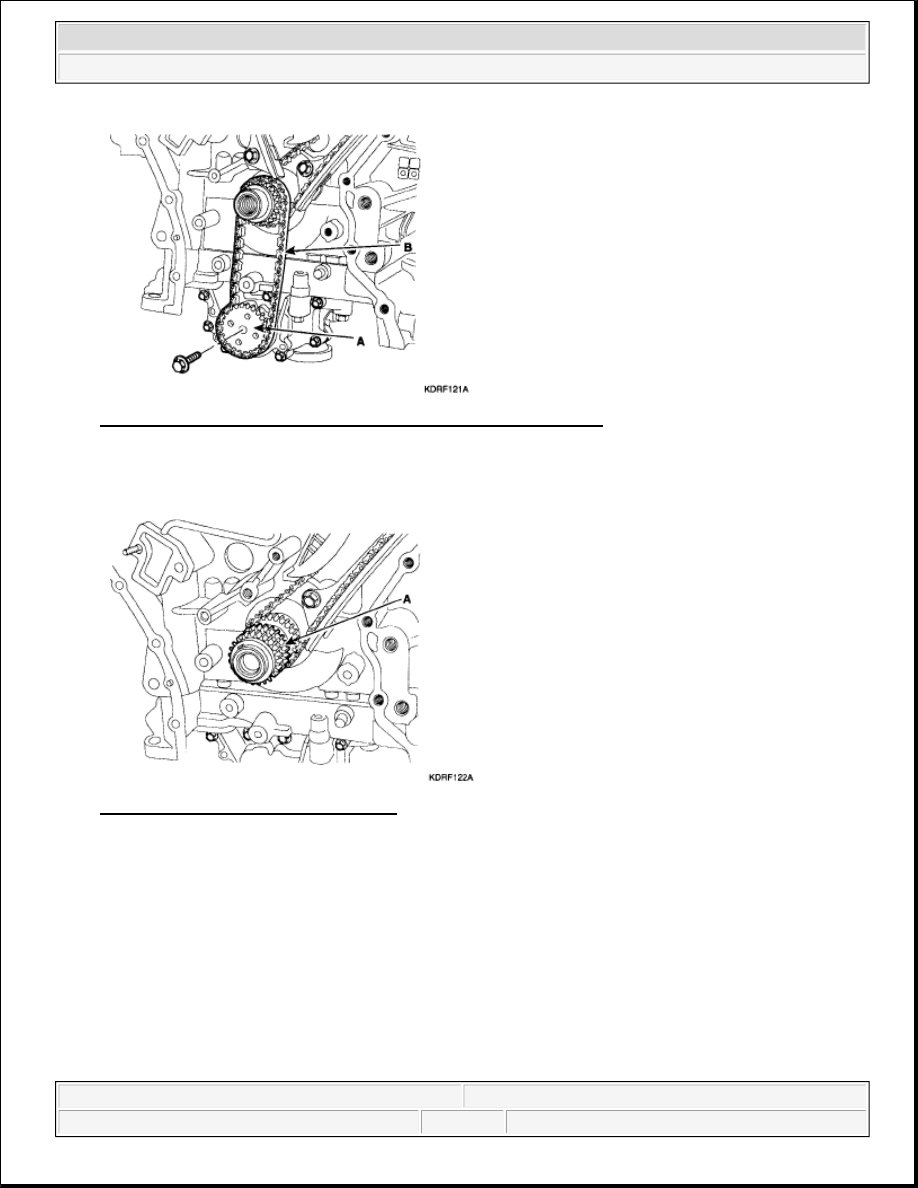

Fig. 57: Locating Oil Pump Chain Sprocket And Oil Pump Chain
Courtesy of KIA MOTORS AMERICA, INC.

15. Remove crankshaft sprocket (A) (Oil pump & RH camshaft drive).

Fig. 58: Locating Crankshaft Sprocket
Courtesy of KIA MOTORS AMERICA, INC.

16. Remove LH cam-to-cam guide (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 46

© 2006 Mitchell Repair Information Company, LLC.

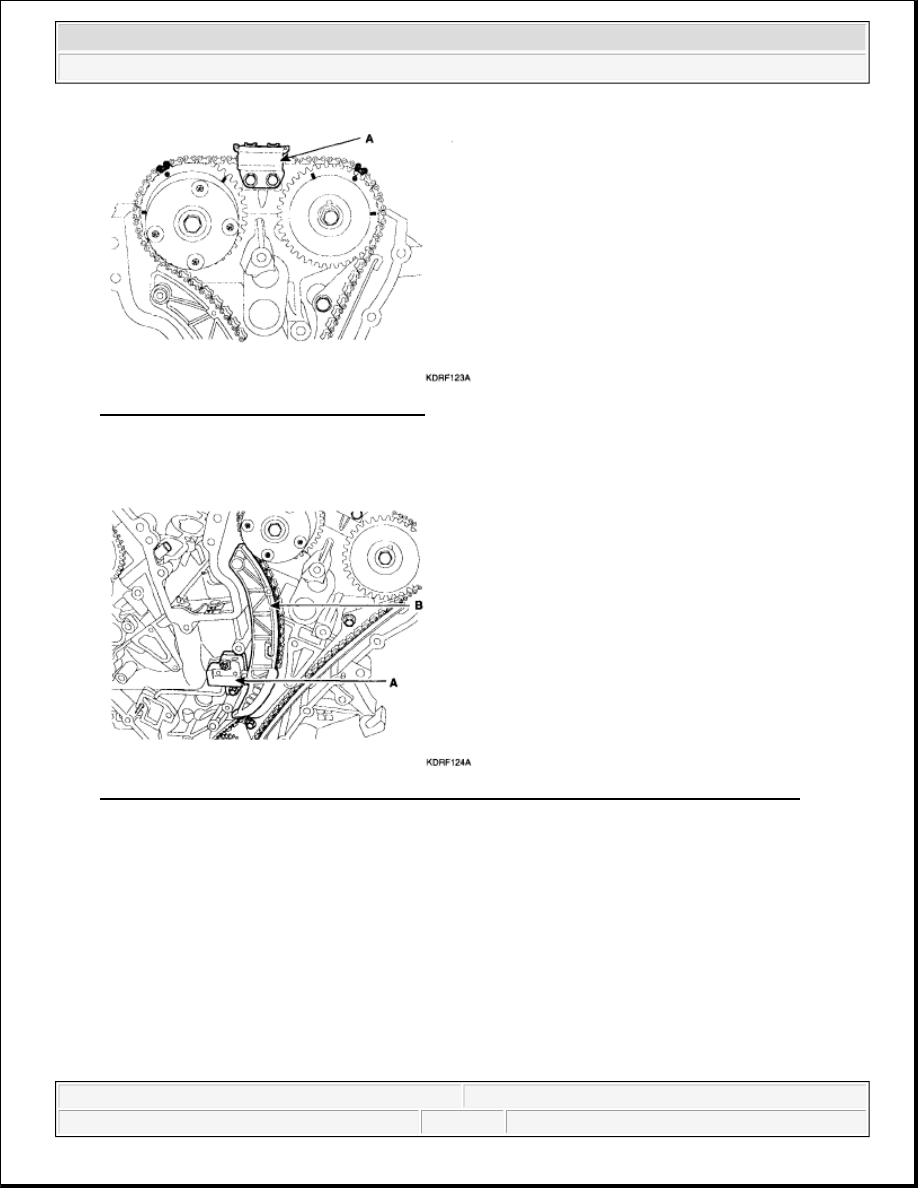

Fig. 59: Locating LH Cam-To-Cam Guide
Courtesy of KIA MOTORS AMERICA, INC.

17. Remove LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).

Fig. 60: Locating LH Timing Chain Auto Tensioner And LH Timing Chain Tensioner Arm
Courtesy of KIA MOTORS AMERICA, INC.

18. Remove LH timing chain.

19. Remove LH timing chain guide (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 47

© 2006 Mitchell Repair Information Company, LLC.

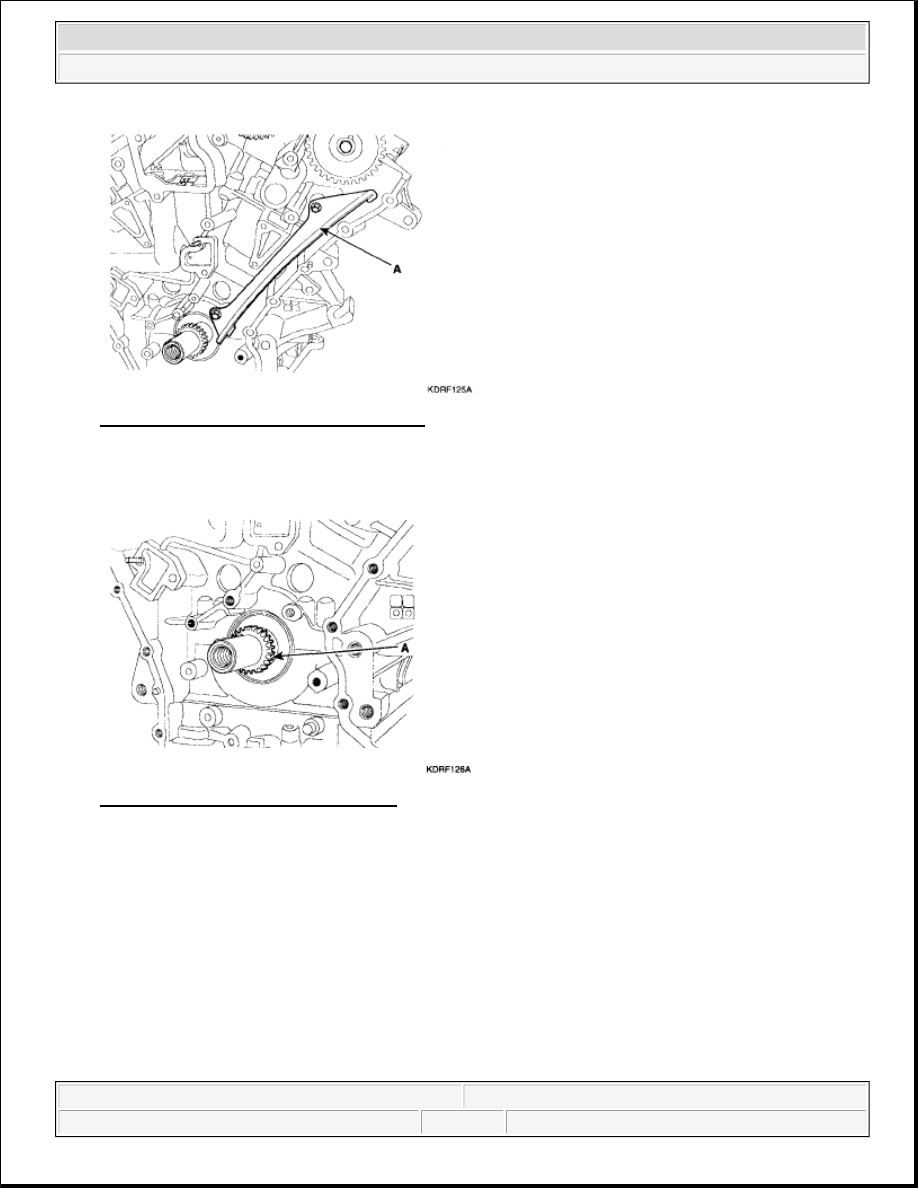

Fig. 61: Locating LH Timing Chain Guide
Courtesy of KIA MOTORS AMERICA, INC.

20. Remove crankshaft sprocket (A) (LH camshaft drive).

Fig. 62: Locating Crankshaft Sprocket
Courtesy of KIA MOTORS AMERICA, INC.

21. Remove tensioner adapter assembly (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 48

© 2006 Mitchell Repair Information Company, LLC.

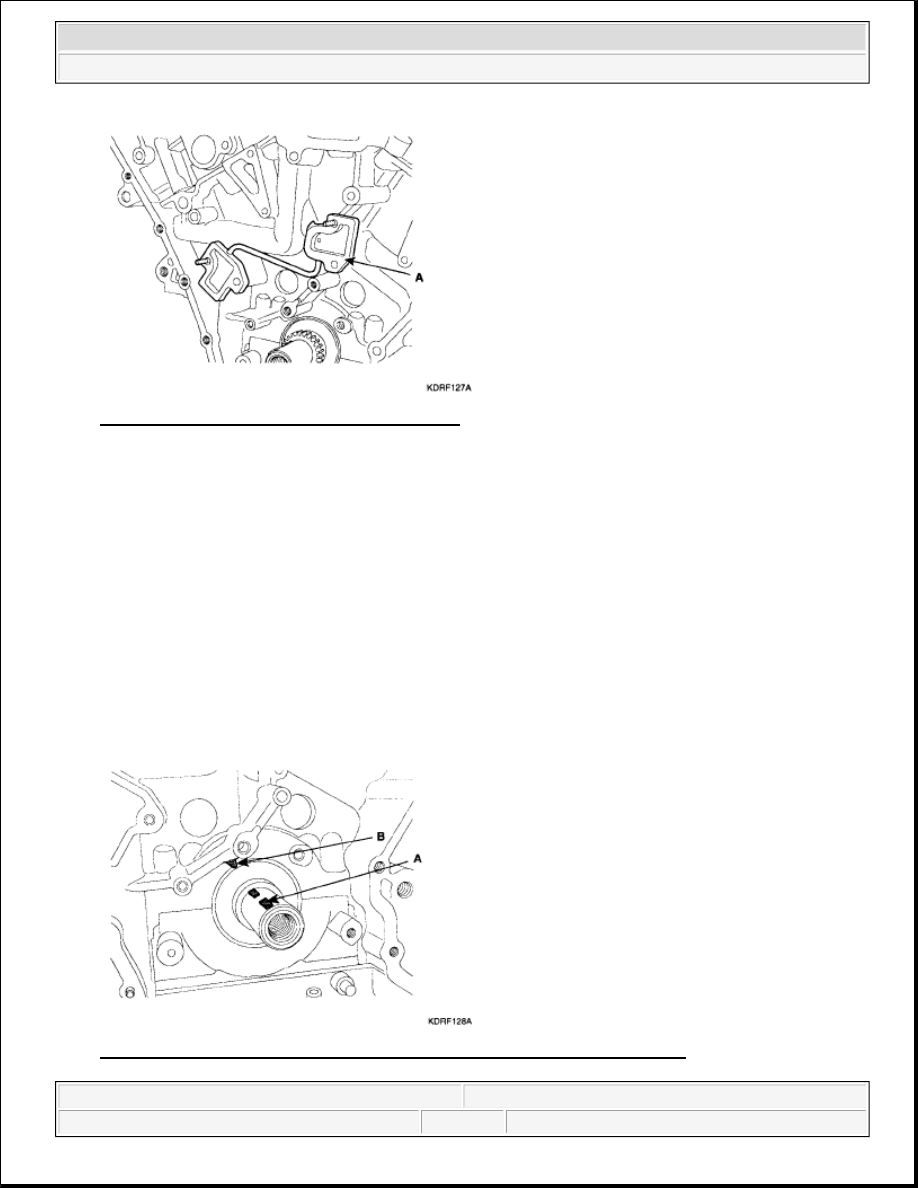

Fig. 63: Locating Tensioner Adapter Assembly
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

SPROCKETS, CHAIN TENSIONER, CHAIN GUIDE, CHAIN TENSIONER ARM

1. Check the camshaft sprocket and crankshaft sprocket for abnormal wear, cracks, or damage. Replace as

necessary.

2. Inspect the tensioner arm and chain guide for abnormal wear, cracks, or damage. Replace as necessary.

3. Check that the tensioner piston moves smoothly when the ratchet pawl is released with thin rod.

REASSEMBLY

1. The key (A) of crankshaft should be aligned with the timing mark (B) of timing chain cover. As a result

of this, the piston of No.1 cylinder is placed at the top dead center on compression stroke.

Fig. 64: Identifying Crankshaft Key And Timing Chain Cover Timing Mark
Courtesy of KIA MOTORS AMERICA, INC.
