Kia Sedona (2008 year). Manual - part 345

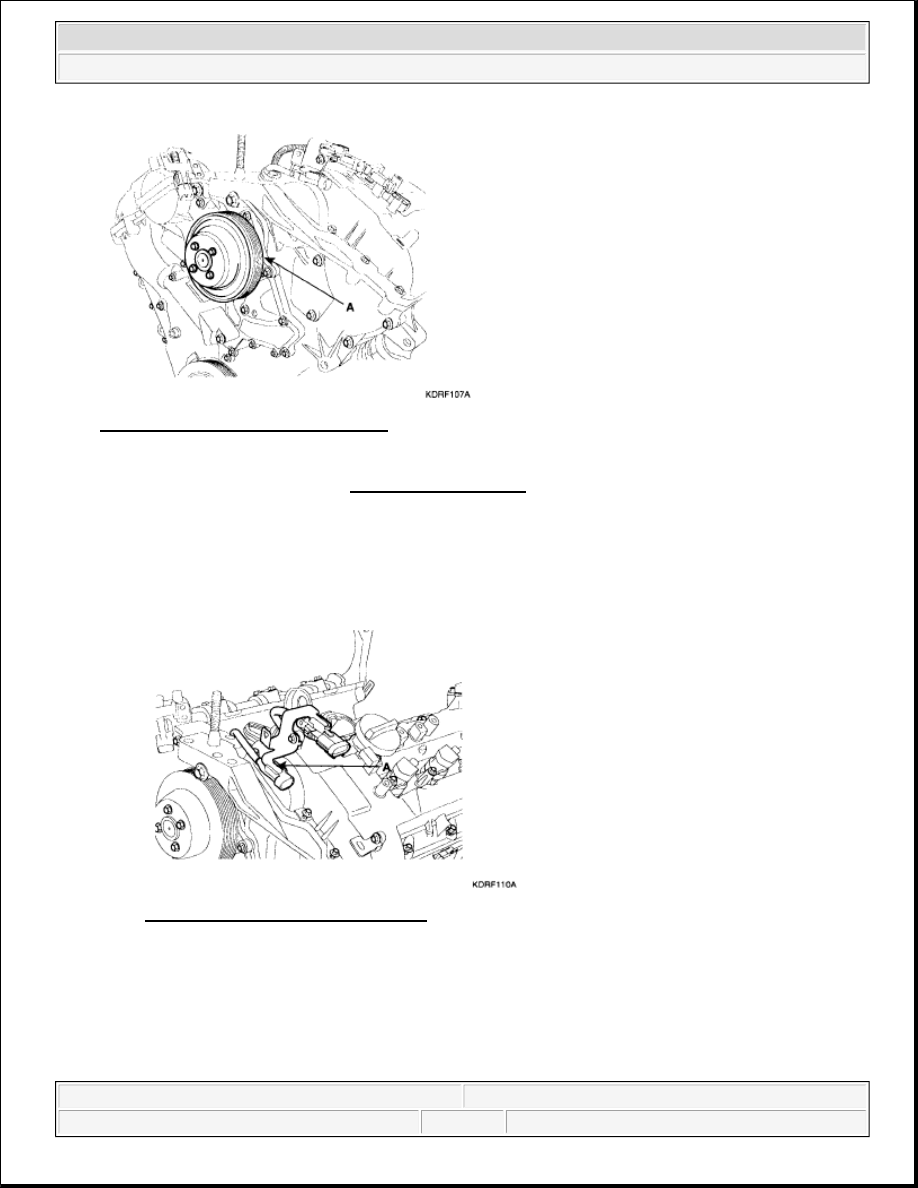

Fig. 41: Locating Water Pump Pulley
Courtesy of KIA MOTORS AMERICA, INC.

8. Remove intake manifold. Refer to INTAKE MANIFOLD.

DISASSEMBLY

1. Remove cylinder head cover.

a. Remove connector bracket (A) from LH cylinder head cover.

Fig. 42: Locating Connector Bracket
Courtesy of KIA MOTORS AMERICA, INC.

b. Disconnect RH ignition coil connector (A), condenser connector (B) and remove wiring bracket (C)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 38

© 2006 Mitchell Repair Information Company, LLC.

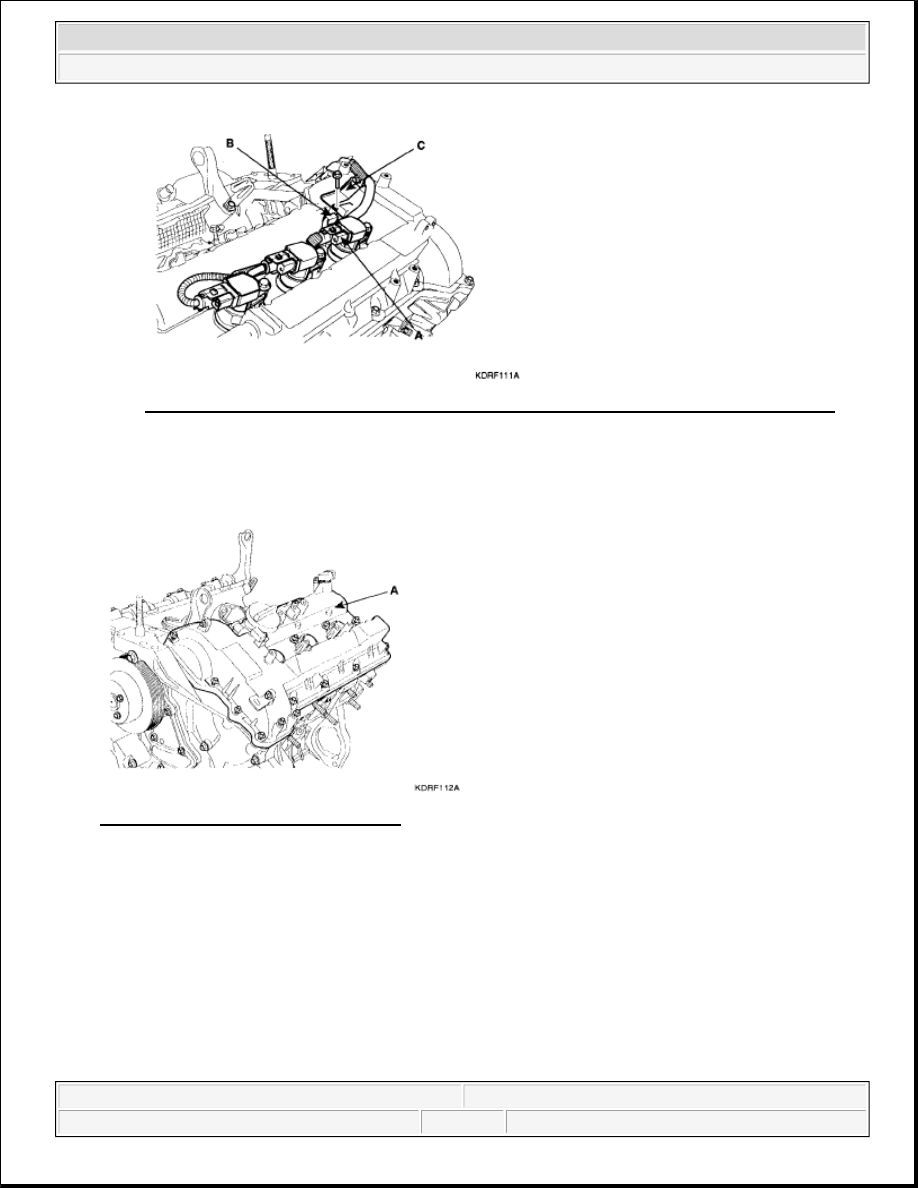

Fig. 43: Locating RH Ignition Coil Connector, Condenser Connector And Wiring Bracket
Courtesy of KIA MOTORS AMERICA, INC.

c. Remove LH and RH ignition coil.

d. Remove LH and RH cylinder head cover (A).

Fig. 44: Locating Cylinder Head Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Set No. 1 cylinder to TDC/compression.

1. Turn the crankshaft pulley and align its groove with the timing mark "T" of the lower timing chain

cover.

NOTE:

Do not rotate engine counterclockwise.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 39

© 2006 Mitchell Repair Information Company, LLC.

Fig. 45: Aligning Crankshaft Pulley With Timing Mark "T" Of Lower Timing Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Check that the mark (A) of the camshaft timing sprockets are in straight line on the cylinder head

surface as shown in Fig. 46.

If not, turn the crankshaft one revolution (360°).

Fig. 46: Locating Marks Of Camshaft Timing Sprockets
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the lower oil pan (A).

Insert the blade of SST (09215-3C000) between the upper oil pan and lower oil pan, and cut off applied
sealer and removed lower oil pan.

NOTE:

Do not rotate engine counterclockwise.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 40

© 2006 Mitchell Repair Information Company, LLC.

Fig. 47: Locating Lower Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the crankshaft damper pulley (A).

Fig. 48: Locating Crankshaft Damper Pulley
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the timing chain cover (A).

NOTE:

Be careful not to damage the contact surfaces of Upper oil pan and lower
oil pan.
