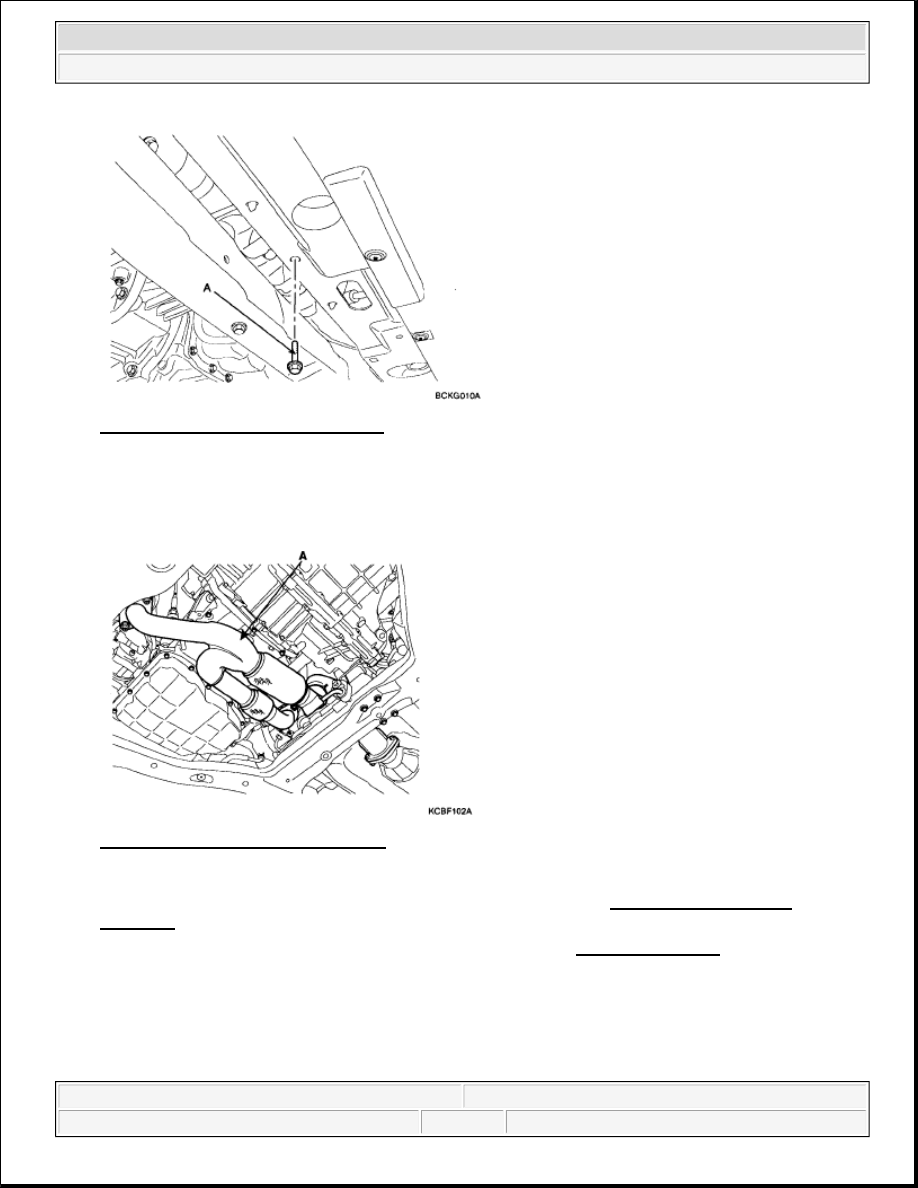

Fig. 29: Identifying Bottom Side Bolt
Courtesy of KIA MOTORS AMERICA, INC.

22. Drain engine oil.

23. Remove front exhaust pipe (A).

Fig. 30: Locating Front Exhaust Pipe
Courtesy of KIA MOTORS AMERICA, INC.

24. Disconnect the wheel speed sensor and the stabilizer bar link. Refer to FRONT SUSPENSION

SYSTEM .

25. Remove the caliper assembly and suspend it with a wire. Refer to BRAKE SYSTEM .

26. Supporting the engine and transaxle assembly with sub frame, remove the engine mounting bracket (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 30

© 2006 Mitchell Repair Information Company, LLC.

Fig. 31: Locating Engine Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.

27. Remove the transaxle insulator mounting bolt (A).

Fig. 32: Locating Transaxle Insulator Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

28. Supporting the engine and transaxle assembly with a jack, remove the sub frame with the engine and

transaxle assembly.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

When remove the engine and transaxle assembly, be careful not to
damage any surrounding parts or body components.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 31

© 2006 Mitchell Repair Information Company, LLC.

Perform the following :



Adjust the shift cable.



Refill the engine with engine oil.



Refill the transaxle with fluid.



Refill the radiator with engine coolant.



Bleed air from the cooling system with the heater valve open.



Clean the battery posts and cable terminals with sandpaper assemble them, then apply grease to prevent
corrosion.



Inspect for fuel leakage.

After assembling the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump
runs for approximately two seconds and fuel line pressurizes.

Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.

TIMING SYSTEM

COMPONENT



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 32

© 2006 Mitchell Repair Information Company, LLC.

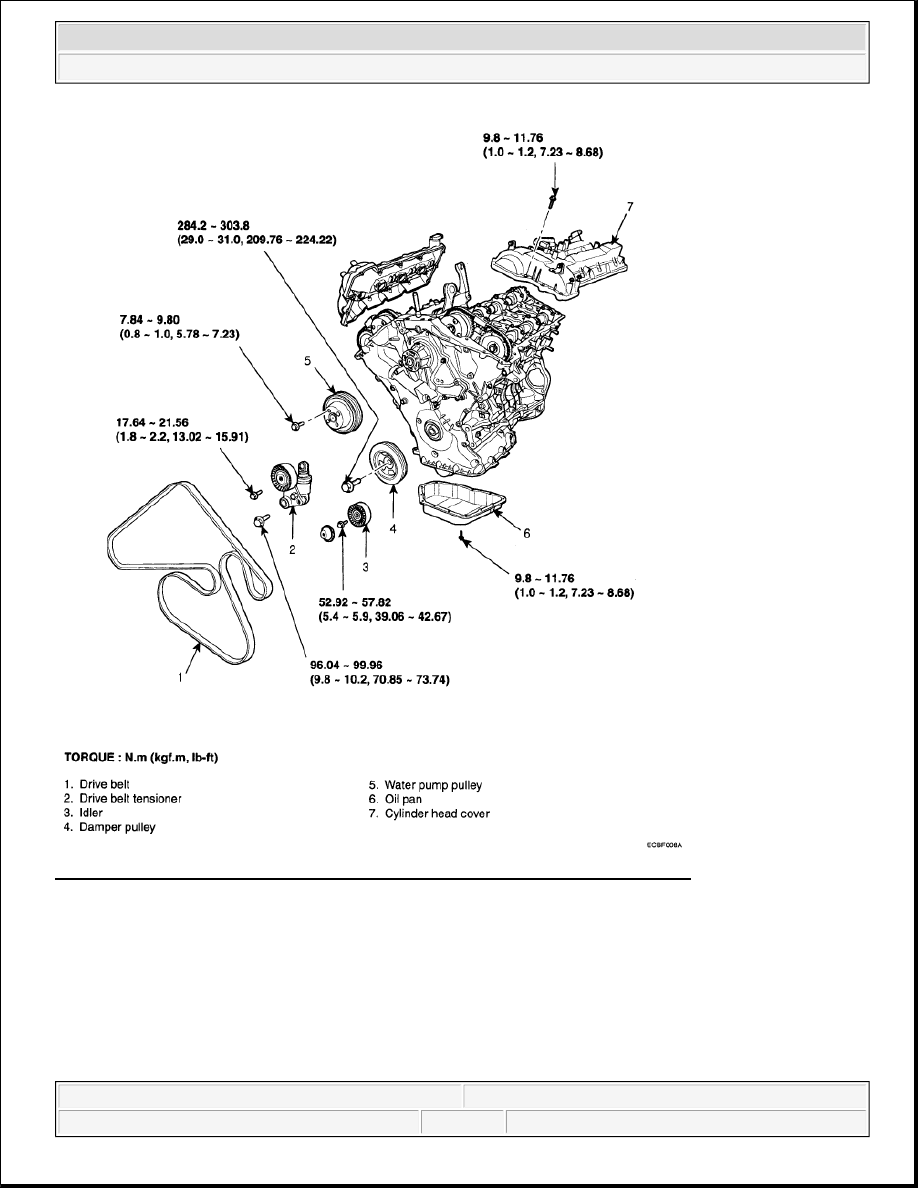

Fig. 33: Identifying Timing System Component And Torque Specifications (1 Of 2)
