Fig. 34: Identifying Timing System Component And Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

Engine removal is required for this procedure.

1. Remove the drive belt (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 34

© 2006 Mitchell Repair Information Company, LLC.

Fig. 35: Locating Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the power steering pump (A).

Fig. 36: Locating Power Steering Pump
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the air compressor (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 35

© 2006 Mitchell Repair Information Company, LLC.

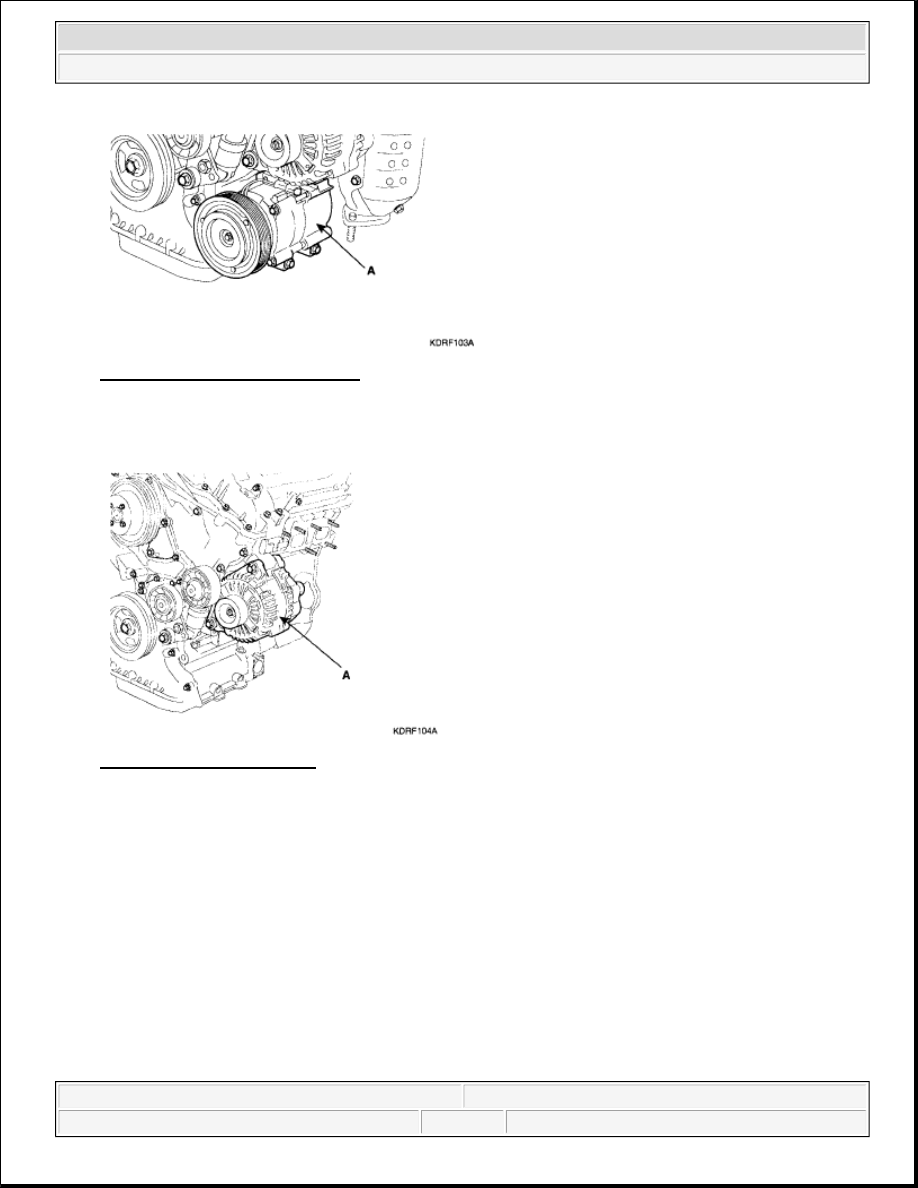

Fig. 37: Locating Air Compressor
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the generator (A).

Fig. 38: Locating Generator
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove drive belt idler (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 36

© 2006 Mitchell Repair Information Company, LLC.

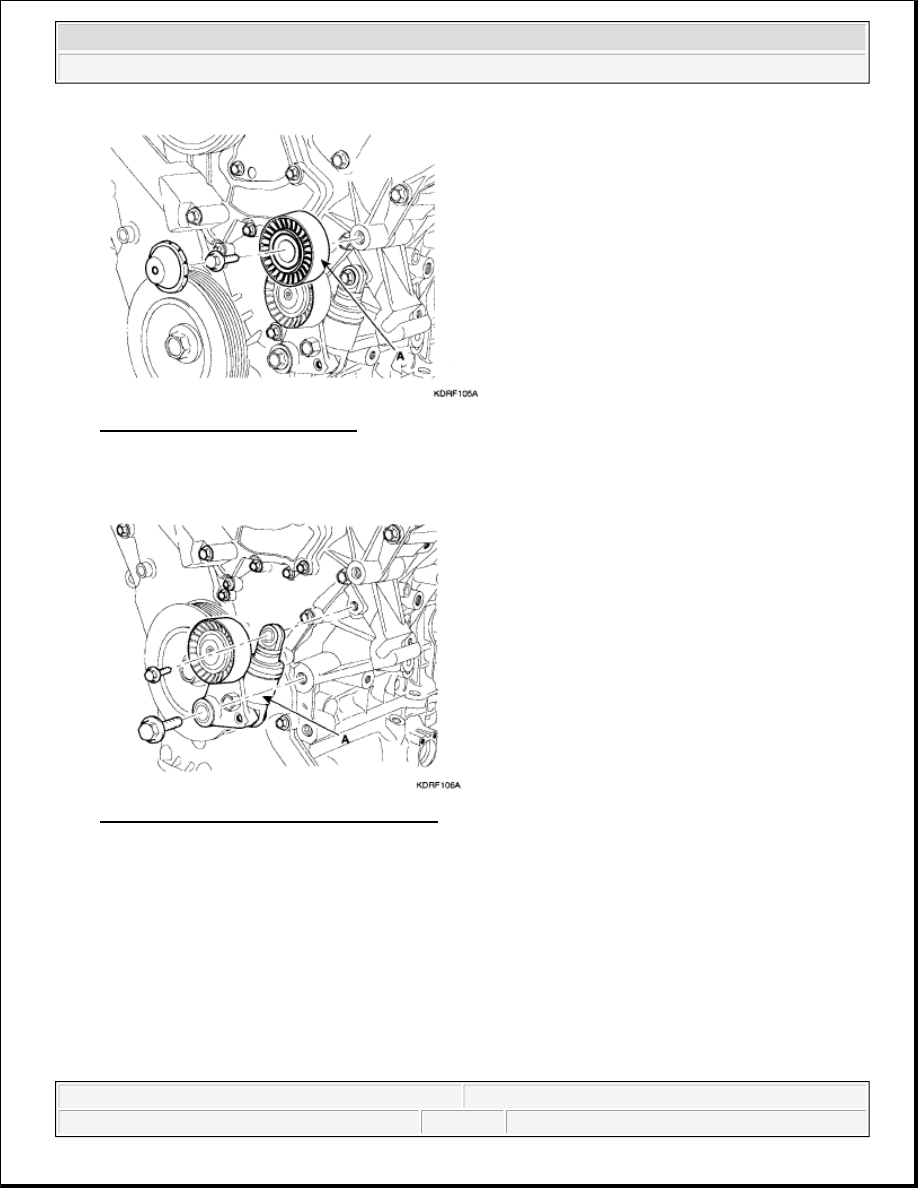

Fig. 39: Locating Drive Belt Idler
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove drive belt auto tensioner (A).

Fig. 40: Locating Drive Belt Auto Tensioner
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove water pump pulley (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 37

© 2006 Mitchell Repair Information Company, LLC.
