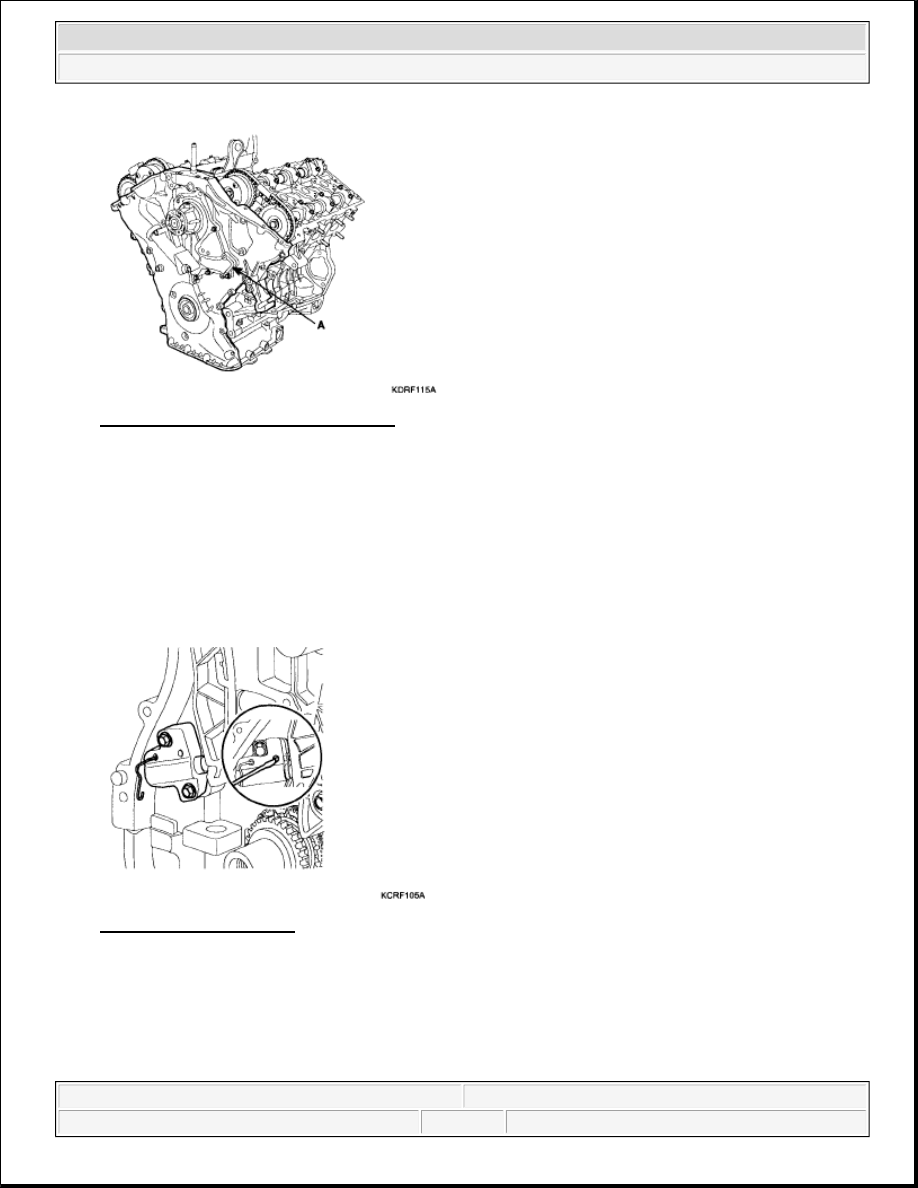

Fig. 49: Locating Timing Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.

6. Install a set pin after compressing the timing chain tensioner.

Fig. 50: Installing Set Pin
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove RH cam-to-cam guide (A).

NOTE:

Be careful not to damage the contact surfaces of cylinder block, cylinder
head and timing chain cover.
Before removing the timing chain, mark the RH/LH timing chain with an
identification based on the location of the sprocket because the
identification mark on the chain for TDC (Top Dead Center) can be erased.

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:36 PM

Page 42

Fig. 51: Locating RH Cam-To-Cam Guide
Courtesy of KIA MOTORS AMERICA, INC.

8. Remove RH timing chain auto tensioner (A) and RH timing chain tensioner arm (B).

Fig. 52: Locating RH Timing Chain Auto Tensioner And RH Timing Chain Tensioner Arm
Courtesy of KIA MOTORS AMERICA, INC.

9. Remove oil pump chain cover (A).

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:36 PM

Page 43

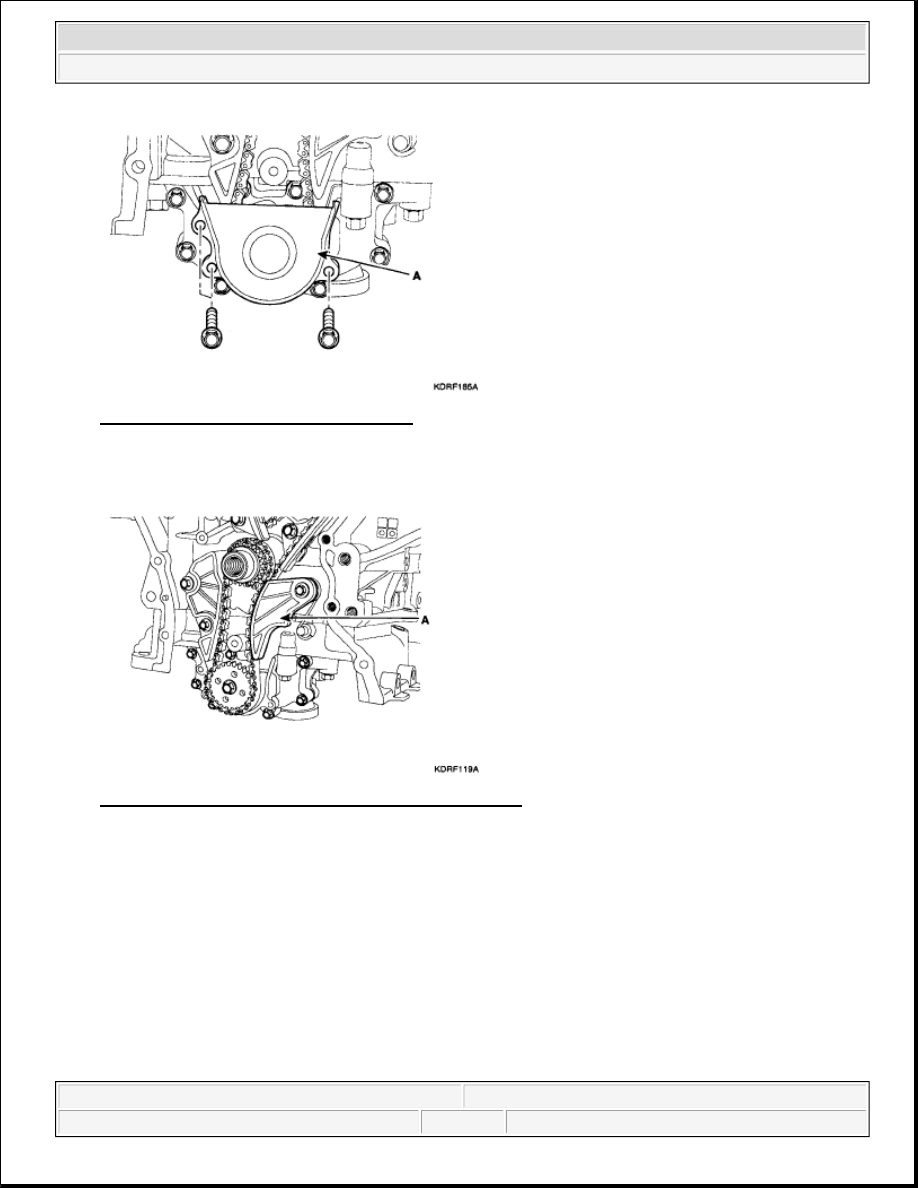

Fig. 53: Locating Oil Pump Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.

10. Remove oil pump chain tensioner assembly (A).

Fig. 54: Locating Oil Pump Chain Tensioner Assembly
Courtesy of KIA MOTORS AMERICA, INC.

11. Remove oil pump chain guide (A).

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:36 PM

Page 44

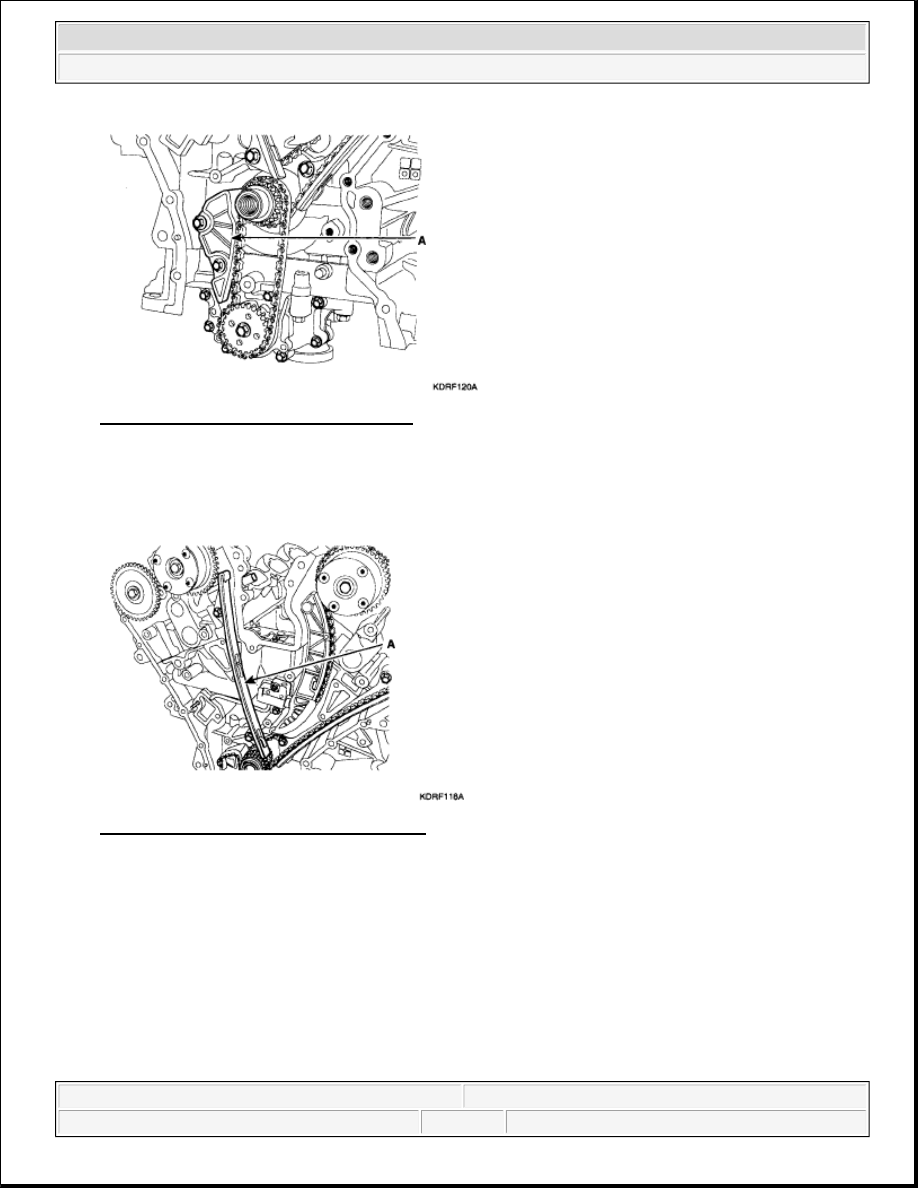

Fig. 55: Locating Oil Pump Chain Guide
Courtesy of KIA MOTORS AMERICA, INC.

12. Remove RH timing chain.

13. Remove RH timing chain guide (A).

Fig. 56: Locating RH Timing Chain Guide
Courtesy of KIA MOTORS AMERICA, INC.

14. Remove oil pump chain sprocket (A) and oil pump chain (B).

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:36 PM

Page 45
