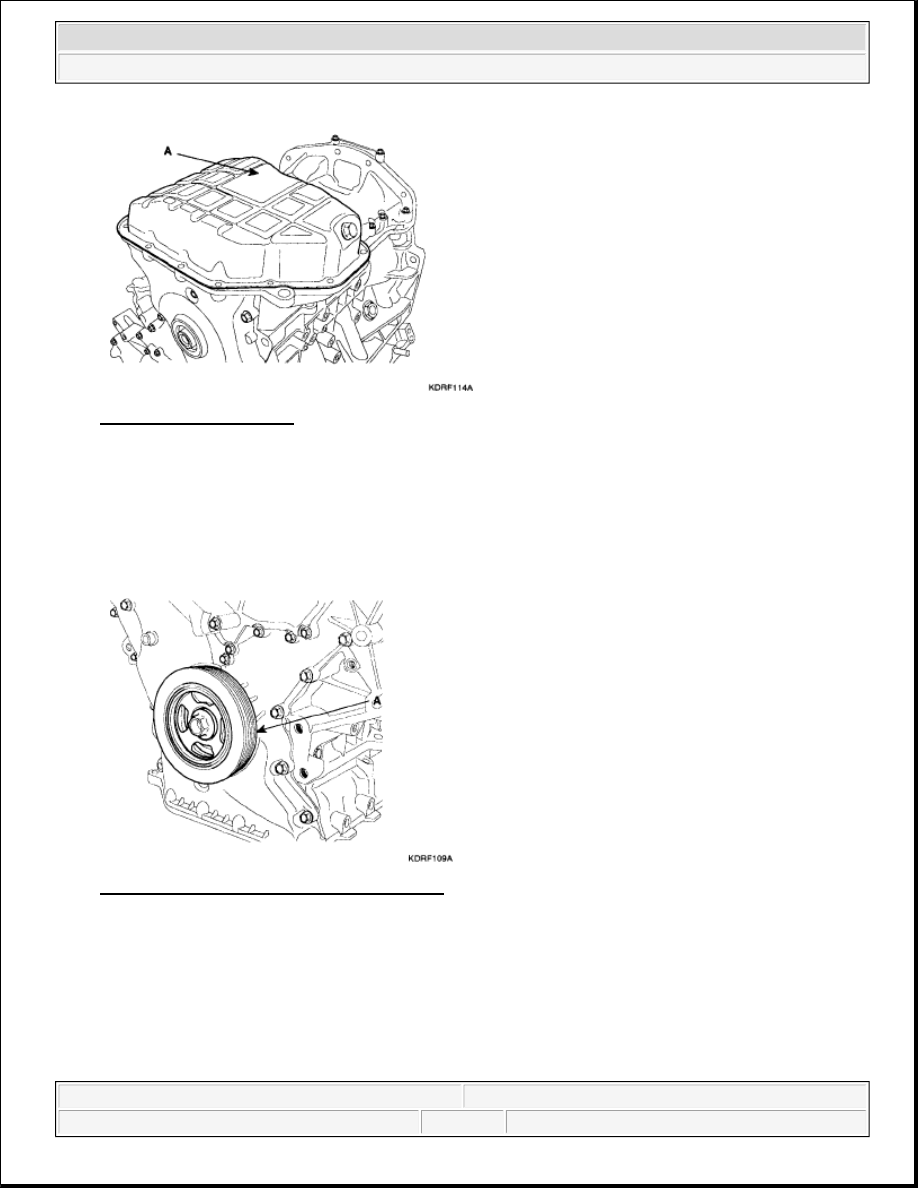

Fig. 87: Locating Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.

24. Using SST (09231-3C300) install crankshaft damper pulley (A).

Tightening torque

284.2-303.8 N.m (29.0-31.0 kgf.m, 209.76-224.22 lb-ft)

Fig. 88: Locating Crankshaft Damper Pulley
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 62

© 2006 Mitchell Repair Information Company, LLC.

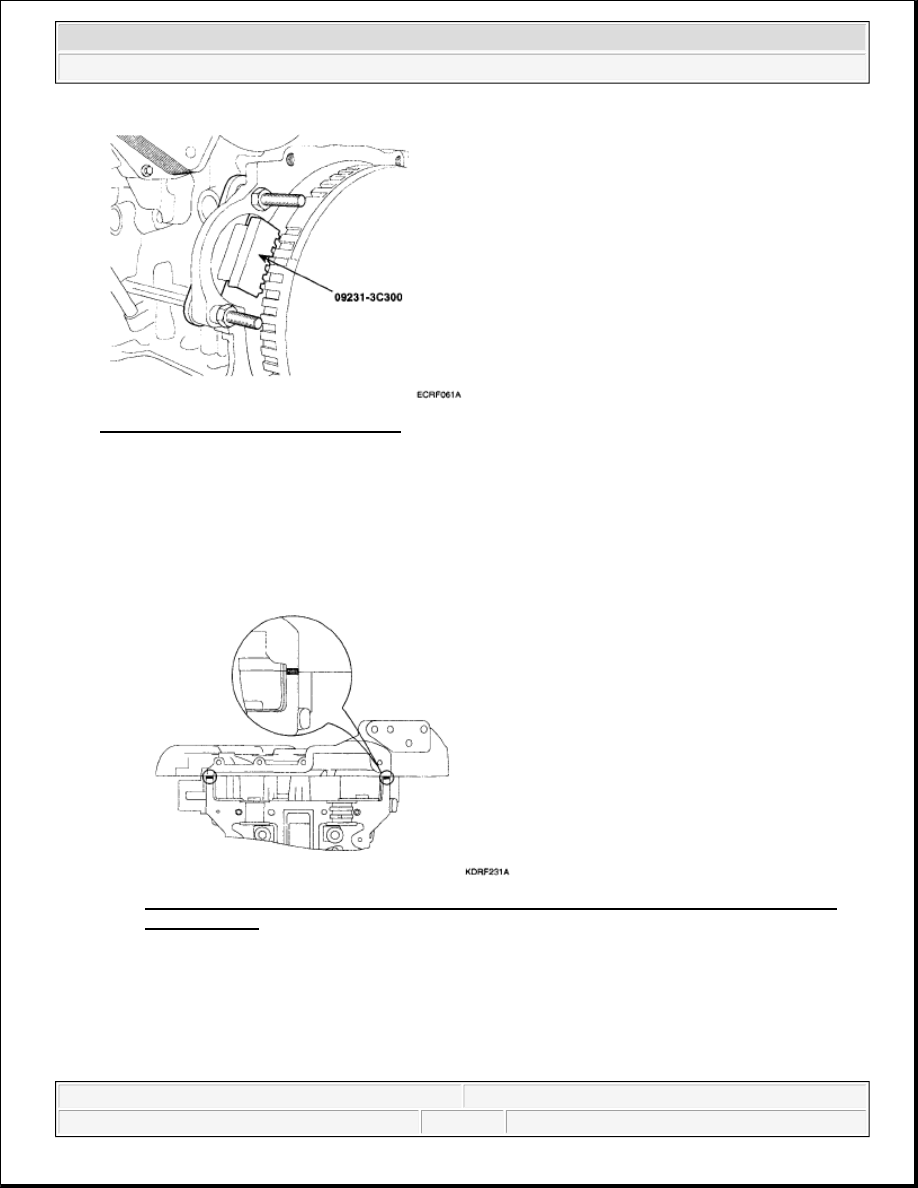

Fig. 89: Identifying SST (09231-3C300)
Courtesy of KIA MOTORS AMERICA, INC.

25. Install cylinder head cover.

a. The hardening sealant located on the upper area between timing chain cover and cylinder head

should be removed before assembling cylinder head cover.

b. After applying sealant (TB1217H), it should be assembled within 5 minutes. Bead width: 2.5 mm

(0.1 in.)

Fig. 90: Identifying Hardening Sealant On Upper Area Between Timing Chain Cover And
Cylinder Head
Courtesy of KIA MOTORS AMERICA, INC.

c. The firing and/or blow out test should not be performed within 30 minutes after the cylinder head

cover was assembled.

d. Install the cylinder head cover bolts as following method.

Tightening torque



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 63

© 2006 Mitchell Repair Information Company, LLC.

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

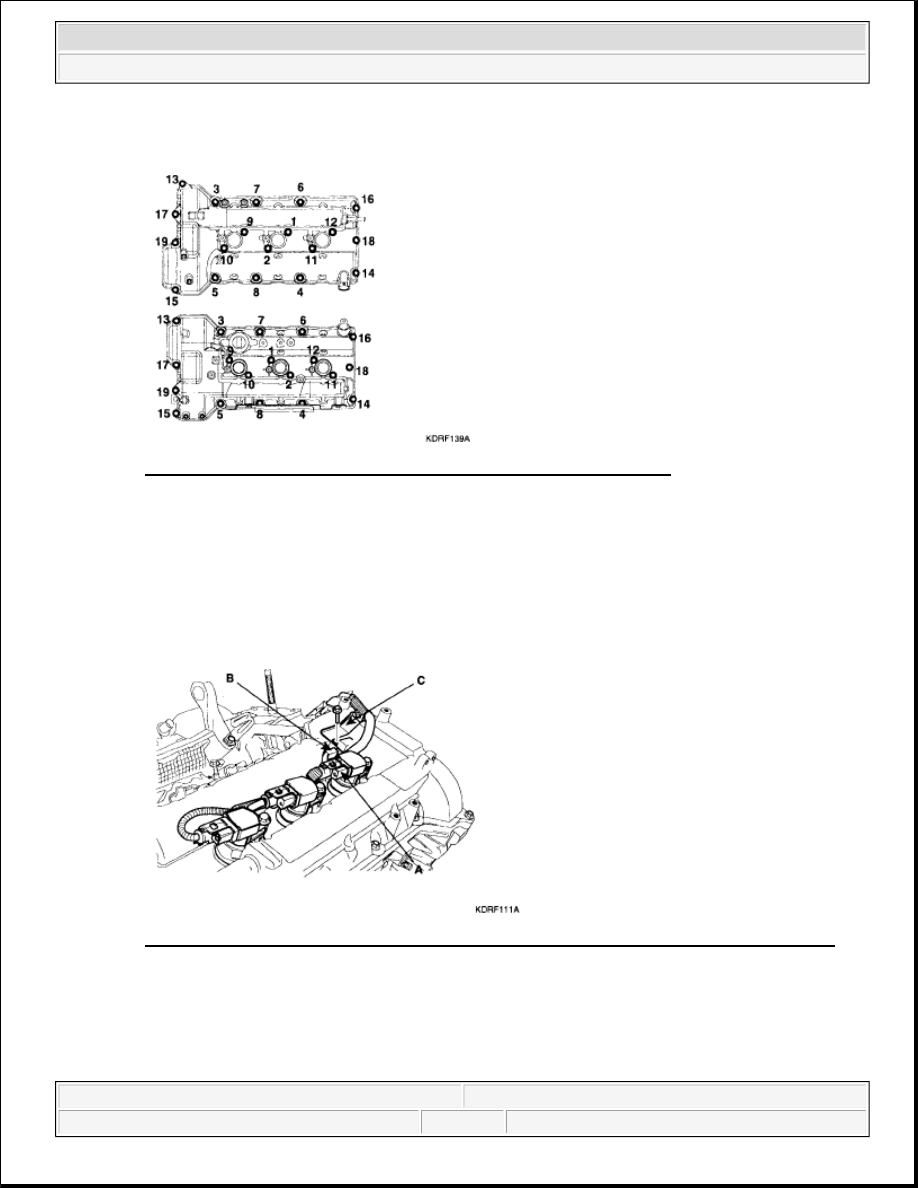

Fig. 91: Identifying Cylinder Head Cover Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

e. Install ignition coil

f. Connect RH ignition coil connector (A), condenser connector (B) and install wiring bracket (C).

Fig. 92: Locating RH Ignition Coil Connector, Condenser Connector And Wiring Bracket
Courtesy of KIA MOTORS AMERICA, INC.

g. Install connector bracket (A) from LH cylinder head cover.

CAUTION: Do not reuse cylinder head cover gasket.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 64

© 2006 Mitchell Repair Information Company, LLC.

Fig. 93: Locating Connector Bracket
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Install intake manifold. Refer to INTAKE MANIFOLD.

2. Install water pump pulley (A).

Tightening torque

7.84-9.80 N.m (0.8-1.0 kgf.m, 5.78-7.23 lb-ft)

Fig. 94: Locating Water Pump Pulley
Courtesy of KIA MOTORS AMERICA, INC.

3. Install drive belt auto tensioner (A).

Tightening torque
