Kia Sedona (2008 year). Manual - part 199

Fig. 223: Measuring Resistance Between Left Turn Signal Lamp Power Circuit Of FAM
(BCM-FE-52)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair open to ground in power circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

1. Check turn signal lamp

1. Ignition "ON" & engine "OFF".

2. Disconnect turn signal lamp light bulb.

3. Measure the resistance between both terminals of turn signal lamp light bulb.

Specification: approx. 0.04 ohms

(If light bulb fails, infinity ohms is measured.)



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 265

© 2006 Mitchell Repair Information Company, LLC.

Fig. 224: Measuring Resistance Between Both Terminals Of Turn Signal Lamp Light Bulb
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to step 2.

NO

Replacing the light bulb with `light bulb for test', if normal operating condition is confirmed,
Replace `light bulb for test' with `new light bulb' and go to "VERIFICATION OF VEHICLE
REPAIR".

2. Check FAM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Check if DTC is erased after replacing FAM with "FAM for test".

4. Is the DTC erased?

YES

Replace "FAM for test" with "new FAM" and go to "VERIFICATION OF VEHICLE
REPAIR".

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage.

Repair or replace if necessary and then go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2119.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 266

© 2006 Mitchell Repair Information Company, LLC.

DTC B2541 LEFT TURN SIGNAL LAMP CIRCUIT OPEN ERROR

COMPONENT LOCATION

Refer to DTC B2539.

GENERAL DESCRIPTION

Refer to DTC B2535.

DTC DESCRIPTION

The ECM sets DTC 62541 if open in Left turn signal lamp circuit is detected.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & FAM: "ON".

3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.

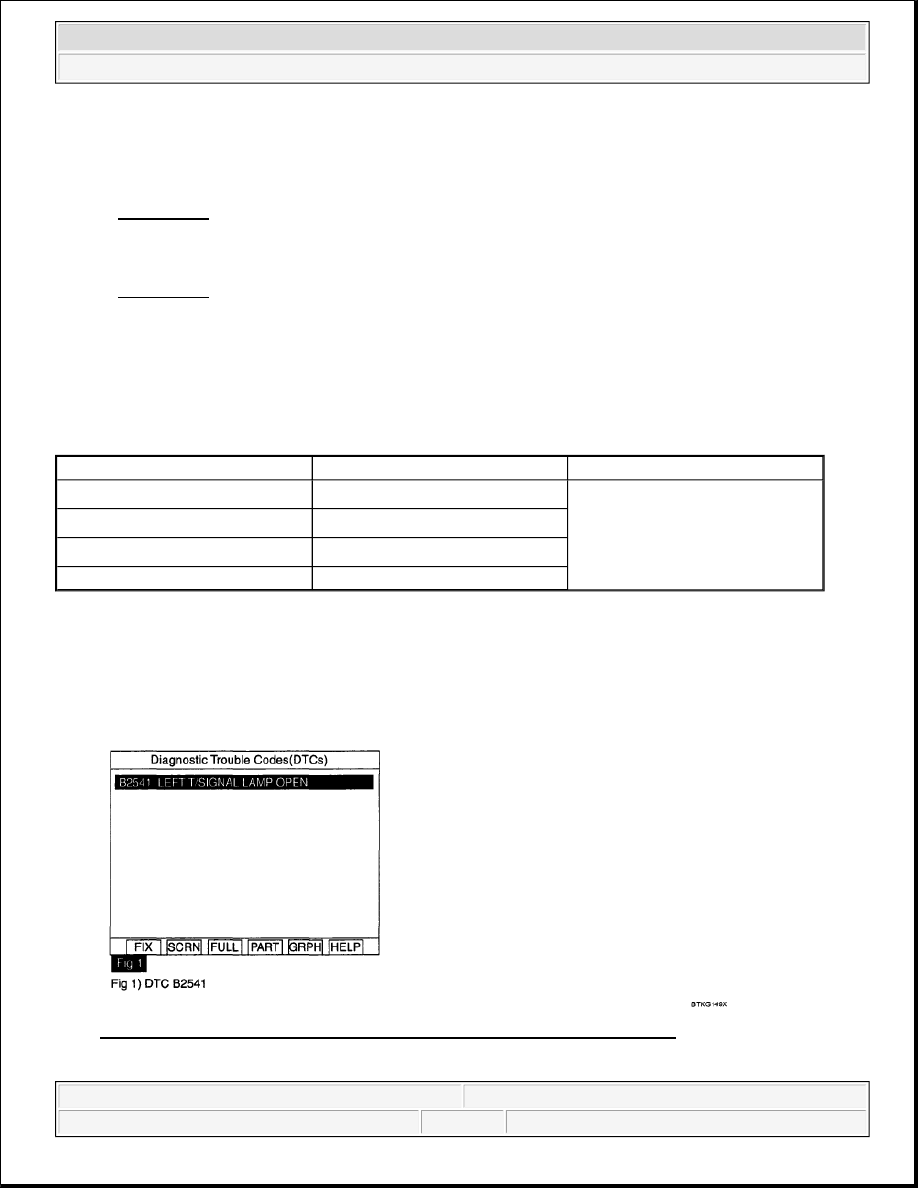

Fig. 225: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

Item

Detecting Condition

Possible Cause

DTC Strategy



Resistance check



Open in power circuit



Light bulb failure

Enable Conditions



IGN: ON, ENG: OFF

Threshold value



infinity ohms

Detecting time

-



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 267

© 2006 Mitchell Repair Information Company, LLC.

4. Is the DTC B2541 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2119.

POWER SUPPLY CIRCUIT INSPECTION

1. Check open in power circuit

1. Ignition "ON" & engine "OFF".

2. Measure the resistance between Left turn signal lamp power circuit of FAM (BCM-FE-52)and turn

signal lamp (E24-1).

Specification: 0 ohms

Fig. 226: Measuring Resistance Between Left Turn Signal Lamp Power Circuit Of FAM
(BCM-FE-52)And Turn Signal Lamp (E24-1)
Courtesy of KIA MOTORS AMERICA, INC.
