3. Is the measured resistance within the specification?

YES

Go to "GROUND CIRCUIT INSPECTION".

NO

Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR".

GROUND CIRCUIT INSPECTION

1. Check open in ground circuit

1. Ignition "ON" & engine "OFF".

2. Measure the resistance between Left turn signal lamp ground circuit (E24-3) and chassis ground.

Specification: 0 ohms

Fig. 227: Measuring Resistance Between Left Turn Signal Lamp Ground Circuit (E24-3) And
Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair open in ground circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 269

© 2006 Mitchell Repair Information Company, LLC.

Refer to DTC B2539.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2119.

DTC B2543 RIGHT HEADLAMP HIGH CIRCUIT SHORT TO GROUND ERROR

COMPONENT LOCATION

Refer to DTC B2535.

GENERAL DESCRIPTION

Refer to DTC B2535.

DTC DESCRIPTION

The ECM sets DTC B2537 if short to ground in Right turn signal lamp circuit is detected.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & FAM: "ON".

3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.

Item

Detecting Condition

Possible Cause

DTC Strategy



Check resistance & chassis ground



Short in power circuit



Light bulb failure

Enable Conditions



IGN: ON, ENG: OFF

Threshold value



0 ohms

Detecting time

-



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 270

© 2006 Mitchell Repair Information Company, LLC.

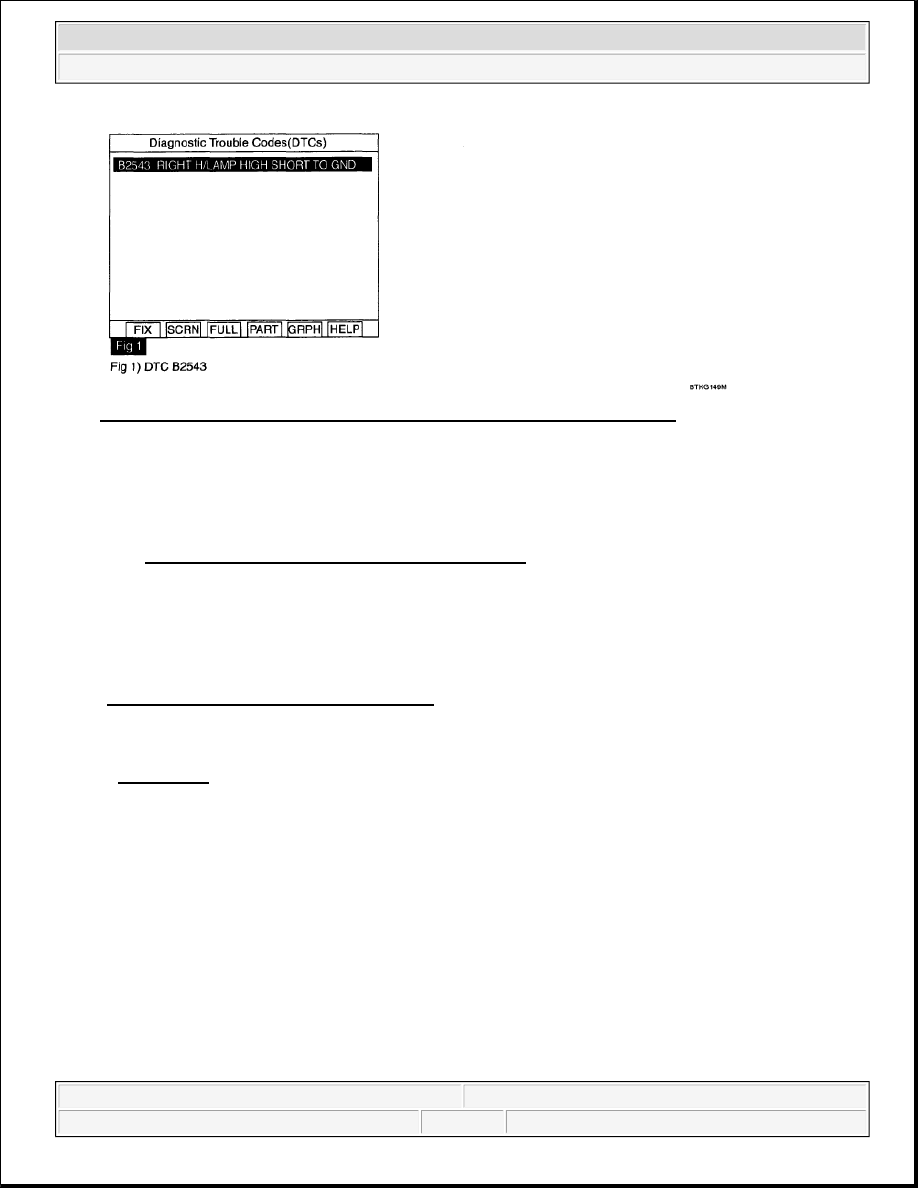

Fig. 228: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2543 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2119.

POWER SUPPLY CIRCUIT INSPECTION

1. Check short in power circuit

1. Ignition "ON" & engine "OFF".

2. Disconnect headlamp.

3. Measure the resistance between headlamp high power circuit of FAM (BCM-FE-53) and chassis

ground.

Specification: infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 271

© 2006 Mitchell Repair Information Company, LLC.

Fig. 229: Measuring Resistance Between Headlamp High Power Circuit Of FAM (BCM-FE-
53) And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair short to ground in power circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

1. Check headlamp

1. Ignition "ON" & engine "OFF".

2. Disconnect headlamp light bulb.

3. Measure the resistance between both terminals of headlamp high light bulb.

Specification: approx. 0.04 ohms

(If light bulb fails, infinity ohms is measured.)
