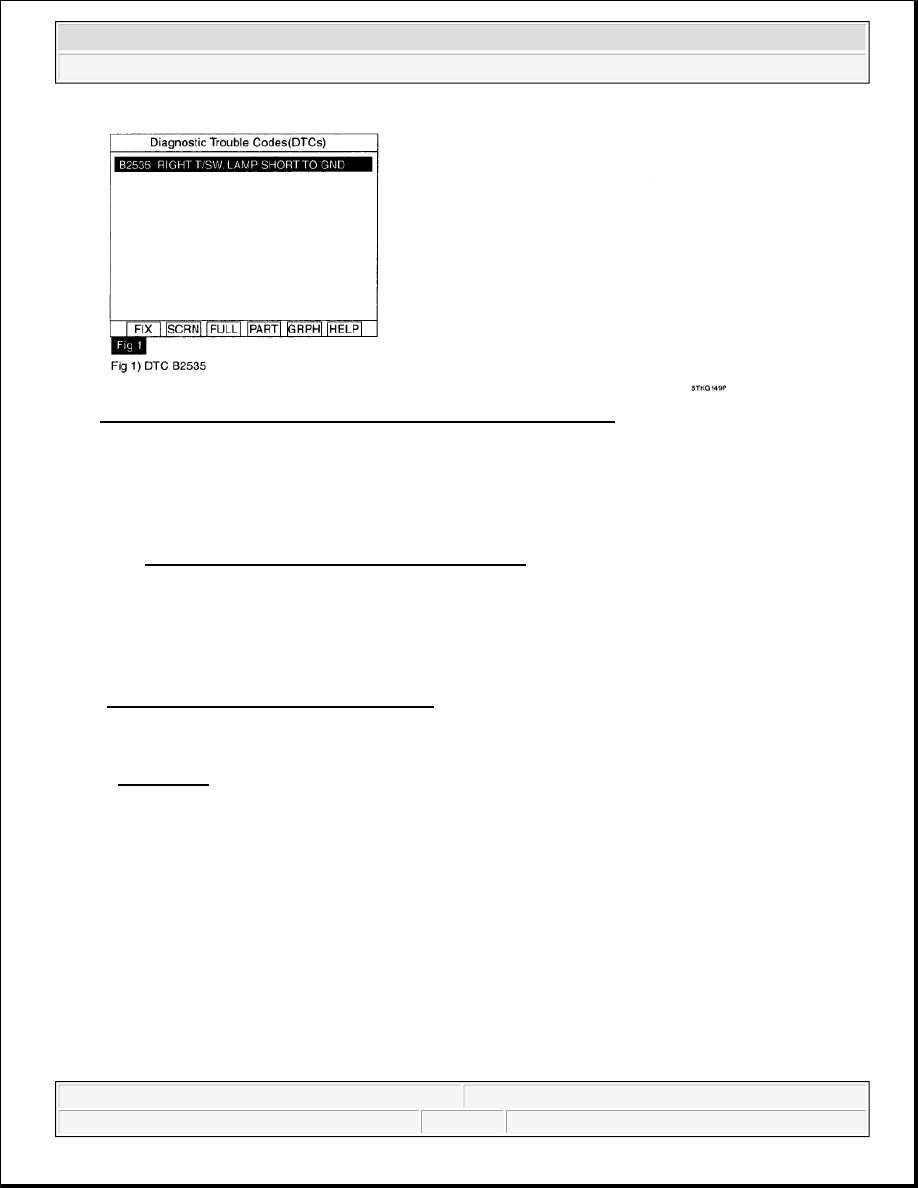

Fig. 215: Identifying Scan Tool Display - Diagnostic Trouble Codes
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2535 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2119.

POWER SUPPLY CIRCUIT INSPECTION

1. Check short in power circuit

1. Ignition "ON" & engine "OFF".

2. Disconnect Right turn signal lamp.

3. Measure the resistance between Right turn signal lamp power circuit of FAM (BCM-FE-39) and

chassis ground.

Specification: infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 257

© 2006 Mitchell Repair Information Company, LLC.

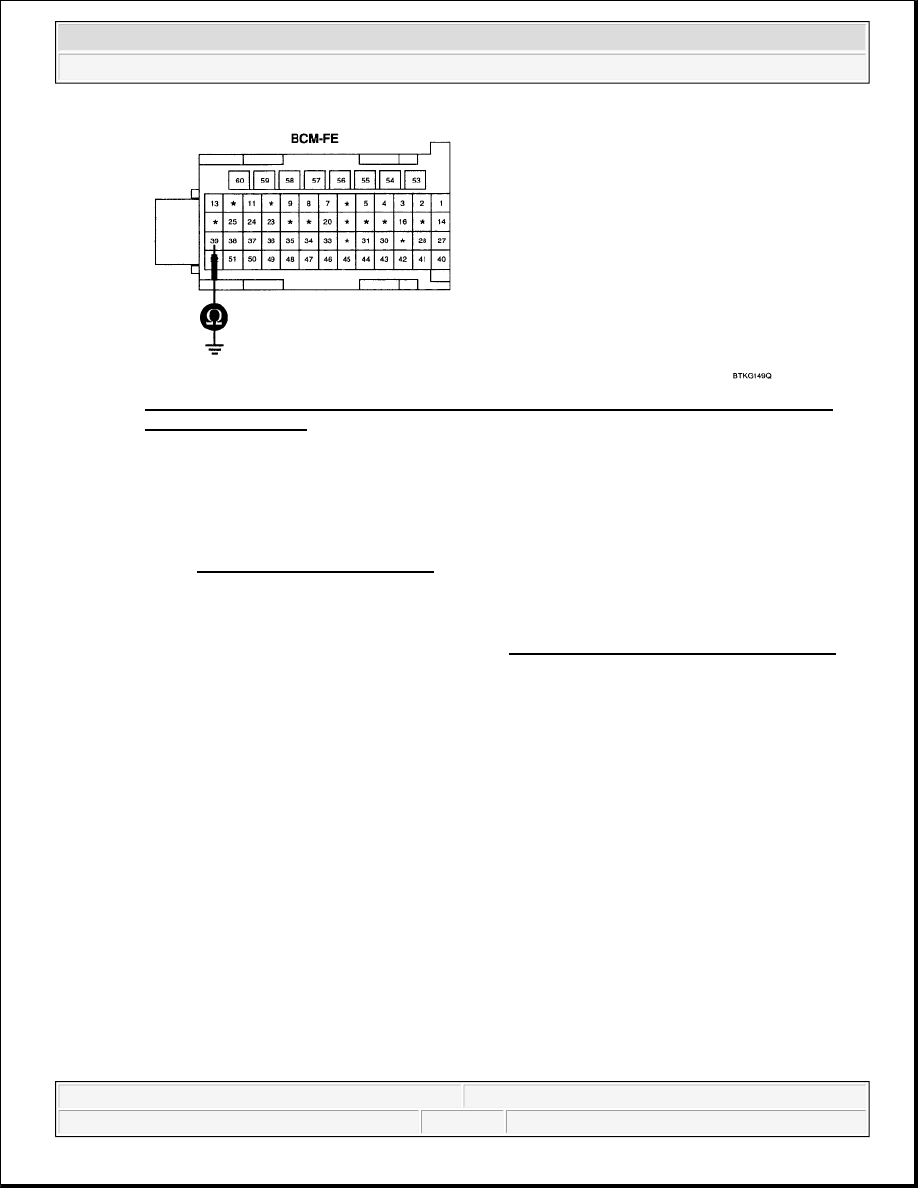

Fig. 216: Measuring Resistance Between Right Turn Signal Lamp Power Circuit Of FAM
And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair short to ground in power circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

1. Check turn signal lamp

1. Ignition "ON" & engine "OFF".

2. Disconnect turn signal lamp light bulb.

3. Measure the resistance between both terminals of turn signal lamp light bulb.

Specification: approx. 0.04 ohms

(If light bulb fails, infinity ohms is measured.)



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 258

© 2006 Mitchell Repair Information Company, LLC.

Fig. 217: Measuring Resistance Between Both Terminals Of Turn Signal Lamp Light Bulb
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to step 2.

NO

Replacing the light bulb with `light bulb for test', if normal operating condition is confirmed,
Replace `light bulb for test' with `new light bulb' and go to "VERIFICATION OF VEHICLE
REPAIR".

2. Check FAM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Check if DTC is erased after replacing FAM with "FAM for test".

4. Is the DTC erased?

YES

Replace "FAM for test" with "new FAM" and go to "VERIFICATION OF VEHICLE
REPAIR".

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace if necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2119.

DTC B2537 RIGHT TURN SIGNAL LAMP CIRCUIT OPEN ERROR



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 259

© 2006 Mitchell Repair Information Company, LLC.

COMPONENT LOCATION

Refer to DTC B2535.

GENERAL DESCRIPTION

Refer to DTC B2119.

DTC DESCRIPTION

The ECM sets DTC B2537 if short to ground in Right turn signal lamp circuit is detected.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & FAM: "ON".

3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.

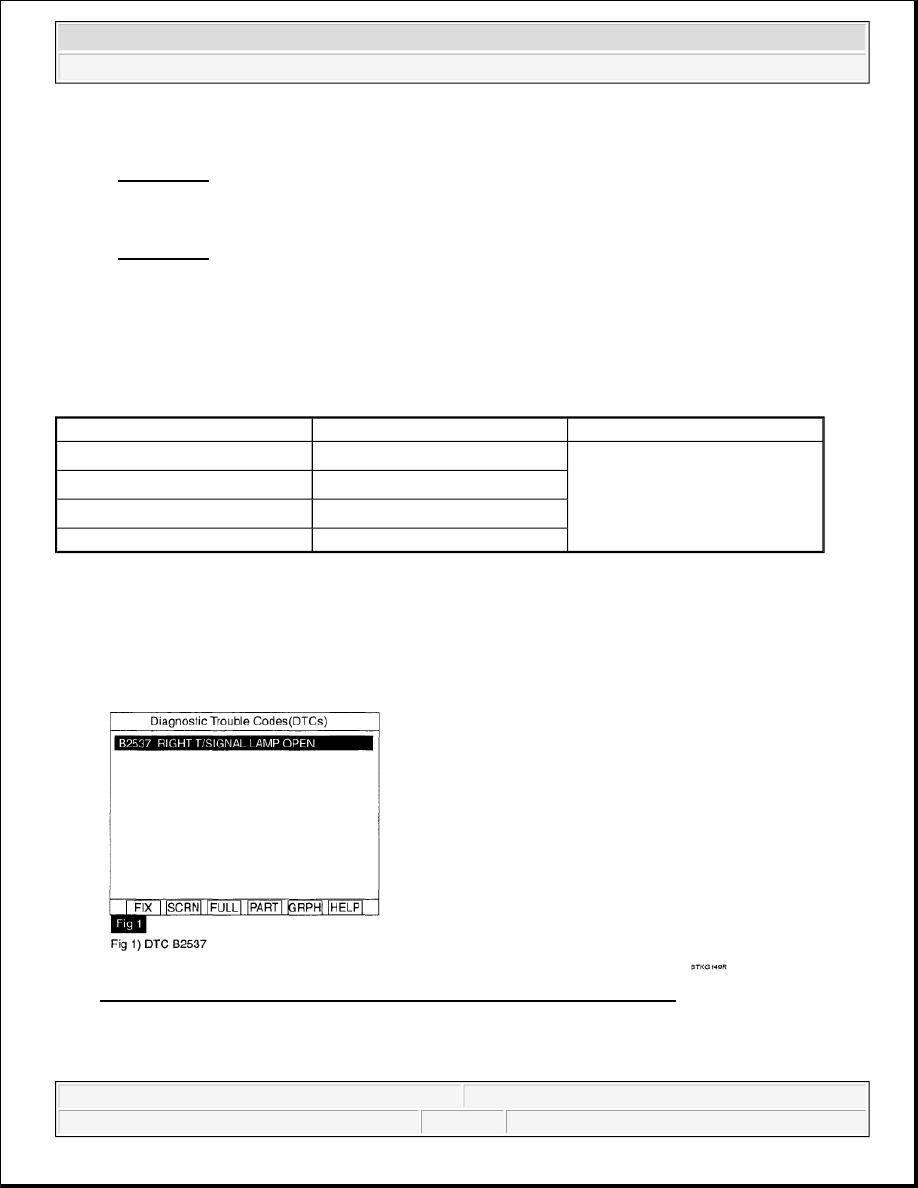

Fig. 218: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2537 present?

Item

Detecting Condition

Possible Cause

DTC Strategy



Resistance check



Open in power circuit



Light bulb failure

Enable Conditions



IGN: ON, ENG: OFF

Threshold value



infinity ohms

Detecting time

-
