FANUC Series 0i-MODEL D, Series 0i Mate-MODEL D. For Lathe System USER’S MANUAL - page 15

A.PARAMETERS

APPENDIX

B-64304EN-1/01

#7

#6

#5

#4

#3

#2

#1

#0

1401

RF0

LRP

[Input type]

Parameter input

[Data type]

Bit path

# 1

LRP

Positioning (G00)

0: Positioning is performed with non-linear type positioning so that

the tool moves along each axis independently at rapid traverse.

1: Positioning is performed with linear interpolation so that the tool

moves in a straight line.

# 4

RF0

When cutting feedrate override is 0% during rapid traverse,

0: The machine tool does not stop moving.

1: The machine tool stops moving.

#7

#6

#5

#4

#3

#2

#1

#0

1403

ROC

[Input type]

Parameter input

[Data type]

Bit path

# 4

ROC

In the threading cycles G92 and G76, rapid traverse override for

retraction after threading is finished is:

0: Effective

1: Not effective (Override of 100%)

1420

Rapid traverse rate for each axis

[Input type]

Parameter input

[Data type]

Real axis

[Unit of data]

mm/min, inch/min, degree/min (machine unit)

[Minimum unit of data]

Depend on the increment system of the applied axis

[Valid data range]

Refer to the standard parameter setting table (C)

(When the increment system is IS-B, 0.0 to +999000.0)

Set the rapid traverse rate when the rapid traverse override is 100% for

each axis.

1430

Maximum cutting feedrate for each axis

[Input type]

Parameter input

[Data type]

Real axis

[Unit of data]

mm/min, inch/min, degree/min (machine unit)

[Minimum unit of data]

Depend on the increment system of the applied axis

[Valid data range]

Refer to the standard parameter setting table (C)

(When the increment system is IS-B, 0.0 to +999000.0)

Specify the maximum cutting feedrate for each axis.

- 404 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

1466

Feedrate for retraction in threading cycle G92, G76 or G76.7

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm/min, inch/min (machine unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

Refer to the standard parameter setting table (C)

(When the increment system is IS-B, 0.0 to +999000.0)

When threading cycle G92, G76 or G76.7 is specified, retraction is

performed after threading. Set a feedrate for this retraction.

NOTE

When this parameter is set to 0 or bit 1 (CFR) of

parameter No. 1611 is set to 1, the rapid traverse

rate set in parameter No. 1420 is used.

#7

#6

#5

#4

#3

#2

#1

#0

1610

THLx

JGLx

CTLx

[Input type]

Parameter input

[Data type]

Bit axis

# 0

CTLx

Acceleration/deceleration in cutting feed or dry run

0: Exponential acceleration/deceleration is applied.

1: Linear acceleration/deceleration after interpolation is applied.

# 4

JGLx

Acceleration/deceleration in jog feed

0: Exponential acceleration/deceleration is applied.

1: The same acceleration/deceleration as for cutting feedrate is

applied.

(Depending on the settings of bits 1 (CTBx) and 0 (CTLx) of

parameter No. 1610)

# 5

THLx

Acceleration/deceleration in threading cycles

0: Exponential acceleration/deceleration is applied.

1: The same acceleration/deceleration as for cutting feedrate is

applied.

(Depending on the settings of bits 1 (CTBx) and 0 (CTLx) of

parameter No. 1610)

As the time constant and FL feedrate, however, the settings of

parameter Nos. 1626 and 1627 for threading cycles are used.

- 405 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

#7

#6

#5

#4

#3

#2

#1

#0

1611

CFR

[Input type]

Parameter input

[Data type]

Bit path

# 0

CFR

For retraction after threading in the threading cycles G92, G76 and

G76.7:

0: The type of acceleration/deceleration after interpolation for

threading is used together with the threading time constant

(parameter No. 1626) and FL feedrate (parameter No. 1627).

1: The type of acceleration/deceleration after interpolation for rapid

traverse is used together with the rapid traverse time constant.

NOTE

If this parameter is set to 1, a check is made before

a retraction to see that the specified feedrate has

become 0 (the delay in acceleration/deceleration

has become 0). For retraction, the rapid traverse

rate (parameter No. 1420) is used, regardless of

the setting of parameter No. 1466. When this

parameter is set to 0, parameter No. 1466 is used

as the feedrate for retraction. As

acceleration/deceleration used for retraction, only

acceleration/deceleration after interpolation is

used. Rapid traverse before look-ahead

interpolation is disabled.

1626

Acceleration/deceleration time constant in threading cycles for each axis

[Input type]

Parameter input

[Data type]

Word axis

[Unit of data]

msec

[Valid data range]

0 to 4000

Set a time constant for acceleration/deceleration after interpolation in

the threading cycles G92 and G76 for each axis.

- 406 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

1627

FL rate for acceleration/deceleration in threading cycles for each axis

[Input type]

Parameter input

[Data type]

Real axis

[Unit of data]

mm/min, inch/min, degree/min (machine unit)

[Minimum unit of data]

Depend on the increment system of the applied axis

[Valid data range]

Refer to the standard parameter setting table (C)

(When the increment system is IS-B, 0.0 to +999000.0)

Set an FL feedrate for acceleration/deceleration after interpolation in

the threading cycles G92 and G76 for each axis. Set 0 at all times

except in a special case.

3032

Allowable number of digits for the T code

[Input type]

Parameter input

[Data type]

Byte path

[Valid data range]

1 to 8

Set the allowable numbers of digits for the M, S, and T codes.

When 0 is set, the allowable number of digits is assumed to be 8.

#7

#6

#5

#4

#3

#2

#1

#0

3290

GOF

WOF

[Input type]

Parameter input

[Data type]

Bit path

# 0

WOF

Setting the tool offset value (tool wear offset) by MDI key input is:

0: Not disabled.

1: Disabled. (With parameter No.3294 and No.3295, set the offset

number range in which updating the setting is to be disabled.)

NOTE

The tool offset set in the parameter WOF is

followed even if geometric compensation and wear

compensation are not specified.

# 1

GOF

Setting the tool geometry offset value by MDI key input is:

0: Not disabled.

1: Disabled. (With parameter No.3294 and No.3295, set the offset

number range in which updating the setting is to be disabled.)

- 407 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

#7

#6

#5

#4

#3

#2

#1

#0

3401

GSC

GSB

DPI

[Input type]

Parameter input

[Data type]

Bit path

# 0

DPI

When a decimal point is omitted in an address that can include a

decimal point

0: The least input increment is assumed. (Normal decimal point

input)

1: The unit of mm, inches, degree, or second is assumed. (Pocket

calculator type decimal point input)

# 6

GSB

The G code system is set.

# 7

GSC

GSC

GSB

G code

0

0

G code system A

0

1

G code system B

1

0

G code system C

#7

#6

#5

#4

#3

#2

#1

#0

3402

G23

CLR

G91

G01

[Input type]

Parameter input

[Data type]

Bit path

# 0

G01

G01 Mode entered when the power is turned on or when the control is

cleared

0: G00 mode (positioning)

1: G01 mode (linear interpolation)

# 3

G91

When the power is turned on or when the control is cleared

0: G90 mode (absolute command)

1: G91 mode (incremental command)

# 6

CLR

Reset button on the MDI panel, external reset signal, reset and rewind

signal, and emergency stop signal

0: Cause reset state.

1: Cause clear state.

For the reset and clear states, refer to Appendix in the User's Manual.

# 7

G23

When the power is turned on

0: G22 mode (stored stroke check on)

1: G23 mode (stored stroke check off)

- 409 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

#7

#6

#5

#4

#3

#2

#1

#0

3405

DDP

CCR

[Input type]

Parameter input

[Data type]

Bit path

# 4

CCR

Addresses used for chamfering

0: Address is “I”, “J”, or “K”.

In direct drawing dimension programming, addresses ",C", ",R",

and ",A" (with comma) are used in stead of "C", "R", and "A".

1: Address is “C”.

Addresses used for direct drawing dimension programming are

"C", "R", and "A" without comma.

NOTE

If this bit (CCR) is set to 0, the function for changing

the compensation direction by specifying I, J, or K in

a G01 block in the tool nose radius compensation

mode cannot be used.

If this bit (CCR) is set to 1 when address C is used

as an axis name, the chamfer function cannot be

used.

# 5

DDP

Angle commands by direct drawing dimension programming

0: Normal specification

1: A supplementary angle is given.

#7

#6

#5

#4

#3

#2

#1

#0

3453

CRD

[Input type]

Setting input

[Data type]

Bit path

# 0

CRD

If the functions of chamfering or corner R and direct drawing

dimension programming are both enabled,

0: Chamfering or corner R is enabled.

1: Direct drawing dimension programming is enabled.

Specify which function is used when both the chamfering/corner R

function and the drawing dimension programming function are

enabled.

- 410 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

#7

#6

#5

#4

#3

#2

#1

#0

5002

WNP

LWM

LGC

LGT

LWT

LGN

[Input type]

Parameter input

[Data type]

Bit path

# 1

LGN

Geometry offset number of tool offset

0: Is the same as wear offset number

1: Specifies the geometry offset number by the tool selection

number

NOTE

This parameter is valid when tool geometry/wear

compensation is enabled (bit 6 (NGW) of

parameter No. 8136 is 0).

# 2

LWT

Tool wear compensation is performed by:

0: Moving the tool.

1: Shifting the coordinate system.

NOTE

This parameter is valid when tool geometry/wear

compensation is enabled (bit 6 (NGW) of

parameter No. 8136 is 0).

# 4

LGT

Tool geometry compensation

0: Compensated by the shift of the coordinate system

1: Compensated by the tool movement

NOTE

This parameter is valid when tool geometry/wear

compensation is enabled (bit 6 (NGW) of

parameter No. 8136 is 0).

# 5

LGC

When tool geometry compensation is based on coordinate shifting, the

tool geometry offset is:

0: Not canceled by a command with offset number 0.

1: Canceled by a command with offset number 0.

NOTE

This parameter is valid when tool geometry/wear

compensation is enabled (bit 6 (NGW) of

parameter No. 8136 is 0).

# 6

LWM

Tool offset operation based on tool movement is performed:

0: In a block where a T code is specified.

1: Together with a command for movement along an axis.

- 411 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

# 7

WNP Imaginary tool tip number used for tool nose radius compensation,

when the geometry/wear compensation function is equipped (bit 6

(NGW) of parameter No. 8136 is 0), is the number specified by:

0: Geometry offset number

1: Wear offset number

#7

#6

#5

#4

#3

#2

#1

#0

5003

TGC

SUV

SUP

[Input type] Parameter input

[Data type] Bit path

# 0

SUP

# 1

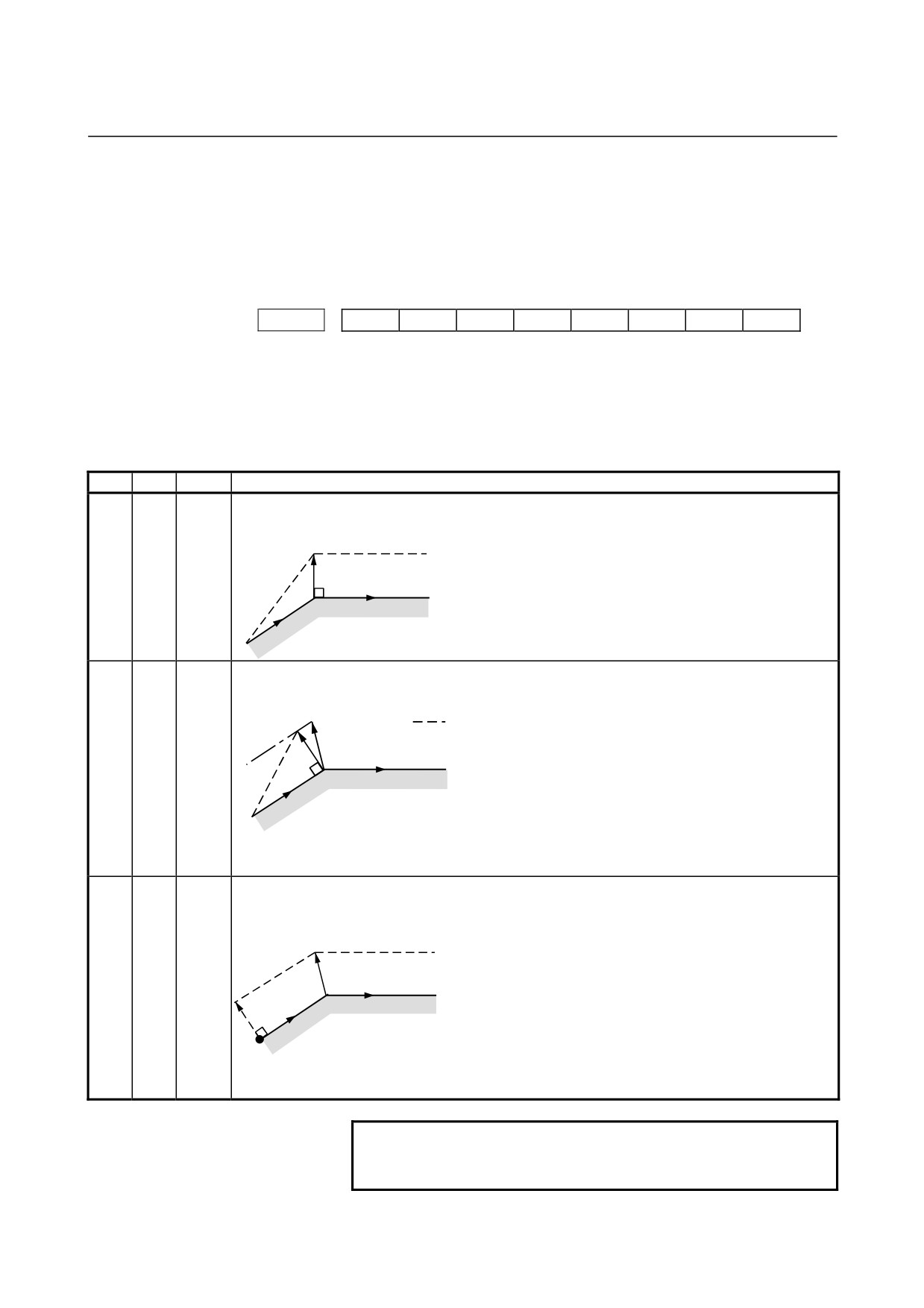

SUV These bits are used to specify the type of startup/cancellation of cutter

compensation or tool nose radius compensation.

SUV

SUP

Type

Operation

0

0

Type A

A compensation vector perpendicular to the block next to the startup block or the block preceding

the cancellation block is output.

Tool nose radius center path /

G41

Tool center path

Programmed path

N2

N1

0

1

Type B

A compensation vector perpendicular to the startup block or cancellation block and an

intersection vector are output.

Intersection point

Tool nose radius center path /

Tool center path

Programmed path

G41

N2

N1

1

0

Type C

When the startup block or cancellation block specifies no movement operation, the tool is shifted

1

by the cutter compensation amount in a direction perpendicular to the block next to the startup or

the block before cancellation block.

Intersection point

Tool nose radius center path /

G41

Tool center path

Shift

Programmed path

N3

N2

N1

When the block specifies movement operation, the type is set according to the SUP setting; if

SUP is 0, type A is set, and if SUP is 1, type B is set.

NOTE

When SUV,SUP = 0,1 (type B), an operation

equivalent to that of FS0i-TC is performed.

- 412 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

# 7

TGC

A tool geometry offset based on a coordinate shift is:

0: Not canceled by reset.

1: Canceled by reset.

NOTE

This parameter is valid when tool geometry/wear

compensation is enabled (bit 6 (NGW) of

parameter No. 8136 is 0).

#7

#6

#5

#4

#3

#2

#1

#0

5004

TS1

ORC

[Input type]

Parameter input

[Data type]

Bit path

# 1

ORC

The setting of a tool offset value is corrected as:

0: Diameter value

1: Radius value

NOTE

This parameter is valid only for an axis based on

diameter specification. For an axis based on radius

specification, specify a radius value, regardless of

the setting of this parameter.

# 3

TS1

For touch sensor contact detection with the function for direct input of

offset value measured B (T series):

0: Four-contact input is used.

1: One-contact input is used.

#7

#6

#5

#4

#3

#2

#1

#0

5005

QNI

PRC

[Input type]

Parameter input

[Data type]

Bit path

# 2

PRC

For direct input of a tool offset value or workpiece coordinate system

shift amount:

0: The PRC signal is not used.

1: The PRC signal is used.

# 5

QNI

With the function for direct input of offset value measured B, a tool

compensation number is selected by:

0: Operation through the MDI panel by the operator (selection

based on cursor operation).

1: Signal input from the PMC.

- 413 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

#7

#6

#5

#4

#3

#2

#1

#0

5006

LVC

[Input type] Parameter input

[Data type] Bit

# 3

LVC A tool offset (geometry/wear) based on a tool movement and wear

offset based on a coordinate shift are:

0: Not canceled by reset.

1: Canceled by reset.

#7

#6

#5

#4

#3

#2

#1

#0

5008

CNV

CNC

[Input type] Parameter input

[Data type] Bit path

# 1

CNC

# 3

CNV These bits are used to select an interference check method in the cutter

compensation or tool nose radius compensation mode.

CNV

CNC

Operation

Interference check is enabled. The direction and the angle of an

0

0

arc are checked.

0

1

Interference check is enabled. Only the angle of an arc is checked.

1

-

Interference check is disabled.

For the operation taken when the interference check shows the

occurrence of an reference (overcutting) , see the description of bit 5

(CAV) of parameter No. 19607.

NOTE

Checking of only the direction cannot be set.

- 414 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

#7

#6

#5

#4

#3

#2

#1

#0

5009

TSD

GSC

[Input type]

Parameter input

[Data type]

Bit path

NOTE

When at least one of these parameters is set, the

power must be turned off before operation is

continued.

# 0

GSC

When the function for direct input of offset value measured B (T

series) is used, an offset write input signal is input from:

0: Machine side

1: PMC side

When the interlock function for each axis direction is enabled (when

bit 3 (DIT) of parameter No. 3003 is set to 0), switching can also be

made between input from the machine side and input from PMC side

for the interlock function for each axis direction.

# 4

TSD

In the function for direct input of offset value measured B (T series),

the movement direction determination specifications:

0: Do not apply.

1: Apply.

This parameter is valid when four-contact input is used (bit 3 (TS1) of

parameter No. 5004 is set to 0).

- 415 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

Limit for ignoring the small movement resulting from cutter or tool nose

5010

radius compensation

[Input type]

Setting input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

9 digit of minimum unit of data (refer to standard parameter setting

table (A))

(When the increment system is IS-B, -999999.999 to +999999.999)

When the tool moves around a corner in cutter compensation or tool

nose radius compensation mode, the limit for ignoring the small travel

amount resulting from compensation is set. This limit eliminates the

interruption of buffering caused by the small travel amount generated

at the corner and any change in feedrate due to the interruption.

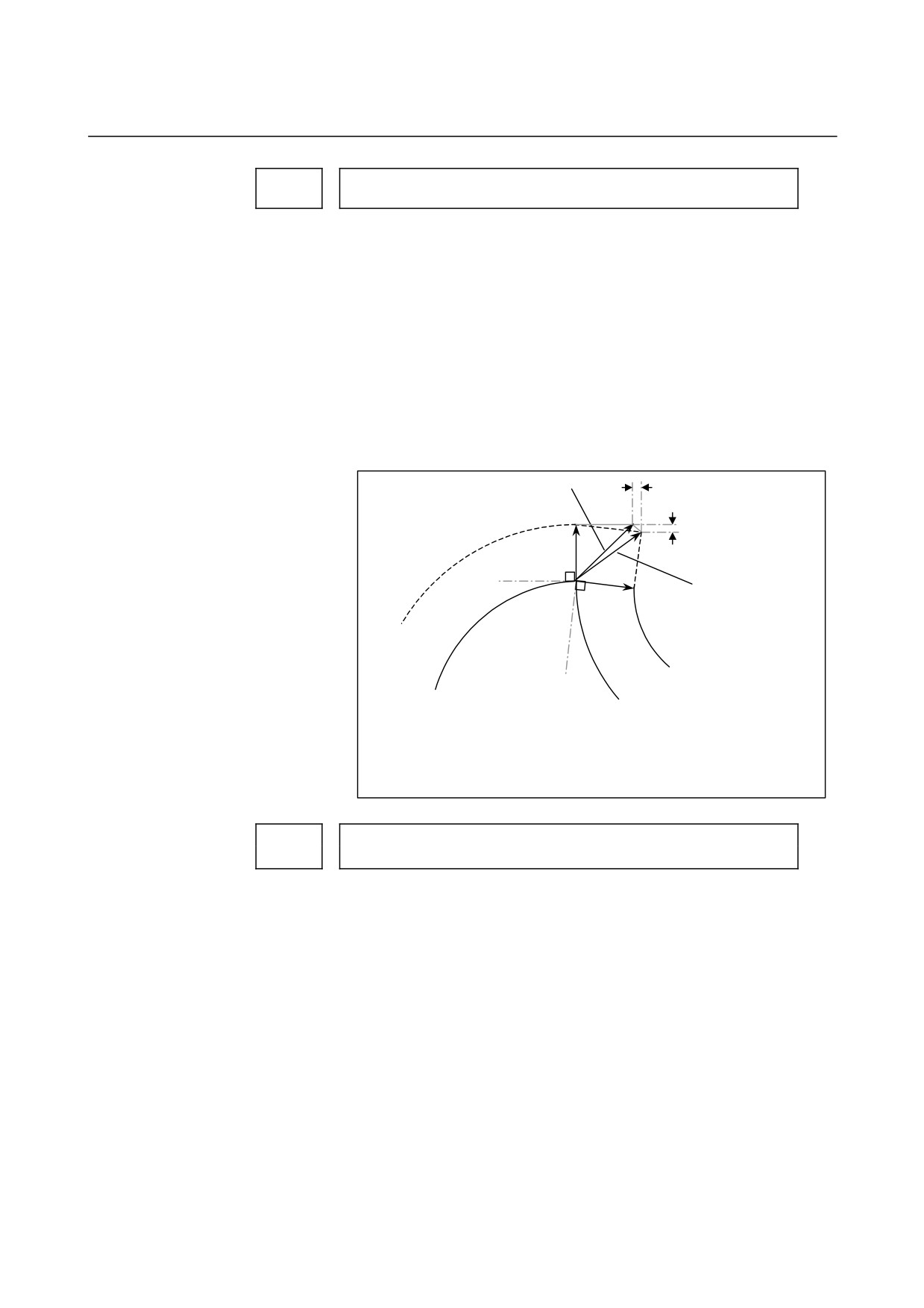

If ∆Vx ≤ ∆V_limit and ∆VY≤ ∆V_limit,

∆Vx

this vector is ignored.

∆VY

S

r

Even if ∆Vx ≤ ∆V_limit and

∆VY ≤ ∆V_limit, vector to

r

single-block stop point

Tool center path

remains.

N1

Programmed path

N2

∆V_limit is determined depending on the setting in parameter No. 5010.

Tool offset number used with the function for direct input of offset value

5020

measured B

[Input type] Parameter input

[Data type] Word path

[Valid data range]

0 to number of tool compensation values

Set a tool offset number used with the function for direct input of

offset value measured B (T series) (when a workpiece coordinate

system shift amount is set). (Set the tool offset number corresponding

to a tool under measurement beforehand.) This parameter is valid

when automatic tool offset number selection is not performed (when

bit 5 (QNI) of parameter No. 5005 is set to 0).

- 416 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

5029

Number of tool compensation value memories common to paths

NOTE

When this parameter is set, the power must be

turned off before operation is continued.

[Input type]

Parameter input

[Data type]

Word

[Valid data range]

0 to number of tool compensation values

When using memories common to paths, set the number of common

tool compensation values in this parameter.

Ensure that the setting of this parameter does not exceed the number

of tool compensation values set for each path (parameter No. 5024).

[Example 1]

When parameter No. 5029 = 10, parameter No. 5024 (path 1) =

15, and parameter No. 5024 (path 2) = 30 in a 2-path system, tool

compensation numbers 1 to 10 of all paths are made common.

[Example 2]

When parameter No. 5029 = 20 and the other conditions are the

same as for Example 1, tool compensation numbers 1 to 15 are

made common.

NOTE

1 Ensure that the setting of parameter No. 5029 does

not exceed the number of tool compensation

values for each path (parameter No. 5024). If the

setting of parameter No. 5029 exceeds the number

of compensation values of a path, the least of the

numbers of compensation values in all paths is

made common.

2 When 0 or a negative value is set, memories

common to paths are not used.

- 419 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

#7

#6

#5

#4

#3

#2

#1

#0

5040

OWD

[Input type]

Parameter input

[Data type]

Bit path

# 0

OWD

In radius programming (bit 1 (ORC) of parameter No. 5004 is set to

1),

0: Tool offset values of both geometry compensation and wear

compensation are specified by radius.

1: Tool offset value of geometry compensation is specified by

radius and tool offset value of wear compensation is specified by

diameter, for an axis of diameter programming.

NOTE

This parameter is valid when tool geometry/wear

compensation is enabled (bit 6 (NGW) of parameter

No. 8136 is 0).

#7

#6

#5

#4

#3

#2

#1

#0

5042

OFC

OFA

[Input type]

Parameter input

[Data type]

Bit path

NOTE

When at least one of these parameters is set, the

power must be turned off before operation is

continued.

# 0

OFA

# 1

OFC

These bits are used to specify the increment system and valid data

range of a tool offset value.

For metric input

OFC

OFA

Unit

Valid data range

0

1

0.01mm

±9999.99mm

0

0

0.001mm

±9999.999mm

1

0

0.0001mm

±9999.9999mm

For inch input

OFC

OFA

Unit

Valid data range

0

1

0.001inch

±999.999inch

0

0

0.0001inch

±999.9999inch

1

0

0.00001inch

±999.99999inch

- 420 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

5043

Axis number for which Y-axis offset is used

[Input type]

Parameter input

[Data type]

Byte path

[Valid data range]

0 to Number of controlled axes

Set the number of an axis for which the tool offset is corrected.

If 0 or a value beyond the valid data range is set, the Y-axis offset is

applied to the Y-axis of the basic three axes. If setting is made for the

X- or Z-axis of the basic three axes, the standard tool offset for the X-

or Z-axis is not used, and only the Y-axis offset is used.

#7

#6

#5

#4

#3

#2

#1

#0

5101

RTR

FXY

[Input type]

Parameter input

[Data type]

Bit path

# 0

FXY

The drilling axis in the drilling canned cycle, or cutting axis in the

grinding canned cycle is:

0: In case of the Drilling canned cycle:

Z-axis at all times.

In case of the Grinding canned cycle:

Z-axis at all times.

1: Axis selected by the program

NOTE

1 In the case of the T series, this parameter is valid

only for the drilling canned cycle in the Series

10/11 format.

2 When this parameter is 1, the drilling axis

determined by plane selection (G17/G18/G19) in

the drilling canned cycle in the T series 10/11

format. Therefore, the Y-axis is required to

specify G17/G19.

# 2

RTR

G83 and G87

0: Specify a high-speed peck drilling cycle

1: Specify a peck drilling cycle

- 421 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

#7

#6

#5

#4

#3

#2

#1

#0

5104

FCK

[Input type]

Parameter input

[Data type]

Bit path

# 2

FCK

In a multiple repetitive canned cycle

(G71/G72)

(T series), the

machining profile is:

0: Not checked.

1: Checked.

The target figure specified by G71 or G72 is checked for the following

before machining operation:

•

If the start point of the canned cycle is less than the maximum

value of the machining profile even when the plus sign is

specified for a finishing allowance, the alarm (PS0322) is issued.

•

If the start point of the canned cycle is greater than the minimum

value of the machining profile even when the minus sign is

specified for a finishing allowance, the alarm (PS0322) is issued.

•

If an unmonotonous command of type I is specified for the axis

in the cutting direction, the alarm (PS0064 or PS0329) is issued.

•

If an unmonotonous command is specified for the axis in the

roughing direction, the alarm (PS0064 or PS0329) is issued.

•

If the program does not include a block that has a sequence

number specified by address Q, the alarm (PS0063) is issued.

This check is made, regardless of bit 2 (QSR) of parameter No.

5102.

•

If a command (G41/G42) on the blank side in tool nose radius

compensation is inadequate, the alarm (PS0328) is issued.

#7

#6

#5

#4

#3

#2

#1

#0

5105

M5T

RF2

RF1

SBC

[Input type]

Parameter input

[Data type]

Bit path

# 0

SBC

In each of a drilling canned cycle, chamfering/corner rounding cycle,

and optional-angle chamfering/corner rounding (T series) cycle:

0: A single block stop is not carried out.

1: A single block stop is carried out.

# 1

RF1

In a multiple repetitive canned cycle (G71/G72) (T series) of type I,

roughing is:

0: Performed.

1: Not performed.

NOTE

When a roughing allowance (∆i/∆k) is specified

using the Series 10/11 program format, roughing is

performed, regardless of the setting of this

parameter.

- 423 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

# 2

RF2

In a multiple repetitive canned cycle (G71/G72) (T series) of type II,

roughing is:

0: Performed.

1: Not performed.

NOTE

When a roughing allowance (∆i/∆k) is specified

using the Series 10/11 program format, roughing is

performed, regardless of the setting of this

parameter.

# 3

M5T

When the rotation direction of the spindle is changed from forward

rotation to reverse rotation or from reserve rotation to forward rotation

in a tapping cycle (G84/G88):

0: M05 is output before output of M04 or M03.

1: M05 is not output before output of M04 or M03.

NOTE

1 This parameter is equivalent to bit 6 (M5T) of

parameter No. 5101 of the FS0i-C.

2 For the T series, the logical level (0/1) is opposite

to that of the FS0i-C.

#7

#6

#5

#4

#3

#2

#1

#0

5106

GFX

[Input type]

Parameter input

[Data type]

Bit path

NOTE

When this parameter is set, the power must be

turned off before operation is continued.

# 0

GFX

When grinding canned cycle option is specified, the G71, G72, G73,

or G74 command is:

0: A multiple repetitive canned cycle (T series) command.

1: A grinding canned cycle command.

5110

M code for C-axis clamping in a drilling canned cycle

[Input type]

Parameter input

[Data type]

2-word path

[Valid data range]

0 to 99999998

This parameter sets an M code for C-axis clamping in a drilling

canned cycle.

- 424 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

5111

Dwell time when C-axis unclamping is specified in drilling canned cycle

[Input type]

Parameter input

[Data type]

2-word path

[Valid data range]

0 to 32767

[Unit of data]

Increment system

IS-A

IS-B

IS-C

Unit

10

1

0.1

msec

(The increment system does not depend on whether inch input or

metric input is used.)

This parameter sets the dwell time when C-axis unclamping is

specified in a drilling canned cycle.

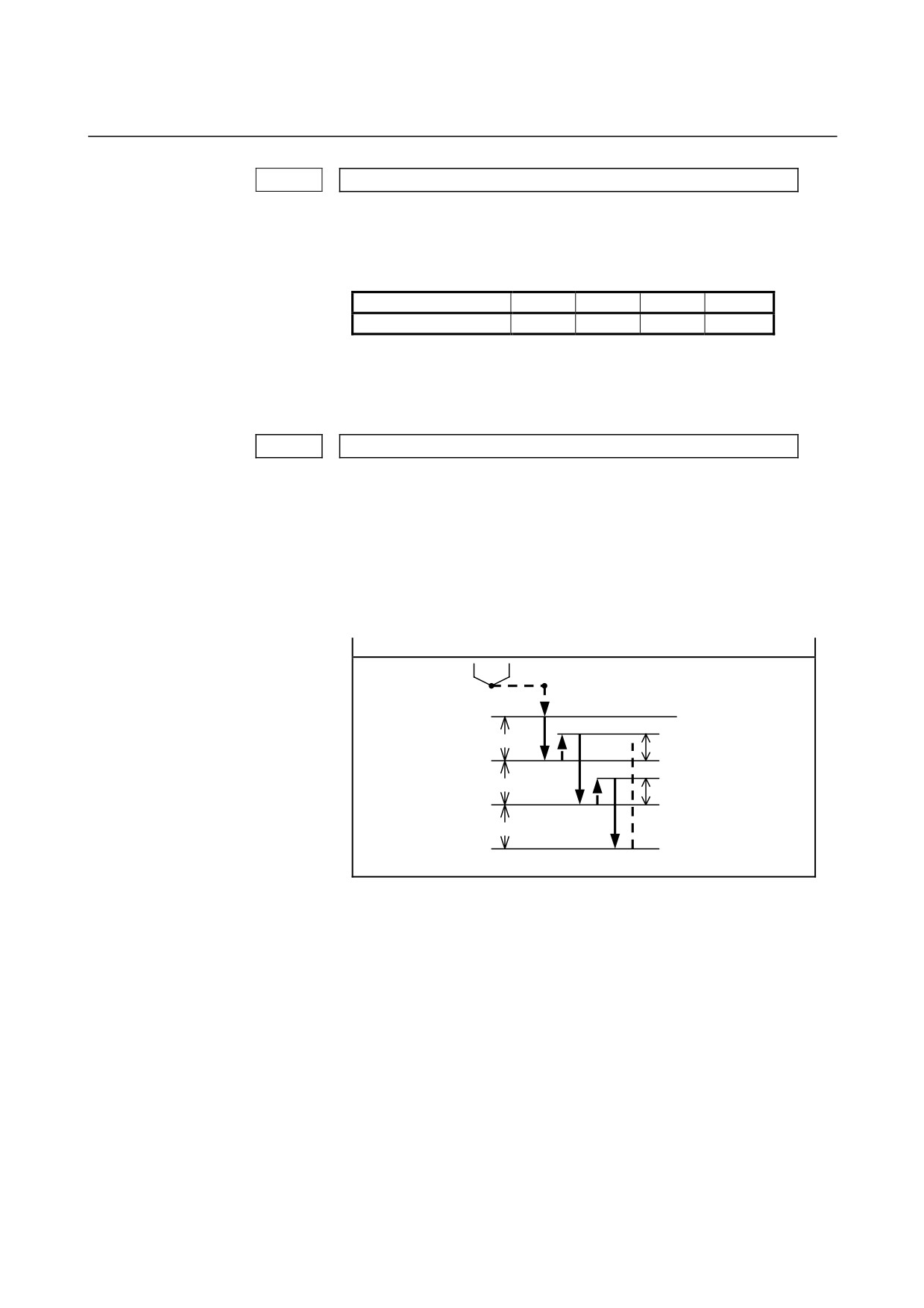

5114

Return value of high-speed peck drilling cycle

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

9 digit of minimum unit of data (refer to standard parameter setting

table (A))

(When the increment system is IS-B, -999999.999 to +999999.999)

This parameter sets the return value in high-speed peck drilling cycle.

G83 (T series, when the parameter RTR (No.5101#2) is set to 0)

q : Depth of cut

d : Return value

R point

q

d

q

d

q

Z point

- 425 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

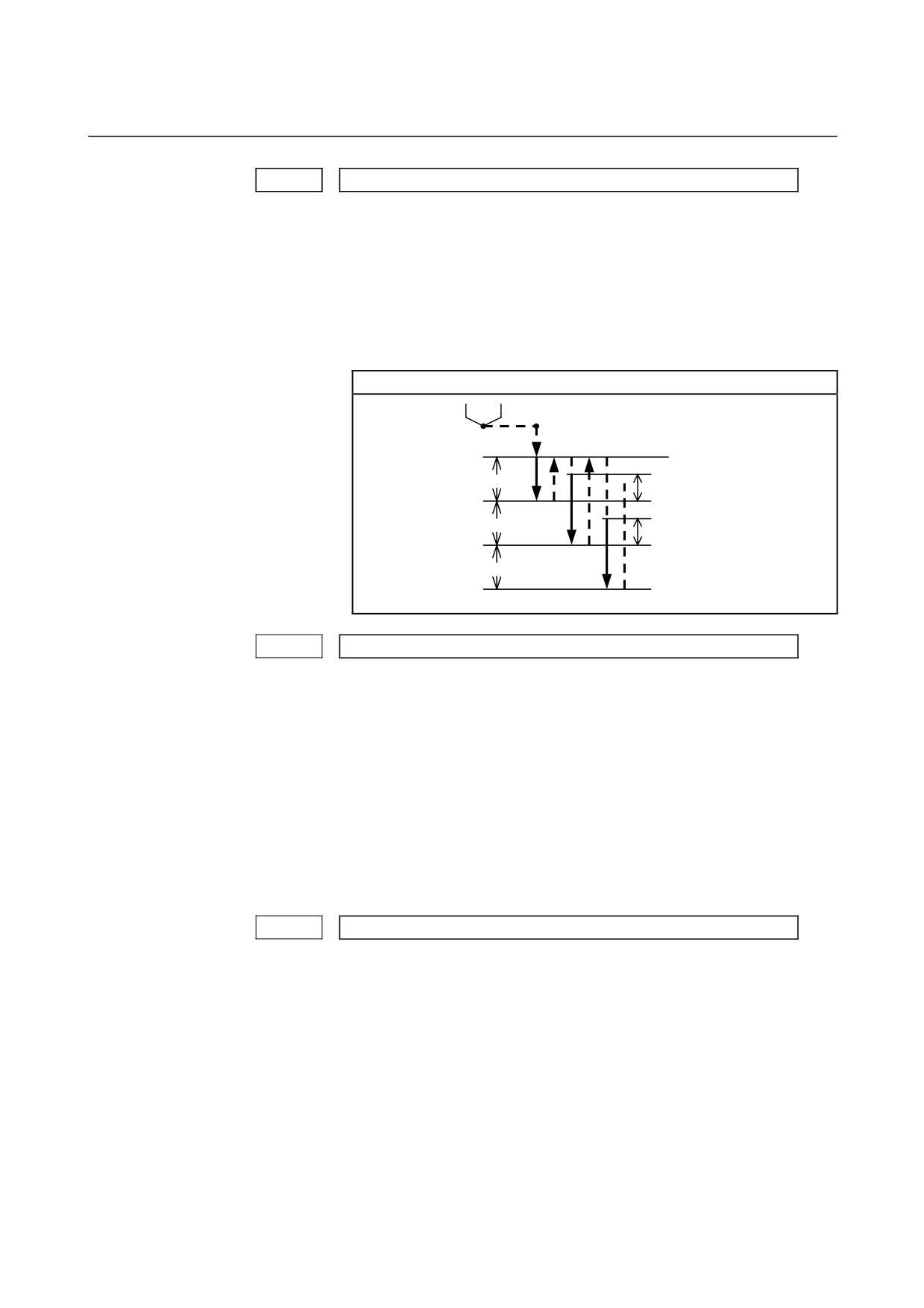

5115

Clearance value in a peck drilling cycle

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

9 digit of minimum unit of data (refer to standard parameter setting

table (A))

(When the increment system is IS-B, -999999.999 to +999999.999)

This parameter sets a clearance value in a peck drilling cycle.

G83 (T series, when the parameter RTR (No.5101#2) is set to 1)

q : Depth of cut

d : Clearance value

R point

q

d

q

d

q

Z point

5130

Cutting value (chamfering value) in thread cutting cycles G92 and G76

[Input type]

Parameter input

[Data type]

Byte path

[Unit of data]

0.1

[Valid data range]

0 to 127

This parameter sets a cutting value (chamfering value) in the thread

cutting cycle (G76) of a multiple repetitive canned cycle (T series) and

in the thread cutting cycle (G92) of a canned cycle.

Let L b a lead. Then, a cutting value range from 0.1L to 12.7L is

allowed.

To specify a cutting value of 10.0L, for example, specify 100 in this

parameter.

5131

Cutting angle in thread cutting cycles G92 and G76

[Input type]

Parameter input

[Data type]

Byte path

[Unit of data]

Degree

[Valid data range]

1 to 89

This parameter sets the cutting angle in the thread cutting cycle (G76)

of a multiple repetitive canned cycle (T series) and in the thread

cutting cycle (G92) of a canned cycle.

When 0 is set, an angle of 45 degrees is specified.

- 426 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

5132

Depth of cut in multiple repetitive canned cycles G71 and G72

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

0 or positive 9 digit of minimum unit of data (refer to the standard

parameter setting table (B))

(When the increment system is IS-B, 0.0 to +999999.999)

This parameter sets the depth of cut in multiple repetitive canned

cycles G71 and G72 (T series).

This parameter is not used with the Series 10/11 program format.

NOTE

Specify a radius value at all times.

5133

Escape in multiple repetitive canned cycles G71 and G72

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

0 or positive 9 digit of minimum unit of data (refer to the standard

parameter setting table (B))

(When the increment system is IS-B, 0.0 to +999999.999)

This parameter sets the escape in multiple repetitive canned cycles

G71 and G72 (T series).

NOTE

Specify a radius value at all times.

5134

Clearance value in multiple repetitive canned cycles G71 and G72

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

0 or positive 9 digit of minimum unit of data (refer to the standard

parameter setting table (B))

(When the increment system is IS-B, 0.0 to +999999.999)

This parameter sets a clearance value up to the cutting feed start point

in multiple repetitive canned cycles (G71/G72) (T series).

NOTE

Specify a radius value at all times.

- 427 -

A.PARAMETERS

APPENDIX

B-64304EN-1/01

Retraction distance in the multiple repetitive canned cycle G73 (second axis

5135

on the plane)

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

9 digit of minimum unit of data (refer to standard parameter setting

table (A))

(When the increment system is IS-B, -999999.999 to +999999.999)

This parameter sets a retraction distance along the second axis on the

plane in the multiple repetitive canned cycle G73 (T series). This

parameter is not used with the Series 10/11 program format.

NOTE

Specify a radius value at all times.

Retraction distance in the multiple repetitive canned cycle G73 (first axis on

5136

the plane)

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

9 digit of minimum unit of data (refer to standard parameter setting

table (A))

(When the increment system is IS-B, -999999.999 to +999999.999)

This parameter sets a retraction distance along the first axis on the

plane in the multiple repetitive canned cycle G73 (T series). This

parameter is not used with the Series 10/11 program format.

NOTE

Specify a radius value at all times.

5137

Number of divisions in the multiple repetitive canned cycle G73

[Input type]

Parameter input

[Data type]

2-word path

[Unit of data]

Cycle

[Valid data range]

1 to 99999999

This parameter sets the number of divisions in the multiple repetitive

canned cycle G73 (T series).

This parameter is not used with the Series 10/11 program format.

- 428 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

5139

Return in multiple repetitive canned cycles G74 and G75

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

0 or positive 9 digit of minimum unit of data (refer to the standard

parameter setting table (B))

(When the increment system is IS-B, 0.0 to +999999.999)

This parameter sets the return in multiple repetitive canned cycles G74

and G75 (T series).

NOTE

Specify a radius value at all times.

5140

Minimum depth of cut in the multiple repetitive canned cycle G76

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

0 or positive 9 digit of minimum unit of data (refer to the standard

parameter setting table (B))

(When the increment system is IS-B, 0.0 to +999999.999)

This parameter sets a minimum depth of cut in the multiple repetitive

canned cycle G76 (T series) so that the depth of cut does not become

too small when the depth of cut is constant.

NOTE

Specify a radius value at all times.

5141

Finishing allowance in the multiple repetitive canned cycle G76

[Input type]

Parameter input

[Data type]

Real path

[Unit of data]

mm, inch (input unit)

[Minimum unit of data]

Depend on the increment system of the reference axis

[Valid data range]

0 or positive 9 digit of minimum unit of data (refer to the standard

parameter setting table (B))

(When the increment system is IS-B, 0.0 to +999999.999)

This parameter sets the finishing allowance in multiple repetitive

canned cycle G76 (T series).

NOTE

Specify a radius value at all times.

- 429 -

B-64304EN-1/01

APPENDIX

A.PARAMETERS

5176

Grinding axis number in Traverse Grinding Cycle(G71)

[Input type]

Parameter input

[Data type]

Byte path

[Valid data range]

0 to Number of controlled axes

Set the Grinding axis number of Traverse Grinding Cycle(G71).

NOTE

The axis number except for the cutting axis can be

specified. When the axis number which is same to

cutting axis is specified, PS0456 alarm is issued at

the time of execution. The Grinding Cycle is

executed when this parameter value is 0, PS0456

alarm is also issued.

5177

Grinding axis number of Traverse direct constant-size Grinding cycle(G72)

[Input type]

Parameter input

[Data type]

Byte path

[Valid data range]

0 to Number of controlled axes

Set the Grinding axis number of Traverse direct constant-size

Grinding cycle(G72).

NOTE

The axis number except for the cutting axis can be

specified. When the axis number which is same to

cutting axis is specified, PS0456 alarm is issued at

the time of execution. The Grinding Cycle is

executed when this parameter value is 0, PS0456

alarm is also issued.

5178

Grinding axis number of Oscillation Grinding Cycle(G73)

[Input type]

Parameter input

[Data type]

Byte path

[Valid data range]

0 to Number of controlled axes

Set the Grinding axis number of Oscillation Grinding Cycle(G73).

NOTE

The axis number except for the cutting axis can be

specified. When the axis number which is same to

cutting axis is specified, PS0456 alarm is issued at

the time of execution. The Grinding Cycle is

executed when this parameter value is 0, PS0456

alarm is also issued.

- 433 -

Content      ..     13      14      15      16     ..
