Yanmar diesel tractor EF494T. OPERATOR'S MANUAL - part 18

EF494T OM

68

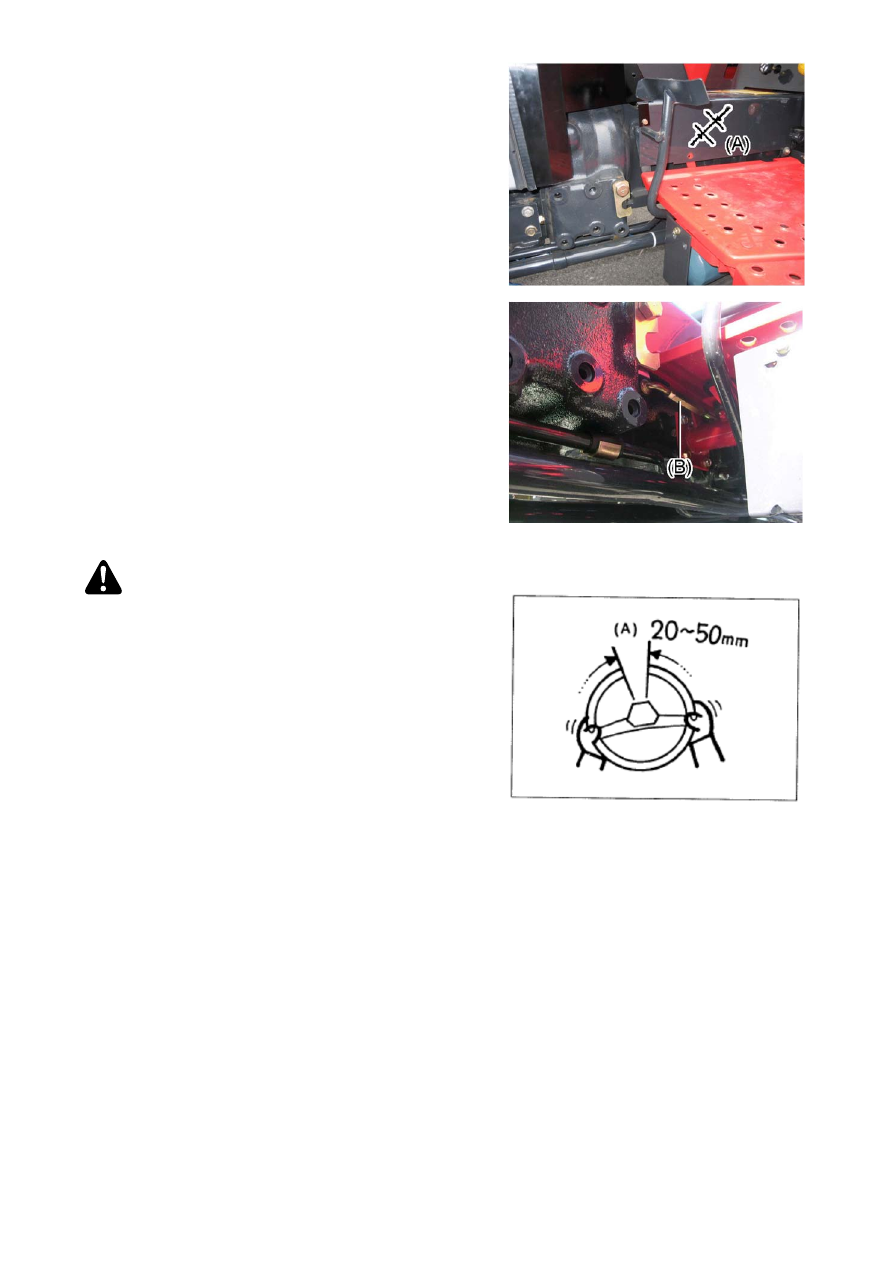

14. Adjusting

clutch

Standard version
Depress the clutch pedal to see it there is a specified
play of 15-25 mm. It not, adjust the turnbuckle for a play
of 15-25 mm. Securely lock the nut after adjustment.


(A) Play 15-25 mm
(B) Turn buckle







15. Adjusting

steering

wheel

 WARNING

Check a play for the steering wheel. It should be within a
tolerable range. Otherwise, an accident may occur.

Turn the steering wheel slightly left and right to see if
there is a play of 20-50 mm. Improper play will fail to
provide the smoothness and linearity of steering
function. If a play is not adequate, contact your service
representative.


(A) Play












EF494T OM

69

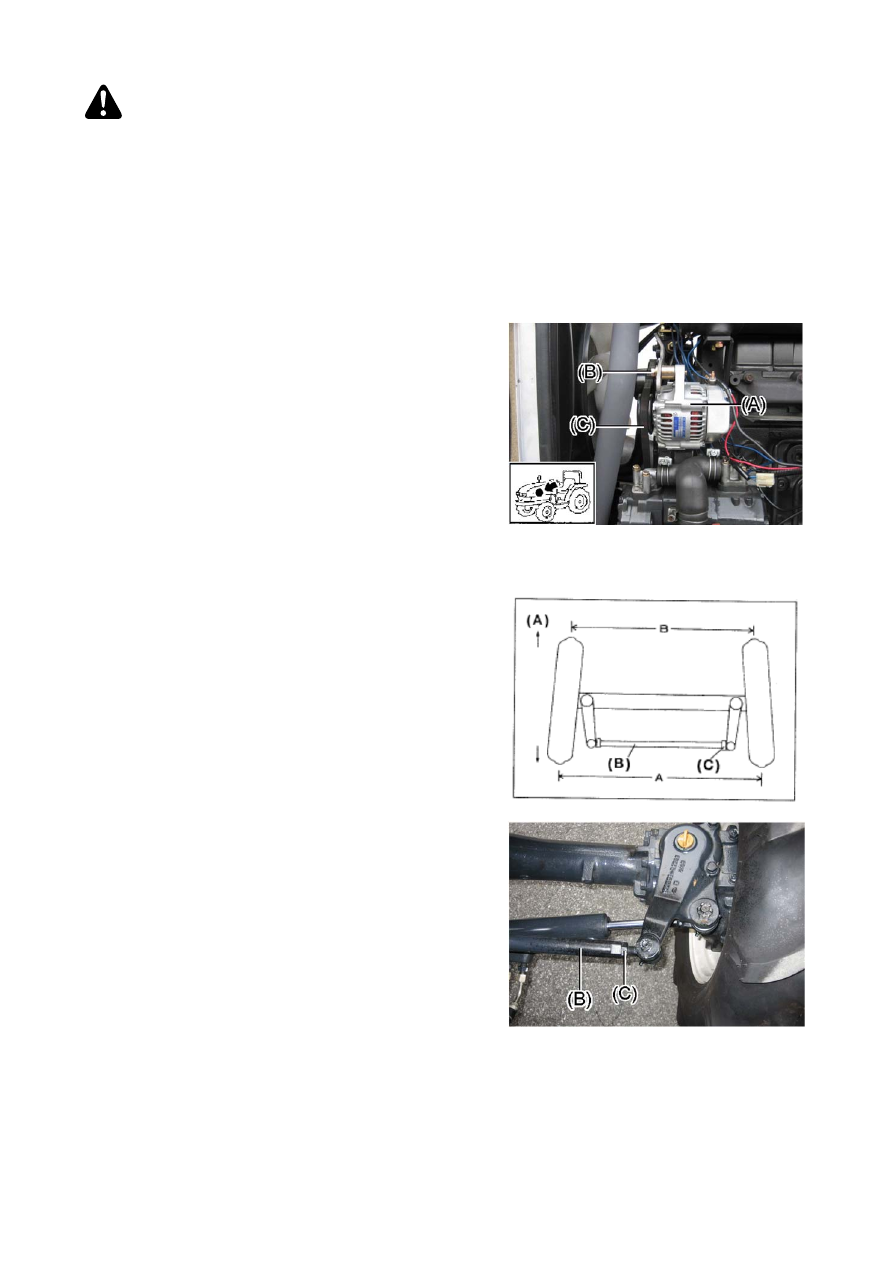

16.

Adjusting fan belt

 CAUTION

Wait until the engine is sufficiently cooled down.
Otherwise, you may be burned.

(1) Switch off the engine.
(2) Open the bonnet, then the left side cover of the

engine.

(3) Press the fan belt with a finger at the midpoint to see

the belt deflections 10-15 mm.

(4) If not, loosen the alternator fastening bolt and shift

the alternator to adjust the belt tension.


If the belt still slips after full shift of the alternator,
replace the belt with a new one. Check the new belt at
intervals of 50 hours.


(A) Alternator
(B) Alternator fastening bolts
(C) Fan belt





















17. Adjusting

tow-in

Poor adjustment of tow-in will result in an abnormal
steering performance. Measure the front wheel
dimension A and B. The difference of A-B should be 4-8
mm. If out of this range, loosen the lock nut of the tie rod
end and adjust the turnbuckle. Fasten the lock nut
where the tow-in is
4-8 mm.


(A) Front
(B) Tie rod
(C) Lock nut














EF494T OM

70

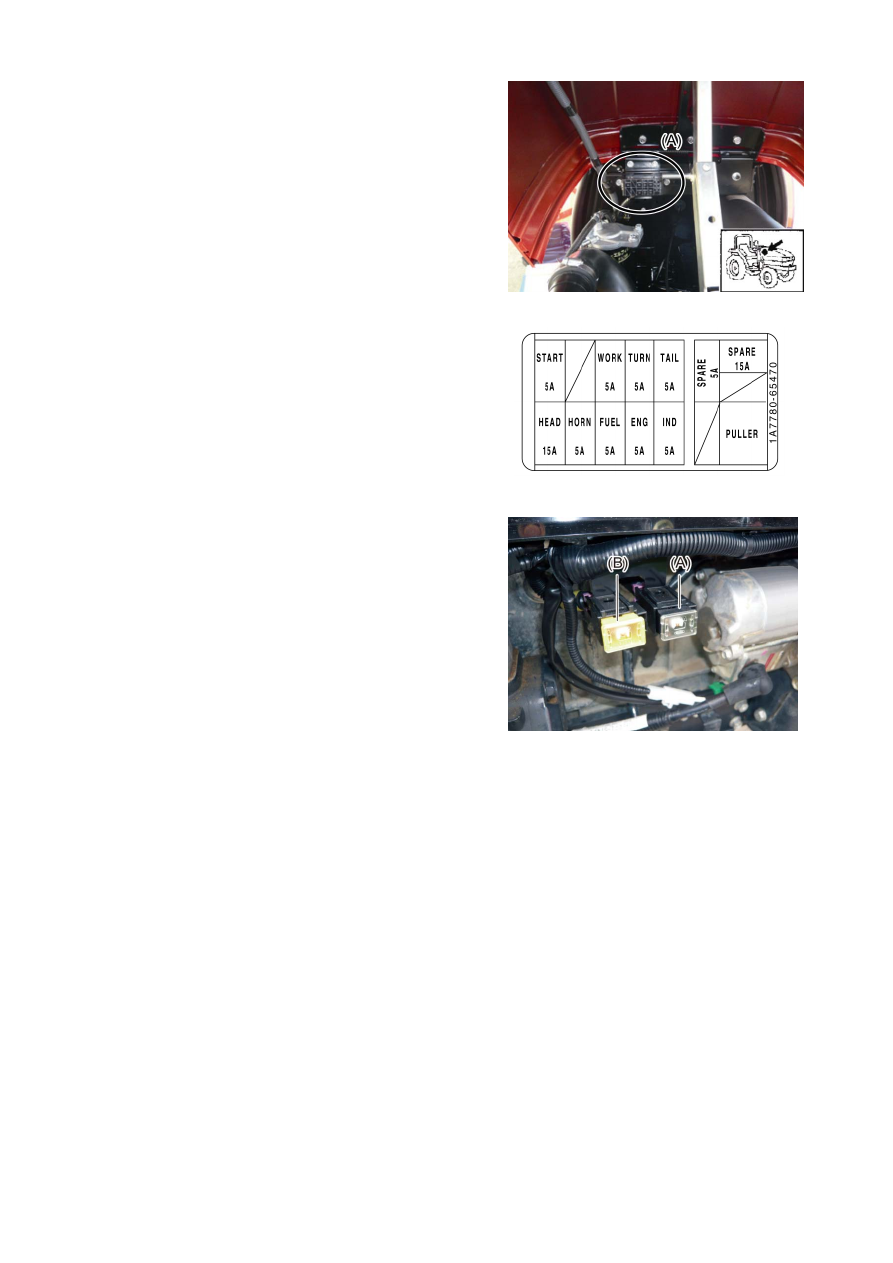

18. Replacing

fuse


Remove the lid of the fuse box and check the fuse.
Replace the blown fuse with new one.
Stop the engine and check the main fuse (slow blow
fuse) which shuts off the electrical circuit when an
excessive current flows. Fused condition can be
checked by the changed color of the outer sheath.


(A) Fuse box









START  : Starter motor

5A

WORK  : Working light

5A

TURN   : Turn signal light  5A
TAIL

: Tail light

5A

HEAD   : Head light

15A

HORN   : Horn

5A

FUEL   : Fuel pump

5A

ENG   : Timer relay

5A

IND

: Indicator light

5A













(A) Main fuse: 60A
(B) Alternator fuse: 60A










EF494T OM

71

19. Checking

tires

Adjust the air pressure of front and rear tires to the
standard pressure. Check the tires for cracks or damage.
Adjust the front tire pressure for a maximum in the
following table if a load is to be imposed on the front tires
through the front weight or front loader.


Air pressure (kg/cm

2

)

Front tire

2.4

Rear tire

2.0




Fastening torque (Front and rear)

Fixing bolts for wheel and axle shaft:



186 N-m (19 kgf-m)







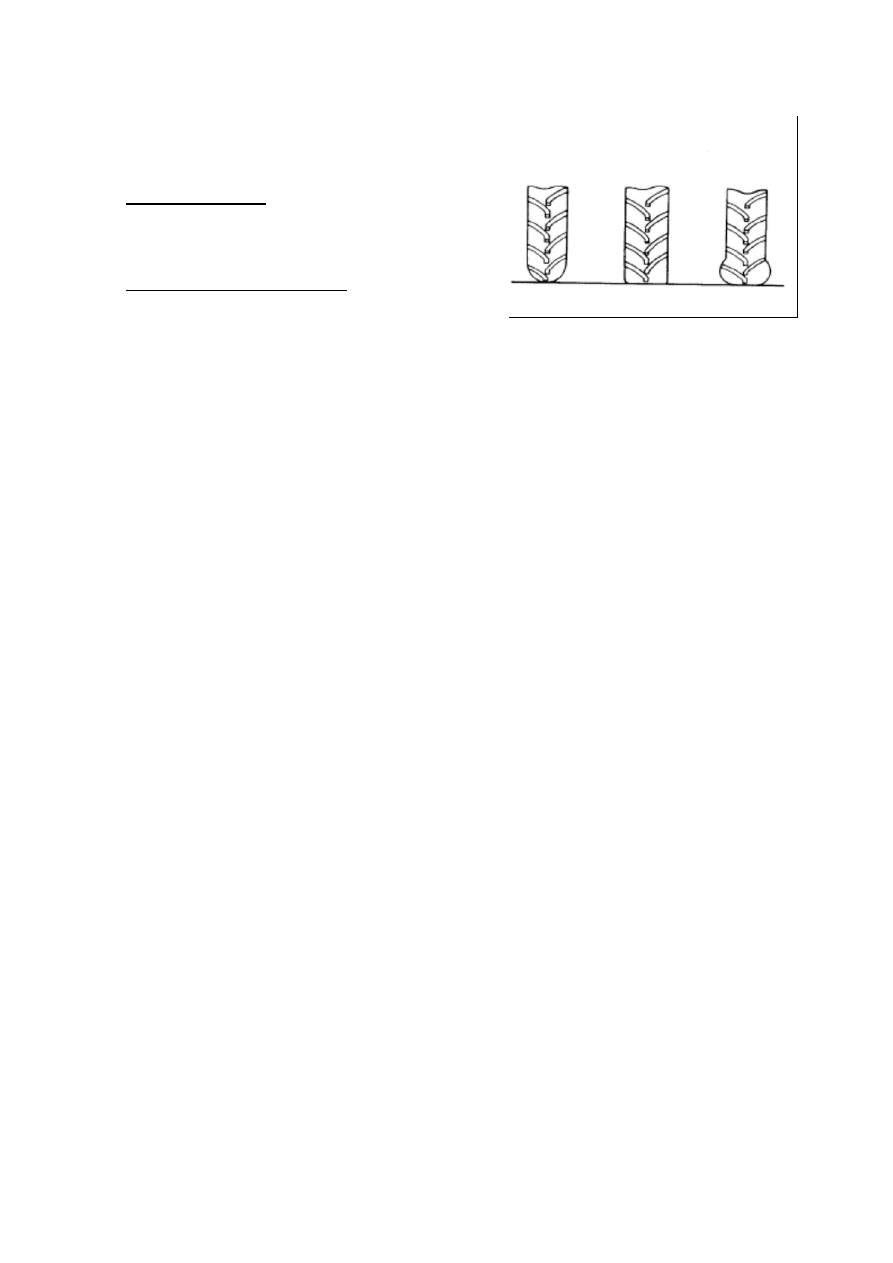

Excessive Standard  Insufficient



20.

Color of exhaust gas

The color of exhaust gas is black when the engine is
started and gray during normal operation.

Black: Incomplete combustion due to dense fuel
White: Engine oil is burning. Normal exhaust may
 look white at extremely low temperature.

If exhaust gas is black or white without a load on the
tractor, consult your service representative.
