Yanmar diesel tractor EF494T. OPERATOR'S MANUAL - part 17





EF494T OM

64

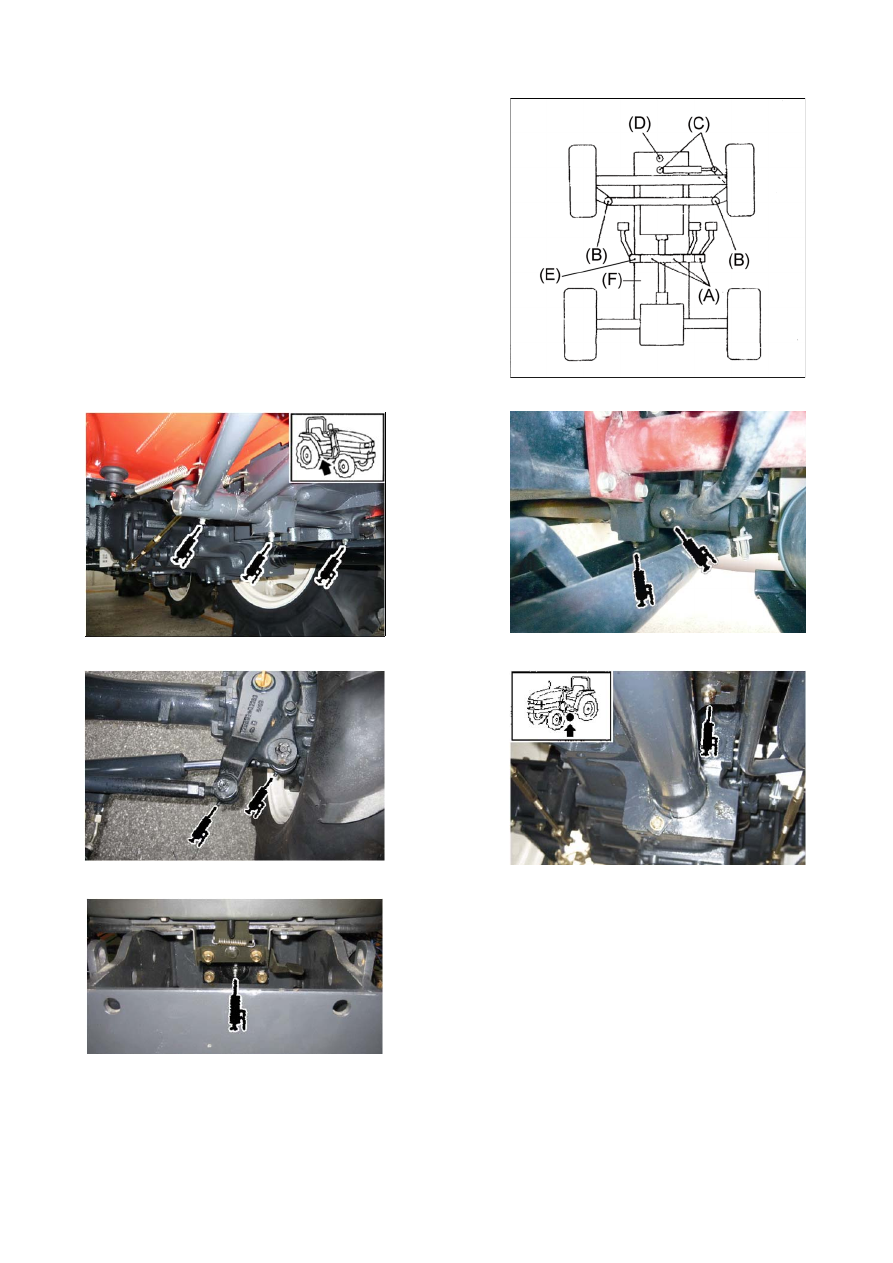

12. Greasing

Before initiating day's work, check the greasing condition
at each point. Grease up after a work on a muddy field.
As a general rule, grease up various points at intervals
of 50 hours.


(A) Brake pedal shaft
(B) Tie rod
(C) Power steering rod
(D) Front center pin
(E) Clutch pedal shaft
(F) Range shift lever







(A)



(E)


(B) (C)





(F)



(D)











EF494T OM

65

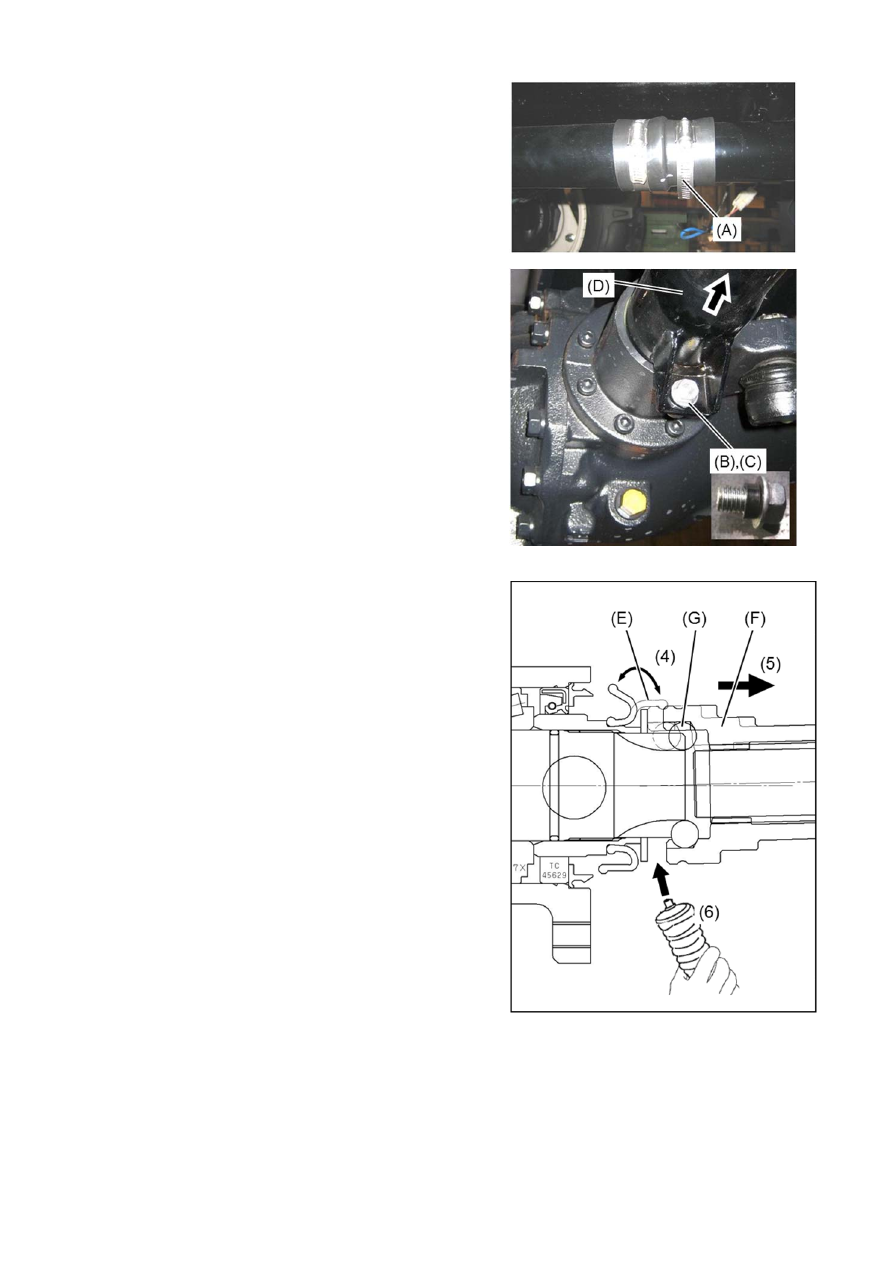

Lubricating propeller shaft with grease

Lubricate the propeller shaft connection with grease
every 500 hr.  When working in the wet field, shorter
lubrication intervals are suggested.

1. Front end


(1) Loosen the band (A).

(2) Remove the bolt (B) and the collar (C).

(3) Slide the front shaft cover (D) backward as the

right picture shows.


(A) Band
(B) Bolt
(C) Collar
(D) Front shaft cover









(4)

 Turn over the rubber boots (E) as the right

illustration shows.


(5) Slide the coupling (F) backward as the right

illustration shows.

※Be careful not to lose ball (G).


(6)

 Apply enough multipurpose grease to six balls (G).


(7) Turn back the rubber boots (E) to their original

position.


(8) Fix the front shaft cover (D) to front axle support

with bolt (B) and collar (C).

※Be sure to install collar (C).  If not, the front shaft

cover may be broken in a short time.










EF494T OM

66

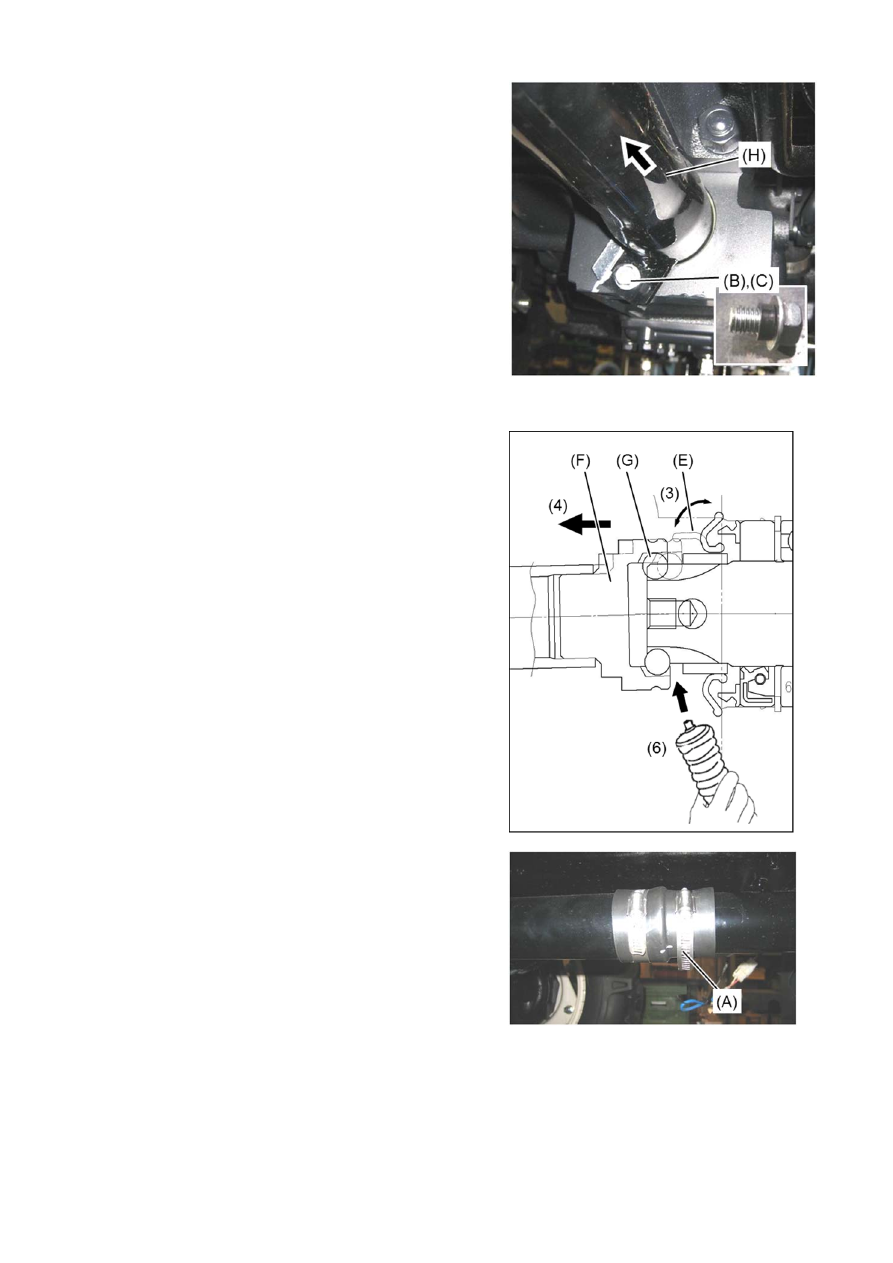

2. Rear end


(1) Remove the bolt (B) and collar (C) from rear shaft

cover (H).


(2) Slide the rear shaft cover (H) backward as the right

picture shows.









(3) Turn over the rubber boots (E) as the right

illustration shows.


(4) Slide the coupling (F) frontward as the right

illustration shows.

※Be careful not to lose ball (G).


(5) Apply enough multipurpose Grease to six balls

(G).


(6) Turn back rubber boots (E) to their original

position.


(7) Fix the rear shaft cover (H) with bolt (B) and collar

(C).

※ Be sure to install the collar (C).  If not, the rear

shaft cover may be broken in a short time.


(8) Tighten the band (A).















EF494T OM

67

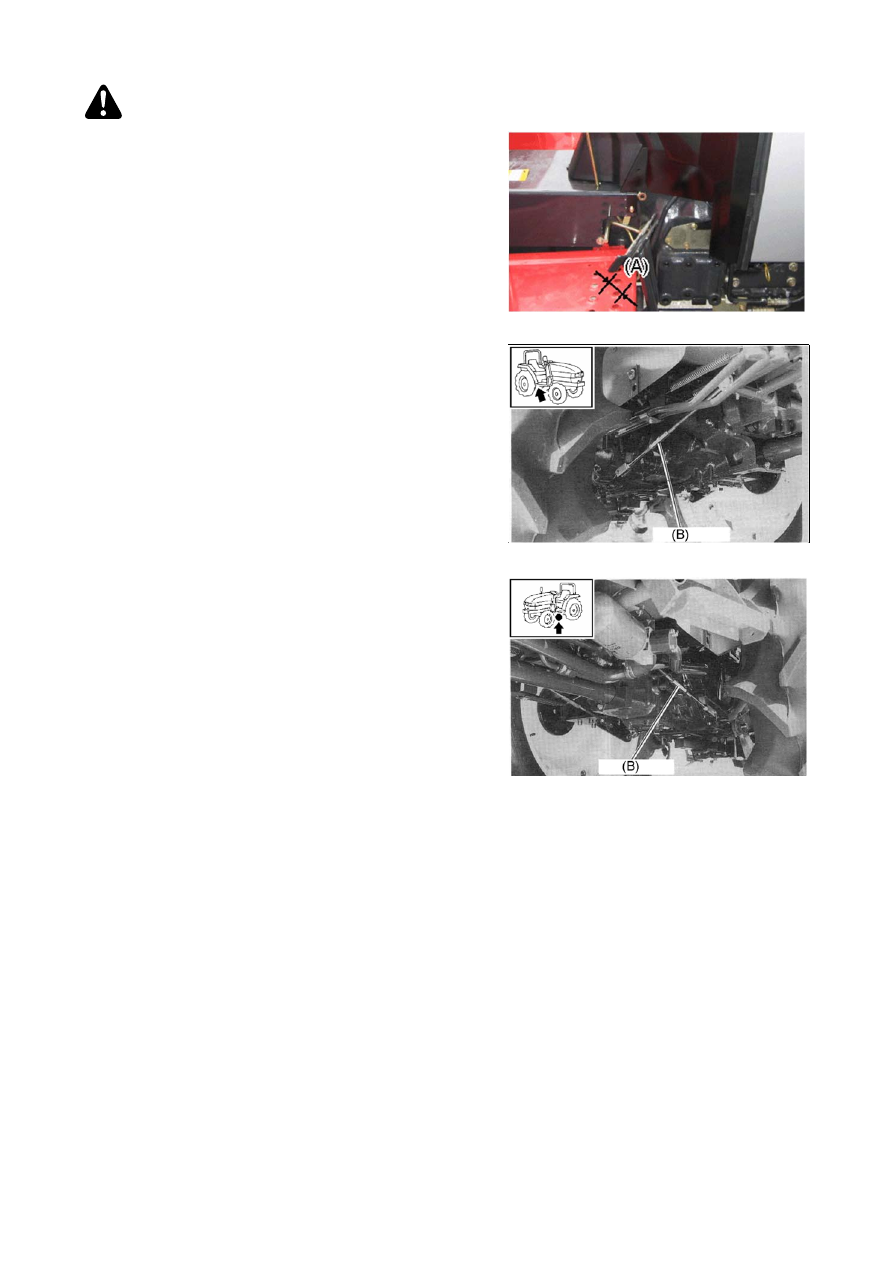

13. Adjusting

brake

 WARNING

  Check if the brake is effective or not one-sided. An

accident can result.


  Unbalanced play at left and right brake pedals can

cause one-sided braking effect. Keep the same
amount of play; otherwise, an accident can result.


Depress the brake to see a required play of 30-40 mm is
available and if the left and right pedals work together. If
not, adjust the turnbuckles behind the pedals for a play
of 30 mm. Secure the turnbuckle with the lock nuts.
Make sure the parking brake lock is put on when the
brake pedals are fully stepped in.


(A) Play 30-40 mm
(B) Turn buckle









Right brake


Left brake
