Oil and grease

OIL, GREASE

TYPE

Fuel

Diesel fuel only

Engine oil

SAE 30 or 40 API Grade CD or better

Grease Multipurpose

Grease

Transmission oil, Hydraulic
system oil

TF-500 Transmission fluid

* At temperature below – 10°C, use Super No.3 light oil.


3. Oil and water volume

(Unit: liters)

 EF453T  OIL

TYPE

Fuel

40

Diesel light oil

Cooling Radiator

4

Anti-rusting

fluid

water Sub-tank  0.45

Anti-rusting

fluid

Engine oil

5.3

SAE 30 or 40

Transmission oil

27

TF-500A Transmission fluid

Front axle oil

7.5

TF-500A Transmission fluid, SAE 90





4. Replacing

oil

 DANGER

Never add oil while the engine is warm or running.
A fire may occur.


 CAUTION

Never add oil just after stopping the engine. You may be
burned.





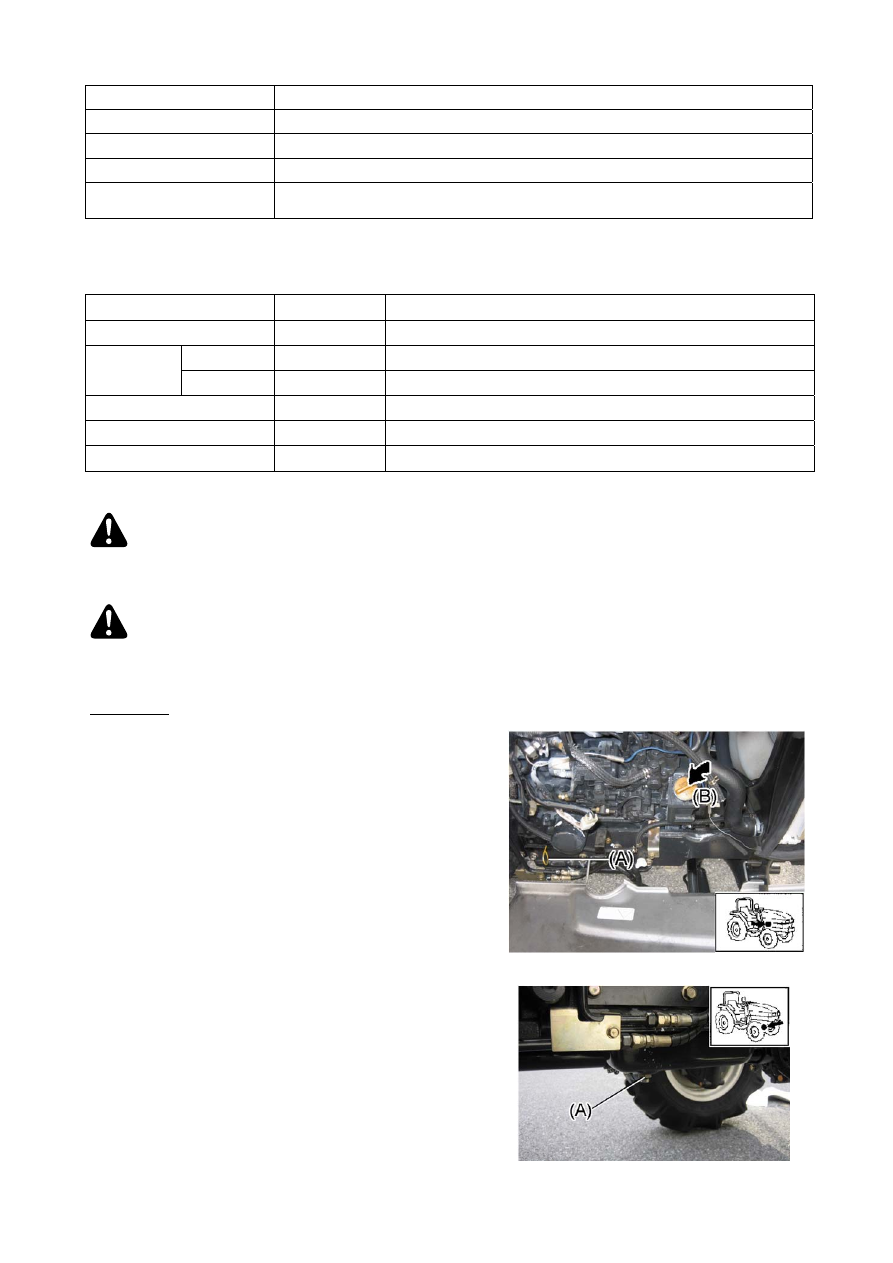

Engine oil

Check

Draw out the oil gauge on the right side of the engine and
wipe off oil with a cloth. Reinsert and remove it again to
see if the oil level is within the upper and lower marks.

If insufficient, add the new oil as much as the normal level
through the supply port.


(A) Oil gauge
(B) Oil supply port


NOTE:
Check the oil level before the engine starts or when the
engine is cool.






Replacing oil



Remove remaining oil through the drain plug on the lower
part of the engine. Add the new oil through the oil supply
port. Select a proper type of engine oil and replace it
periodically considering the temperature and operating
conditions.


(A) Drain plug









EF494T OM

57

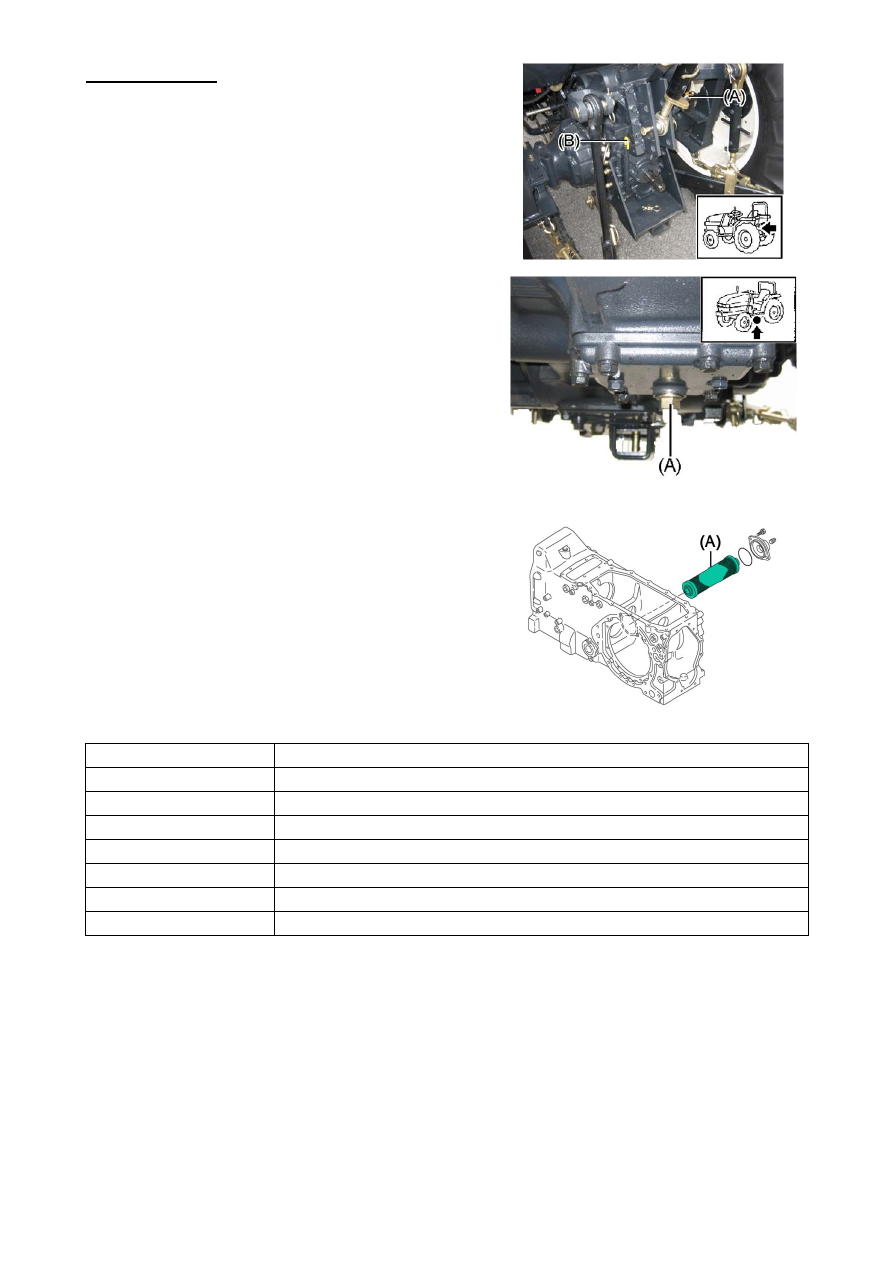

Transmission oil

Check

Draw out the oil gauge on the rear part of the transmission
and check the oil level. The level should be between the
upper and lower limits. If insufficient, add the new oil to the
normal level. Also check for leaks.


(A) Oil supply port
(B) Oil gauge



Replacing oil

Remove the remaining oil through the drain plugs on the
bottom of the transmission case. Removal is easy if the
transmission case is warm. Add the new oil through the
supply port on the rear part.

  Transmission oil is commonly used with hydraulic oil

and power steering oil.


  Use Yanmar transmission fluid TF-500 or equivalent for

transmission oil.



(A) Drain plug



Cleaning transmission oil strainer


When replacing transmission oil, wash the oil strainer with
diesel fuel.



(A) Oil strainer





Equivalent to TF-500A

SUPPLIER BRAND

NAME

Mobil

Mobil Fluid 425, 424

Castrol

Agricastrol MP, CASTROL UTF

Shell

Tellus Oil 32 or 37, Donax TD

Ford ESN-M-2C-134A

Esso

Torque Fluid 56

John Deere

J20B, J14A

BP Tractran

UTH






EF494T OM

58

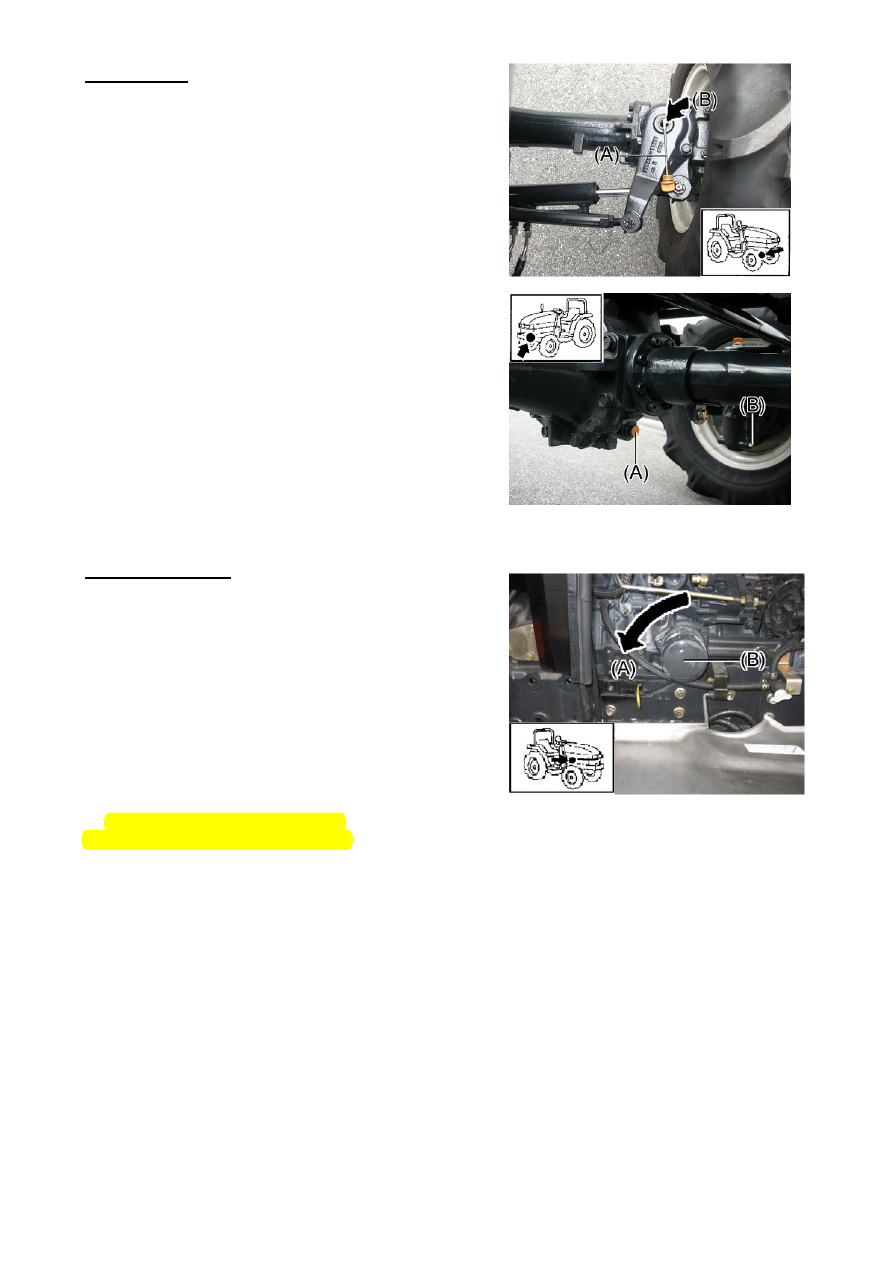

Front axle oil

Check

Remove the oil gauge plug on the top of the front axle.
Wipe off the gauge rod and reinsert it without screwing.
Redraw it and see if the oil level is within the upper and
lower marks. If insufficient, add the new oil through the oil
supply port to the normal level. Check also for oil leak.


(A) Oil gauge plug
(B) Oil supply port



Replacing oil

Remove oil through center drain plug on the lower part of
the front axle and drain plugs on the bottom of the right and
left gear cases. Add oil through the right port.

Use Yanmar TF500A transmission fluid, or carrier red 80B,
or equivalent for front axle oil.


(A) Center drain plug
(B) Gear case drain plug






5.

Replacing oil filter elements



Engine oil element

Replace the engine oil element at intervals of 300 hours or
every 2-3 times of replacing the engine oil.


(A) Turn left to detach
(B) Oil element



Replacing oil

(1) Remove engine oil and turn the cartridge anticlockwise

with a filter wrench.

(2) Apply a slight coating of oil on the rubber ring on the

bottom of the new cartridge. Mount the cartridge with a
filter wrench.

(3) After replacing the engine oil, run the engine until the

engine lubricating oil lamp goes off.

(4) When the engine lubricating oil lamp goes off, again

check the oil level with the gauge. If insufficient, add the
oil.












EF494T OM

59

Line filter (Transmission oil element)

The line filter is of a cartridge type. Replace it with a new
one at intervals of 300 hours thence.


(A) Line filter



Replacement

(1) Remove the transmission oil and remove the cartridge

by turning it anticlockwise.

(2) Apply a slight coating of oil on the rubber ring on the

bottom of the new cartridge. Mount the cartridge
securely.

(3) After replacing the transmission oil, idle the engine and

check the oil level with an oil gauge. If insufficient, add
the oil.











6. Engine

coolant

 DANGER

Never open the radiator cap when the engine is hot.  Hot
steam and boiled water may blow out and you may suffer
severe burns.


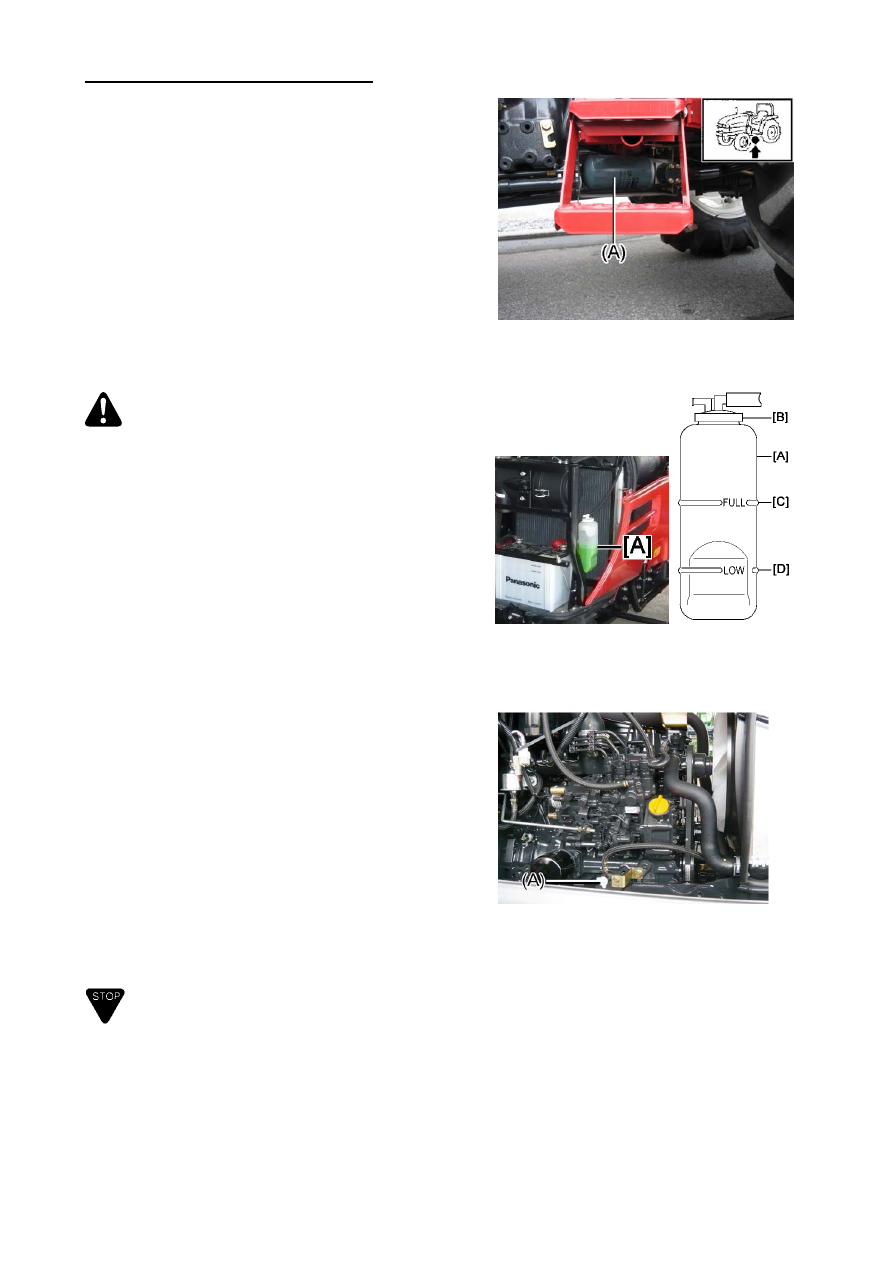

Check

Open the bonnet and check water level in the sub-tank
whether water is between “FULL” and “LOW” marks. If
water is insufficient, remove sub-tank cap and add clean
water.
Be sure to close the sub-tank cap firmly.










[A] Sub-tank
[B] Sub-tank cap
[C] Upper limit (FULL)
[D] Lower limit (LOW)


Replacing coolant

(1) Remove the coolant drain plug and drain cooling

water.  It is easier for draining to open radiator cap.


(2) Clean the inside of radiator with tap water until dust

or rust does not come out.
It is suggested to use radiator detergent.  Fill radiator
with water and detergent and run the engine in idle
speed for more than 15 minutes.  Drain the water.


(3) Fill radiator with clean water.

It is recommended to mix anticorrosive.  Run the
engine for about 5 minutes in idle speed to mix water
and anticorrosive.




 IMPORTANT

The mixing ratio of anticorrosive varies depend on
manufacturer.  Follow the instruction of its manufacturer.




(A) Coolant drain plug
