EF494T OM

72

TROUBLESHOOTING

In case of abnormality of machine, stop the engine and locate a problem by referring to the following table.

1. Engine

parts

PROBLEM POSSIBLE

CAUSE

RESPONSE

Won't start by main switch

Shift lever in N?


Set each shift levers in N. Under this condition,
turn the main switch to START.

Is battery liquid at normal level?
Battery nor discharged?

Add the battery liquid to the normal level. Charge
the battery.

Check the battery terminals for
looseness or rust.

Clean and fasten the terminals. Apply grease
coating to avoid rusting.

Main fuse blown

Replace the fuse with new one.

Switch trouble

Have it repaired by the service representative.

Starter trouble

Have it repaired by the service representative.

Self-starter running but the
engine fails to start

No fuel

Add the fuel and remove air.

Air in the fuel

Remove air from the fuel.

Fuel cock in the C position

Put the fuel cock in the 0 position.

Engine runs irregularly

Air in the fuel supply system

Bleed air.

Water mixed in the fuel

Remove water and replace with light oil

Jet nozzle clogged

Replace or repair the nozzle.

Clogged fuel filter


Clean or replace the filter element.

Engine overheating

Lack of cooling water

Add cooling water.

Loosened or damaged fan belt

Adjust the tension of belt or replace the belt with
new one.

Clogged radiator fins

Clean the radiator fins.

Running out of engine oil

Add engine oil.

Overloaded

Reduce the load.

Low engine power

Clogged air cleaner

Check the air cleaner.

Burnt nozzle

Have it repaired by the service representative.

Low compression

Have it repaired by the service representative.

Valve clearance incorrectly
adjusted

Have it repaired by the service representative.

Incorrect timing of fuel jet

Have it repaired by the service representative.

Oil pressure lamp lighting

Lack of engine oil

Add engine oil to the normal level.

Low engine oil viscosity

Use the oil with adequate viscosity.

Damaged pressure switch

Replace the switch.

Damaged oil pump

Have it repaired by the service representative.

Charge lamp lighting

Damaged alternator

Have it repaired by the service representative.

Loosened or damaged fan belt

Adjust the tension of the belt or replace the belt.



EF494T OM

73

2.

Clutch, brake and related parts

PROBLEM POSSIBLE

CAUSE

RESPONSE

Clutch not effective

Is pedal play proper?

Adjust the play of pedal.

Brake not effective or effective
one sided

Is brake pedal play proper?

Adjust the play of brake pedal.

Brake pedal not returning

Return spring is broken

Change the return spring.

quickly or it creeks

Lack of grease in sliding mechanism

Remove rust and apply grease.

3. Hydraulic

system

PROBLEM POSSIBLE

CAUSE

RESPONSE

Impossible to raise the
attachment implements

Hydraulic stop-slow turn valve and slow
return valves are close.

Open the hydraulic stop-slow turn
valve and slow return valves.

Lack of transmission oil

Replenish oil to the normal level.

Air is sucked through the suction pipe

Fasten the filter case and fittings.
Replace damaged pipes or O-rings.

Clogged oil filter

Clean or replace the oil filter.

Damaged hydraulic pump

Have it repaired at your service
representative.

Dusty control valve. O-rings worn

Have it repaired at your service
representative.

Damaged cylinder

Have it repaired at your service
representative.

Impossible to lower the
attachment implements

Hydraulic stop-slow turn valves are
close

Open the hydraulic stop-slow turn valves.

Dusty control valve. O - rings worn

Have it repaired at your service
representative.

Damaged cylinder

Have it repaired at your service
representative.

4. Electric

system

PROBLEM POSSIBLE

CAUSE

RESPONSE

Headlight not lighting

Bulb blown

Replace the lamp.

Fuse blown

Replace the fuse with new one.

Disconnected wiring to the socket

Correct the wiring.

Poor contact

Clean the terminals for better contact.

Flasher lamp not light

Bulb blown

Replace the lamp.

Fuse blown

Replace the fuse with new one.

Failure of flasher unit

Replace the flasher unit.

Poor contact of flasher lines

Check connections of the earth line and
termination.

Lamps not lighting

Bulb blown

Replace the lamp.

Fuse blown

Replace the fuse with new one.

Poor contact of supply lines

Check connections and correct them if
necessary.

Damaged switches

Replace the switches.

Disconnected earth lead

Reassure the connection of earth lead to the
body.

Discharged battery

Recharge the battery.

Horn not working

Fuse blown

Replace the fuse with new one.

Bad contact of horn lines

Check the horn line.





EF494T OM

74

SPECIFICATIONS

MODEL EF494T

Drive type

4-wheel Drive

Dimensions

Overall length (mm)

3,230

Overall width (mm)

1,605

Overall height (mm)

2,355

Wheelbase (mm)

1,830

Tread

Front (mm)

1,300, 1,466

Rear (mm)

1,270, 1,344

Ground clearance (mm)

375

Weight (kg)

1,540

Engine

Model 4TNV88

Type 4-cycle,

water-cooled

diesel

Output (SAE Gross) (HP/rpm)

49/2,800

Number of cylinders

Bore x Stroke (mm)

88 x 90

Displacement (cc)

2,189

Air cleaner

Dry, dual element

Fuel tank capacity (liter)

40

Battery 12V-52AH

Steering

Hydrostatic

Clutch

Dry, single

Brake

Mechanical, wet disc

Transmission

Type Collar

shift

Gear shift (Forward x Reverse)

F9 x R9

Forward speed (km/hr)

1.6-28.8

Reverses speed (km/hr)

1.7-29.7

Max. speed, forward (km/hr)

30.8

Tire

Front 8-18-6

Rear 13.6-26-8

Rear PTO

Type Transmission

PTO

PTO shaft

SAE1-3/8 inch (35mm), 6 spline

Speed (rpm)

568, 769 at rated engine speed

Hydraulic

Type Position

control

Hitch

3 point hitch, category SAE #1

Draw bar hitch

Clevis type

NOTE:
All technical data, measurement and weight are approximate, and the manufacturer has the right to make
alteration without prior notice.

TRACTOR MASS AND TIRE SPECIFICATION

TIRE SIZE

(Number of plies)



FRONT AXLE

REAR AXLE

Maximum
working load of
tires

Technically
permissible mass
on each axle

Maximum
working load of
tires

Technically
permissible mass
on each axle

F: 8-18(6), R: 13.6-26(8)

kg



650 980 1,580

1,675



 IMPORTANT

Set up the implement so that the front wheel load and the rear wheel load are not greater than the
smaller of the following: the permissible load capacity of the tires or the technically permissible
mass on each axle.


EF494T OM

75

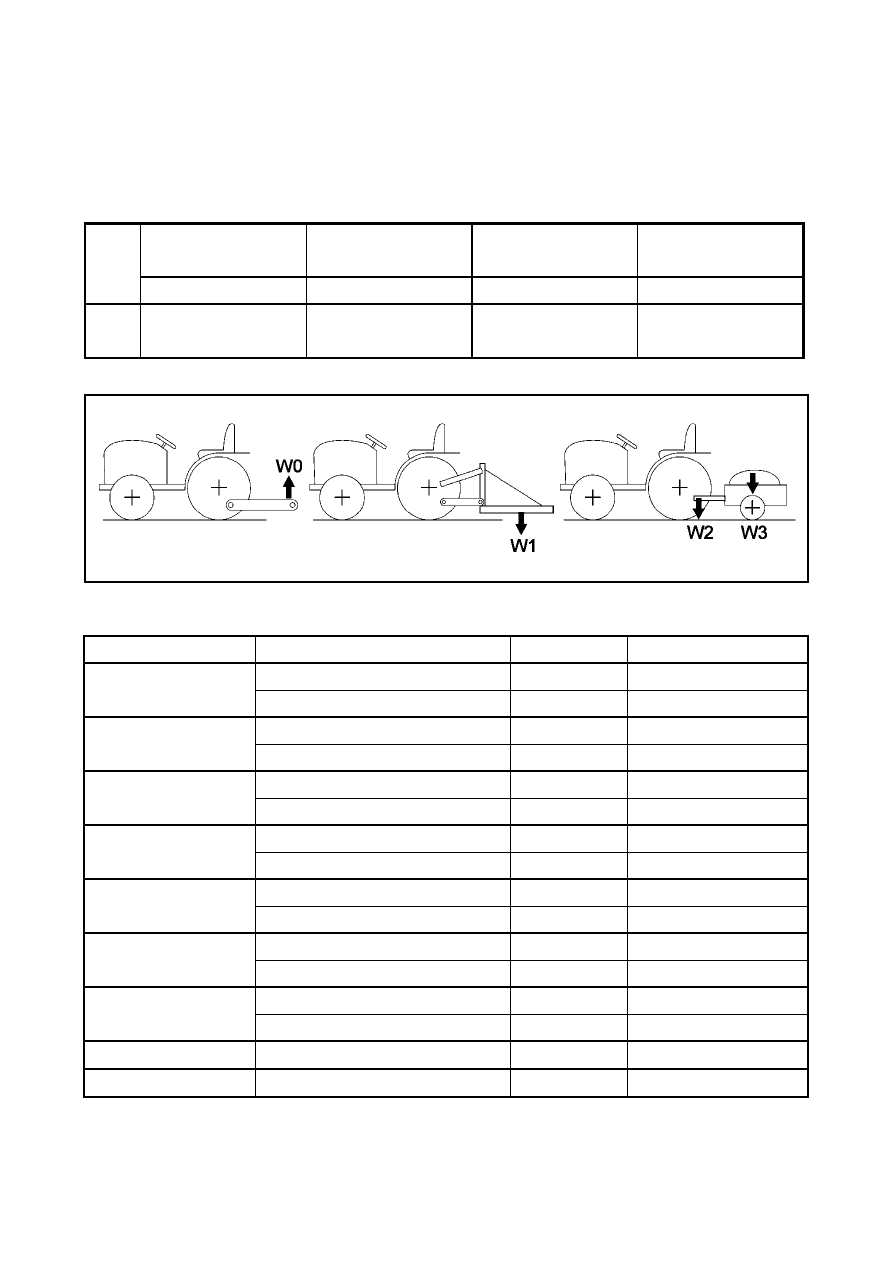

IMPLEMENT CAPACITIES


The Yanmar tractor has been carefully tested in the configuration equipped with implements sold or
approved by Yanmar and has proved to perform property.  Do not use any implement that has not been sold
or recommended by Yanmar, or that fails to satisfy the specified values given below.  Using with implements
that are not approved by Yanmar could result in malfunction, failure, and damage to the tractor and/or
implement, and increase the possibility of injury to the operator or other people.  The Yanmar warranty does
not cover any malfunction or failure that results from use of an unapproved implement.





Lower link end

maximum lifting

capacity

Implement weight

and size

Maximum drawbar

load

Trailer loading weight

maximum capacity



W0 W1 W2 W3

kg 1,350

As specified in the

implement capacity

list

500 2,325










Implement capacity list

Implement Description Unit

Maximum

Amount

Rotary

Tilling Width

1.9

Weight kg

350

Disc plough

Disc Size(inch) & Total disc

Inch x disc

22X4, 24X3

Weight kg

300

Poly disc plough

Disc Size(inch) & Total disc

Inch x disc

22X6, 24X6

Weight kg

355

Front blade

Width m

1.8

Weight kg

400

Sun roof

Weight kg

35

Length x Width

1620 x 1270

Grass cutter

Width m

1.4

Weight kg

250

Trailer

Load Capacity

kg

2325

Drawbar Load

kg

500

Front weight

Weight

kg

150

Rear wheel weight

Weight, one side

kg

60
