Kubota tractor (BX25DLB-AU, LA240A, LA240A, AU-SG, BT602). OPERATOR'S MANUAL - part 10

9

SPECIFICATIONS OF THE BACKHOE

SPECIFICATIONS OF THE BACKHOE

BACKHOE SPECIFICATIONS

B

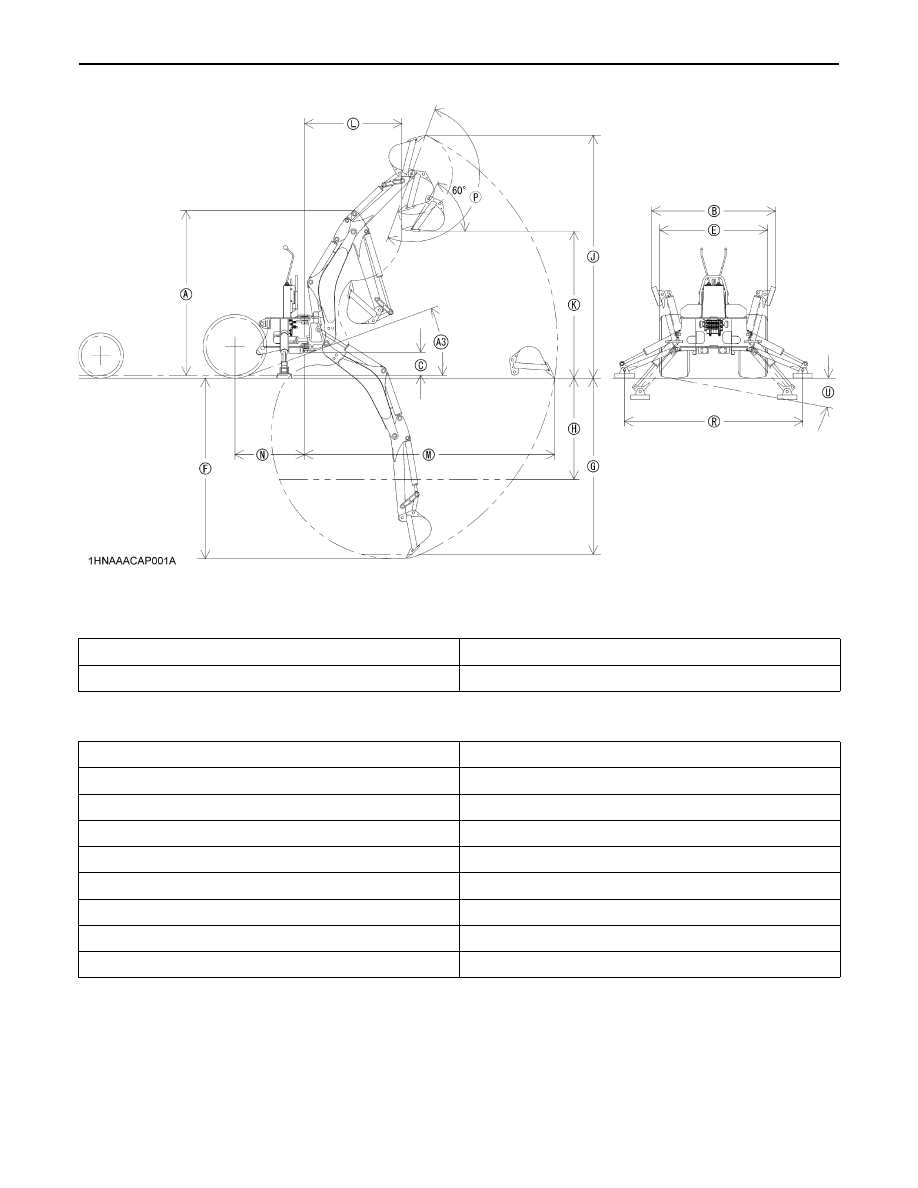

Dimensions

A

The specifications are taken with KUBOTA BX25DLB tractor. (Tire size : Front 18 X 8.5-10, Rear 26 X 12.00-12)

Model

BT602

Transport height

(A)

1719 mm

Stabilizer spread-transport

(B)

1296 mm

Ground clearance

(C)

240 mm

Overall width

(E)

1128 mm

Maximum digging depth

(F)

1889 mm

Digging depth, 2 ft. flat bottom

(G)

1842 mm

Digging depth, 8 ft. flat bottom

(H)

1059 mm

Operating height, fully raised

(J)

2539 m

Loading height

(K)

1533 mm

Loading reach

(L)

1016 mm

Reach from swing pivot

(M)

2612 mm

Swing pivot to rear axle center line

(N)

726 mm

Bucket rotation

(P)

180 deg.

Stabilizer spread-operating

(R)

1862 mm

Angle of departure per SAE J1234

(A3)

20.1 deg.

Leveling angle

(U)

11 deg.

Swing arc

140 deg.

10

SPECIFICATIONS OF THE BACKHOE

B

Specifications

Digging force (Per SAE J49)

Cycle Time (seconds)

With bucket cylinder

8610 N

With dipperstick cylinder

5209 N

Boom cylinder, extend

4.5

Boom cylinder, retract

3.7

Swing cylinder, from 90 degrees to center

1.5

Dipperstick cylinder, extend

4.1

Dipperstick cylinder, retract

3.4

Bucket cylinder, extend

3.1

Bucket cylinder, retract

2.4

Stabilizer cylinder, max. height to ground

2.9

Stabilizer cylinder, ground to max. height

2.3

11

SPECIFICATIONS OF THE BACKHOE

Hydraulic cylinders

Bucket Sizes

Boom

cm

Dipperstick

cm

Bucket

cm

Stabilizer

cm

Swing

cm

Rod diameter

3.0

2.5

2.5

2.5

3.0

Cylinder bore

6.5

6.0

5.0

6.0

6.0

Width

cm

SAE truck

Capacity

m

SAE Heaped

Capacity

m

Number

of

Teeth

Weight

kg

Trenching 8"

20.3

0.009

0.011

2

10

Trenching 12"

30.5

0.014

0.020

3

13

12

SPECIFICATIONS OF THE BACKHOE

B

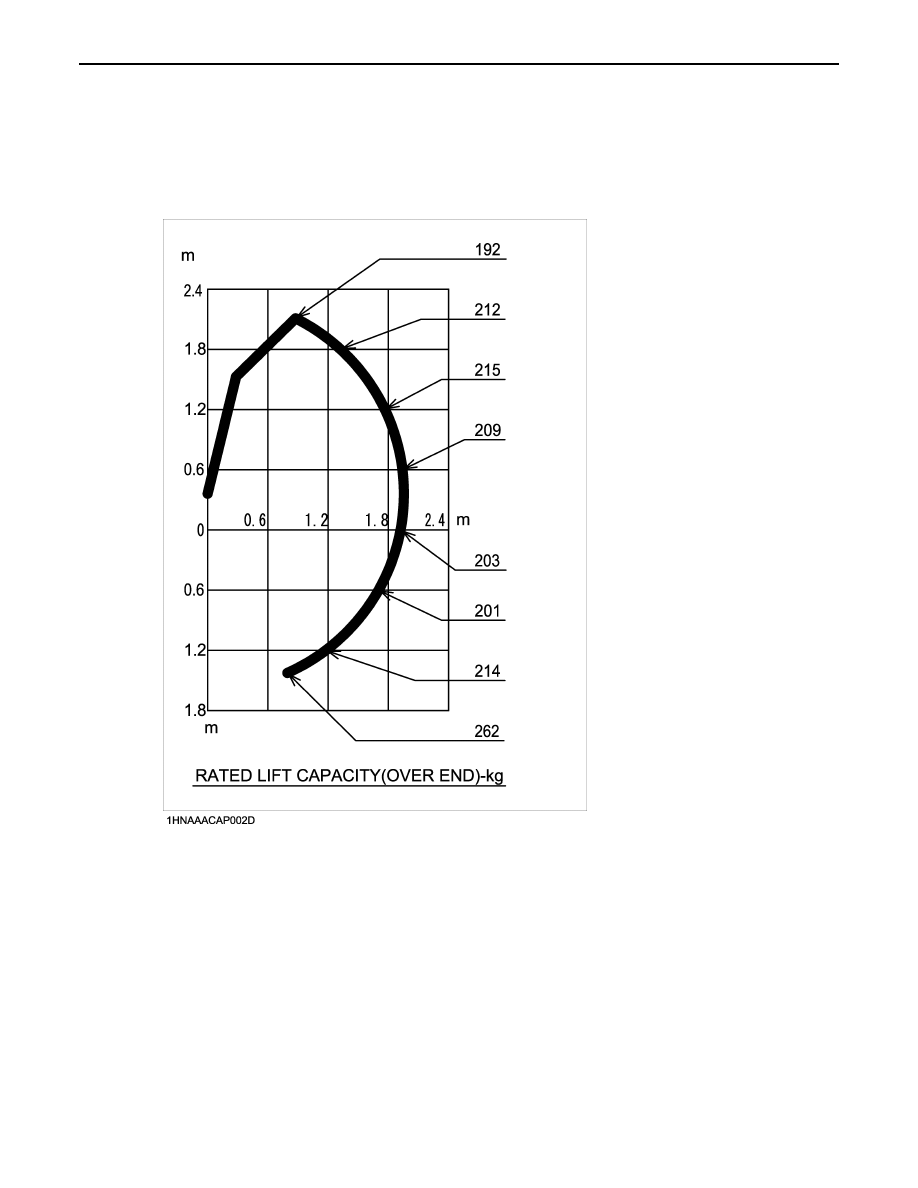

Lift Capacity (Per SAE J31)

Lift capacities shown are 87% of maximum lift force, according to SAE definition.
