13

SPECIFICATIONS OF THE BACKHOE

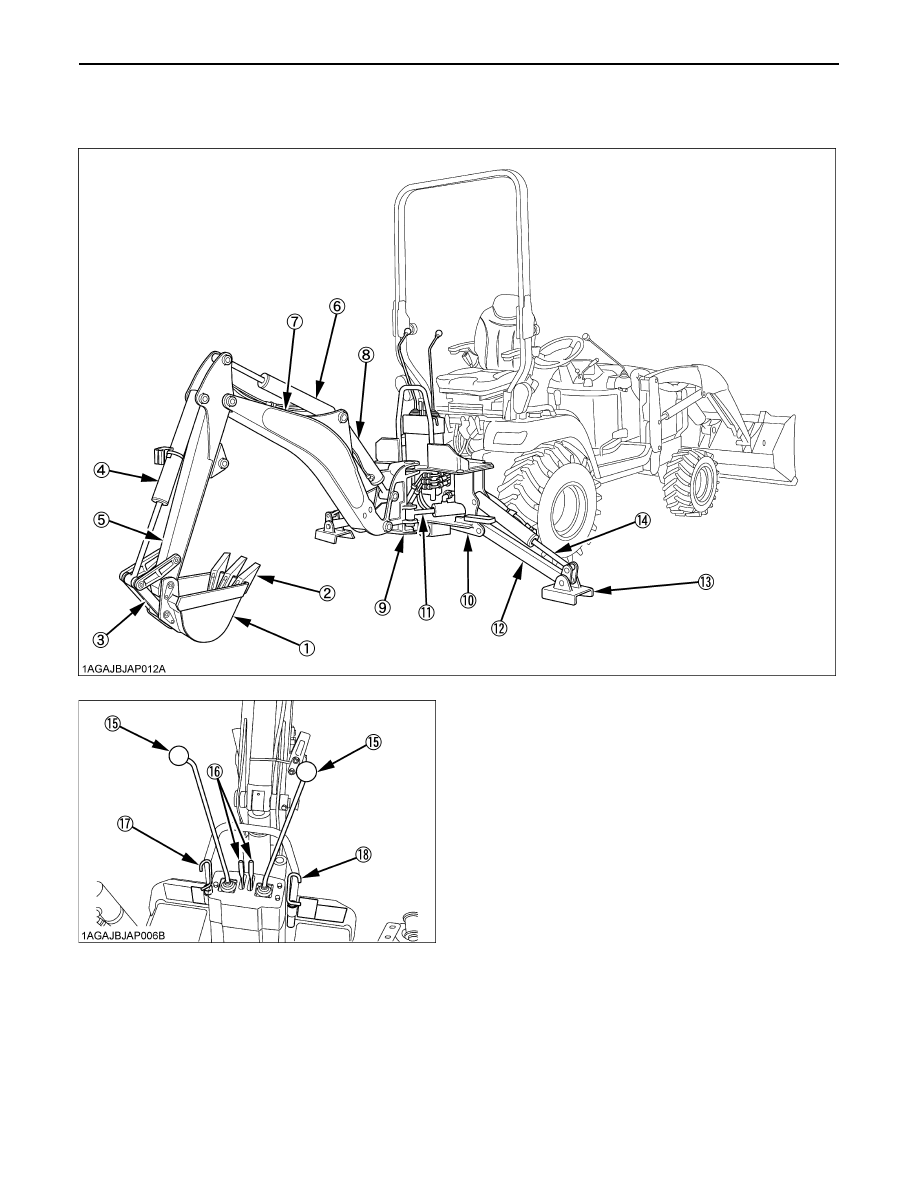

BACKHOE TERMINOLOGY

(1) Backhoe bucket
(2) Bucket teeth
(3) Bucket link
(4) Bucket cylinder
(5) Dipperstick
(6) Dipperstick cylinder
(7) Boom
(8) Boom cylinder
(9) Swing frame
(10) Main frame
(11) Swing cylinder
(12) Stabilizer
(13) Stabilizer pad
(14) Stabilizer cylinder
(15) Joystick control
(16) Stabilizer control
(17) Swing lock pin
(18) Boom lock pin

14

IMPLEMENT LIMITATIONS

IMPLEMENT LIMITATIONS

The KUBOTA Tractor has been thoroughly tested for proper performance with implements sold or approved by KUBOTA.
Use with implements which are not sold or approved by KUBOTA and which exceed the maximum specifications listed
below, or which are otherwise unfit for use with the KUBOTA Tractor may result in malfunctions or failures of the tractor,
damage to other property and injury to the operator or others. [Any malfunctions or failures of the tractor resulting from use
with improper implements are not covered by the warranty.]

A

Implement size may vary depending on soil operating conditions.

A

Strictly follow the instructions outlined in the operator’s manual of the mounted or trailed machinery or trailer, and do
not operate the combination tractor - machine or tractor - trailer unless all instructions have been followed.

A

Forestry Application
Following hazards exist;
(a) toppling trees, primarily in case a rear-mounted tree grab-crane is mounted at the rear of the tractor;
(b) penetrating objects in the operator’s enclosure, primarily in case a winch is mounted at the rear of the tractor.
Optional equipments such as OPS (Operator Protective Structure), FOPS (Falling Object Protective Structure), etc. to
deal with these hazards and other related hazards are not available for this tractor. Without such optional equipment
use is limited to tractor specific applications like transport and stationary work.

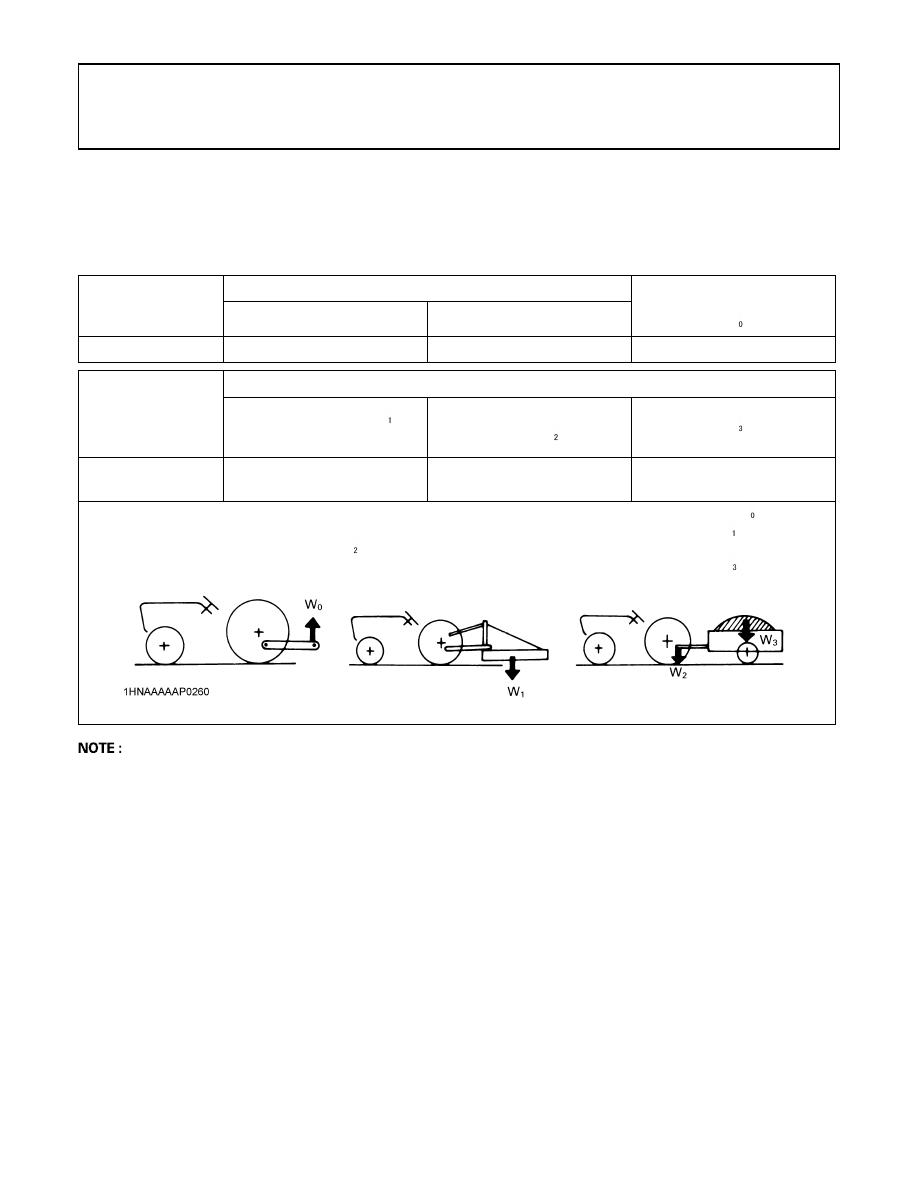

Tread (max. width)

Lower link end max.

lifting weight

W

Front

Rear

BX25DLB-AU

910 mm

820 mm

550 kg

Actual figures

Implement weight W

and / or size

Max. Hitch

 Load W

Trailer loading weight

W

Max. capacity

BX25DLB-AU

As in the following list

(Shown on the next page)

250 kg

800 kg

Lower link end max. lifting weight........The max. allowable load which can be put on the lower link end : W
Implement weight....................................The implement's weight which can be put on the lower link : W
Max. hitch load........................................W
Trailer loading weight .............................The max. loading weight for trailer (without trailer's weight) : W

15

IMPLEMENT LIMITATIONS

*1  KUBOTA provides BT602 Backhoe for BX25DLB-AU.
      No other Backhoe installed by 3-point hitch is permitted for BX25DLB-AU.
*2  KUBOTA provides LA240A, LA240A AU-SG Front-end Loader for BX25DLB-AU.
*3  The value contains the weight of KUBOTA standard bucket.
*4  Reduce speed and trailer loads when operating in slippery conditions or when operating on slopes and utilize front wheel
     drive.

A

Implement size may vary depending on soil operating conditions.

Implement

Remarks

BX25DLB-AU

Backhoe *1

Max. Digging Depth               mm

1840

Max. Weight                             kg

262 w/o Bucket

Front-end loader *2

Max. lifting capacity                 kg
(Bucket pivot pin, max. height) *3

340

Max. width                               cm

122

Sub frame

Necessary

Mower

Mid-mount

Max. cutting width                    cm

152

Max. weight                             kg

115

Rotary-Cutter
(1 Blade)

Max. cutting width                   cm

107

Max. weight                            kg

140

Rear-mount
(2 or 3 Blade)

Max. cutting width                   cm

152

Max. weight                            kg

140

Flail-mower

Max. cutting width                   cm

107

Sickle bar

Max. cutting width                   cm

122

Rotary tiller

Max. tilling width                      cm

107

Max. weight                            kg

170

Bottom plow

Max. size                                       in.

14 x 1

Disc plow

Max. size                                       in.

22 x 1

Cultivator

Max. size                                 cm

122

1 Row

Disc harrow

Max. harrowing width              cm

137

Max. weight                            kg

140

Sprayer

Max. tank capacity                         L

150

Front blade

Max. cutting width                    cm

152

Sub frame

Necessary

Rear blade

Max. cutting width                    cm

152

Max. weight                            kg

160

Box blade

Max. cutting width                    cm

122

Max. weight                               kg

170

Snow blower (Front)

Max. working width                 cm

127

Max. weight                               kg

160

Sub frame

Necessary

Post hole digger

Digging depth                             cm

114

Rotary broom

Cleaning width                          cm

119

Trailer

Max. load capacity                  kg

800 *4

Max. weight                             kg

1100

16

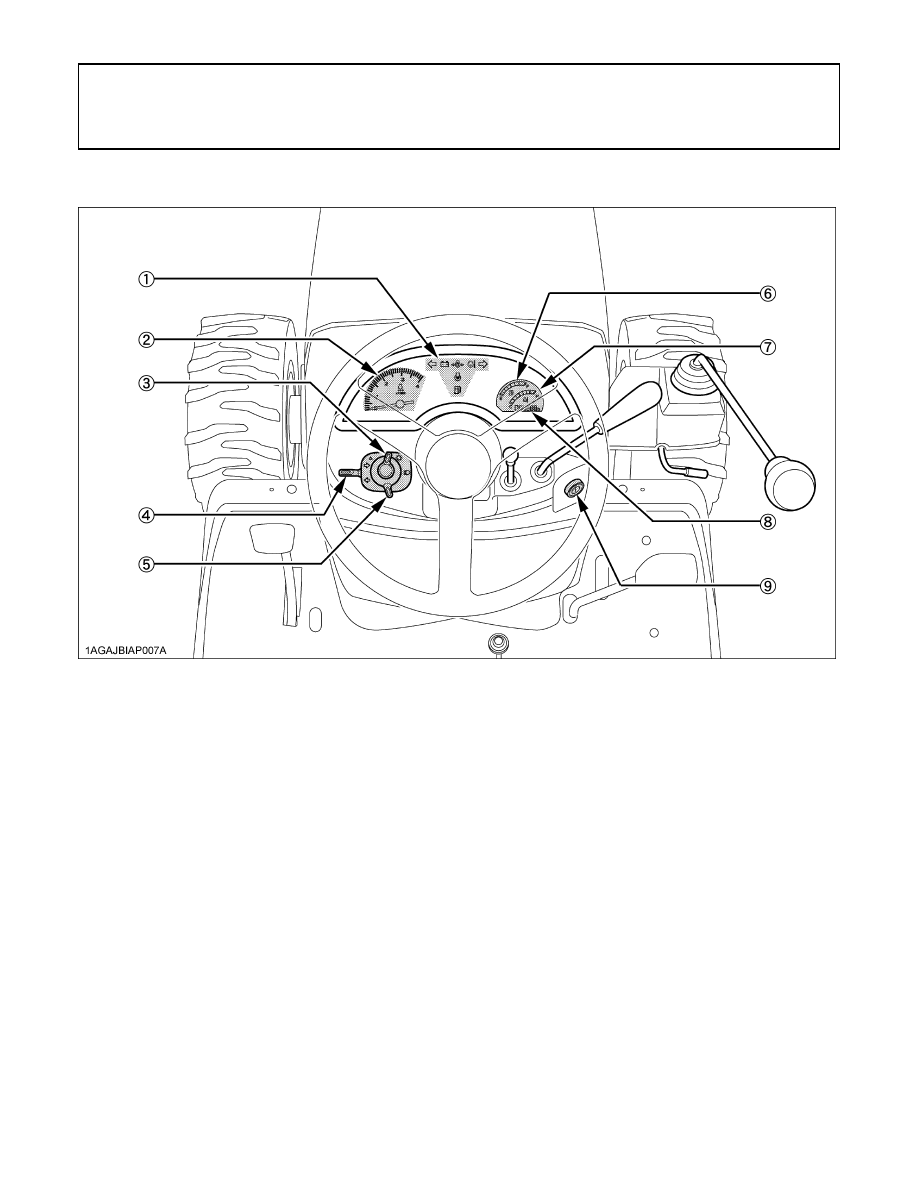

INSTRUMENT PANEL AND CONTROLS

INSTRUMENT PANEL AND CONTROLS

B

Instrument Panel, Switches and Hand Controls

ILLUSTRATED CONTENTS

(1) Easy Checker(TM)............................................... 24,37
(2) Tachometer..........................................................

38

(3) Hazard light switch................................................

32

(4) Turn signal light switch..........................................

32

(5) Head light switch...................................................

32

(6) Fuel gauge...........................................................

37

(7) Coolant temperature gauge..................................

37

(8) Hourmeter............................................................

38

(9) Key switch............................................................

24
