Kubota tractor (BX25DLB-AU, LA240A, LA240A, AU-SG, BT602). OPERATOR'S MANUAL - part 9

5

SPECIFICATIONS OF THE LOADER

SPECIFICATIONS OF THE LOADER

LOADER SPECIFICATIONS

BUCKET SPECIFICATIONS

A

LA240A AU-SG means spill guard model.

LOADER MODEL

LA240A

LA240A AU-SG

TRACTOR MODEL

BX25DLB-AU

BOOM CYLINDER

BORE mm

40

STROKE mm

326

BUCKET CYLINDER

BORE mm

65

STROKE mm

196

CONTROL VALVE

1 Detent Float Position, 2 Stage Bucket Dump,

Power Beyond Circuit

RATED FLOW

L/m

14

MAXIMUM PRESSURE

MPa (kg/cm )

12.3 (125)

NET WEIGHT (APPROXIMATE)

kg

170

175

LOADER MODEL

LA240A / LA240A AU-SG

MODEL

SQUARE 48"

TYPE

RIGID

WIDTH

mm

1219

DEPTH (L)

mm

495

HEIGHT (M)

mm

465

LENGTH (N)

mm

538

CAPACITY

STRUCK m

0.14

HEAPED m

0.17

WEIGHT

kg

60

6

SPECIFICATIONS OF THE LOADER

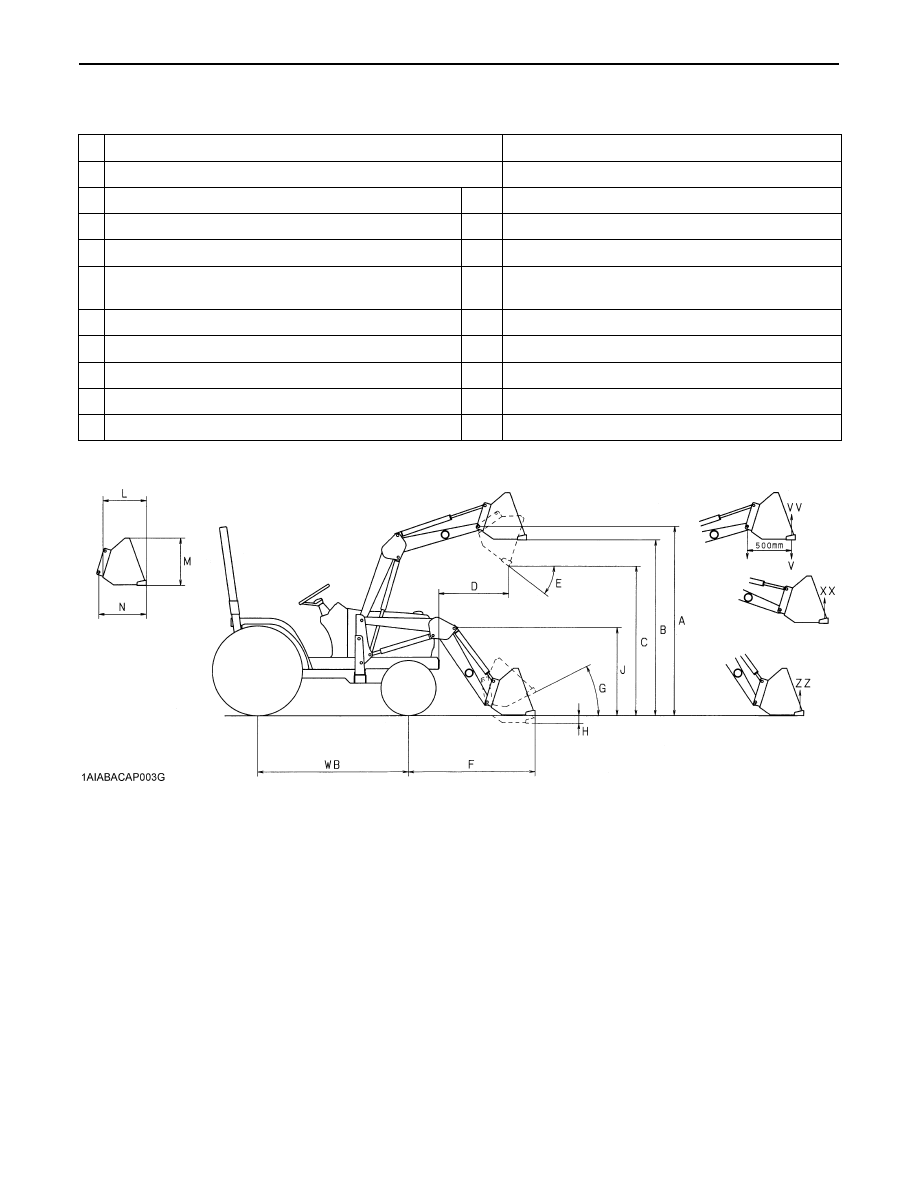

DIMENSIONAL SPECIFICATIONS

LOADER MODEL

LA240A / LA240A AU-SG

TRACTOR MODEL

BX25DLB-AU

A MAX. LIFT HEIGHT (TO BUCKET PIVOT PIN)

mm

1810

B MAX. LIFT HEIGHT UNDER LEVEL BUCKET

mm

1680

C CLEARANCE WITH BUCKET DUMPED

mm

1330

D

REACH AT MAX. LIFT HEIGHT
(DUMPING REACH)

mm

660

E MAX. DUMP ANGLE

deg.

45

F REACH WITH BUCKET ON GROUND

mm

1390

G BUCKET ROLL-BACK ANGLE

deg.

29

H DIGGING DEPTH

mm

120

J OVERALL HEIGHT IN CARRYING POSITION

mm

990

7

SPECIFICATIONS OF THE LOADER

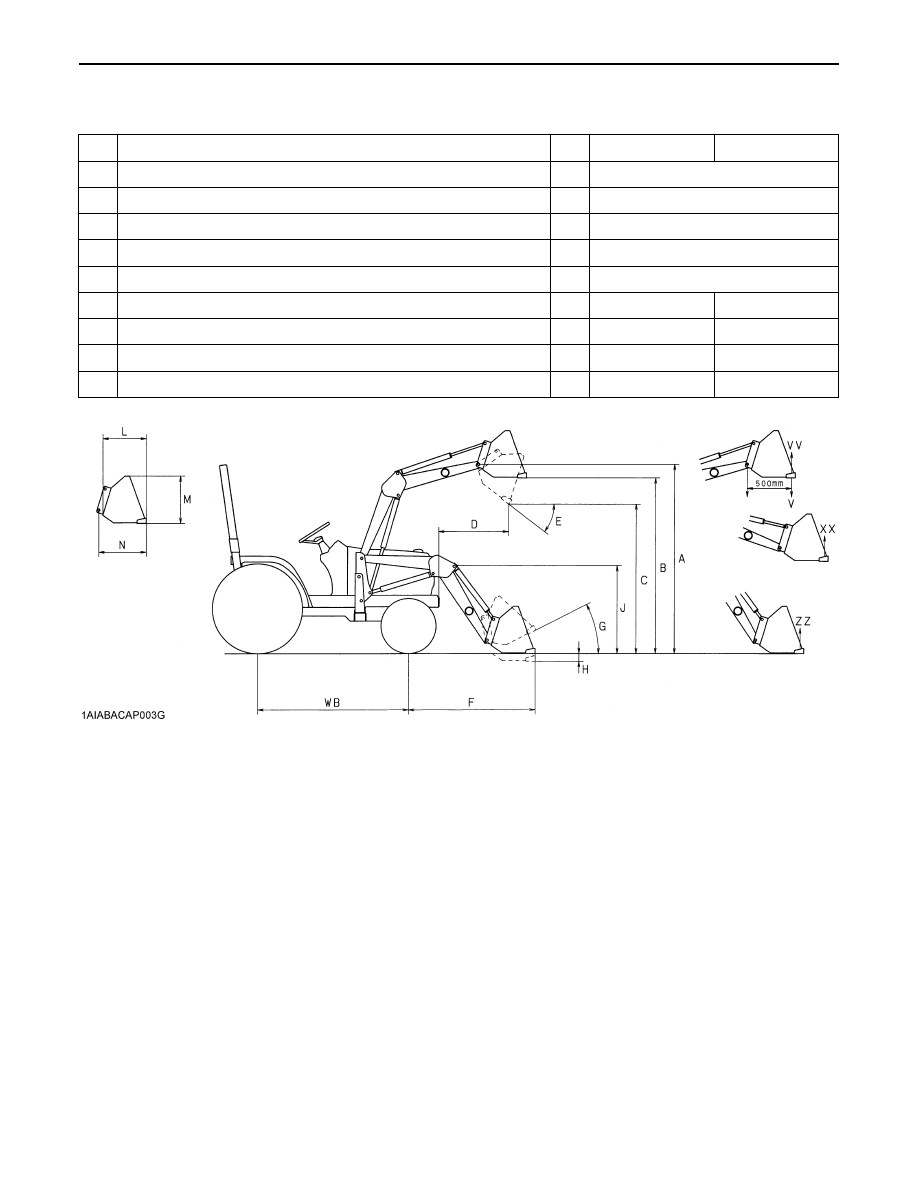

OPERATIONAL SPECIFICATIONS

LOADER MODEL

LA240A

LA240A AU-SG

TRACTOR MODEL

BX25DLB-AU

V

RATED OPERATING LOAD  (500 mm FORWARD, MAX. HEIGHT) kg

220

VV BUCKET ROLL-BACK FORCE AT MAX. HEIGHT

N

4750

XX BUCKET ROLL-BACK FORCE AT 1500mm HEIGHT

N

5600

ZZ

BUCKET ROLL-BACK FORCE AT GROUND LEVEL

N

5490

RAISING TIME

sec.

3.2

3.2

LOWERING TIME

sec.

2.7

2.5

BUCKET DUMPING TIME

sec.

1.4

2.0

BUCKET ROLLBACK TIME

sec.

2.3

2.3

8

SPECIFICATIONS OF THE LOADER

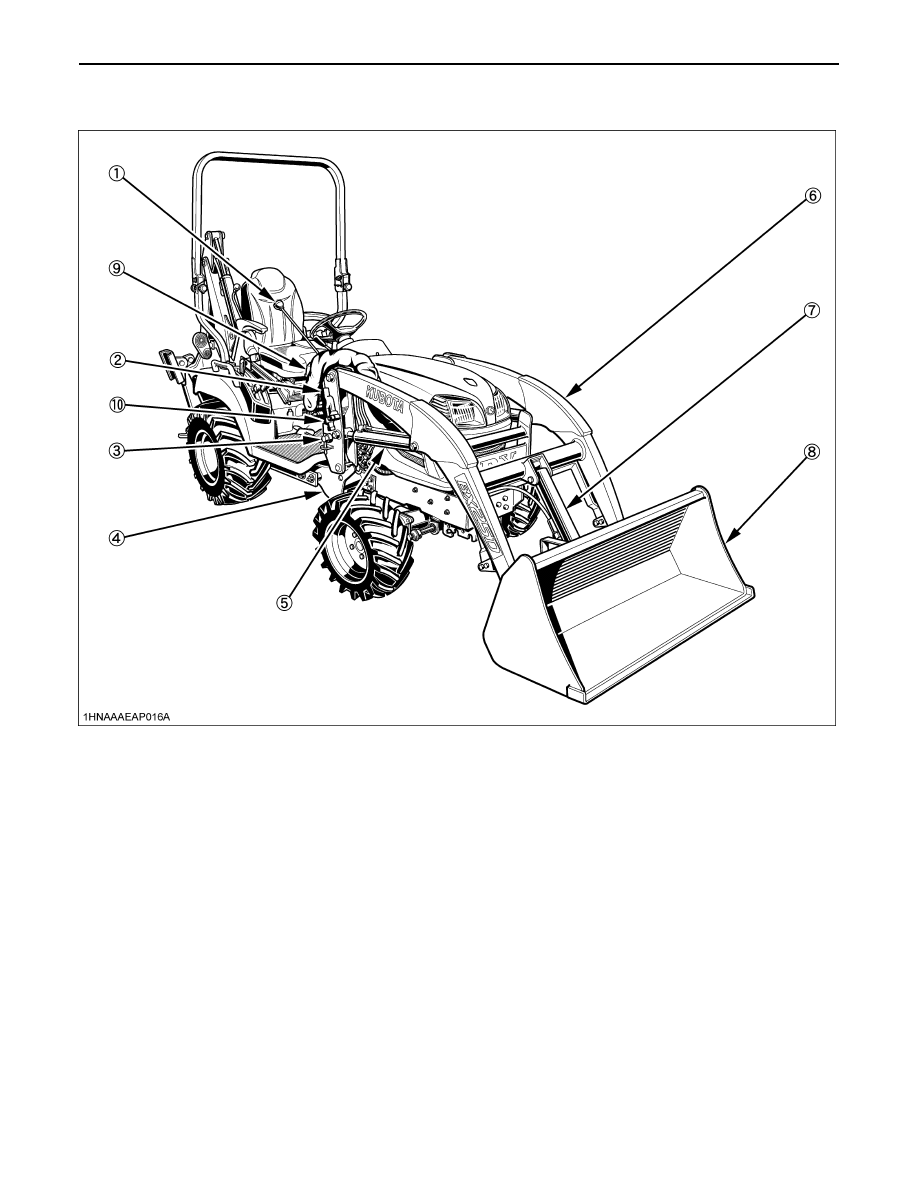

LOADER TERMINOLOGY

(1) Loader control lever
(2) Side frame
(3) Mounting pin
(4) Main frame
(5) Boom cylinder

(6) Boom
(7) Bucket cylinder
(8) Bucket
(9) Lock lever
(10) Spill guard valve (Spill guard model only)
