1

SERVICING

SERVICING

Your dealer is interested in your new tractor, loader and
backhoe and has the desire to help you get the most value
from them. After reading this manual thoroughly, you will
find that you can do some of the regular maintenance
yourself.
However, when in need of parts or major service, be sure
to see your KUBOTA Dealer.
For service, contact the KUBOTA Dealership from which
you purchased your tractor or your local KUBOTA Dealer.
When in need of parts, be prepared to give your dealer the
tractor, engine, loader and backhoe serial number.
Locate the serial numbers now and record them in the
space provided.

Concerning the tractor and loader, the reference to left
hand and right hand used in this manual refers to the
position when standing at the rear of the unit and facing
forward.

Concerning the backhoe, the reference to left hand and
right hand used in this manual refers to the position when
seating at the operator's seat at backhoe position and
facing rearward of the tractor.

C

Warranty

This tractor is warranted under the KUBOTA Limited
Express Warranty, a copy of which may be obtained from
your selling dealer. No warranty shall, however, apply if
the tractor has not been handled according to the
instruction given in the Operator's Manual even it is within
the warranty period.

C

Scrapping the tractor and its procedure

To put the tractor out of service, correctly follow the local
rules and regulations of the country or territory where you
scrap it. If you have questions, consult your local
KUBOTA Dealer.

Type

Serial No.

Tractor

BX25DLB-AU

ROPS

Engine

D902

Loader

LA240A
LA240A AU-SG

Backhoe

BT602

Date of Purchase

Name of Dealer

  (To be filled in by purchaser)

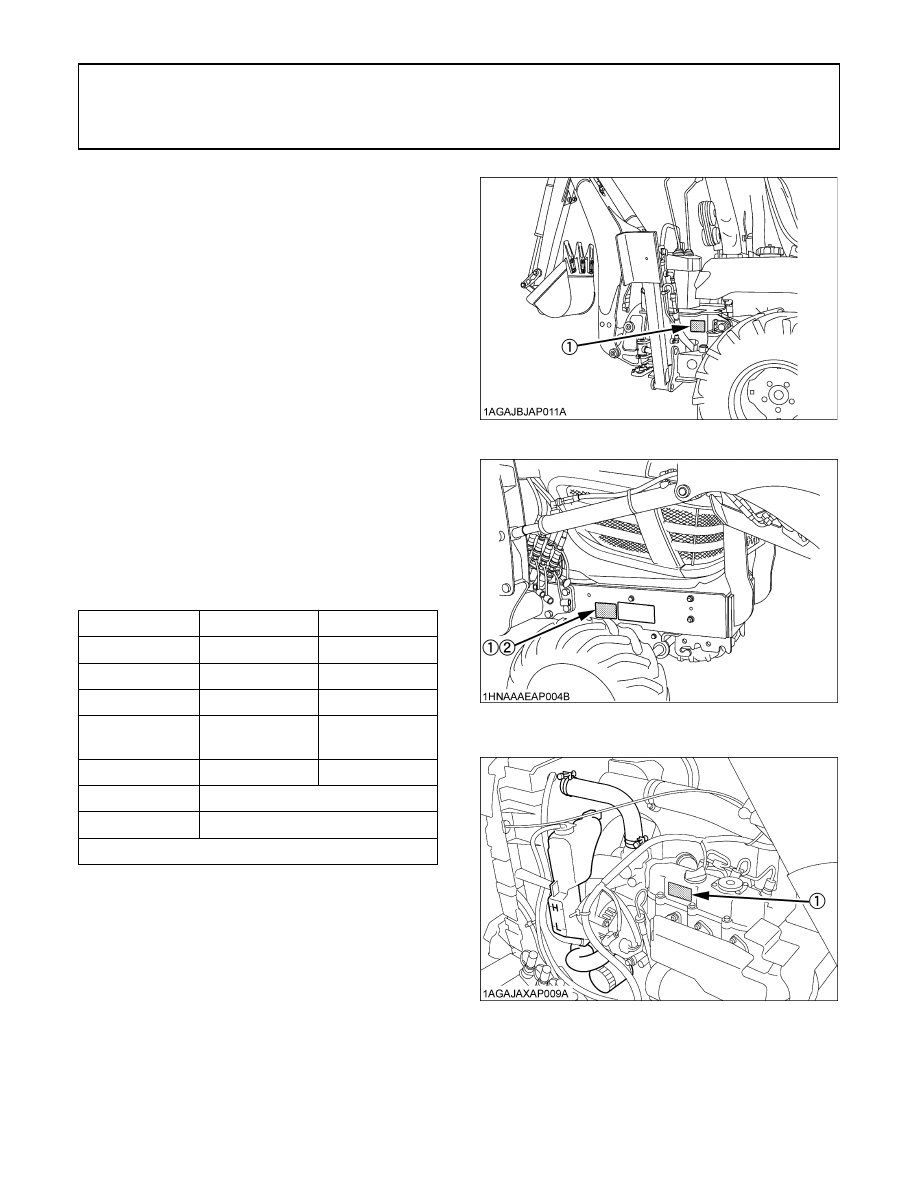

(1) Backhoe serial number

(1) Tractor identification plate
(2) Tractor serial number

(1) Engine serial number

SERVICING

2

A

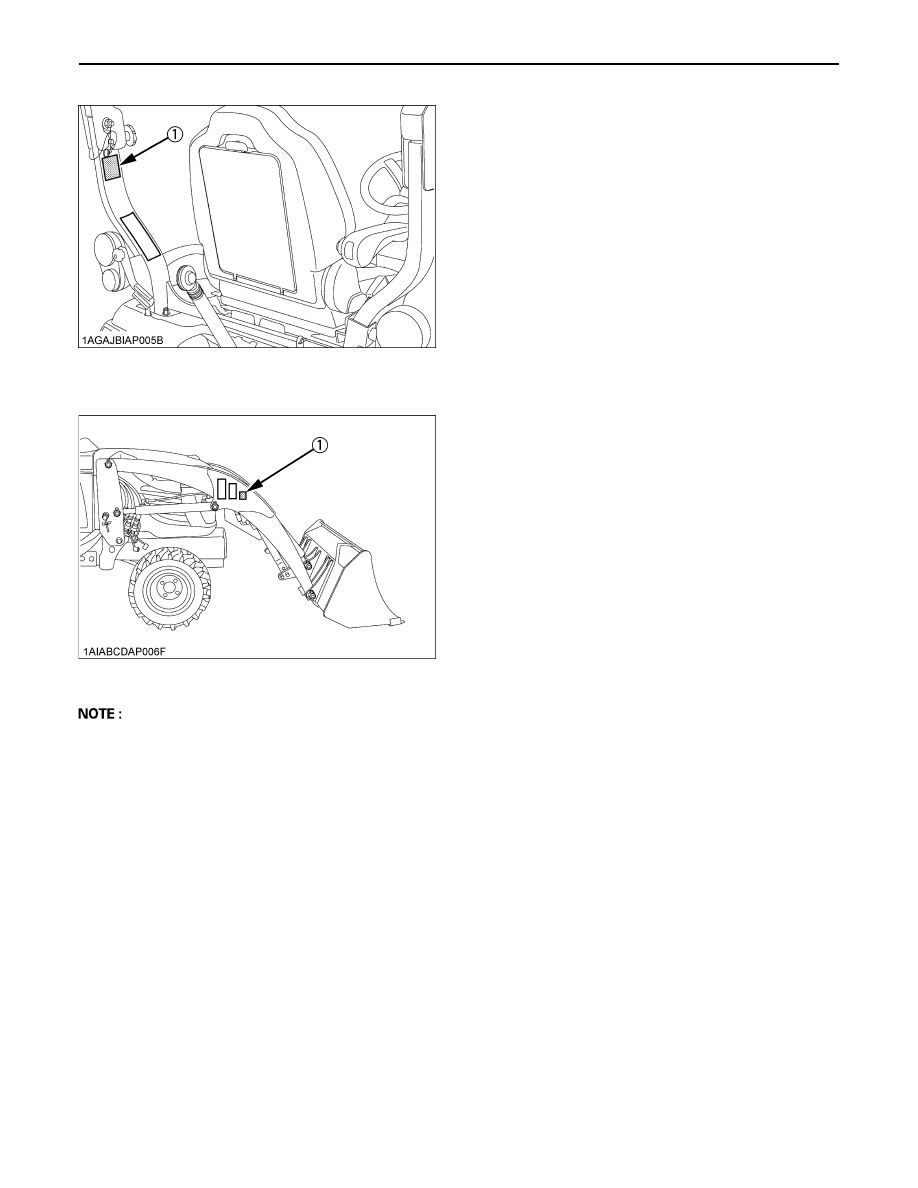

The loader serial number label (1) is attached to the
inside of the boom.

(1) ROPS identification plate
     (ROPS serial No.)

(1) Loader serial number

3

SPECIFICATIONS OF THE TRACTOR

SPECIFICATIONS OF THE TRACTOR

SPECIFICATION TABLE

Model

BX25DLB-AU

PTO power *1                                                                              kW (HP)

13.2 (17.7)

Engine

Maker

KUBOTA

Model

D902

Type

Indirect injection, vertical, water-cooled, 4-cycle diesel

Number of cylinders

3

Bore and stroke                                                   mm

72 x 73.6

Total displacement                                            cm

898

Engine gross power *2                           kW (HP)

17.1 (23.0)

Rated revolution                                                 rpm

3200

Low idling revolution                                         rpm

1350 to 1450

Maximum torque                                                N-m

56.1

Battery

12V, RC: 80min, CCA: 540A

Fuel

Diesel fuel No.2 [above -10

(14

)] Diesel fuel No.1 [below -10

(14

)]

Capacities

Fuel tank                                                                      L

25

Engine crankcase (with filter)                             L

3.1

Engine coolant                                                          L

2.7

Recovery tank                                                           L

0.4

Transmission case                                                  L

11.6

Dimensions

Overall length (without 3P)                             mm

2120

Overall length (with 3P)                                mm

2425

Overall width                                                 mm

1145

Overall height

(with ROPS)                        mm

2215

                                       mm

1255 (Top of seat)

Wheel base                                                    mm

1400

Min. ground clearance                                   mm

175

Tread

Front                              mm

930

Rear                              mm

820

Weight (with ROPS)                                                                kg

720

Clutch

N / A

Traveling

system

Tire

Front

18 x 8.50-10 (Turf, Bar, Ind.)

Rear

26 x 12.00-12 (Turf, Bar, Ind.)

Steering

Hydrostatic type power steering

Transmission

Main: Hydrostatic transmission, High-Low gear shift (2 forward, 2 reverse)

Brake

Wet disk type

Min. turning radius                                            m

2.3

4

SPECIFICATIONS OF THE TRACTOR

The company reserve the right to change the specifications without notice.
NOTE: *1 Manufacturer's estimate
             *2 SAE J1995
             *3 See and check "IMPLEMENT LIMITATIONS."

TRAVELING SPEEDS

                                                                                                                                                                                             (At rated engine rpm)

The company reserves the right to change the specifications without notice.

Hydraulic

unit

Hydraulic control system

Directional control, auto-return lever system

Pump capacity                                                   L/min.

23.5

System pressure                            MPa (kgf/cm )

12.3 to 12.8 (126 to 130)

3-point hitch

SAE Category 1

3-point hitch
Max. lift force *3

At lift points                               N

5390

24 in. behind lift points      N

3040

Remote control
valve coupler
(rear : Option)

System

2 valves

Coupler

ISO 7341 series A

Remote control
valve coupler
(front : Option)

System

2 valves

Coupler (nipple)

ISO 7241-1 series B

PTO

Rear PTO

SAE 1-3/8, 6 splines

Revolution

1 speed (540 rpm at 3142 engine rpm)

MID-PTO

USA No.5 (KUBOTA 10-tooth) involute spline

Revolution

1 speed (2500 rpm at 3043 engine rpm)

Model

BX25DLB-AU

Tire size (Rear)

26 X 12.00 - 12

Speed control pedal

Range gear shift lever

km / h

mph

Forward

Low

                 0 to 6.5

0 to 4.0

High

                 0 to 13.5

0 to 8.4

Reverse

Low

                 0 to 5.0

0 to 3.1

High

                 0 to 10.5

0 to 6.5

Model

BX25DLB-AU
