Index Tractors Model MA-30, MA-40, MA-50, MA-60, MA-70, MA-80 TOW Tractor - service manual 1995 year
|
|

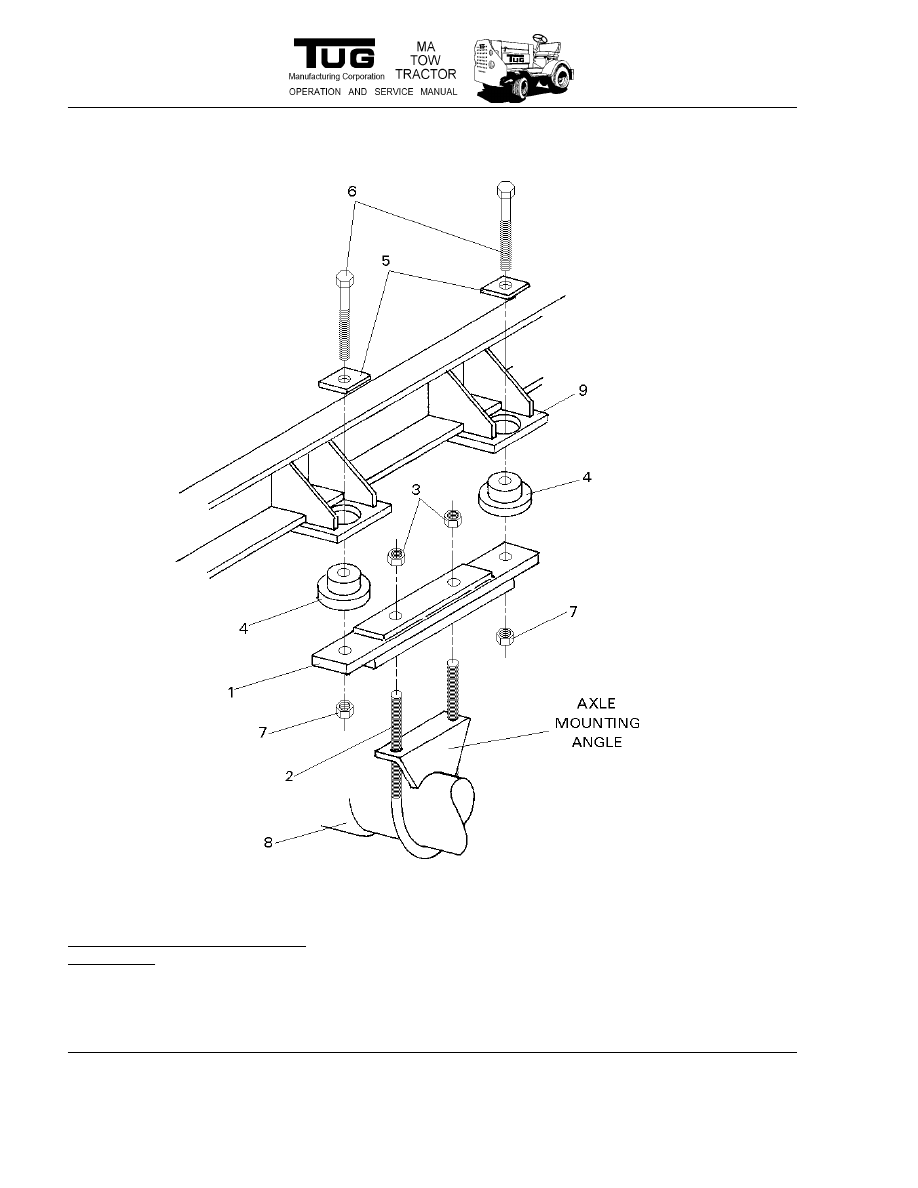

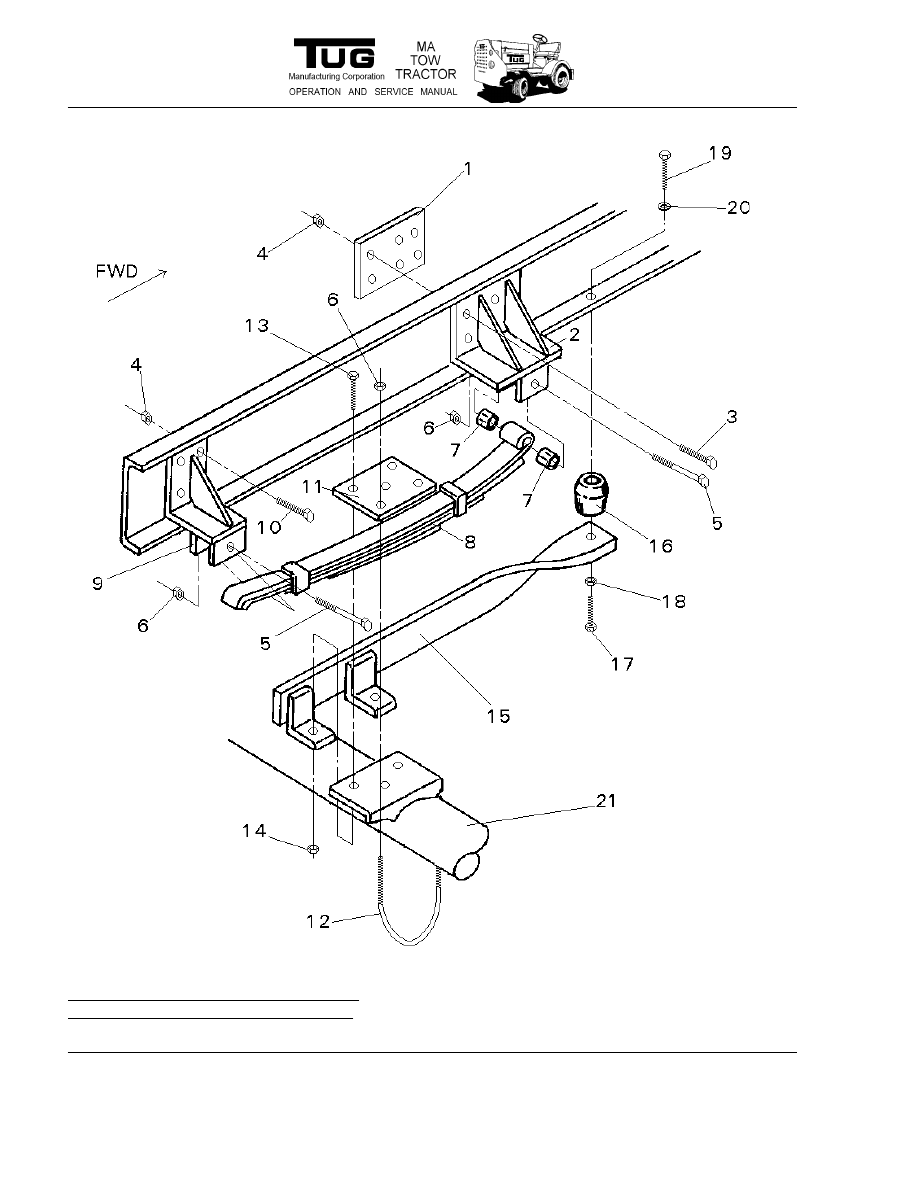

Chapter 4: Illustrated Parts List Jan. 1997 Section 4-2 p. 169 45-36 193 h505290 T6-2011-844 flat washer 18 001 & Up 45-37 193 o70hm124-4 T6-2011-843 hex head bolt 18 " 45-38 193 o70gs124 T6-2011-845 reduction gear, spur-type 1 Note 1 193 o70gs131 T6-2011-871 Reduction gear, helical 1 Note 2 45-39 193 565957 T6-2011-846-1 spur gear bearing 2 001 & Up 45-40 193 565958 T6-2011-846-2 cup, spur gear bearing 2 " 45-41 193 o70gs126 T6-2011-847 reduction pinion, spur-type 1 Note 1 193 o70gs132 T6-2011-872 Reduction pinion, helical 1 Note 2 45-42 193 o70hh104 T6-2011-809 seal, pinion 1 001 & Up 45-43 193 o70hm103 T6-2011-850 hex head bolt 14 " 45-44 193 o70hn102 T6-2011-851 nut 14 " 45-45 193 h506822 T6-2011-852 lock washer 33 " 45-46 193 o70hs101-1 T6-2011-853-1 shim, adjusting, .003" Ref. As Req'd 193 o70hs101-2 T6-2011-853-2 shim, adjusting, .005" Ref. " 193 o70hs101-3 T6-2011-853-3 shim, adjusting, .020" Ref. " 45-47 193 o70cp101 T6-2011-854 cap, bearing retainer 1 001 & Up 45-48 193 o70hm105 T6-2011-855 hex head bolt 5 " 45- 193 2-1-2221 ----------------- companion flange assembly 1 " 45- 193 30185 T6-2011-856 pinion nut 1 " 45- 193 30186 T6-2011-857 washer, pinion nut 1 " 45- 193 706999-9x T6-2001-858 kit, drive gear and pinion assy (includes items 2 thru 10, 12, 13, 18 and 20) 1 " 45- 193 72150-5x T6-2001-859 kit, drive gear and pinion (includes items 2, 6, 9, 10 and 20) 1 " 45- 193 706731-x T6-2001-860 kit, differential case assembly (includes items 17 through 26) 1 " 45- 193 706732-x T6-2011-861 kit, differential case (includes items 18, 19, 20 and 26) 1 001 & Up 45- 193 706602-x T6-2011-862 kit, differential parts (includes items 12, 13 and 20 through 26) 1 " 45- 193 706603-x T6-2011-863 kit, pinion and bearing adjustment shims (incl. items 4, 7, 9, 10, 12 and 13) 1 " 45- 193 706713-x T6-2011-864 kit, differential adjusting shims (incl. items 12, 13 and 18) 1 " 45- 193 766714-x T6-2011-865 kit, differential and pinion shims (includes items 4, 7, 9, 10, 12, 13 and 18) 1 " 45- 193 707102-x T6-2011-866 kit, gear carrier cover assembly (includes items 11 through 15) 1 " 45- ----- ---------------- T6-3003-105 lug nut 16 " 1. Used on all units equipped with Dana drive axles through serial number 6967. These tractors are equipped with Dana drive axle model 070-AF-109-4 with spur-type gears. See insert, FIGURE 45 for location of 2. Used on all units equipped with Dana drive axles from serial number 6968. These tractors are equipped with Dana drive axle models 070-AF-109-5 and 070-AF-138-1 with helical gears. See insert, FIGURE 45 Fig & Co Vendor Part Tug Part Number Description Qty Effective Ind# de Number |
