Model MA TOW Tractor. Manual - part 69

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 161

44-53

171 sn-920-1

T6-2001-141

stud, reduction gear box to axle housing

6

001 & Up

44-54

171 1229-y-1507

T6-2001-217

washer, gear case to axle housing

6

"

44-55

171 nl19-1

T6-2001-219

nut, gear case to axle housing

6

"

44-56

171 a-3875-a-651

T6-2001-215

case and cover assembly, reduction gear

1

Note 2

171 3289-q-1031

T6-2001-327

case and cover assembly, reduction gear

1

Note 3

44-57

171 2808-x-622

T6-2001-257

gasket, reduction gear box

1

001 & Up

44-58

141 1207k

T6-2001-247

bearing, input shaft, front

1

"

44-59

171 1844-a-131

T6-2001-249

spacer, input shaft bearing

2

"

44-60

171 3892-c-4163

T6-2001-251

input gear and shaft

1

Note 2

171 3892-x-5172

T6-2001-321

input gear and shaft

1

Note 3

44-61

171 1228-v-308

T6-2001-253

bearing with snap ring

1

Note 2

171 1228-t-1216

T6-2001-325

bearing with snap ring

1

Note 3

44-62

171 1854-m-169

T6-2001-255

snap ring, input shaft bearing

1

001 & Up

44-63

----- ----------------

7/16-14ncx1-3/4"

bolt, gear box cover

15

"

44-64

----- ----------------

7/16

lock washer

Ref.

"

44-65

----- ----------------

7/16-14nc

locknut, gear box cover

15

"

44-66

171 2808-c-913

T6-2001-267

gasket, input shaft cap

1

"

44-67

171 3866-a-989

T6-2001-269

cap, input shaft, rear

1

Note 2

171 3266-a-1171

T6-2001-329

cap, input shaft, rear

1

Note 3

44-68

171 s-268-1

T6-2001-273

cap screw, input shaft rear cover

4

001 & Up

44-69

171 a1199c1043

T6-2001-271

oil breather, gear box

1

"

44-70

171 p-18

T6-2001-265

fill plug, gear box oil

1

"

44-71

171 1846-c-159

T6-2001-263

dowel, gear box cover

1

"

44-72

171 1250-u-125

T6-2001-245

drain plug, gear box, magnetic

1

"

3. Used on all units equipped with Rockwell drive axles through serial number 6047. These tractors are

equipped with Rockwell drive axle model TA-267HDB102 with spur-type gears. See insert, FIGURE 44 for

location of model number on axle.

4. Used on all units equipped with Rockwell drive axles from serial number 6048. These tractors are

equipped with Rockwell drive axle model TA-267HDB113 with helical gears. See insert, FIGURE 44 for

location of model number on axle.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 162

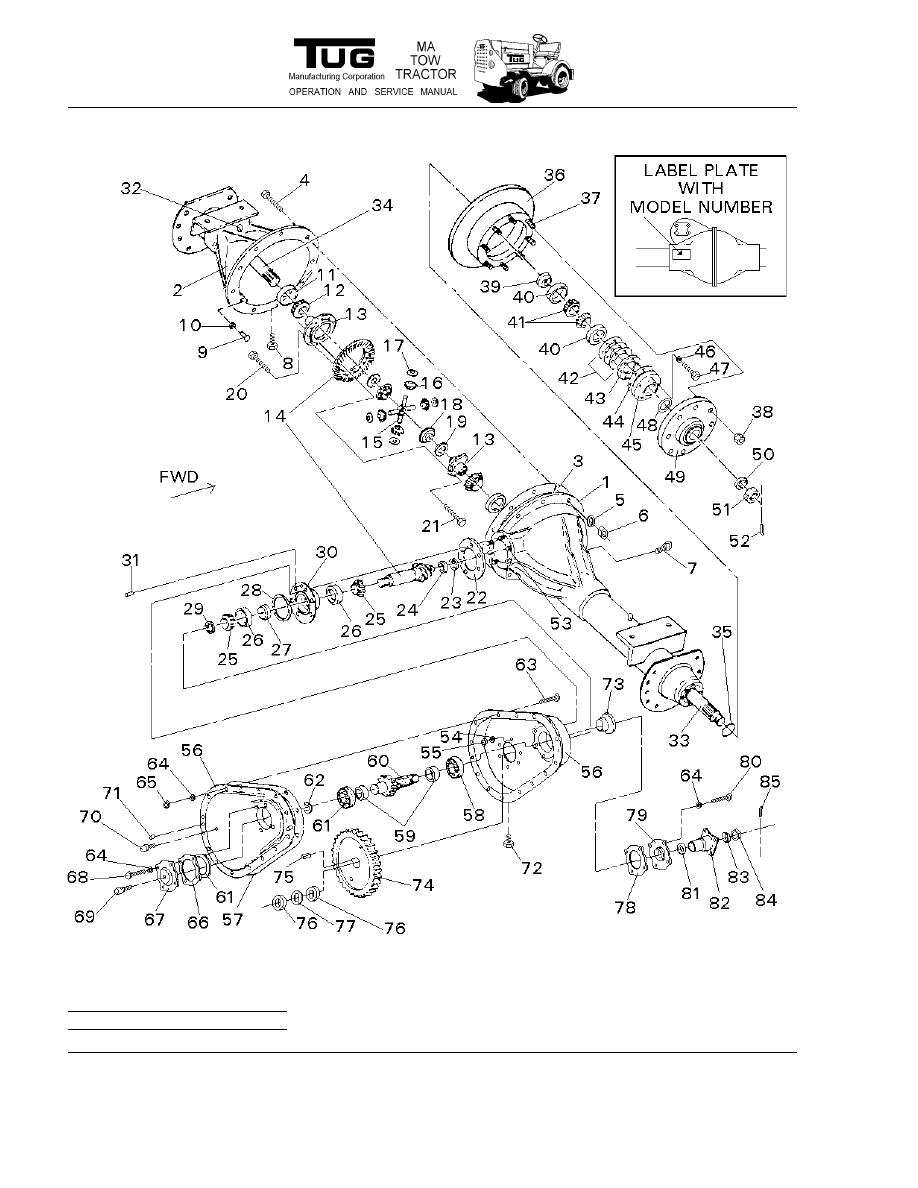

Figure 44: Rockwell Drive Axle
and Reduction Gear Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 163

44-73

171 a-11805-v-204

T6-2001-213

oil seal, reduction gear box

1

001 & Up

44-74

171 3892-x-1142

T6-2001-221

driven gear

1

Note 2

171 3892-y-5173

T6-2001-323

driven gear

1

Note 3

44-75

171 16x71

T6-2001-223

key, gear

1

001 & Up

44-76

171 1227-m-117

T6-2001-225

nut, bevel pinion bearing

2

"

44-77

171 1229-h-528

T6-2001-227

locknut, bevel pinion bearing

1

"

44-78

171 2808-c-913

T6-2001-267

gasket, input shaft, front cap

1

"

44-79

171 3266N100Z

T6-2001-237

cap, input shaft, front

1

001 - 6047

171 3266A1171

T6-2001-237

cap, input shaft, front

1

6048 & Up

44-80

171 s-2610-2

T6-2001-241

cap screw, input shaft front cover

4

001 & Up

44-81

141 CR17746

T6-2001-235

oil seal, input shaft

1

"

44-82

171 3897-z-1430

T6-2001-233

flange, input shaft

1

"

44-83

171 1829-t-592

T6-2001-231

washer, input shaft

1

"

44-84

171 1227g943

T6-2001-281

nut, input shaft

1

"

44-85

171 2412

T6-2001-229

cotter pin, input shaft nut

1

"

3. Used on all units equipped with Rockwell drive axles through serial number 6047. These tractors are equipped with

Rockwell drive axle model TA-267HDB102 with spur-type gears. See insert, FIGURE 44 for location of model number

on axle.

4. Used on all units equipped with Rockwell drive axles from serial number 6048. These tractors are equipped with

Rockwell drive axle model TA-267HDB113 with helical gears. See insert, FIGURE 44 for location of model number on

axle.

5. Axle shaft kit T6-2001-501K includes items 39 through 45.

6. Gasket and seal kit T6-2001-601K includes items 22, 28, 42, 44, 45, 57, 66, 78 and 81 and RTV sealant T6-2001-

157.

7. Shim size .003 is Tug part T6-2001-172; Rockwell #2803-5-2099.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 164

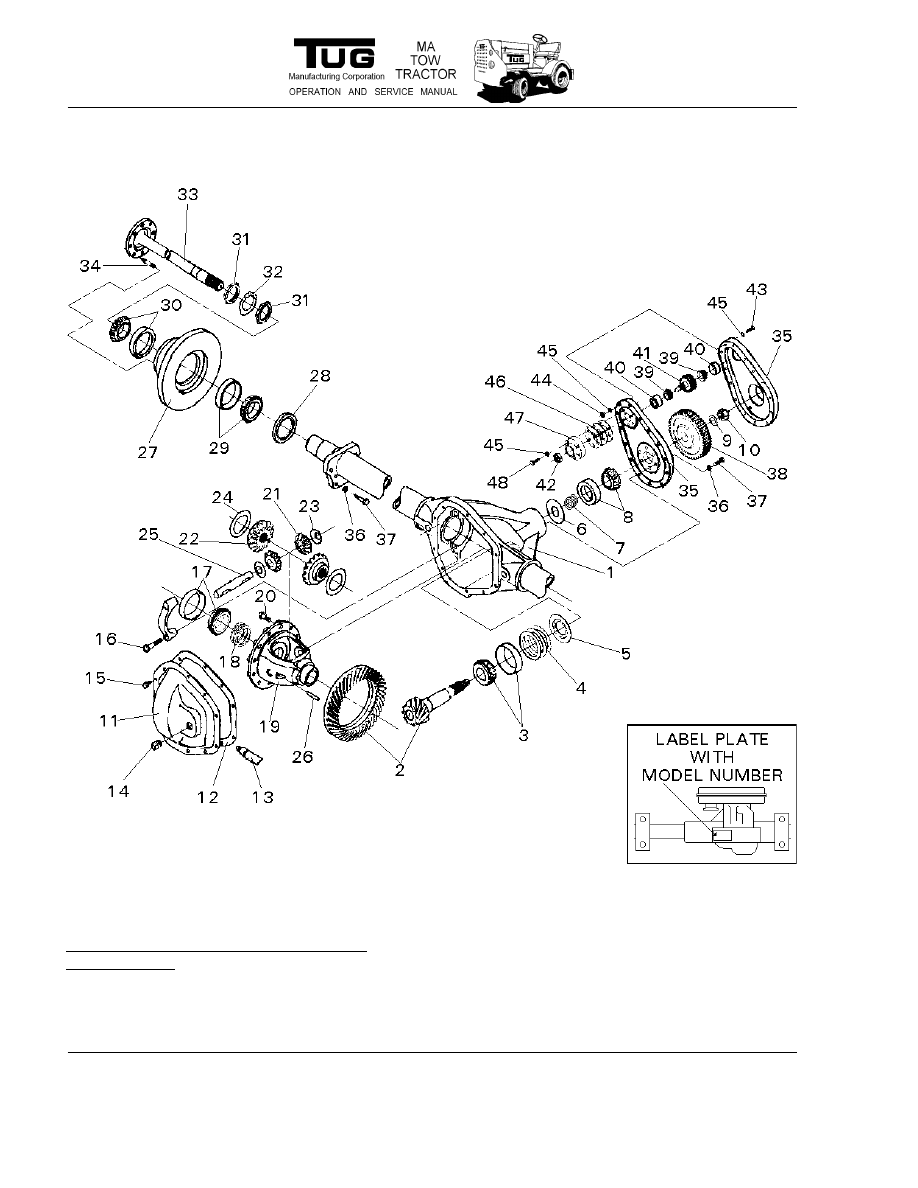

Figure 45: Dana Drive Axle and Reduction
Gear Assembly
